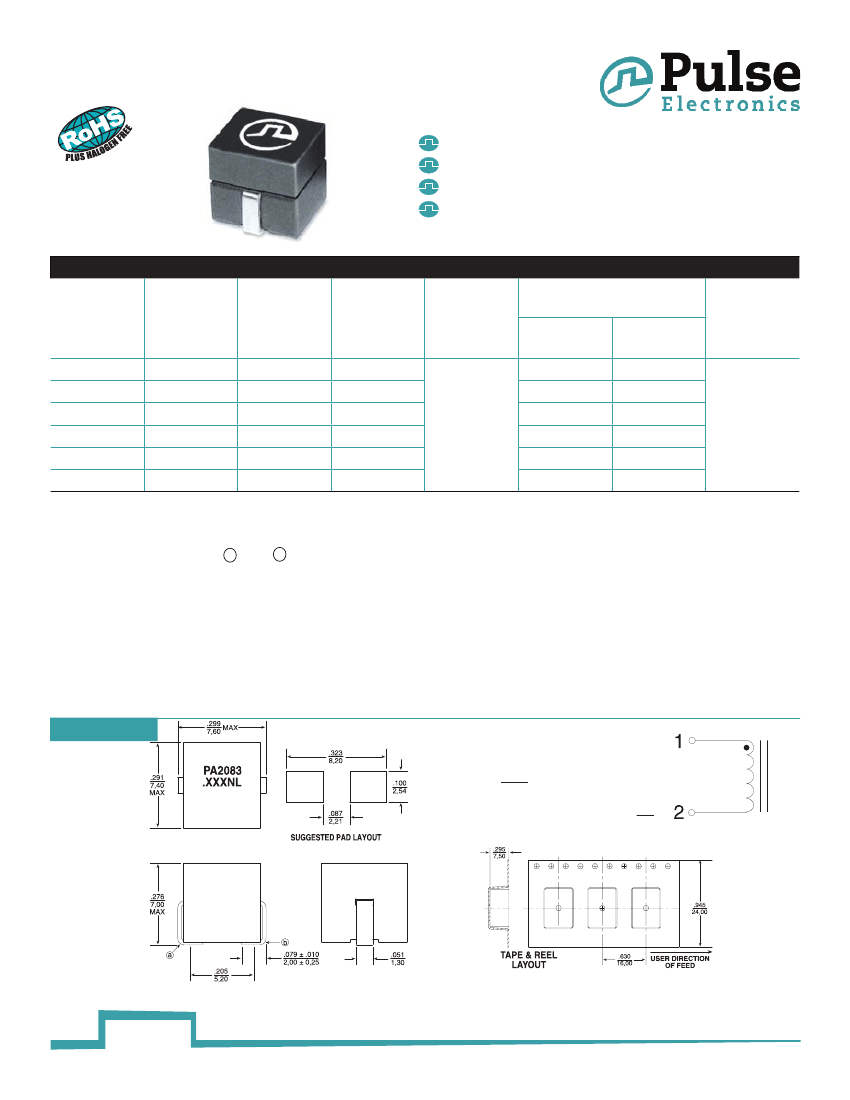

SMT Power Inductors
Power Beads - PA2083NL Series
Current Rating:
Over 90Apk
Inductance Range:
70nH to 205nH
Height:
7.0mm Max
Footprint:
7.6mm x 7.4mm Max
Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C
7
Part
Number
PA2083.700NL *
PA2083.101NL *
PA2083.121NL *
PA2083.161NL *
PA2083.181NL *
PA2083.201NL *
Inductance
@ 0A
DC
(nH
±10%)
70
105
120
160
185
205
Inductance
@ Irated
(nH
TYP)
70
105
120
160
170
177
Irated
(A
DC
)
27
27
27
27
27
27
0.60
±8%
1
DCR
2
(mΩ)
93
61
55
41
36
32
Saturation Current
3
(A TYP)
25°C
100°C
75
54
48
38
33
29
Heating
4
Current
(A TYP)
27
Notes:
1. The rated current as listed is either the saturation current or the heating current depending 5. In high volt*time applications, additional heating in the component can occur due to
core losses in the inductor which may necessitate derating the current in order to limit
on which value is lower.
the temperature rise of the component. To determine the approximate total losses (or
2. The nominal DCR is measured from point a to point b , as shown on the mechanical
temperature rise) for a given application, the coreloss and temperature rise curves can
drawing below.
be used.

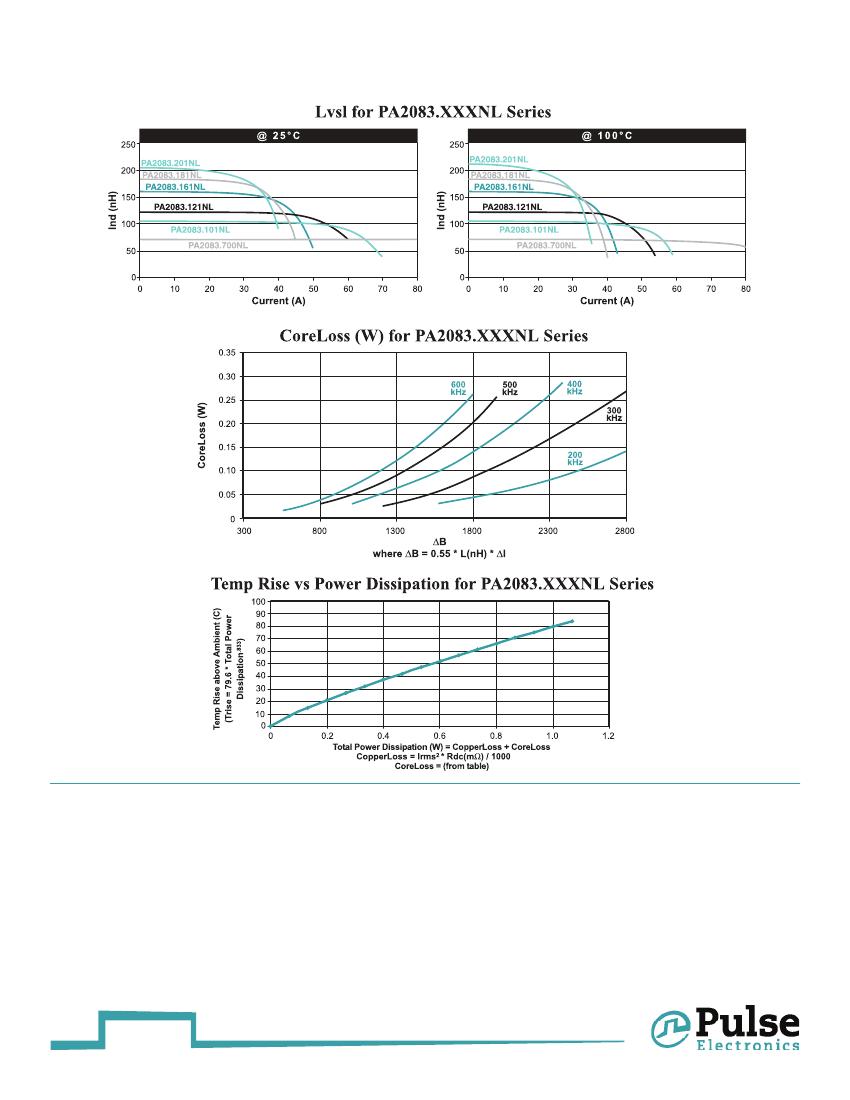

3. The saturation current is the typical current which causes the inductance to drop by 20% at
the stated ambient temperatures (25°C and 100°C). This current is determined by placing the 6. Optional tape and reel packaging can be ordered by adding a “T” suffix to the part
number (i.e. PA2083.700NL becomes PA2083.700NLT). Pulse complies to industry
component in the specified ambient environment and applying a short duration pulse
standard tape and reel specification EIA481.
current (to eliminate self-heating effects) to the component.
7. The temperature of the component (ambient plus temperature rise) must be within the
4. The heating current is the DC current which causes the part temperature to increase by
stated operating temperature range.
approximately 40°C.
* Contact Pulse for availability
Mechanical
Schematic
PA2083.XXXNL
D/C CTRY
Weight
................................1.5 grams
Tape & Reel
.........................500/reel
Inches
Dimensions:
mm
Unless otherwise specified, all tolerances are
±
.010
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P659.E (03/14)
pulseelectronics.com
