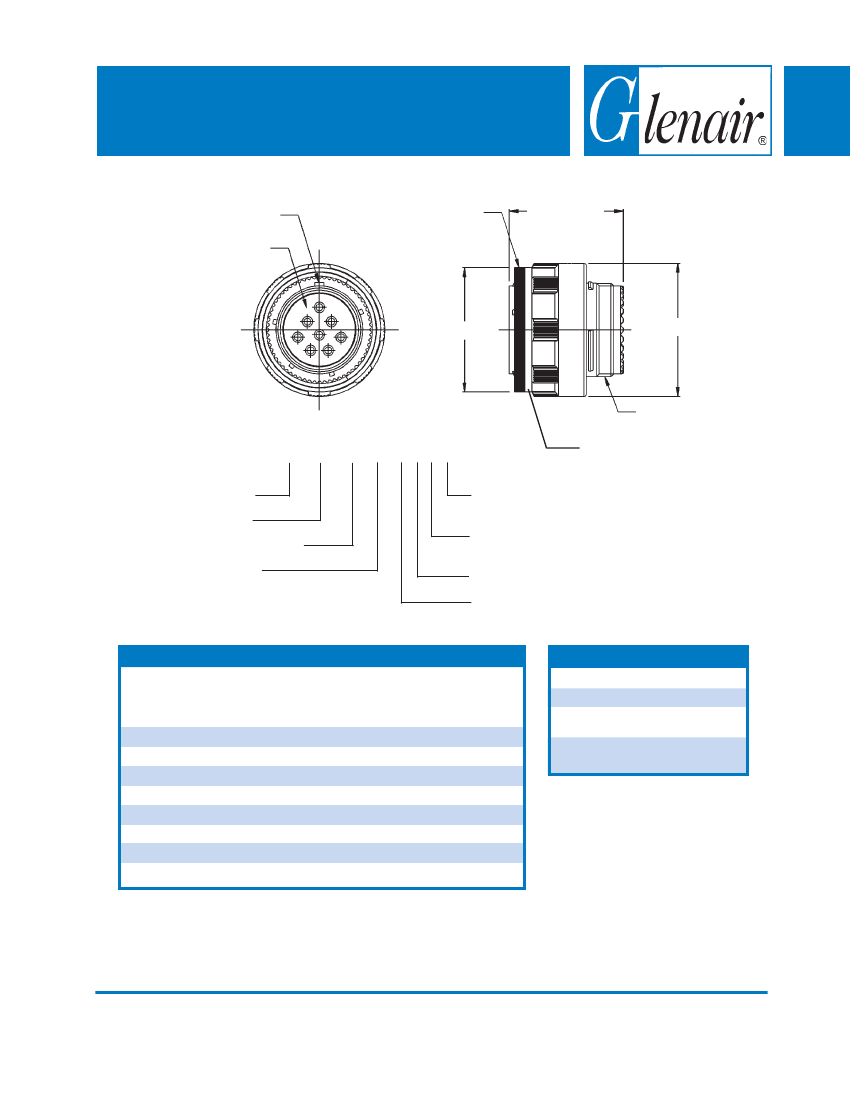

MIL-DTL-38999 Style Fiber Optic Connector
For use with MIL-T-29504/4 & /5 Termini
06 Plug
Master Key
See Insert Arrangements
on Page C-2
Blue Color Band
(See Note 2)
1.220 (31.0)
Max
CC Max
DD Max
EE Thread
Yellow Color Band
(Fiber Optic Indicator)
180-060 XW 06-17-8 P N
Product Series
Basic Number
Finish Symbol (Table II)
Connector Style
Alternate Key Position per MIL-DTL-38999
A, B, C, D, or E (N = Normal)
Insert Designator
P = Pin S = Socket
Insert Arrangement (See page C-2)
Shell Size (Table I)
TABLE I: SHELL SIZE
Shell
Size Shell
Code Size
B
C
D
E
F
G
H
J
NOTES:
1. Metric dimensions (mm) are in parentheses and are for reference only.
2. Blue Color band indicates rear release retention system.
© 2002 Glenair, Inc.
CAGE Codes 06324
TABLE II: FINISH
Symbol Finish Description
CC
Max
.929 (24.1)
1.110 (28.2)
1.232 (31.3)
1.358 (34.5)
1.469 (37.3)
1.594 (40.5)
1.720 (43.7)
1.843 (46.8)
DD
Max
.984 (25.0)
1.157 (29.4)
1.280 (32.5)
1.406 (35.7)
1.516 (38.5)
1.642 (41.7)
1.768 (44.9)
1.890 (48.0)
EE
Thread
M15 x 1.0-6g 0.100R
M18 x 1.0-6g 0.100R
M22 x 1.0-6g 0.100R
M25 x 1.0-6g 0.100R
M28 x 1.0-6g 0.100R
M31 x 1.0-6g 0.100R
M34 x 1.0-6g 0.100R
M37 x 1.0-6g 0.100R
XM
XW
XZN
Electroless Nickel
Cadmium Olive Drab over
Electroless Nickel
Zinc-Nickel over
Electroless Nickel
11
13
15
17
19
21
23
25
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-3
Fiber Optic
Connectors
