1804136: DescriptionTERM BLOCK HDR 9POS 90DEG 5.08MM; CategoryThe connector terminals; File Size82KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1804136 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1804136	-	-	View	Buy Now

1804136 Overview

TERM BLOCK HDR 9POS 90DEG 5.08MM

1804136 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	9
Rated current	12 A
Rated voltage	250 V
safety certificate	CB; CSA; CUL; EAC; UL; VDE
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/pi/products/1804136

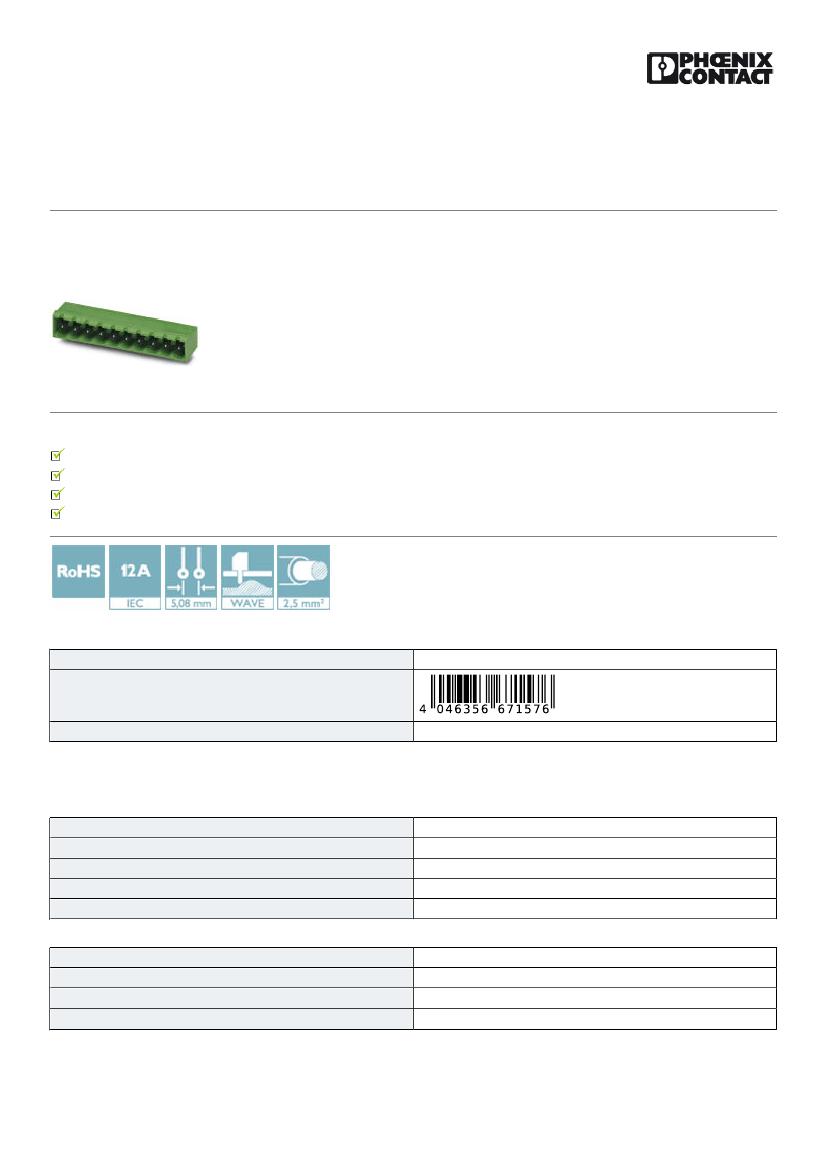

MSTBA 2,5/ 9-G-5,08 GY7035 - 1804136

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB header, nominal current: 12 A, number of positions: 9, pitch: 5.08 mm, color: light gray, contact surface:

Tin, mounting: Wave soldering

The figure shows a 10-position

version of the product

Why buy this product

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Well-known mounting principle allows worldwide use

Plug-in direction parallel to the PCB

Closed contour for optimum stability of the plug-in connection

Key Commercial Data

Packing unit

GTIN

4046356671576

50 pc

Technical data

Dimensions

Pitch

Dimension a

Height

Length of the solder pin

Pin dimensions

5.08 mm

40.64 mm

9 mm

3.5 mm

1 x 1 mm

General

Range of articles

Rated voltage (III/3)

Connection in acc. with standard

Nominal current I

N

MSTBA 2,5/..-G

250 V

EN-VDE

12 A

10/03/2018 Page 1 / 3
