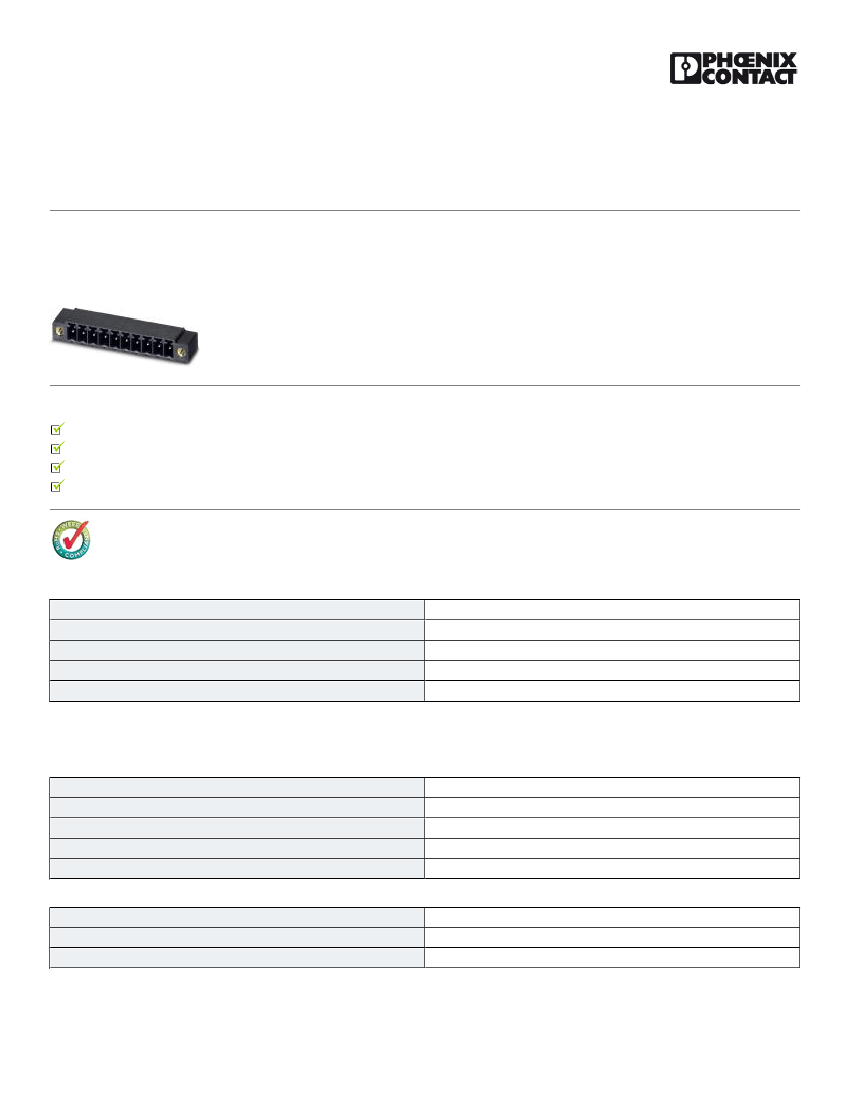

Printed-circuit board connector - MC 1,5/ 2-GF-3,81 P14 THR - 1781803
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Assembly: SMD/THT/THR
Product Features
Low-profile THR headers with a compact pitch
Plug-in direction parallel to the PCB
Pitch: 3.81 mm
Use in SMT reflow processes
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
1.8 GRM
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
9.2 mm
3.81 mm
3.81 mm
0,8 x 0,8 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
MC 1,5/..-GF-THR
IIIa
2.5 kV
10/27/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1781803
Printed-circuit board connector - MC 1,5/ 2-GF-3,81 P14 THR - 1781803
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
8A
LCP
V0
black
2
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 4.0
ETIM 5.0
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
10/27/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1781803
Printed-circuit board connector - MC 1,5/ 2-GF-3,81 P14 THR - 1781803
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
GOST
GOST
cULus Recognized
Drawings
10/27/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1781803
Printed-circuit board connector - MC 1,5/ 2-GF-3,81 P14 THR - 1781803
Drilling diagram
a
3,5
(3,81)
6,9
(7,1)
18,7
Dimensioned drawing
Ø1,4
9,2
a+13,8
(a+14,2)
8
11,1
1,4
6,9
8
4,3
(4,5)
a
3,5
(3,81)
Diagram
16
14
12
10
8
6
4
2
0
0
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
Ambient temperature [°C]
Type: FK-MCP 1,5/...-STF-3,81 with MC 1,5/...-GF-3,81 P... THR
