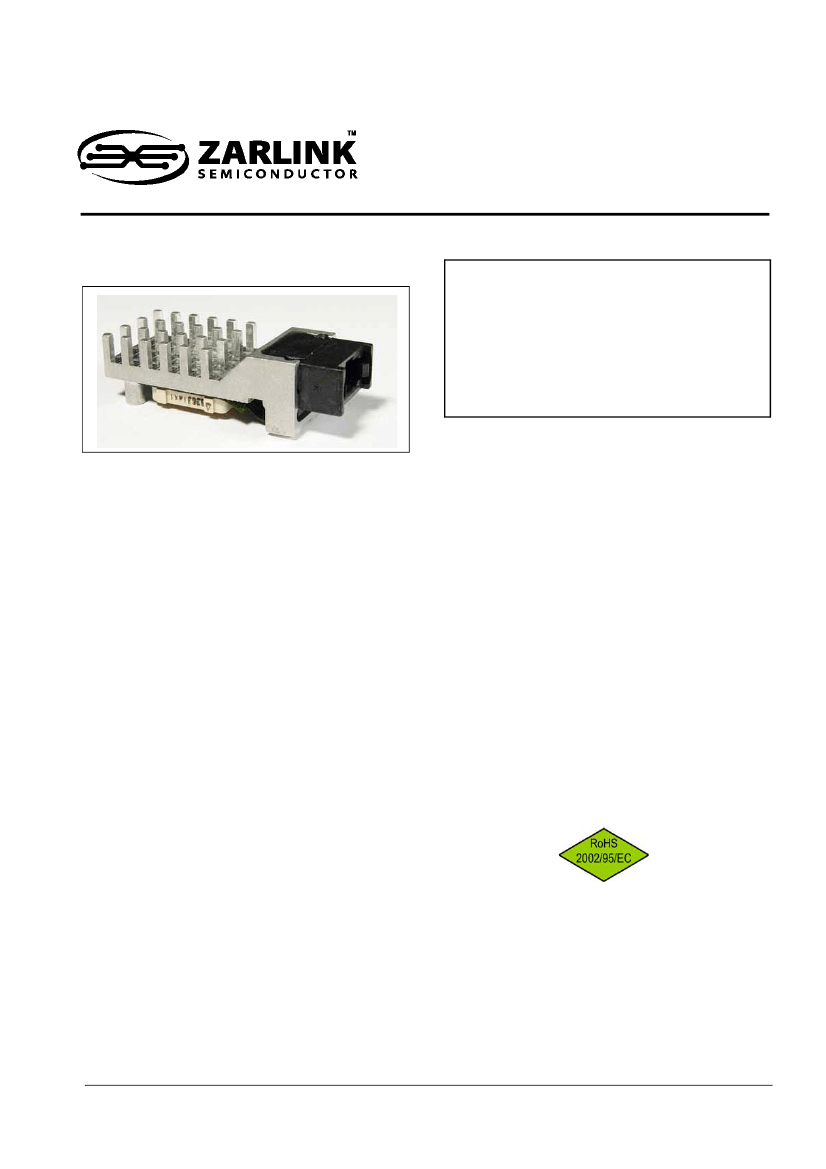

ZL60101/2
12 x 2.7 Gbps Parallel Fiber Optic Link
Transmitter and Receiver
Shortform Data Sheet
A full Data Sheet is available to qualified customers. To
register, please send an email to opto@zarlink.com.
Ordering Information
ZL60101MLDC Parallel Fiber Transmitter
ZL60102MLDC Parallel Fiber Receiver
ZL6010xMMDC Parallel Fiber Module with
EMI gasket
0°C to +80°C
March 2007
Description
Features
•
•
•
•
•
•
•
•
•
•
•
12 parallel channels, total 32.6 Gbps capacity
Data rate up to 2.72 Gbps per channel
850 nm VCSEL array
Link reach 300 m with 50/125
µm
500 MHz
.
km
fiber at 2.5 Gbps
Channel BER better than 10
-12
Industry standard MPO/MTP ribbon fiber
connector interface
Pluggable MegArray
®
ball grid array connector
Optionally available with EMI shield

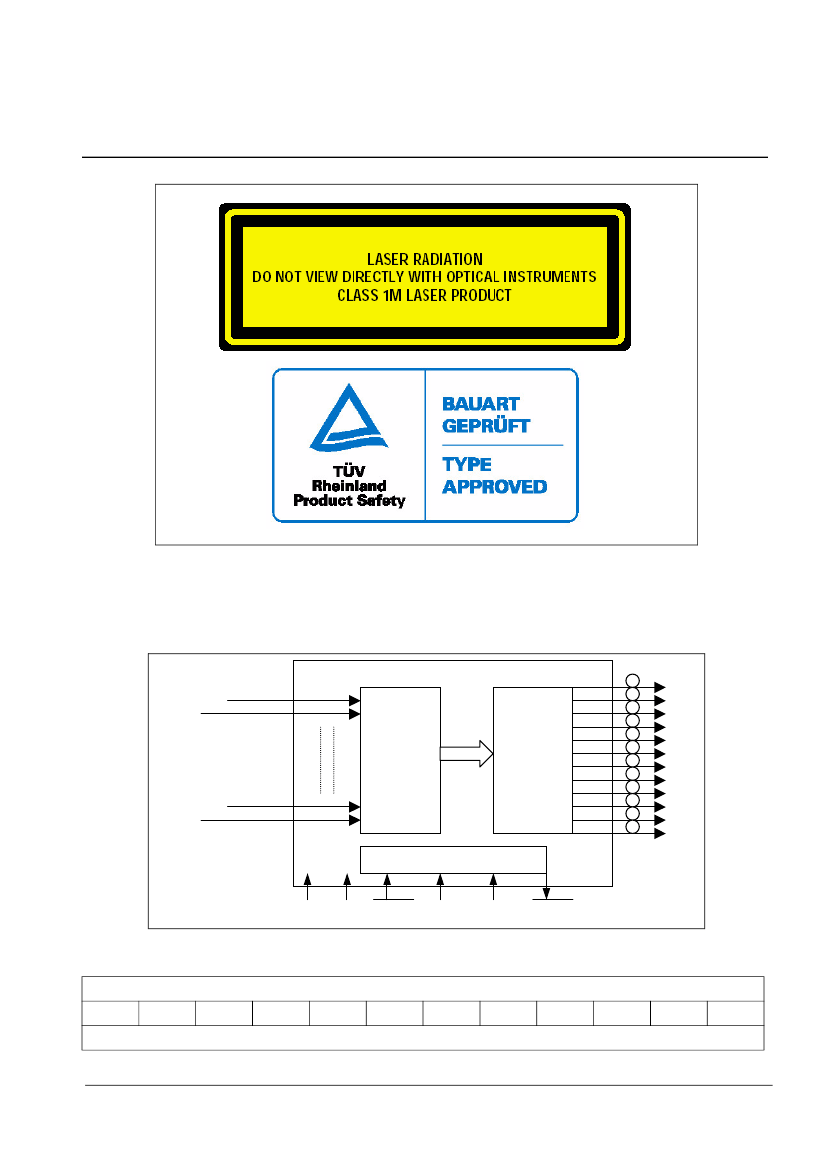

Laser class 1M IEC 60825-1:2001 compliant
Power supply 3.3 V
Compatible with industry MSA
The ZL60101 and ZL60102 together make a high
speed transmitter/receiver pair for parallel fiber
applications.
The ZL60101 transmitter module converts parallel
electrical input signals via a laser driver and a VCSEL
array into parallel optical output signals at a wavelength
of 850 nm.
The ZL60102 receiver module converts parallel optical
input signals via a PIN photodiode array and a
transimpedance and limiting amplifier into electrical
output signals.

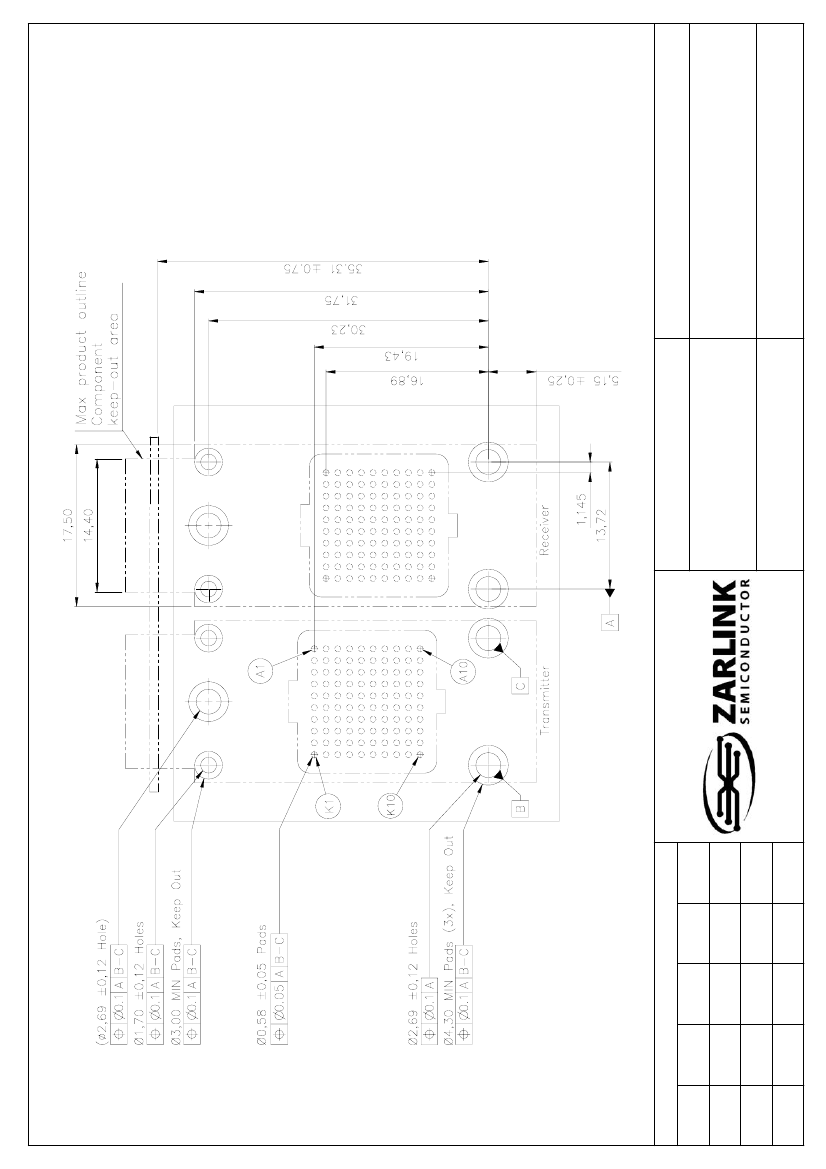

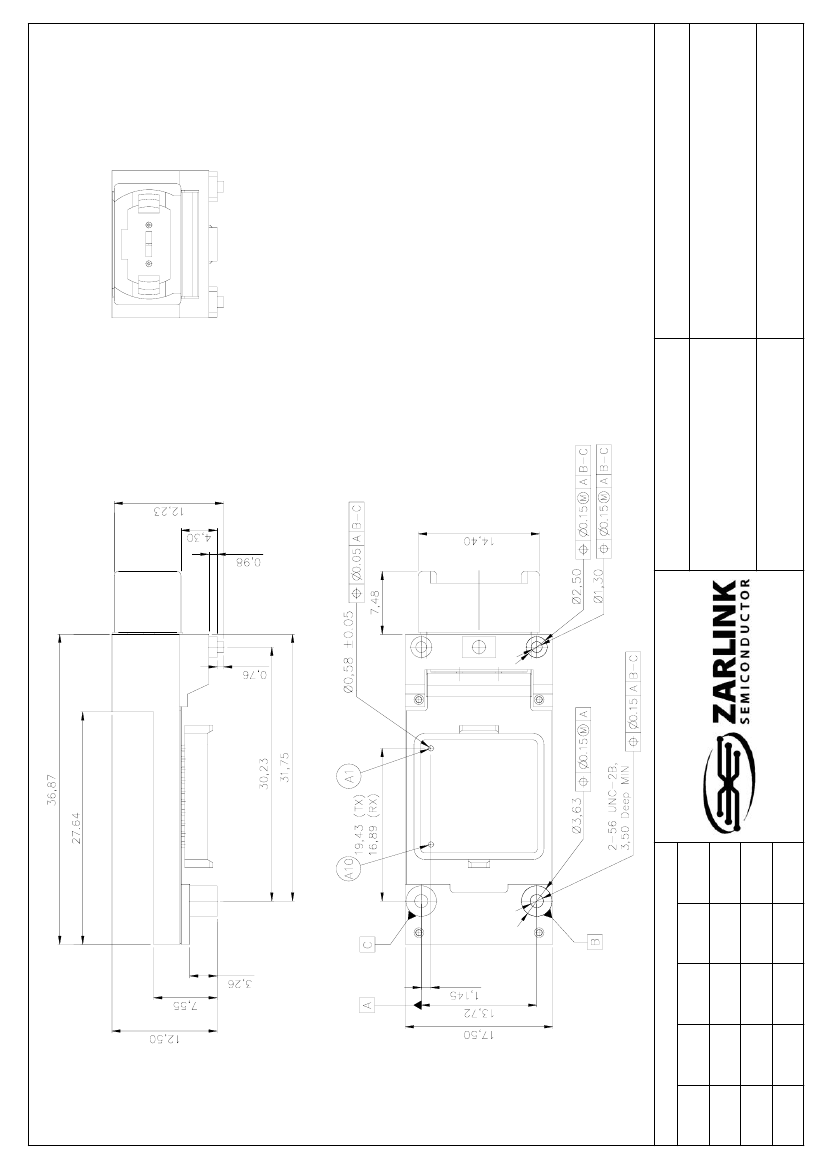

The modules are pluggable each fitted with an industry-
standard MegArray
®
BGA connector. This provides
ease of assembly on the host board and enables
provisioning of bandwidth on demand.
Reliability assurance is based on Telcordia GR-468-
CORE and the parts are compliant to the EU directive
2002/95/EC issued 27 January 2003 [RoHS].
Applications
•
•
•
•
High-speed interconnects within and between
switches, routers and transport equipment
Low cost SONET/SDH VSR (Very Short Reach)
OC-192/STM64 connections
InfiniBand
®
connections
Interconnects rack-to-rack, shelf-to-shelf, board-
to-board, board-to-optical backplane
Exemption 6 & 7
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2007, Zarlink Semiconductor Inc. All Rights Reserved.
