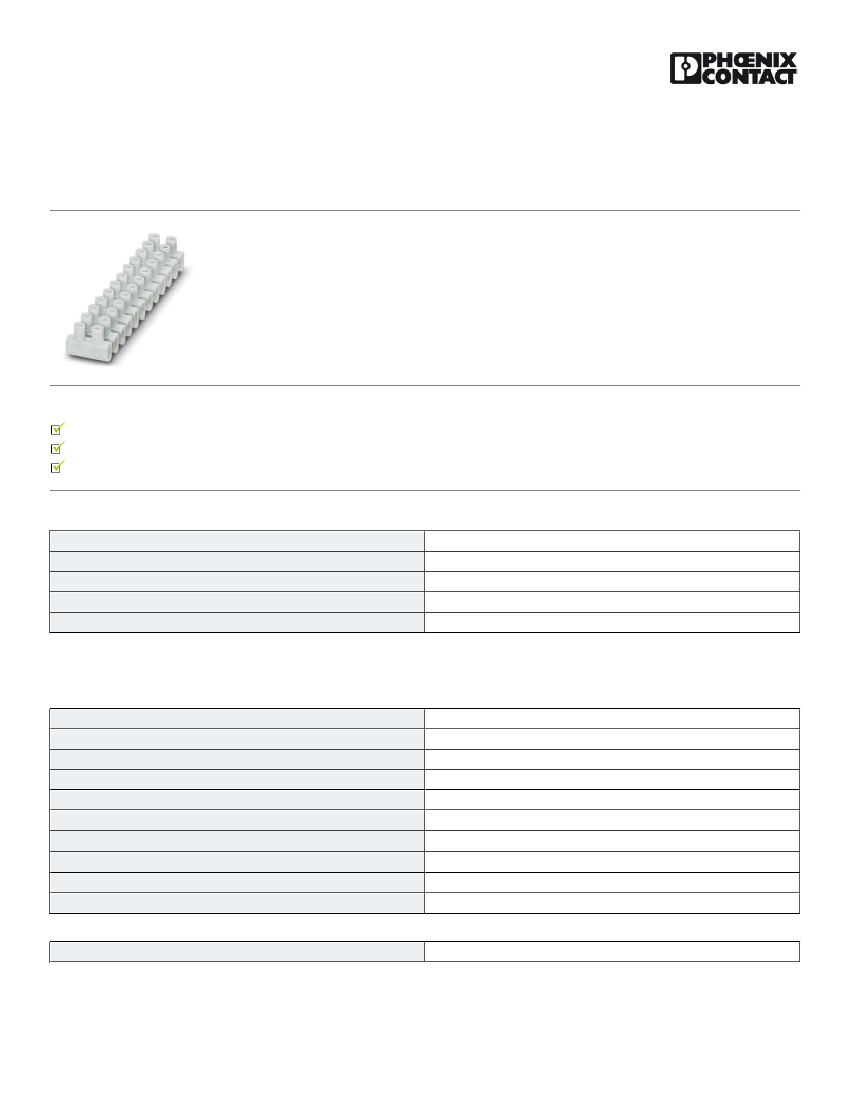

Europe connectors - EC 10 - 3240176
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Polypropylene Europe terminal strip, white, for connecting solid conductors and stranded conductors with and
without ferrules with a cross section of 1 to 10 mm²
Product Features
The polypropylene insulating housing enables individual positions to be disconnected simply by twisting and without the need for tools
The high-quality metal parts, which feature corrosion-resistant surfaces, are fixed securely in the housing
The prismatic clamping part facilitates conductor entry and reliable contact can be established even for conductors without ferrules
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
43.1 GRM
85369010
Austria
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current (lower level)
Nominal current I
N
(lower level)
Nominal voltage U
N
Maximum load current (upper level)
Number of positions
1
24
white
PP
-
57 A (with 10 mm² conductor cross section)
57 A (with 10 mm² conductor cross section)
450 V
57 A (with 10 mm² conductor cross section)
12
Dimensions
Width
17.3 mm
11/04/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/3240176
Europe connectors - EC 10 - 3240176
Technical data
Dimensions
Length
Height
133.8 mm
23.4 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Screw connection
1 mm²
10 mm²
16
8
1 mm²
10 mm²
16
8
1.5 mm²
6 mm²
1.5 mm²
4 mm²
1 mm²
2.5 mm²
1.5 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
0.75 mm²
1.5 mm²
7 mm
M3,5
0.8 Nm
1 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27141106
27141106
