0702800599 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 0702800599

Preview

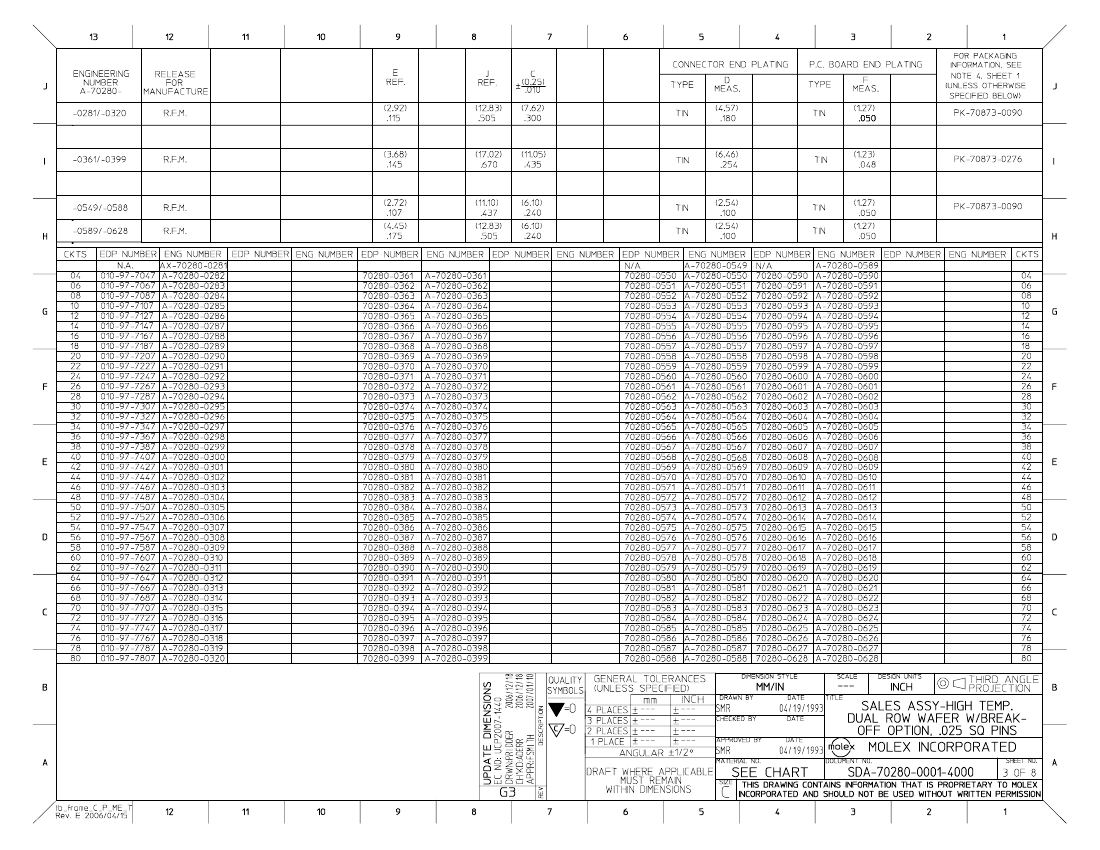

0702800599: DescriptionCGRID VT BKWY HDR TIN 22CKT (240; CategoryThe connector; File Size325KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0702800599 Overview

CGRID VT BKWY HDR TIN 22CKT (240

0702800599 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	22
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.240"（6.10mm）
Contact length - terminal	0.175"（4.45mm）
Overall contact length	0.505"（12.83mm）
Insulation height	0.090"（2.29mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	150.0µin（3.81µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	Automotive, general, medical, lighting, telecommunications

Preview

Download Datasheet

View All

0702800599 Related Products

	0702800599	0702800590	0702800624	0702800368	0702800606	0702800597	0702800628
Description	CGRID VT BKWY HDR TIN 22CKT (240	CGRID VT BKWY HDR TIN 4CKT (240/	CONN HDR BKWY VERT TIN 72POS	CONN HDR BKWY VERT TIN 18POS	CONN HDR BKWY VERT TIN 36POS	CGRID VT BKWY HDR TIN 18CKT (240	CONN HDR BKWY VERT TIN 80POS
Connector type	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate	Needle hub, separate
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of pins	22	4	72	18	36	18	80
Number of rows	2	2	2	2	2	2	2
Line spacing - patching	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of pins loaded	all	all	all	all	all	all	all
style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
shield	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered	Uncovered
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Termination	welding	welding	welding	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull
Contact Length - Mating	0.240"（6.10mm）	0.240"（6.10mm）	0.240"（6.10mm）	0.435"（11.05mm）	0.240"（6.10mm）	0.240"（6.10mm）	0.240"（6.10mm）
Contact length - terminal	0.175"（4.45mm）	0.175"（4.45mm）	0.175"（4.45mm）	0.145"（3.68mm）	0.175"（4.45mm）	0.175"（4.45mm）	0.175"（4.45mm）
Overall contact length	0.505"（12.83mm）	0.505"（12.83mm）	0.505"（12.83mm）	0.670"（17.02mm）	0.505"（12.83mm）	0.505"（12.83mm）	0.505"（12.83mm）
Insulation height	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）	0.090"（2.29mm）
Contact shape	Square	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	tin	tin	tin	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	150.0µin（3.81µm）	150.0µin（3.81µm）	150.0µin（3.81µm）	150.0µin（3.81µm）	150.0µin（3.81µm）	150.0µin（3.81µm）	150.0µin（3.81µm）
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin	tin
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black	black	black	black
application	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications	Automotive, general, medical, lighting, telecommunications
