SR3020PT thru SR30150PT
Taiwan Semiconductor
CREAT BY ART

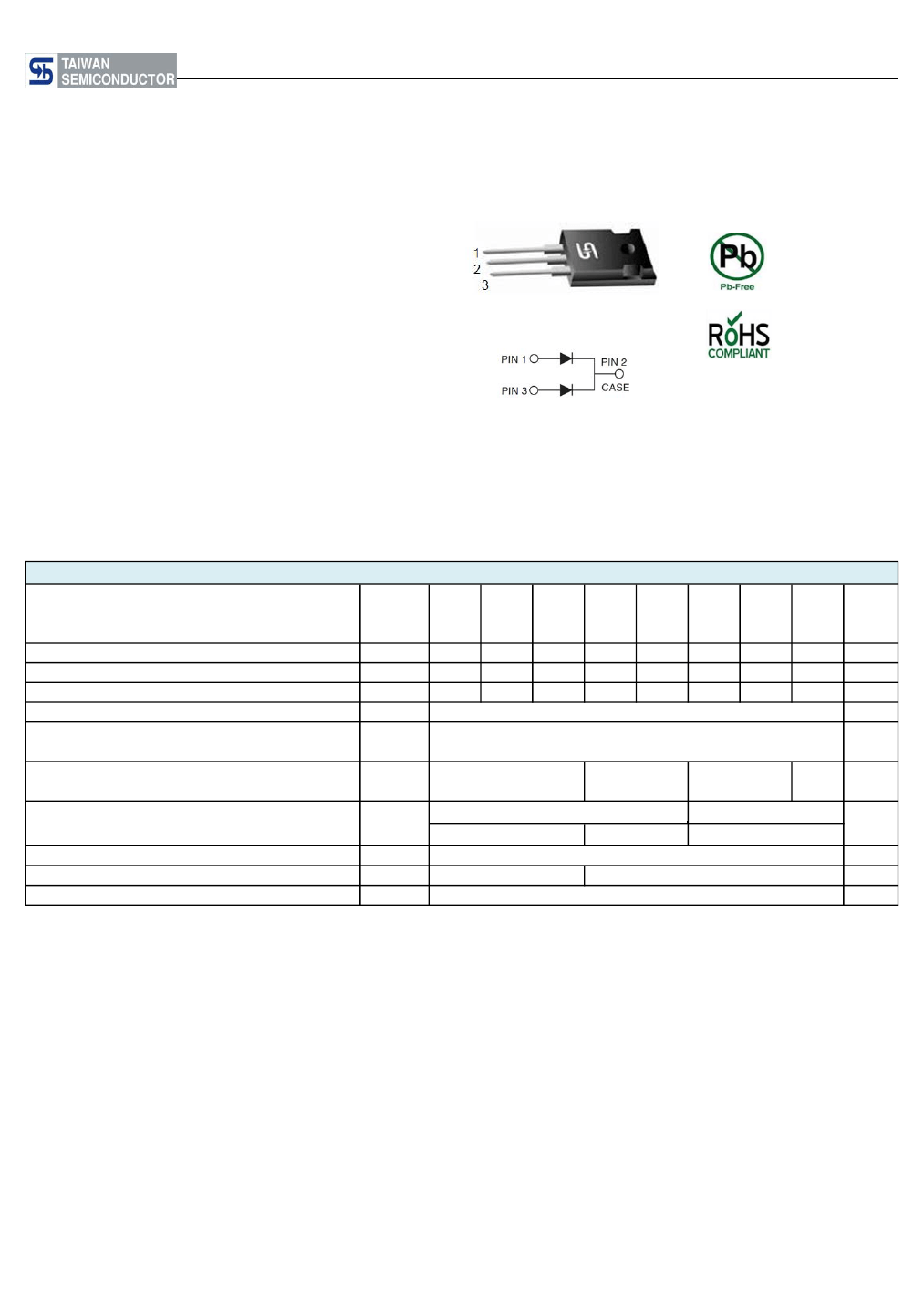

FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Dual Common Cathode Schottky Rectifier
TO-247AD (TO-3P)
MECHANICAL DATA
Case:
TO-247AD (TO-3P)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
10 in-lbs maximum
Weight:
6.1 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
SR
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 15 A
Maximum reverse current @ rated VR
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=100
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
0.55
1.0
20
15
1.5
- 55 to +150
3020
PT
20
14
20
SR
3030
PT
30
21
30
SR
3040
PT
40
28
40
SR
3050
PT
50
35
50
30
300
0.70
0.90
0.5
10
1.00
SR
3060
PT
60
42
60
SR
3090
PT
90
63
90
SR
PT
100
70
100
SR
UNIT
V
V
V
A
A
V
mA
O
30100 30150
PT
150
105
150
C/W
O
O
C
C
Document Number: DS_D1309030
Version: G13
SR3020PT thru SR30150PT
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SR30xxPT
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
TO-3P
PACKING
30 / Tube
Note 1: "xx" defines voltage from 20V (SR3020PT) to 150V (SR30150PT)
EXAMPLE
PREFERRED P/N
SR3060PT C0
SR3060PT C0G
SR3060PTHC0
PART NO.
SR3060PT
SR3060PT
SR3060PT
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)

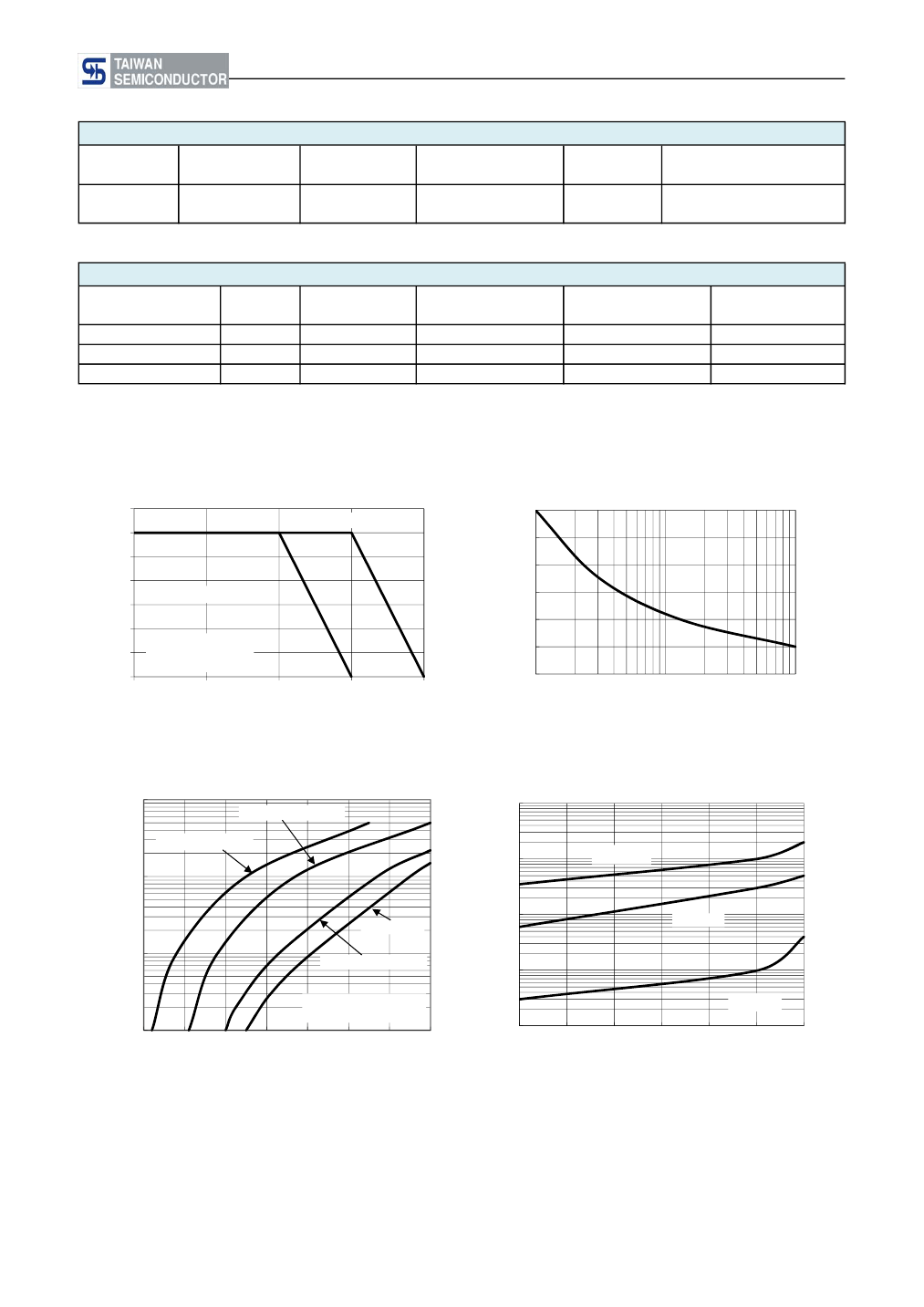

FIG. 1- FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT
(A)
35
30
AVERAGE FORWARD
CURRENT (A)
25
20
15
10
5
0
50
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
75
100
125
150
SR3020PT-3040PT
SR3050PT-30150PT
300
250
200
150
100
50
0
1
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
10
NUMBER OF CYCLES AT 60 Hz
100
CASE TEMPERATURE. (
o
C)
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
SR3050PT-3060PT
SR3020PT-3040PT
10
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT(A)
100
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
PER LEG
10
TJ=100℃
1
SR30150PT
1
SR3090PT-30100PT
TJ=75℃
0.1
TJ=25℃
0.01
0
20
40
60
80
100
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PULSE WIDTH-300μs
1% DUTY CYCLE
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
INSTANTANEOUS FORWARD VOLTAGE (V)
Document Number: DS_D1309030
Version: G13
SR3020PT thru SR30150PT
Taiwan Semiconductor

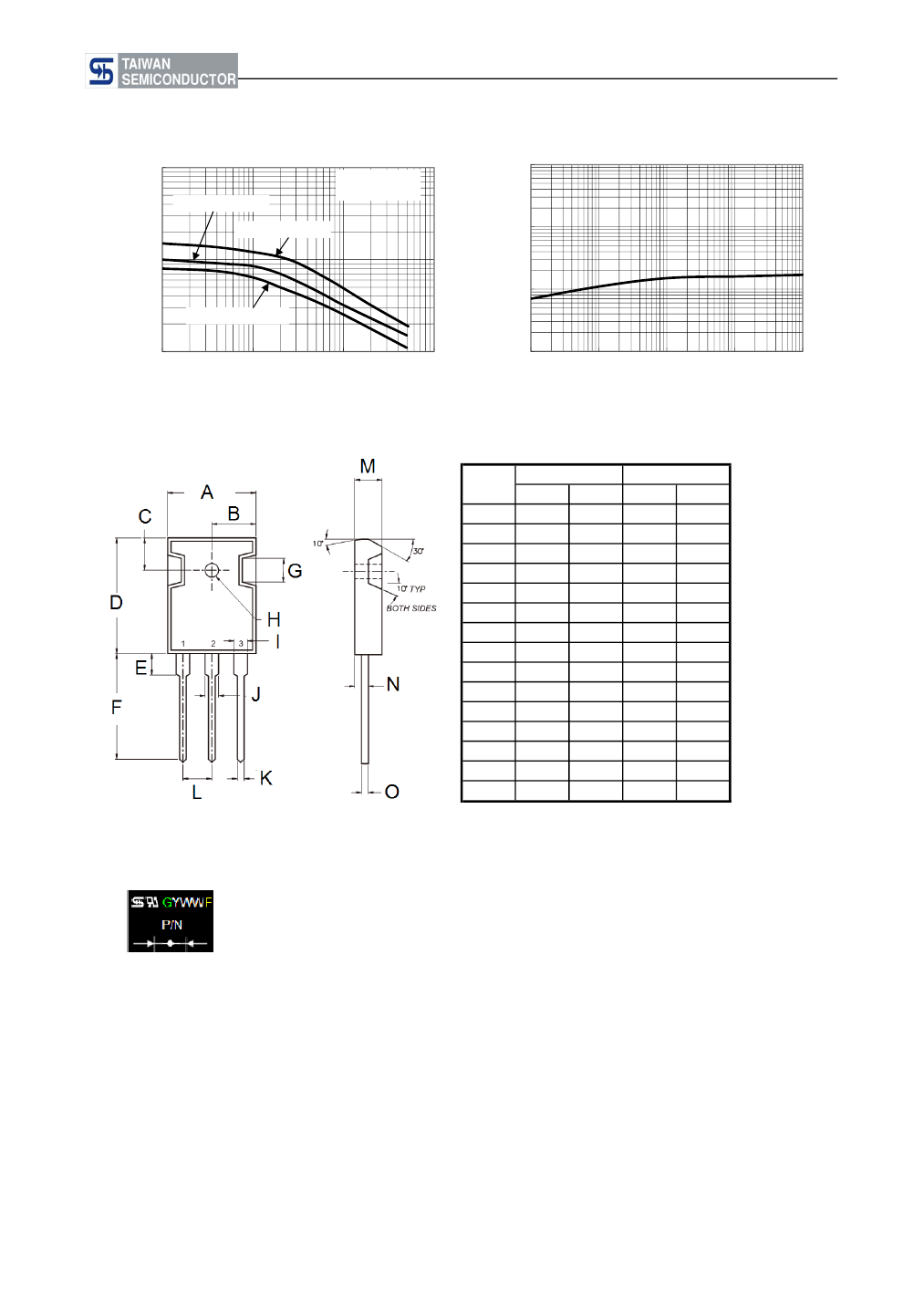

FIG. 5- TYPICAL JUNCTION CAPACITANCE
PER LEG
10000
JUNCTION CAPACITANCE (pF)
A
SR3050PT-3060PT
TRANSIENT THERMAL
IMPEDANCE (℃/W)
SR3020PT-3040PT
1000
FIG. 6- TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
100
f=1.0MHz
Vsig=50mVp-p
10
1
SR3090PT-30150PT
100
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T, PULSE DURATION. (sec)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
15.90
7.90
5.70
20.80
3.50
19.70
-
2.90
1.93
2.97
1.12
5.20
4.90
2.70
0.51
Max
16.40
8.20
6.20
21.30
4.10
20.20
4.30
3.40
2.18
3.22
1.22
5.70
5.16
3.00
0.76
Unit (inch)
Min
0.626
0.311
0.224
0.819
0.138
0.776
-
0.114
0.076
0.117
0.044
0.205
0.193
0.106
0.020
Max
0.646
0.323
0.244
0.839
0.161
0.795
0.169
0.134
0.086
0.127
0.048
0.224
0.203
0.118
0.030
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1309030
Version: G13
SR3020PT thru SR30150PT
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1309030
Version: G13
