Standard Termination for all kits - 100% Sn. Consult Factory for other termination options
JTI
sofT
®
2.0 C
apaCITor
& I
nduCTor
M
odelIng
s
ofTware
®
®

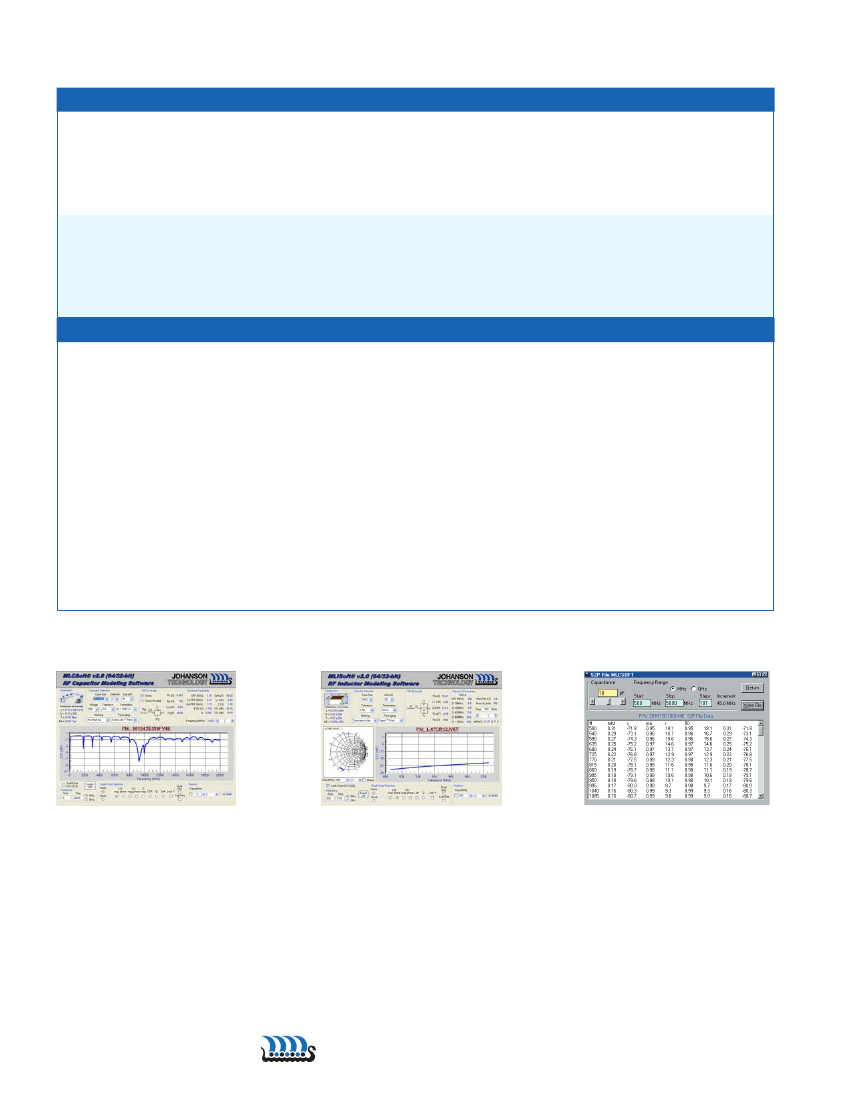

JTIsoft consists of two advanced design simulation software programs which offer component modeling from 1 MHz to 20 GHz. MLCsoft provides S-Parameter
®
and SPICE modeling data for six different size high frequency multi-layer ceramic capacitors (MLCCs) chip sizes while MLIsoft provides S-Parameter and SPICE
modeling on four different size high frequency multi-layer ceramic inductors (MLCIs). The main interface screen displays electrical parameters such as SRF, PRF1,
PRF2, ESR, Q, Ceff, Leff, Rdc, and Idc which are updated dynamically as chip size, value, and frequency parameters are varied by the user. The complete part
number is also dynamically displayed for ordering accuracy.
Both programs also provide highly detailed graphical plots of device performance over a user specified frequency range. The chart displays are instantly updated
as the user makes component or frequency changes. Smith chart displays of both impedance and S11/S22 are available as point plots, line plots, and line-point
plots. Traditional X-Y graphs are available for parameters of S21 and S11 both phase and magnitude, Impedance magnitude, as well as Q, ESR and effective
capacitance. Display formats include standard, log Y, and log/log. Chart may be exported in BMP or Metafile format. Numerical S-Parameter data may be
