MCBC2490CF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MCBC2490CF

Preview

MCBC2490CF: DescriptionTrigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size71KB，1 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric View All

MCBC2490CF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MCBC2490CF	-	-	View	Buy Now

MCBC2490CF Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-2

MCBC2490CF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4039791364
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
YTEOL	7.66
Other features	UL APPROVED
Maximum forward current	0.00125 A
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	90 A
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	TRIGGER OUTPUT SSR

Preview

Download Datasheet

View All

www.crydom.com

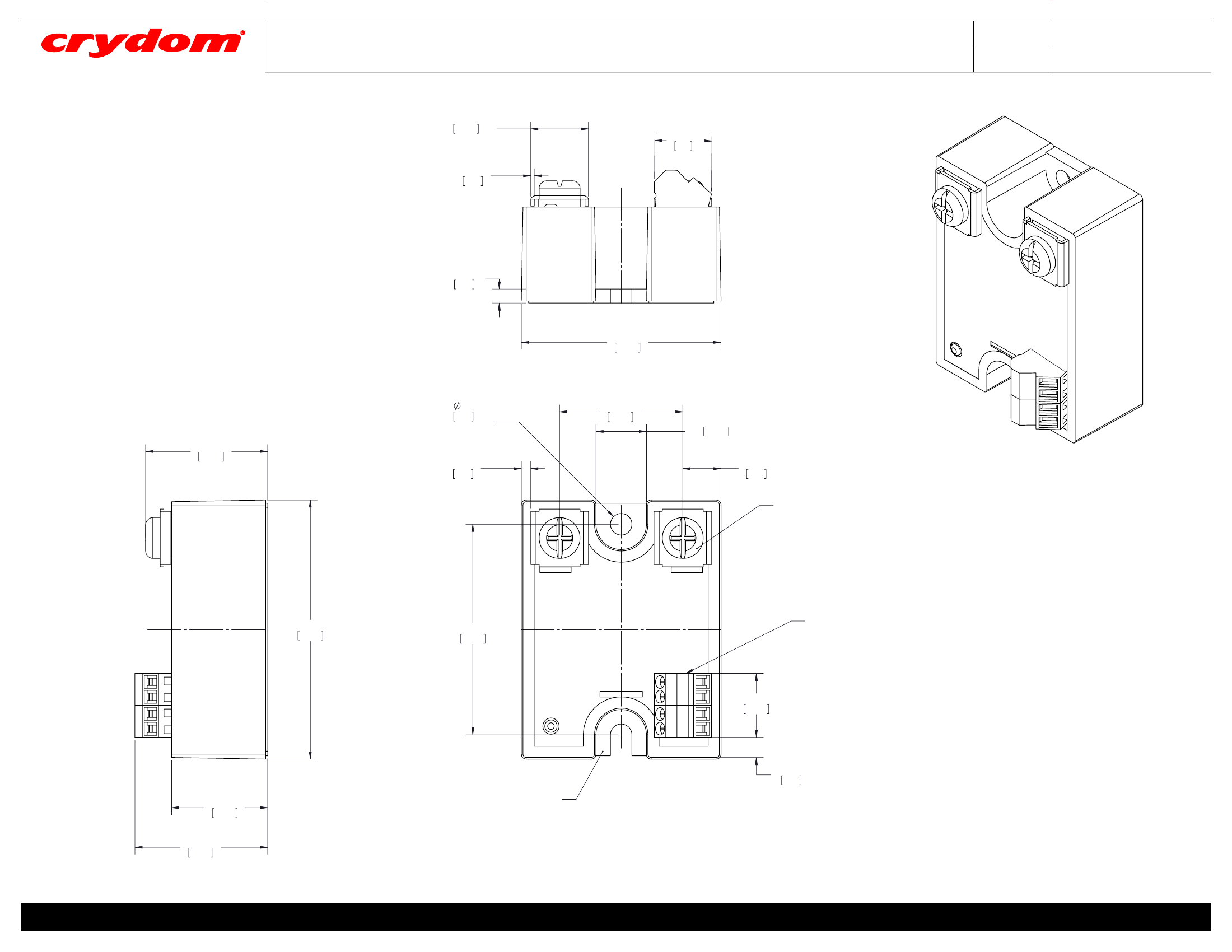

MCBC SERIES,BURST-FIRE CONTROLLER

.52

13.1

(2 PLACES)

.03

0.8

.51

13

REV. DATE

11/27/10

support@crydom.com

support-europe@crydom.com

For Technical Support:

.13

3.2

C

L

1.78

45.3

1.09

27.7

.19

4.9

MOUNTING

HOLE/SLOT

.08

2.1

1.10

27.9

.45

11.5

(2 PLACES)

.34

8.7

8-32 TERMINAL & SCREW

(2 PLACES)

C

L

2.31

58.8

1.88

47.8

C

L

TERMINAL BLOCK

4 POS.

.57

14.5

C

L

.86

21.8

1.19

30.1

BASEPLATE

.18

4.6

Tolerances: ± 0.02 in / 0.5 mm. All dimensions are in: inches [millimeters]

U N L E S S O T H E R W I S E S P E C I F I E D, D I M E N S I O N S A R E I N “i n [m m]” I N F O R M A T I O N I N T H I S D R A W I N G I S P R O V I D E D F O R R E F E R E N C E O N L Y A N D I S S U B J E C T T O C H A N G E.
