Series: ARMADILLO
Description:

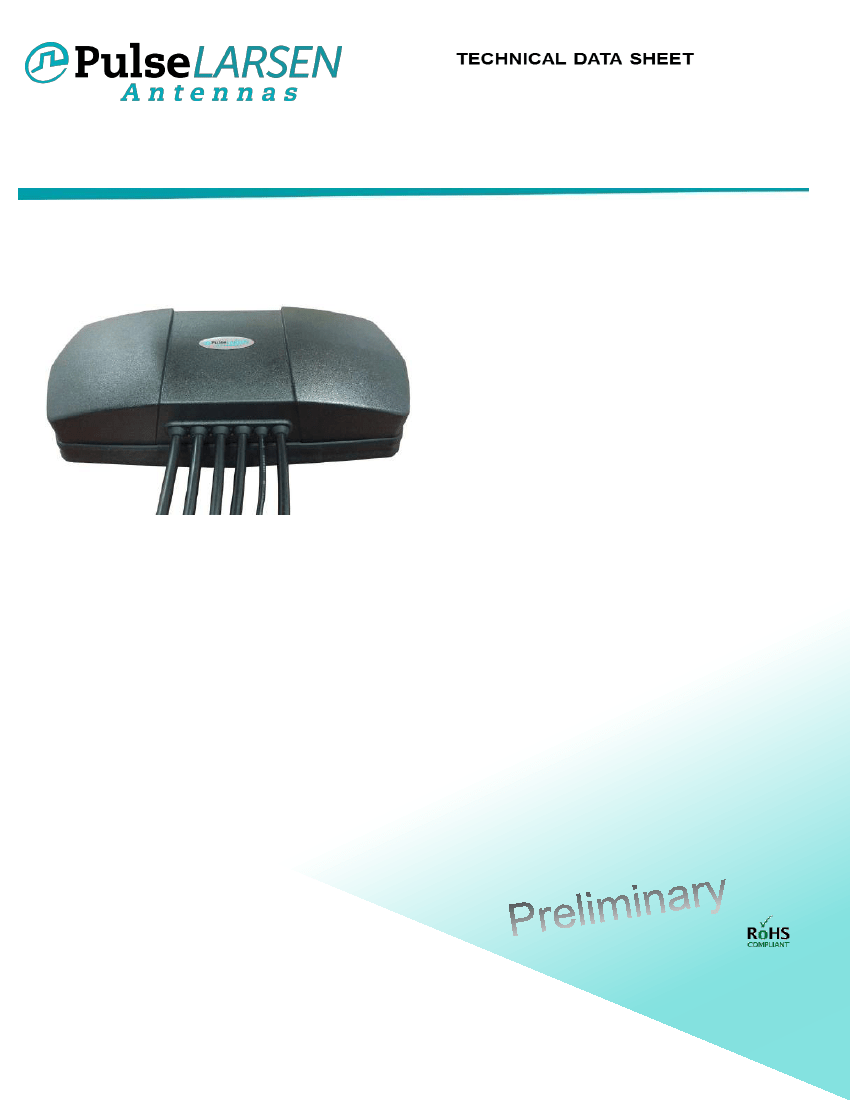

Vehicular Multiband Antenna with
Magnetic Mount

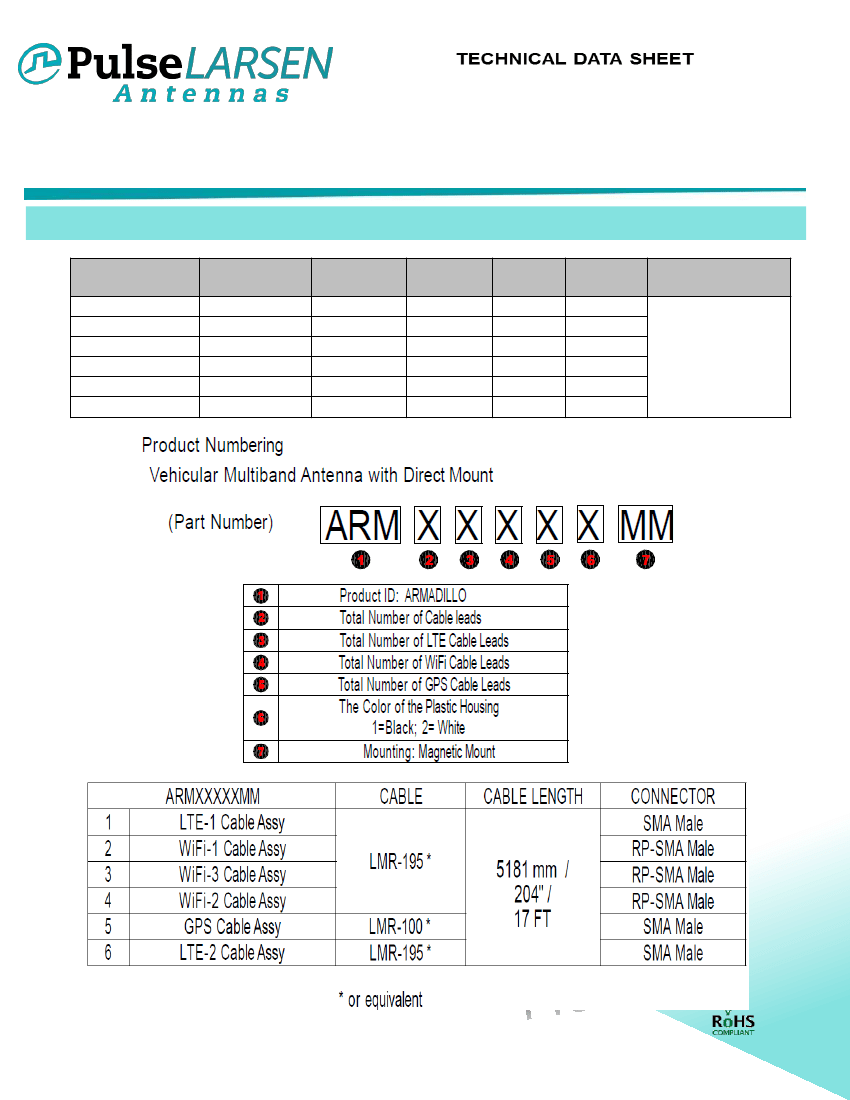

PART NUMBER: ARMXXXXXMM
This document covers all product variants of the following product family
Product
ARM62311MM
ARM62312MM
ARM52211MM
ARM52212MM
ARM42111MM
ARM42112MM
Total Cable Leads LTE Cable Leads
6
6
5
5
4
4
2
2
2
2
2
2
WiFi Cable
Leads
3
3
2
2
1
1
GPS Cable
Leads
1
1
1
1
1
1
Housing
Color
Black
White
Black
White
Black
White
Mounting
Magnetic Mount;
Pull force:
100N, 22lbf min.
(Tested on 3mm thick
steel plate.)
Issue: 1804P
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: ARMADILLO
Description:
Vehicular Multiband Antenna with
Magnetic Mount
PART NUMBER: ARMXXXXXMM
ELECTRICAL SPECIFICATIONS
Frequency
Nominal Impedance
VSWR*
698-960MHz
1710-2690MHz
2400-2500MHz
5150-5925MHz
Isolation*
698-960MHz, 1710-2690MHz
2400-2500MHz, 5150-5925MHz
Radiation Pattern
Average Peak Gain**
698-960MHz
1710-2690MHz
2400-2500MHz
5150-5925MHz
Polarization
698-960MHz, 1710-2690MHz
2400-2500MHz, 5150-5925MHz
50
<2.5
<2.5
<2.5
<2.5
-8dB
-12dB
Omni
4.6dBi
5dBi
4.1dBi
6.3dBi
Vertical
*Test on 500mm ground plane with 17ft(5.2m) LMR195 cable
**Test on 500mm ground plane with 1ft(304.8) LMR195 cable
Issue: 1804P
3
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: ARMADILLO
Description:
Vehicular Multiband Antenna with
Magnetic Mount
PART NUMBER: ARMXXXXXMM
ELECTRICAL SPECIFICATIONS
GPS Antenna
Frequency
1561.098±2.046MHz/
1575.42±1.023MHz/
1602.5625±4MHz
50
Nominal Impedance
VSWR
Gain (Radiating Element)
Gain (LNA Gain)
Polarization
Out of Band Rejection
698 MHz
960 MHz
1710 MHz
2170 MHz
<2
1 dBic±1 dB
30 dB± 2 dB
RHCP
>70 dB
>65 dB
>60 dB
>65 dB
2400 MHz
2700 MHz
Noise Figure
Operating Voltage
Current Consumption
>65 dB
>65 dB
<2.4 dB
3.3
–
5 Vdc
<15mA
Issue: 1804P
4
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: ARMADILLO
Description:
Vehicular Multiband Antenna with
Magnetic Mount
PART NUMBER: ARMXXXXXMM
MECHANICAL SPECIFICATIONS
Overall Length
Weight
Antenna Color / Material
Connector type
Cable type
Cable length
202.3mm X 88.5mm X 45mm
1.1 Kg
Black or White
Refer to Page 2
Refer to Page 2
Refer to Page 2
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
-40 ~ +85° C
-40 ~ +85° C
Ingress Protection
RoHS Compliant
IP67
Yes
OTHER SPECIFICATIONS
Total cable assembly loss for 5.2m (17’) LMR-195
@850MHz
Total cable assembly loss for 5.2m (17’) LMR-100
@1575MHz
Total cable assembly loss for 5.2m (17’) LMR-195
@1930MHz
Total cable assembly loss for 5.2m (17’) LMR-195
@2450MHz
Total cable assembly loss for 5.2m (17’) LMR-195
@2500MHz
Total cable assembly loss for 5.2m (17’) LMR-195
@5350MHz
2.1dB
5.9dB
3.2dB
3.6dB
3.7dB
5.5dB
Issue: 1804P
