3021076-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 3021076-06

3021076-06: DescriptionUSB 2.0 A MALE TO USB 2.0 MICRO; CategoryThe connector Connector bracket; File Size313KB，1 Pages; ManufacturerQualtek Electronics Corporation; Websitehttp://www.qualtekusa.com/

Download Datasheet Parametric View All

3021076-06 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3021076-06	-	-	View	Buy Now

3021076-06 Overview

USB 2.0 A MALE TO USB 2.0 MICRO

3021076-06 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Connector bracket type	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

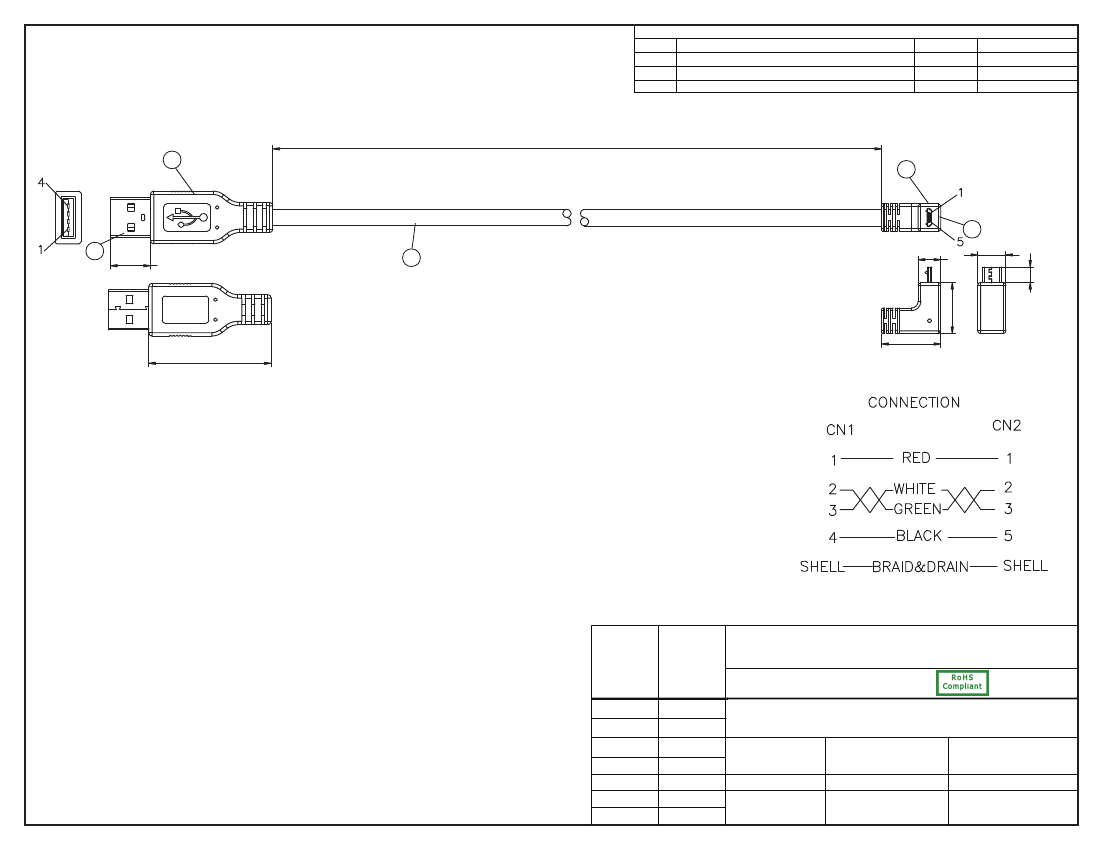

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK

ELECTRONICS AND NOT TO BE REPRODUCED FOR

OR COMMUNICATED TO A THIRD PARTY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN OFFICER

OF QUALTEK ELECTRONICS.

1830 ± 50mm

REV.

REVISION

DESCRIPTION

DATE

APPROVED

CN1

11.75MIN

8.4

10.4

36.7REF

CN2

NOTES:

1. CABLE: UL2725

28AWGx1PR+24AWGx2C+ AEB(AL) 65%

OUTER JACKET: BLACK, OD: 4.5 ± 0.2mm

2. CONNECTOR: USB 2.0 A TYPE MALE

INSULATOR: WHITE PBT

PIN G/F

NICKEL PLATED SHELL

3. CONNECTOR: MiCRO USB 2.0 (B) 5P/M TYPE MALE

INSULATOR: BLACK PBT

PIN G/F

NICKEL PLATED SHELL

4. PVC MOLDED: COLOR 45P BLACK

5. ELECTRICAL TEST:

<1>.100% OPEN SHORT & MISS WIRE TEST

<2>. INSULATION RESISTANCE: AC 300V DC300V 10M ohm MIN.

<3>. CONDUCTOR RESISTANCE: 1 ohm MAX.

6. PACKING: 1PC/POLYBAG W/ LABEL

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.30

0.50

0.70

0.90

1.20

CONTROLLED

Qualtek Electronics Corp.

Part Number:

Description:

WCI DIVISION

3021076-06

USB 4P(A)/M - MICRO USB 5P(B)/M

UNIT: mm

Drawn / Date

R. Nuti

04-06-18

Checked / Date

04-06-18

Approved / Date

LY / 04-06-18

5.4MIN
