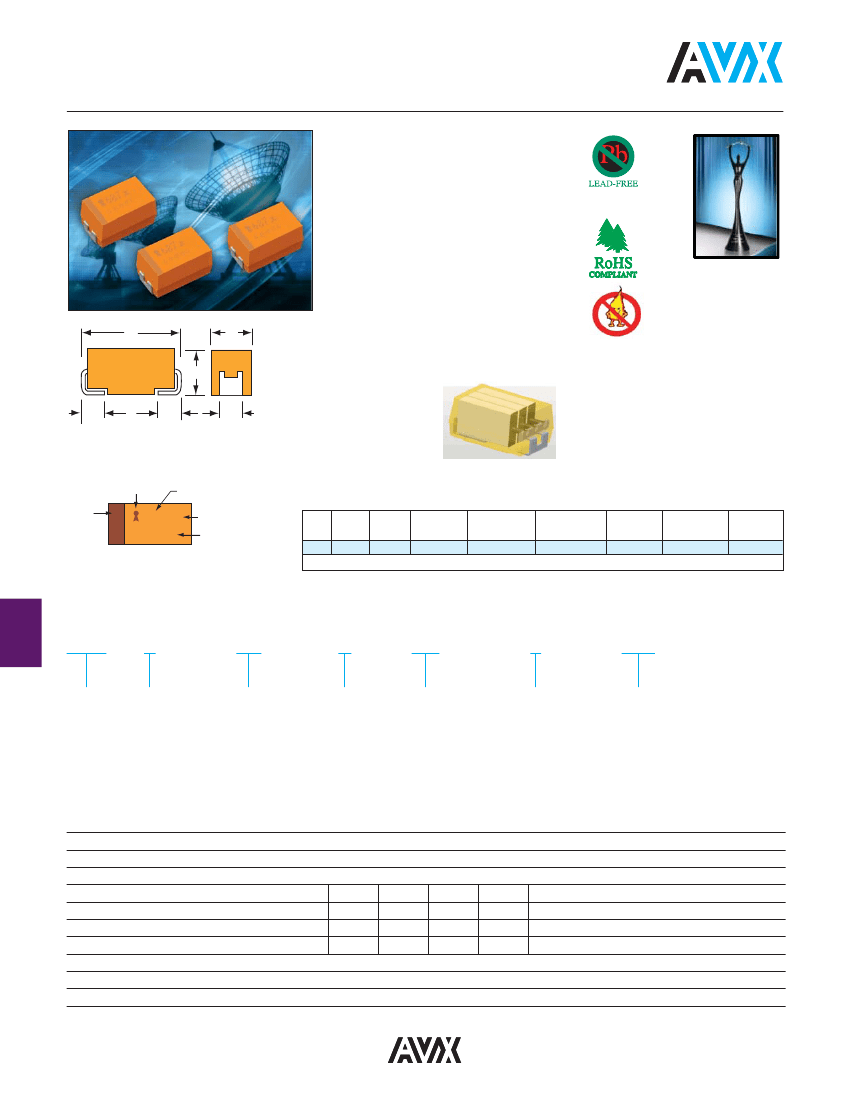

OxiCap
®
NOM Low ESR Multianodes
Niobium Oxide Capacitor
FEATURES
• Multi-anode construction
• Super low ESR
• Non-burn safe technology
• CV range: 220-680μF / 1.8-6.3V
• IBM global approval received in 2004
• Elektra award received in 2005
LEAD-FREE COMPATIBLE
COMPONENT
APPLICATIONS
• High power low voltage industrial
power supplies
L
W
NON-BURN
NON-SMOKE
Elektra Award
2005
H
A
S
A
W
1
NOM MULTIANODE
CONSTRUCTION
MARKING
E CASE
OxiCap
®
LOGO
Capacitance Value in pF
227 = 220µF
CASE DIMENSIONS:
millimeters (inches)
Code
E
EIA
Code
2917
EIA
Metric
L±0.20
(0.008)
W+0.20 (0.008) H+0.20 (0.008)
–0.10 (0.004)
–0.10 (0.004)
4.30 (0.169)
4.10 (0.162)
W
1
±0.20
(0.008)
2.40 (0.094)
A+0.30 (0.012)
–0.20 (0.008)
1.30 (0.051)
S Min.
4.40 (0.173)
7343-43 7.30 (0.287)
Polarity
Band
(Anode+)
227 G
XXXXX
Rated Voltage
G = 4V
ID Code
W
1
dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
NOM
E
Type
Case Size
See table
above
227
M
006
R
0040
Capacitance Code
1st two digits
represent significant
figures, 3rd digit
represents multiplier
in pF
Tolerance
M=±20%
Rated
DC Voltage
001 = 1.8Vdc
002 = 2.5Vdc
004 = 4Vdc
006 = 6.3Vdc
Packaging
R = Pure Tin 7" Reel
S = Pure Tin 13" Reel
ESR in mΩ
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Leakage Current DCL:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
All technical data relate to an ambient temperature of +25°C is not stated
220 μF to 680 μF
±20%
0.02CV
1.8
2.5
4
6.3
0.9
1.3
2
3
2.3
3.3
5.2
8
1.2
1.7
2.6
4
-55°C to +125°C
0.2% per 1000 hours at 85°C, V
R
, 0.1Ω/V series impedance, 60% confidence level
Meets requirements of AEC-Q200
+85°C:
+125°C:
+85°C:
+125°C:
194
052218
OxiCap
®
NOM Low ESR Multianodes
Niobium Oxide Capacitor
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
220
227
330
337
470
477
680
687
1.8V (x)
Rated Voltage DC (V
R
) to 85°C
2.5V (e)
4.0V (G)
E(35)
E(23,30)
6.3V (J)
E(40)
E(23,35)
E(23)
E(30)
E(23)
Released ratings, (ESR ratings in mOhms in parentheses)
Note: Voltage ratings are minimum values. AVX reserves the right to supply
higher voltage ratings in the same case size, to the same reliability standards.
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Rated
Category Category
Voltage Temperature Voltage Temperature
(V)
(ºC)
(V)
(ºC)
DCL
Max.
(μA)
DF
Max.
(%)
ESR
Max.
@ 100kHz
(mΩ)
100kHz RMS Current (A)
MSL
25ºC
85ºC
125ºC
NOME687M001#0023
NOME477M002#0030
NOME687M002#0023
NOME337M004#0035
NOME477M004#0023
NOME477M004#0030
NOME227M006#0040
NOME337M006#0023
NOME337M006#0035
E
E
E
E
E
E
E
E
E
680
470
680
330
470
470
220
330
330
1.8
2.5
2.5
4
4
4
6.3
6.3
6.3
85
85
85
85
85
85
85
85
85
1.8 Volt @ 85°C
0.9
125
2.5 Volt @ 85°C
1.3
125
1.3
125
4 Volt @ 85°C
2
125
2
125
2
125
6.3 Volt @ 85°C
3
125
3
125
3
125
24.5
23.5
34
26.4
37.6
37.6
26.4
39.6
39.6
6
10
6
8
6
6
12
6
6
23
30
23
35
23
30
40
23
35
3.753
3.286
3.753
3.043
3.753
3.286
2.846
3.753
3.043
3.378
2.958
3.378
2.738
3.378
2.958
2.561
3.378
2.738
1.501
1.315
1.501
1.217
1.501
1.315
1.138
1.501
1.217
3
3
3
3
3
3
3
3
3
Moisture Sensitivity Level (MSL) is defined according to J-STD-020.
All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
ESR allowed to move up to 125 times catalog limit post mounting.
For typical weight and composition see page 273.
NOTE: AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards.
052218
195
OxiCap
®
NOM Low ESR Multianodes
Niobium Oxide Capacitor
QUALIFICATION TABLE
TEST
NOM series (Temperature range -55ºC to +125ºC)
Characteristics
Visual examination
no visible damage
Apply rated voltage (Ur) at 85ºC and / or category
DCL
initial limit
voltage (Uc) at 125ºC for 2000 hours through a circuit
ΔC/C
within ±10% of initial
impedance of ≤0.1Ω/V. Stabilize at room temperature
DF
initial limit
for 1-2 hours before measuring.
ESR
1.25 x initial limit
Visual examination
no visible damage
DCL
initial limit
Store at 125ºC, no voltage applied, for 2000 hours.
Stabilize at room temperature for 1-2 hours before
ΔC/C
within ±10% of initial
measuring.
DF
initial limit
ESR
1.25 x initial limit
Visual examination
no visible damage
Store at 65ºC and 95% relative humidity for 500
DCL
1.5 x initial limit
hours, with no applied voltage. Stabilize at room
ΔC/C
within ±10% of initial
temperature and humidity for 1-2 hours before
measuring.
DF
1.2 x initial limit
ESR
1.25 x initial limit
Visual examination
no visible damage
Apply rated voltage (Ur) at 85ºC, 85% relative
DCL
2 x initial limit
humidity for 1000 hours. Stabilize at room
ΔC/C
within ±10% of initial
temperature and humidity for 1-2 hours before
measuring.
DF
1.2 x initial limit
ESR
1.25 x initial limit
Condition
Step
1
2
3
4
5
6
Temperature°C
+20
-55
+20
+85
+125
+20
Duration(min)
15
15
15
15
15
15
Endurance
value
Storage Life
value
Humidity
value
Biased
Humidity
value
Temperature
Stability
DCL
ΔC/C
DF
ESR
+20ºC -55ºC
IL*
n/a
n/a
+0/-10%
IL*
1.5 x IL*
1.25 x IL* 2.5 x IL*
+20ºC
IL*
±5%
IL*
+85ºC +125ºC +20ºC
12 x IL*
15 x IL*
IL*
+10/-0% +12/-0% ±5%
1.5 x IL*
2 x IL*
IL*
1.25 x IL* 1.25 x IL* 1.25 x IL* 1.25 x IL*
Visual examination
Surge
Voltage
Apply 1.3x category voltage (Uc) at 125ºC for
1000 cycles of duration 6 min (30 sec charge,
5 min 30 sec discharge) through a charge /
discharge resistance of 1000Ω
no visible damage
initial limit
within ±5% of initial value
initial limit
1.25 x initial limit
no visible damage
initial limit
within ±5% of initial value
initial limit
1.25 x initial limit
no visible damage
initial limit
within ±5% of initial value
initial limit
1.25 x initial limit
DCL
ΔC/C
DF
ESR
Mechanical
Shock
MIL-STD-202, Method 213, Condition F
Vibration
MIL-STD-202, Method 204, Condition D
Visual examination
DCL
ΔC/C
DF
ESR
Visual examination
DCL
ΔC/C
DF
ESR
*Initial Limit
196
052218
OxiCap
®
NOM Low ESR Multianodes
Niobium Oxide Capacitor

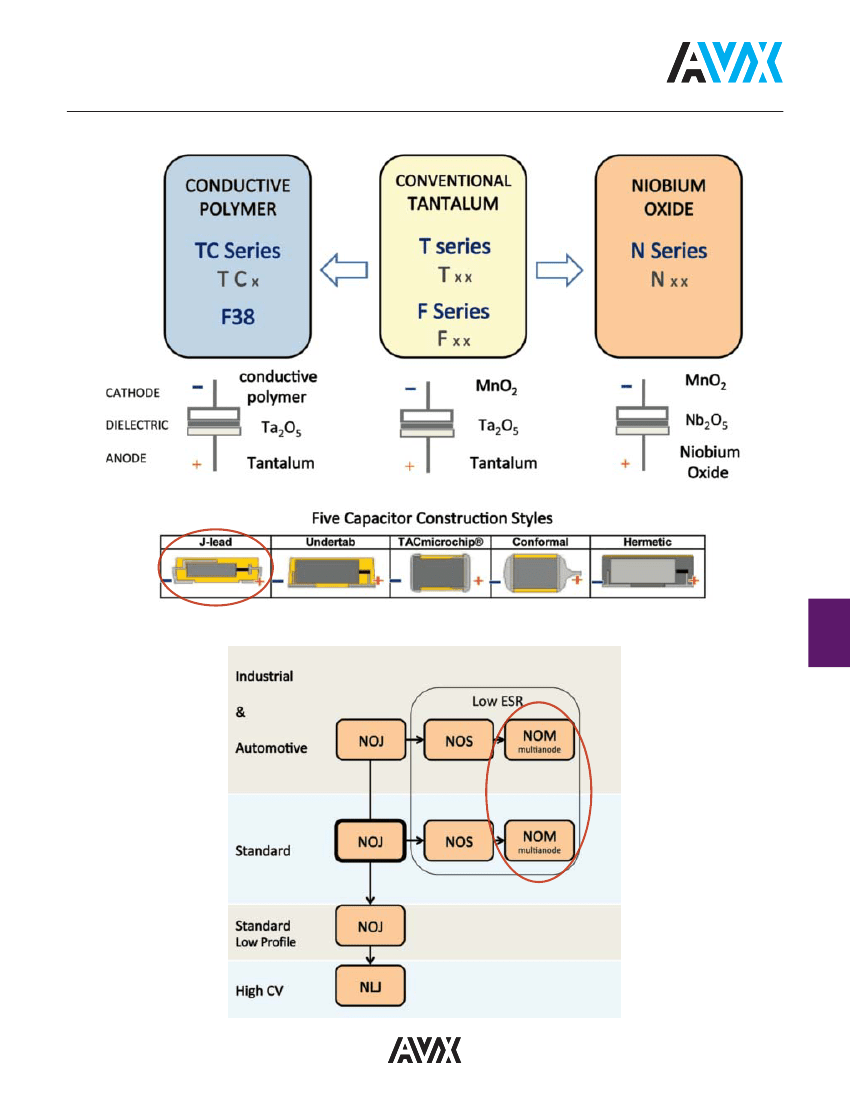

AVX SOLID ELECTROLYTIC CAPACITOR ROADMAP
SERIES LINE UP: NIOBIUM OXIDE OXICAP
®
CAPACITORS
052218
197
