CTW Fan Module Connector
COMPACT, COST-EFFECTIVE
SOLUTION FOR SWITCH
APPLICATIONS

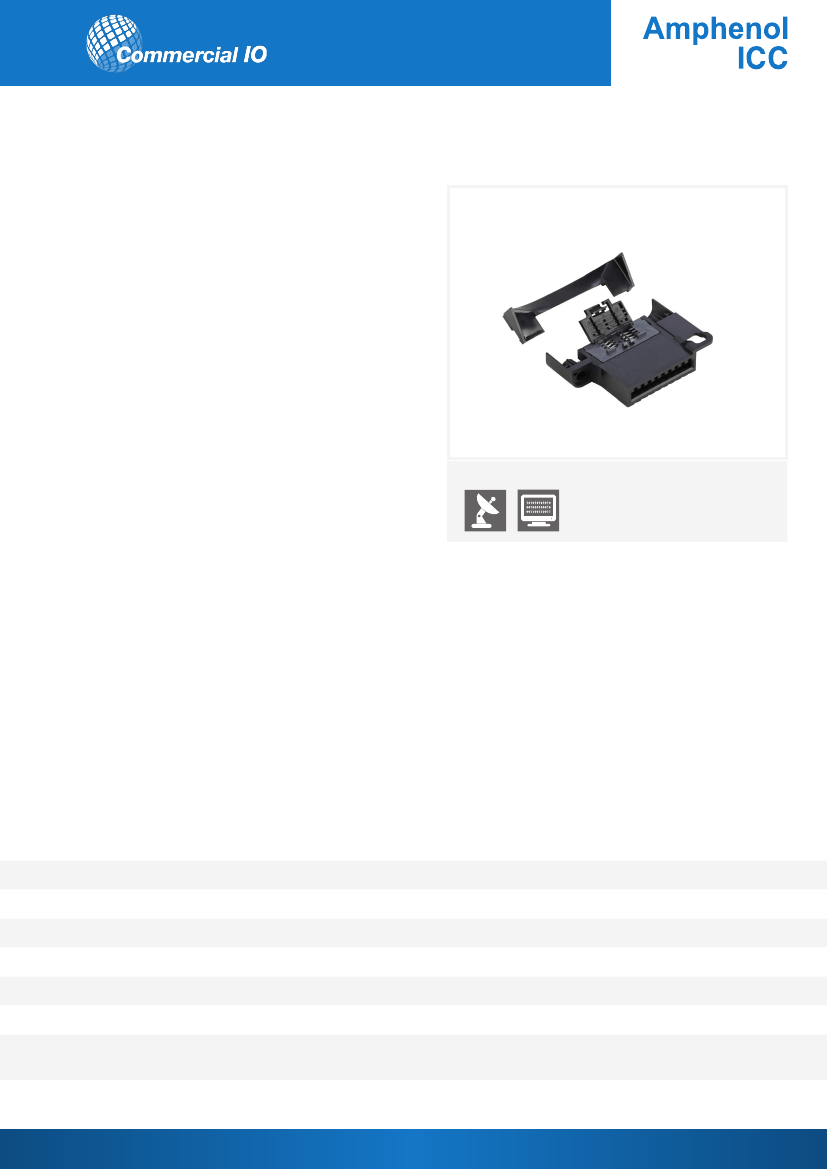

CTW (Card-to-Wire) fan module connector comes with
a flexible design for card-to-wire power applications
used in fan modules. It allows different wire gauges
ranging from 28AWG - 22AWG. The connector provides a
maximum current rating of 4A/pin.
CTW fan module connector comprising of standard and
smart versions, offers a cost-effective solution with a
less airflow drop compared to conventional card-to-
board fan connector solutions.
Standard fan module can be easily assembled with a cover
and wires can be tidied up. It has optional idle keys for
fan model identification and optional light pipe-frame
orientation (left/right).
Smart fan module has an IC slot which allows the
recording of fan operations through IC, preferably the ST
Microelectronics M24C64 series (SO8 (MN) 150 mil width).
Provision of an extra pin each on the IC side and on the
power side allows for detection and FMLB operations.
TARGET MARKETS
§
4A/pin maximum
§
Wire gauge range from 28AWG - 22AWG
§
Standard fan has optional Idle keys for fan model
identification
§
Optional light pipe-frame orientation
FEATURES
§
Compact power connector with current rating of 4A/pin
§
Idle keys option
§
Card-to-wire solution
§
High temperature housing available in UL 94V-0
§
Light pipe-frame orientation option
§
Smart fan module has IC slot
§
Smart fan module has additional 1 pin each on IC side and
BENEFITS
§
Conforms to EIA and UL certifications
§
Flexible design
§
Better cost-effectiveness
§
Meets safety requirements
§
Additional provisions for design
§
Allows the IC to record fan operations
§
Allows detection and FMLB (First Mate Last Break) options
power side
www.amphenol-icc.com
Amphenol Information Communications and Commercial Products
CTW Fan Module Connector
TECHNICAL INFORMATION
MATERIAL
§§
Housing: High Housing: High temperature
ENVIRONMENTAL
§§
Thermal shock: EIA-364-32B, No physical damage
§§
Humidity: EIA-364-31AI, No physical damage
§§
Temperature life: EIA-364-17, No physical damage
§§
Salt Spray Test: EIA-364-26A , No physical damage
thermoplastic, UL 94V-0
§§
Contact: Copper alloy, selective gold plating on
contact area, 100u” tin plated on soldering tail,
50u” min nickel under-plated overall
MECHANICAL PERFORMANCE
§§
Mating Force: EIA-364-13, 550gf max.
§§
Unmating Force: EIA-364-13, 70gf min.
§§
Contact Retention Force: 1.5 kgf min.
APPROVALS AND CERTIFICATIONS
§§
EIA
§§
UL
TARGET MARKETS/APPLICATIONS
Switches
Server
Storage
ELECTRICAL PERFORMANCE
§§
Current Rating: 4A per contact
§§
Contact Resistance: 10mΩ
§§
Voltage Rating: 250V AC
PACKAGING
§§
Housing and Cover: Tray
§§
Terminal: Reel
SPECIFICATION
§§
Amphenol Specification: PS-7617
PART NUMBERS
Description
Fan module housing, 8 pin
Fan module terminal
Fan module housing, 8 pin cover
Fan module housing, 18 pin
Fan module terminal
Fan module housing, 18 pin cover
Pitch
2.54mm
2.54mm
2.54mm
2.44mm
2.44mm
2.44mm
Type
S
tandard
S
tandard
S
tandard
Smart
Smart
Smart
Part Numbers
GFMF01HX1X00XXHR
GFMF01T0XR0000HR
GFMF01C01R0000HR
GFMF02H01R0000HR
GFMF01T0XR0000HR
GFMF02C01R0000HR
www.amphenol-icc.com
Disclaimer
Please note that the above information is subject to change without notice.
CMIOCTWFANMC0318EA4
