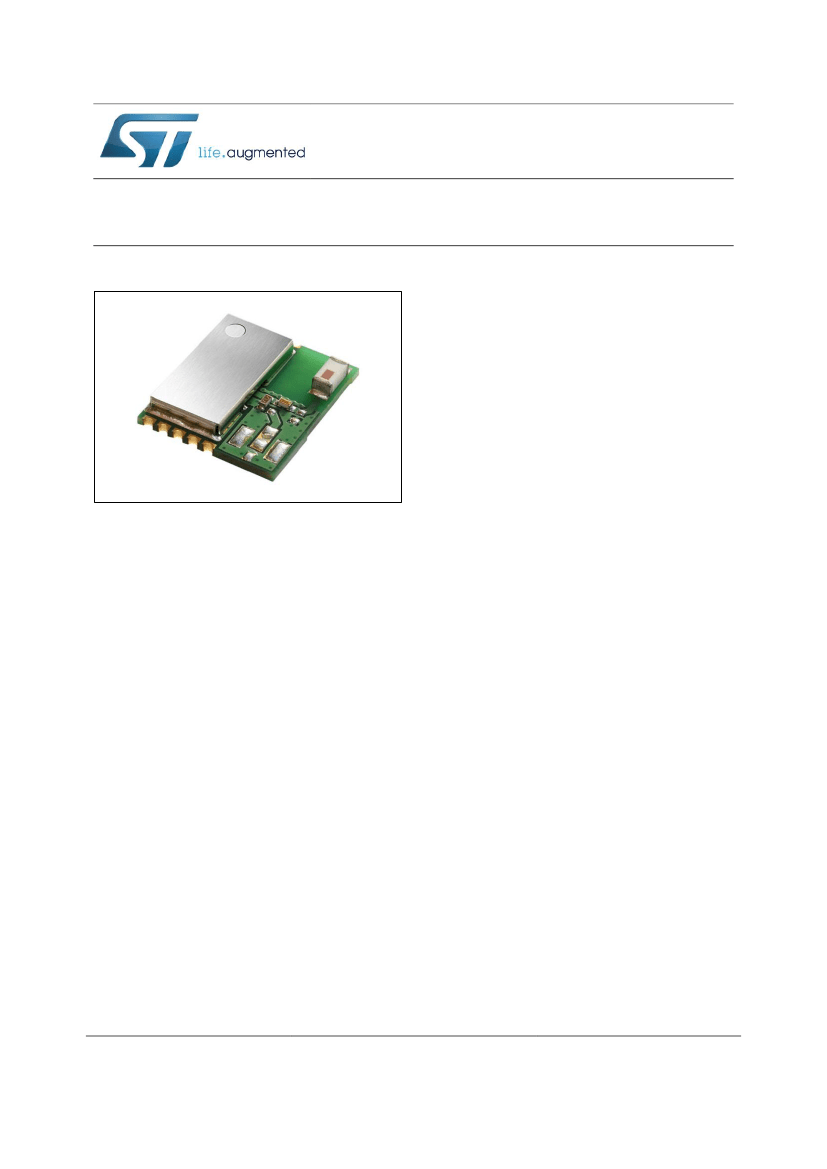

SPBTLE-RF0
Very low power network processor module for Bluetooth® Low
Energy v4.1
Datasheet - production data
Operating supply voltage: from 1.7 to 3.6 V
Operating temperature range: -40 °C to
85 °C
Applications
Watches
Fitness, wellness and sports
Consumer medical
Security/proximity–
Remote control
Home and industrial automation
Assisted living
Mobile phone peripherals
PC peripherals
Features
Bluetooth v4.1 compliant
Supports master and slave modes
Multiple roles supported simultaneously
Embedded Bluetooth low energy protocol
stack
GAP, GATT, SM, L2CAP, LL, RFPHY
Bluetooth low energy profiles provided
separately
Bluetooth radio performance:
Embedded ST BlueNRG-MS
Tx power: + 4 dBm
Rx sensitivity: - 88 dBm
Provides up to 92 dB link budget with
excellent link reliability
Host interface
SPI, IRQ, and RESET
On-field stack upgrading available via
SPI
AES security co-processor
Certifications:
CE qualified
FCC, IC modular approval certified
BT SIG qualified
On-board chip antenna
Description
The SPBTLE-RF0 is an easy to use Bluetooth®
Low Energy network processor module,
compliant with Bluetooth v4.1. The SPBTLE-RF0
module supports multiple roles simultaneously,
and can act at the same time as Bluetooth Low
Energy master and slave device.
The entire Bluetooth Low Energy stack and
protocols are embedded into SPBTLE-RF0
module. The external host application processor,
where the application resides, is connected to the
SPBTLE-RF0 module through a standard SPI
interface.
The SPBTLE-RF0 module provides a complete
RF platform in a tiny form factor. Radio, antenna
and high frequency oscillators are integrated to
offer a certified solution to optimize the time to
market of the final applications.
The SPBTLE-RF0 can be powered directly with a
pair of AAA batteries or any power source from
1.7 to 3.6 V.
July 2017
DocID030478 Rev 2
1/29
www.st.com
This is information on a product in full production.
Contents
SPBTLE-RF0
Contents
1
2
3
4
5
General description ......................................................................... 5
Block schematic .............................................................................. 6
Software development .................................................................... 7
Software architecture ...................................................................... 8
Hardware specifications ................................................................. 9
5.1
5.2
5.3
Current consumption ......................................................................... 9
Pin assignment................................................................................ 14
Mechanical dimensions ................................................................... 15
Reflow soldering.............................................................................. 17
FCC certification.............................................................................. 19
7.1.1
7.1.2
Labeling instructions ......................................................................... 19
Product manual instructions ............................................................. 20
6
7
Hardware design ........................................................................... 17
6.1
7.1
Regulatory compliance ................................................................. 19
7.2
IC certification ................................................................................. 21
7.2.1
7.2.2
Labelling instructions ........................................................................ 21
Product manual instructions ............................................................. 23
7.3
7.4
CE certification for SPBTLE-RF0 module ....................................... 24
Bluetooth certification ...................................................................... 24
8
9
10
11
Ordering information..................................................................... 25
ECOPACK® .................................................................................... 26
Traceability .................................................................................... 27
Revision history ............................................................................ 28
2/29
DocID030478 Rev 2
SPBTLE-RF0
List of tables
List of tables
Table 1: Absolute maximum ratings ........................................................................................................... 9
Table 2: Recommended operating conditions ............................................................................................ 9
Table 3: Current consumption .................................................................................................................... 9
Table 4: Pin description ............................................................................................................................ 14
Table 5: Soldering ..................................................................................................................................... 17
Table 6: Ordering information ................................................................................................................... 25
Table 7: Traceability information ............................................................................................................... 27
Table 8: Document revision history .......................................................................................................... 28
DocID030478 Rev 2
3/29
List of figures
SPBTLE-RF0
List of figures
Figure 1: HW block diagram ....................................................................................................................... 6
Figure 2: IFR configuration for SPBTLE-RF0 ............................................................................................. 7
Figure 3: SPBTLE-RF0 application block diagram ..................................................................................... 8
Figure 4: Configuration of the “BlueNRG current consumption estimation tool” ...................................... 10
Figure 5: Peripheral in advertising (Adv Int = 20 ms) ............................................................................... 10
Figure 6: Peripheral in advertising (Adv Int = 40 ms) ............................................................................... 11
Figure 7: Peripheral in connection (Conn Int = 80 ms) ............................................................................. 11
Figure 8: Peripheral in connection (Conn Int = 40 ms) ............................................................................. 12
Figure 9: Central in scan mode (Scan Int = 1250 ms, Scan Window = 1250 ms) .................................... 12
Figure 10: Central in scan mode (Scan Int = 1250 ms, Scan Window = 625 ms) .................................... 13
Figure 11: Central in connection (Conn Int = 40 ms) ................................................................................ 13
Figure 12: Pin assignment ........................................................................................................................ 14
Figure 13: SPBTLE-RF0 module mechanical dimensions ....................................................................... 15
Figure 14: Recommend land pattern top view .......................................................................................... 16
Figure 15: Soldering profiles ..................................................................................................................... 18
Figure 16: CE certified .............................................................................................................................. 24
4/29
DocID030478 Rev 2
SPBTLE-RF0
General
description
1
General description
The SPBTLE-RF0 is a Bluetooth Low Energy network processor module compliant with
Bluetooth
®
v4.1.
The SPBTLE-RF0 module integrates the BlueNRG-MS BT radio controller with an on-
board power-optimized Bluetooth stack.
It supports:
Both master and slave roles
GAP: central, peripheral, observer or broadcaster roles
ATT/GATT: client and server
SM: privacy, authentication and authorization
L2CAP
The BlueNRG-MS radio embeds nonvolatile Flash memory which allows on-field stack
upgrading.
In accordance with Bluetooth specification v4.1, the SPBTLE-RF0 module supports:
Multiple simultaneous roles
Simultaneous advertising and scanning
Acting as slave for up to two masters simultaneously
Privacy V1.1
Low duty cycle directed advertising
Connection parameter request procedure
LE Ping
32 bits UUIDs
L2CAP connection oriented channels
Both standard and proprietary Bluetooth low energy profiles, as well as a wide set of
examples are available for the SPBTLE-RF0 from the ST website.
The external host application processor where the application resides is interfaced with the
SPBTLE-RF0 module through an application controller interface protocol based on a
standard SPI interface.
With the SPBTLE-RF0 module, developers can enable wireless connectivity in electronic
devices without requiring any RF experience or expertise for integration into the final
product. The SPBTLE-RF0 module provides a complete RF platform in a tiny form factor
(13.5 x 11.5 x 2 mm) and, being a certified solution, optimizes the time to market of the final
applications.
The SPBTLE-RF0 module allows applications to meet the tight peak current requirements
when using standard coin cell batteries. SPBTLE-RF0 can be powered directly from a
standard 3 V coin cell battery, a pair of AAA batteries or any power source from 1.7 to 3.6
V.
ST may update the FW provided with the modules at any time. ST recommends that users
regularly check for documentation and the current FW version available at
www.st.com/bluemodules.
DocID030478 Rev 2
5/29
