L6R06H-070: DescriptionAC/DC WALL MOUNT ADAPTER 7V 6W; CategoryPower/power management; File Size362KB，2 Pages; ManufacturerCurtis Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

L6R06H-070 Overview

AC/DC WALL MOUNT ADAPTER 7V 6W

L6R06H-070 Parametric

Parameter Name	Attribute value
Use area	Applicable to North America
form	Wall mounting
input type	Fixed insert
Voltage - input	90 ~ 264 VAC
Voltage - Output	7V
Current - Output (maximum)	860mA
Power (W)	6W
No-load power consumption	100mW (maximum)
polarization	-
application	ITE (Business)
efficiency	Class VI
Operating temperature	10°C ~ 40°C
Output connector	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter
size/dimensions	1.54" long x 0.93" wide x 1.65" high (39.2mm x 23.7mm x 42.0mm)
Approval	cUL，UL
input connector	NEMA 1-15P
Wire length	59"（1.50m）

Preview

Download Datasheet

View All

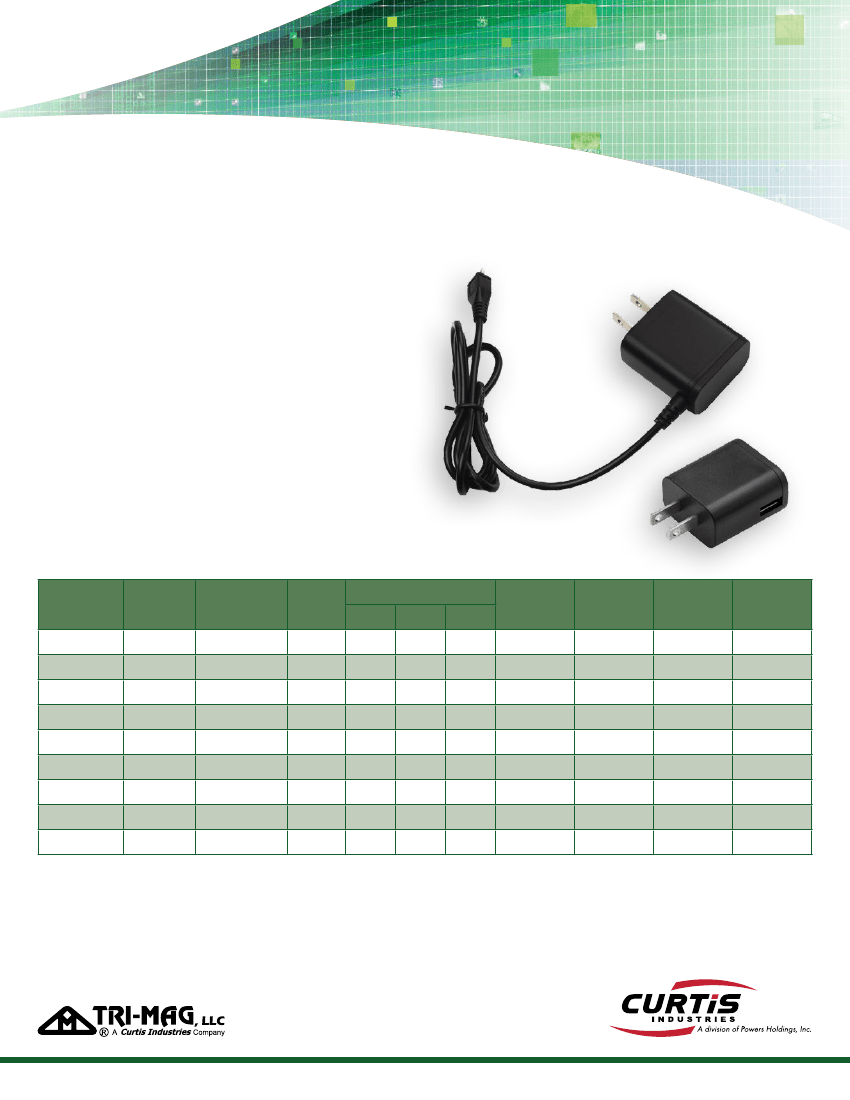

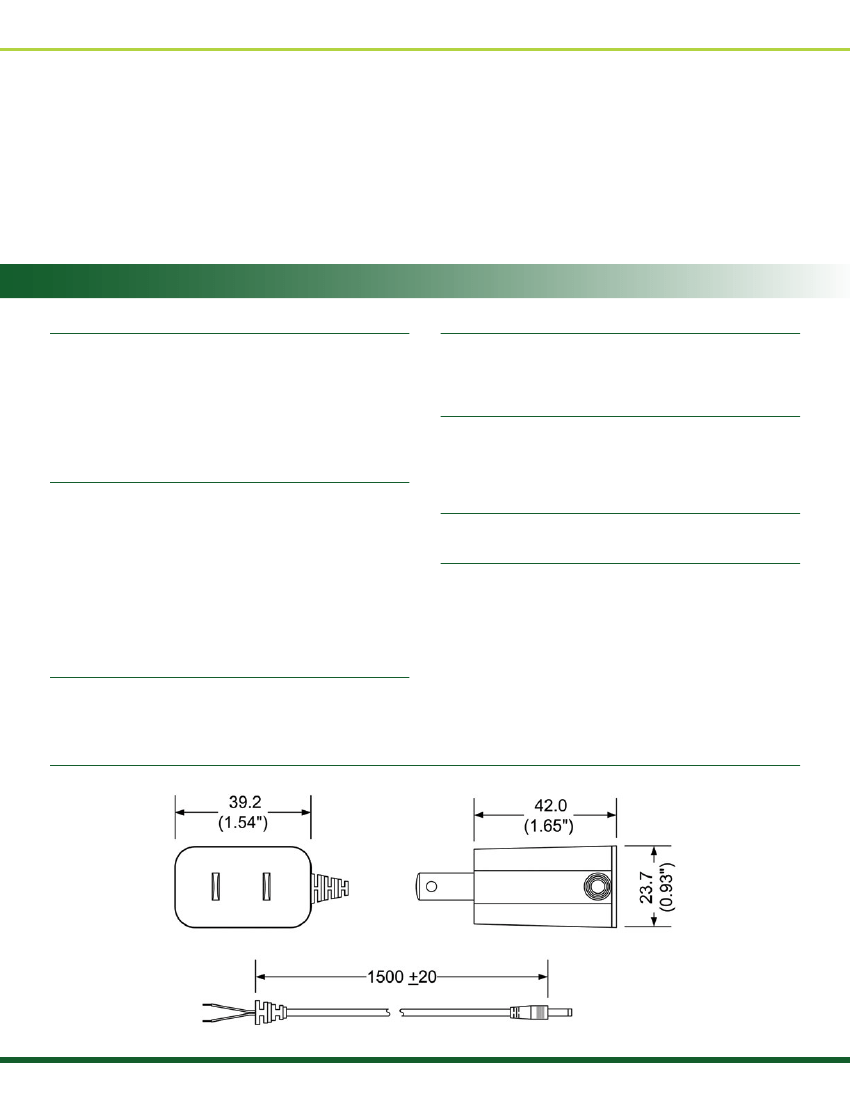

L6R06H Series

6W Wall Mount Power Supply

•

DOE Level VI Efficiency Rating

Universal Input: 90 ~ 264Vac, 47/63 Hz

UL/cUL Safety Approved

Corded Output Connection

5Vdc USB Connection Available

Light Weight and Compact

Model No.

L6R06H-050

L6R06H-050U

L6R06H-070

L6R06H-090

L6R06H-120

L6R06H-150

L6R06H-180

L6R06H-190

L6R06H-240

Application

ITE

Output

Connector

Corded Jack

USB Connector

Corded Jack

Output

Voltage

+5.0V

+7.0V

+9.0V

+12.0V

+15.0V

+18.0V

+19.0V

+24.0V

Output Current

Min

Rated

1.2

0.86

0.67

0.50

0.40

0.33

0.31

0.25

Peak

—

Voltage

Accuracy

±5%

Ripple

Noise

< ± 1%

Line

Reg.

± 1%

Load

Reg.

± 5%

•

Output voltages from 5.0Vdc to 24.0Vdc are available in increments of 0.1V. Please contact Tri-Mag, LLC for the part number and specifications for your output voltage

requirement and application.

The output voltage is verified to specs at 60 percent rated load condition.

The

line regulation

is defined by changing ± 10 percent of input voltage from the nominal line at rated load.

The

load regulation

is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.

The

ripple and noise

is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load

and nominal line.

The

efficiency

is measured at rated load and nominal line.

1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •

tri-mag.com

GREEN POW ER

Power

Supplies

L6R06H-070 Related Products

	L6R06H-070	L6R06H-120	L6R06H-050U	L6R06H-050	L6R06H-090	L6R06H-150	L6R06H-180	L6R06H-190
Description	AC/DC WALL MOUNT ADAPTER 7V 6W	AC/DC WALL MOUNT ADAPTER 12V 6W	AC/DC WALL MOUNT ADAPTER 5V 6W	AC/DC WALL MOUNT ADAPTER 5V 6W	AC/DC WALL MOUNT ADAPTER 9V 6W	AC/DC WALL MOUNT ADAPTER 15V 6W	AC/DC WALL MNT ADAPTER 18V 5.9W	AC/DC WALL MNT ADAPTER 19V 5.9W
Use area	Applicable to North America	Applicable to North America	Applicable to North America	Applicable to North America	Applicable to North America	Applicable to North America	Applicable to North America	Applicable to North America
form	Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting
input type	Fixed insert	Fixed insert	Fixed insert	Fixed insert	Fixed insert	Fixed insert	Fixed insert	Fixed insert
Voltage - input	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC
Voltage - Output	7V	12V	5V	5V	9V	15V	18V	19V
Current - Output (maximum)	860mA	500mA	1.2A	1.2A	670mA	400mA	330mA	310mA
Power (W)	6W	6W	6W	6W	6W	6W	5.9W	5.9W
No-load power consumption	100mW (maximum)	100mW (maximum)	100mW (maximum)	100mW (maximum)	100mW (maximum)	100mW (maximum)	100mW (maximum)	100mW (maximum)
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
efficiency	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI
Operating temperature	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C	10°C ~ 40°C
Output connector	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	USB A socket	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter
size/dimensions	1.54" long x 0.93" wide x 1.65" high (39.2mm x 23.7mm x 42.0mm)	1.65" long x 1.52" wide x 0.93" high (41.9mm x 38.6mm x 23.6mm)	1.65" long x 1.52" wide x 0.93" high (41.9mm x 38.6mm x 23.6mm)	1.65" long x 1.52" wide x 0.93" high (41.9mm x 38.6mm x 23.6mm)	1.65" long x 1.52" wide x 0.93" high (41.9mm x 38.6mm x 23.6mm)	1.54" long x 0.93" wide x 1.65" high (39.2mm x 23.7mm x 42.0mm)	1.54" long x 0.93" wide x 1.65" high (39.2mm x 23.7mm x 42.0mm)	1.54" long x 0.93" wide x 1.65" high (39.2mm x 23.7mm x 42.0mm)
Approval	cUL，UL	cUL，UL	cUL，UL	cUL，UL	cUL，UL	cUL，UL	cUL，UL	cUL，UL
input connector	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P	NEMA 1-15P
Wire length	59"（1.50m）	59"（1.50m）	-	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）
