3050 ± 70mm
4
REV.
REVISION
DESCRIPTION
DATE
APPROVED
4
3
CN1
2
11.75MIN
1
8.4
10.4
22
36.7REF
CN2

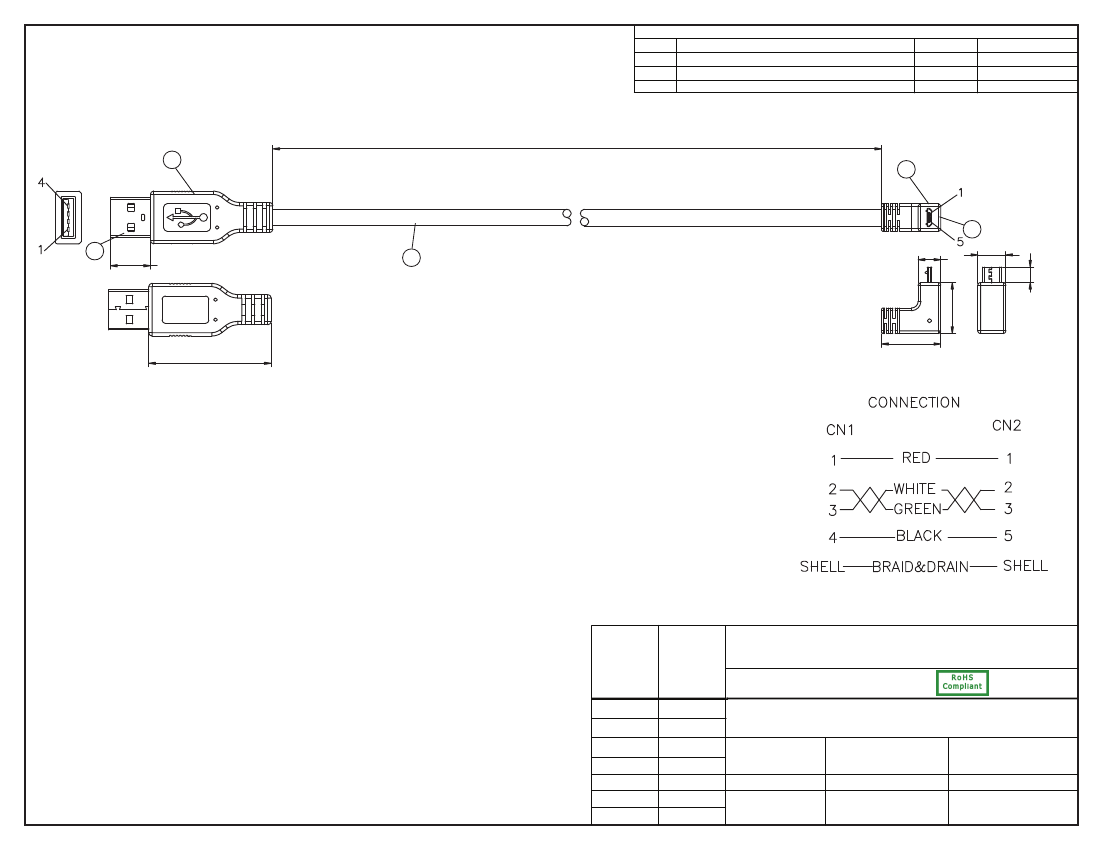

NOTES:
1. CABLE: UL2725
28AWGx1PR+24AWGx2C+ AEB(AL) 65%
OUTER JACKET: WHITE, OD: 4.5 ± 0.2mm
2. CONNECTOR: USB 2.0 A TYPE MALE
INSULATOR: WHITE PBT
PIN G/F
NICKEL PLATED SHELL
3. CONNECTOR: MiCRO USB 2.0 (B) 5P/M TYPE MALE
INSULATOR: BLACK PBT
PIN G/F
NICKEL PLATED SHELL
4. PVC MOLDED: COLOR 45P WHITE
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: AC 300V DC300V 10M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 1 ohm MAX.
6. PACKING: 1PC/POLYBAG W/ LABEL
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3021086-10
USB 4P(A)/M - MICRO USB 5P(B)/M
UNIT: mm
Drawn / Date
R. Nuti
04-06-18
Checked / Date
04-06-18
Approved / Date
LY / 04-06-18
5.4MIN
19
