3-179161-4 datasheet, PDF - EEWORLD Datasheet

3-179161-4: Description100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

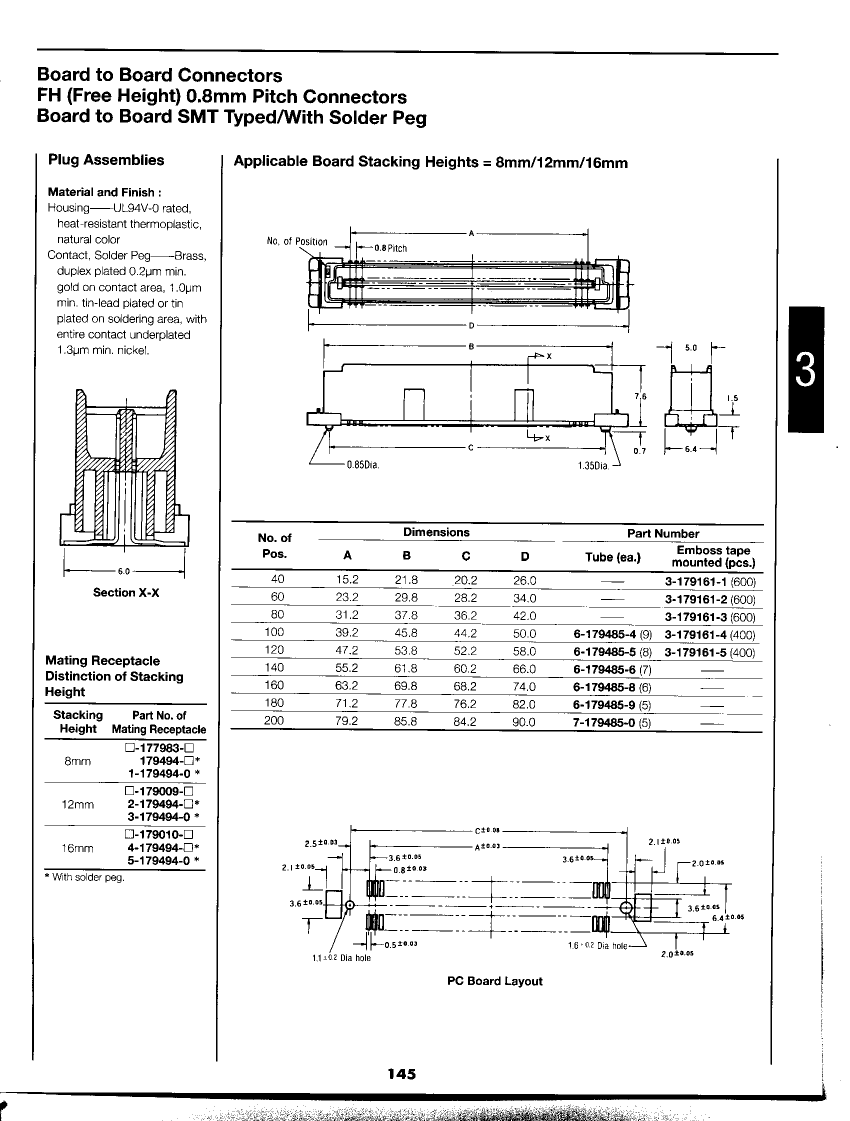

Download Datasheet Parametric Compare View All

3-179161-4 Overview

100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (8) OVER NICKEL
Contact completed and terminated	TIN LEAD (39)/TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0/e3
MIL compliance	NO
Manufacturer's serial number	179161
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

	3-179161-4	3-179161-3
Description	100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	80 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG
Reach Compliance Code	unknow	unknow
Body/casing type	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (8) OVER NICKEL	NOT SPECIFIED
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	179161	179161
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	80
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
