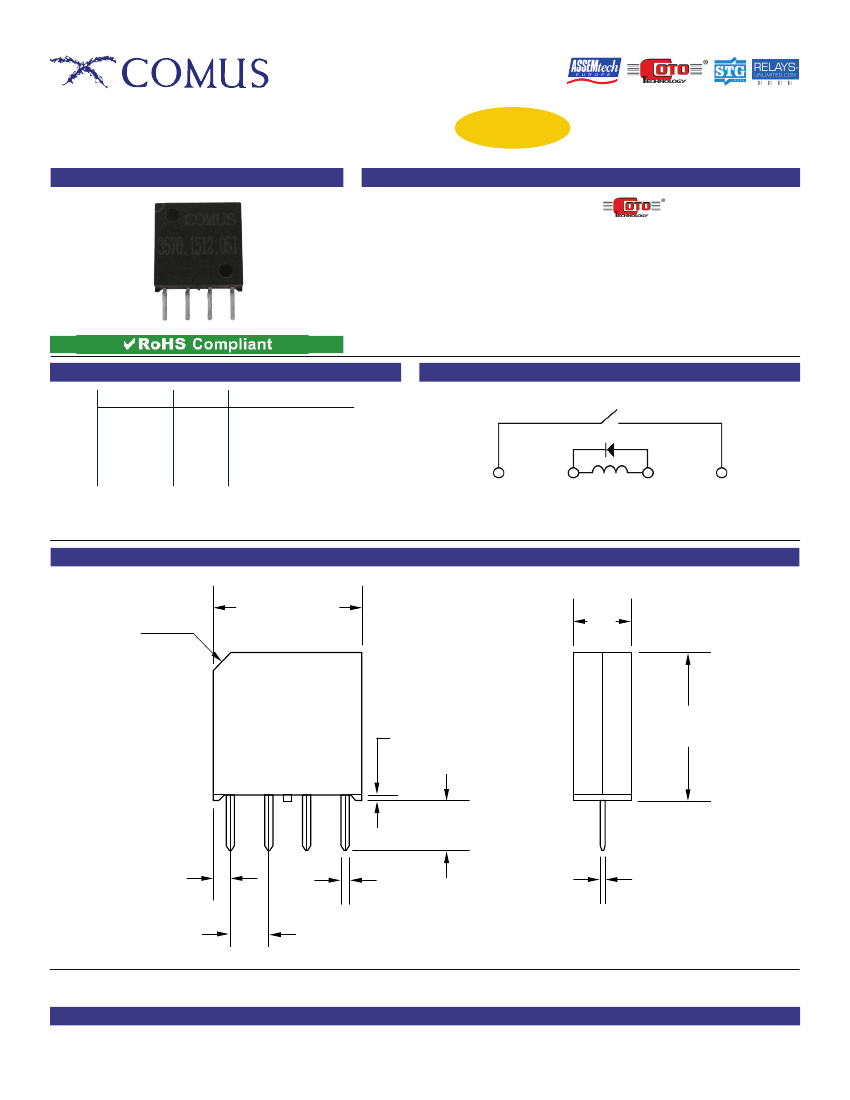

Relays
Part Number: 3570 1512 Series
Instrumentation Grade Micro Mini SIP - 1 Form A
Product Data Sheet
15 Watts
FEATURES
• High Reliability Instrumentation Grade
reed switch with
sputtered Ruthenium contacts.
• 1 Amp Carry Current, 15 Watts
• Internal Magnetic shield-reduces interaction (standard).
• Coil suppression diode protects coil drive circuits (option).
• High Insulation Resistance: 10
12
Ω MIN
• High board density.
• Molded thermoset industry standard package.
• Hermetically sealed contacts for long life.
ORDERING INFORMATION
Series
3570.1512.
Coil
05
12
Options
1 = no diode
3 = with diode
SCHEMATIC
Part Number Example:
3570.1512.xxx
3570.1512.051 = 5 volt coil, no diode
1
+
_
2
3
4
DIMENSIONS
0.40 MAX (10.16)
0.15
MAX
(3.81)
IDENTIFIES
PIN #1
0.015 (0.38)
0.40 MAX
(10.16)
1
2
3
4
0.13
(3.30)
0.05 (1.27)
0.10
TYP.
(2.54)
0.02
(0.51)
0.01
(0.25)
Drawings not to scale.
All dimensions in inches (mm).
As part of the company policy of continued product improvement, specifications may change without notice. Our sales office will be pleased to help you with the latest information on this product range and
the details of our full design and manufacturing service. All products are supplied to our standard conditions of sale unless otherwise agreed in writing.
Phone: (1) 973 777 6900
www.comus-intl.com
Fax: (1) 973 777 8405
Belgium: + 32 (0)12 390400 - Comus Europe Ltd (Assemtech) UK: +44 (0) 1255 862236 - Germany: +49 (0)911 923 15 943 - Netherlands: +31(0)45 54 39 345 - India: +(91) (44) 43219090
©2015 Copyright Comus International, 454 Allwood Road, Clifton NJ 07012, USA
8 / 2015
An ISO 9001 Certified Company
Relays
Part Number: 3570 1512 Series
Instrumentation Grade Micro Mini SIP - 1 Form A
Product Data Sheet
NOMINAL VOLTAGE
DC±10%[V]
COIL RESISTANCE
±10%
(Ω)
MAX OPERATE
VOLTAGE (VDC)
15 Watts
MIN RELEASE
VOLTAGE (VDC)
MAX COIL
VOLTAGE (VDC)
COIL DATA-STANDARD TYPE 1 FORM A (at 20˚C)
5
12
500
750
3.75
9.0
0.4
1.0
7
16
CONTACT RATING
Max Switching Power
Max Switching Voltage
Max Switching Current
Max Carry Current
15 W
200 VDC
0.5 A
1.0 A
SPECIFICATION
Contact Resistance (Initial)
Operate Time - including bounce (Typical)
Release Time (Typical)
Insulation Resistance @ 100V, 20°C, 40% RH (MIN)
Dielectric Strength (MIN)
Capacitance Between Open Contacts (Typical)
Vibration
Shock Resistance
Operating Temperature
Storage Temperature
Life Expectancy of Electrical (Typical)
MAX 150 mΩ
0.35 ms (At Nominal Voltage)
0.1 ms
10
12
Ω
Between Open Contacts 200 VDC/peak AC
Between Coil to Contacts 1500 VDC/peak AC
0.5 pF
20G
50G
-40° +85°C
-40° +100°C
1000 x10
6
ops (1 VDC, 10mA)
