CONN SOCKET PLCC 68POS TIN

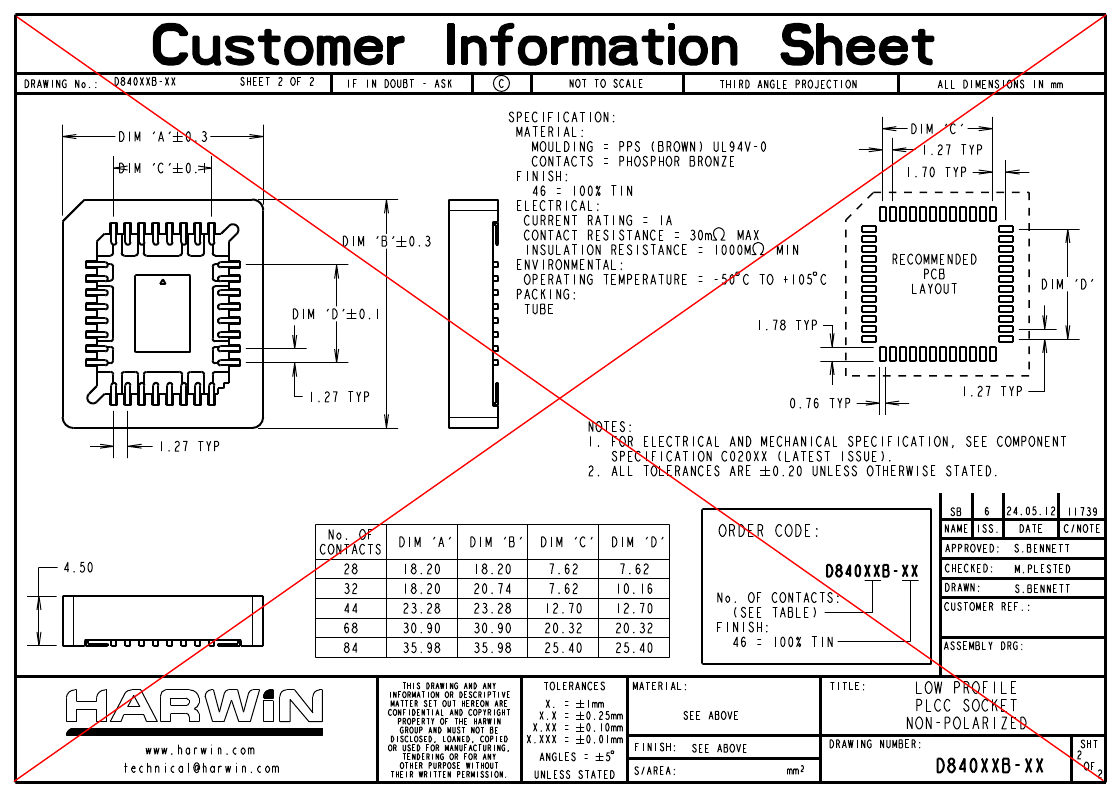

| Parameter Name | Attribute value |
| type | PLCC |
| Number of pins or pins (grid) | 68（4 x 17） |
| Spacing - Mating | 0.050"（1.27mm） |
| Contact surface treatment - mating | tin |
| Contact Surface Treatment Thickness - Mating | - |
| Contact Material - Mating | Phosphor bronze |
| Installation type | surface mount |
| characteristic | Plate guide, closed frame |
| Termination | welding |
| spacing-column | 0.050"（1.27mm） |
| Contact Surface Preparation - Column | tin |
| Contact Surface Treatment Thickness - Column | - |
| Contact Material - Pillar | Phosphor bronze |
| Shell material | Polyphenylene sulfide (PPS) |
| Operating temperature | -50°C ~ 105°C |
| Termination post length | - |
| Material flammability rating | UL94 V-0 |
| Rated current | 1A |
| Contact resistance | 30 milliohms |
| D84068B-46R | D84028B-46 | D84032B-46 | D84032B-46R | D84044B-46 | D84068B-46 | D84084B-46 | D84084B-46R | |
|---|---|---|---|---|---|---|---|---|
| Description | CONN SOCKET PLCC 68POS TIN | CONN SOCKET PLCC 28POS TIN | CONN SOCKET PLCC 32POS TIN | CONN SOCKET PLCC 32POS TIN | CONN SOCKET PLCC 44POS TIN | CONN SOCKET PLCC 68POS TIN | CONN SOCKET PLCC 84POS TIN | CONN SOCKET PLCC 84POS TIN |
| Shell material | Polyphenylene sulfide (PPS) | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULFIDE | Polyphenylene sulfide (PPS) | POLYPHENYLENE SULFIDE | POLYPHENYLENE SULFIDE | POLYPHENYLENE SULFIDE | Polyphenylene sulfide (PPS) |
| Is it lead-free? | - | Lead free | Lead free | - | Lead free | Lead free | Lead free | - |
| Is it Rohs certified? | - | conform to | conform to | - | conform to | conform to | conform to | - |
| Reach Compliance Code | - | compliant | compliant | - | compliant | compliant | compliant | - |
| ECCN code | - | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | - |
| body width | - | 0.717 inch | 0.717 inch | - | 0.917 inch | 1.217 inch | 1.417 inch | - |
| subject depth | - | 0.177 inch | 0.177 inch | - | 0.177 inch | 0.177 inch | 0.177 inch | - |
| body length | - | 0.717 inch | 0.817 inch | - | 0.917 inch | 1.217 inch | 1.417 inch | - |
| Contact structure | - | 7X7 | 7X9 | - | 11X11 | 17X17 | 21X21 | - |
| Contact to complete cooperation | - | NOT SPECIFIED | TIN | - | TIN | TIN | TIN | - |
| Contact material | - | NOT SPECIFIED | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - |
| Contact style | - | BELLOWED TYPE | BELLOWED TYPE | - | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | - |
| current rating | - | 1 A | 1 A | - | 1 A | 1 A | 1 A | - |
| Device slot type | - | IC SOCKET | IC SOCKET | - | IC SOCKET | IC SOCKET | IC SOCKET | - |
| Type of equipment used | - | PLCC28 | PLCC32 | - | PLCC44 | PLCC68 | PLCC84 | - |
| Insulation resistance | - | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - |
| Installation method | - | STRAIGHT | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT | - |
| Number of contacts | - | 28 | 32 | - | 44 | 68 | 84 | - |
| Maximum operating temperature | - | 105 °C | 105 °C | - | 105 °C | 105 °C | 105 °C | - |
| Minimum operating temperature | - | -55 °C | -55 °C | - | -55 °C | -55 °C | -55 °C | - |
| Termination type | - | SURFACE MOUNT | SURFACE MOUNT | - | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | - |
