Elevated Feed Point Antennas
for LMR, Cellular and GSM
ELEVATED FEED POINT ANTENNAS PROVIDE CLEAR OMNI-DIRECTIONAL
SIGNALS OVER VERTICAL OBSTACLES
Laird's Elevated Feed Point mobile antennas provide optimal RF coverage, when installation
requirements include light bars or other vertical impediments to optimal omni-directional
coverage. These antennas are the ideal solution for public safety and limousine trunk mount
applications. Models are available in UHF and 800/900 MHz frequencies, in black or chrome
finish.
FEATURES
• True Field Diversity design ensures
uninterrupted transmissions in urban
canyons and rural drop off areas
• Phantom
®
outperforms a 3dB whip in
many applications
• U.S. Patent Nos. 5,977,931 – 6,292,156
and 7,209,096
MARKETS
• Public safety
• Transportation
• Utility
• Military mobile
• Fixed radio applications

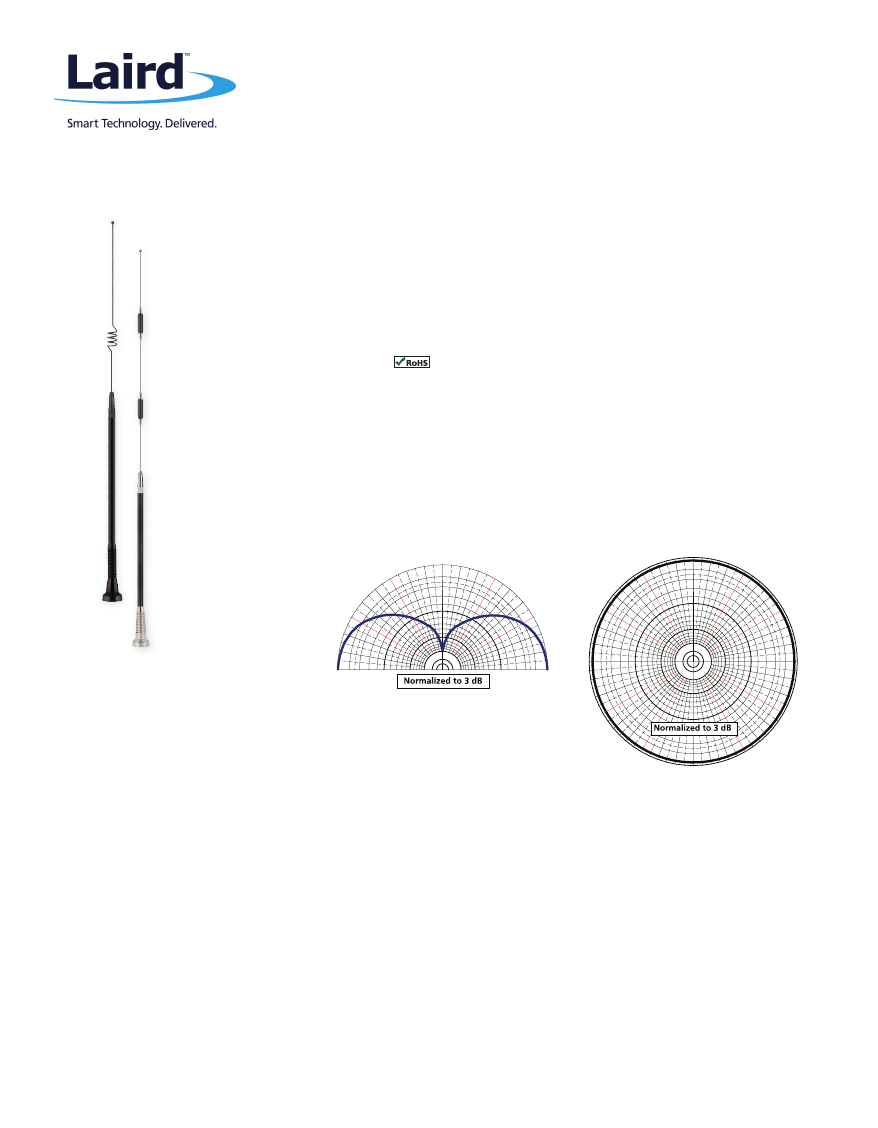

TYPICAL 3dBi ANTENNA PATTERNS
350°
35 0°
340
10°
°
340
10°
20°
0°
33
0
32
90°
260°
100°
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
0°
23
Elevation Pattern (Y, Z, or H-plane)
24
0°
250
270°
-30
-40
-50
80°
28 0°
-20
70°
290
°
60
°
30
0°
°
50
31
0°
-4
-6
-8
-10
40
°
-6
-8
-10
40
°
50
60
°
-2
-2
-4
33
30
32
0°
°
30
0°
°
0
20 °
0
°
°
°
°
31
0°
30
0°
-20
-30
-40
-50
70°
80°
290
°
28 0°
90°
270 °
110°
12
0°
13
0°
22
0°
21
0
°
15
0°
14
0°
Azimuth Pattern (X,Y, or E-plane)
200
°
160
19 0
170
18 0°
°
Elevated Feed Point Antennas
for LMR, Cellular and GSM
SPECIFICATIONS
ELECTRICAL
VSWR
Nominal Gain
Maximum Power
Nominal Impedance
Polarization
Pattern
Half-Power Beamwidth
(Elevation° x Azimuth°)
Coaxial Cable Length & Type
Terminations
2:1
3 dB
200 W
50 Ω
Vertical
Omnidirectional
70° x 360°
None
NMO
MODEL AND ORDERING INFORMATION
MODEL
E(B)4500
E(B)4503C
E(B)7603
E(B)7603C
E(B)8063
E(B)8063C
E(B)8065C
E(B)8965C
DESCRIPTION
450-512 MHz, Elevated Feed
450-470 MHz, Closed Coil, Elevated Feed
760-870 MHz, Open Coil, Elevated Feed
760-870 MHz, Closed Coil, Elevated Feed
806-896 MHz, Open Coil, Elevated Feed
806-896 MHz, Closed Coil, Elevated Feed
806-896 MHz, Closed Coil, Elevated Feed
896-970 MHz, Closed Coil, Elevated Feed
GAIN
Unity
3 dBi
3 dBi
3 dBi
3 dBi
3 dBi
5 dBi
5 dBi
Other frequencies are
available (B) = Black
MECHANICAL
Color
Height
Diameter
Weight
Material
Mounting Information
Noise Suppressor
(Optional)
Chrome or Black
See Form Factor
1.44”
< 0.5 lb
ABS
NMO or Permanent Mountable
BlackHawk NS1535
1-35 VOLT, 15 Amp
Noise Suppessor
(Sold Separately)
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
ANT-DS-ELEVATED FEED 0115
