161-43250-3008C datasheet, PDF

Datasheet> All Categories > The connector> The connector> 161-43250-3008C

161-43250-3008C: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

161-43250-3008C Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

161-43250-3008C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	16
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

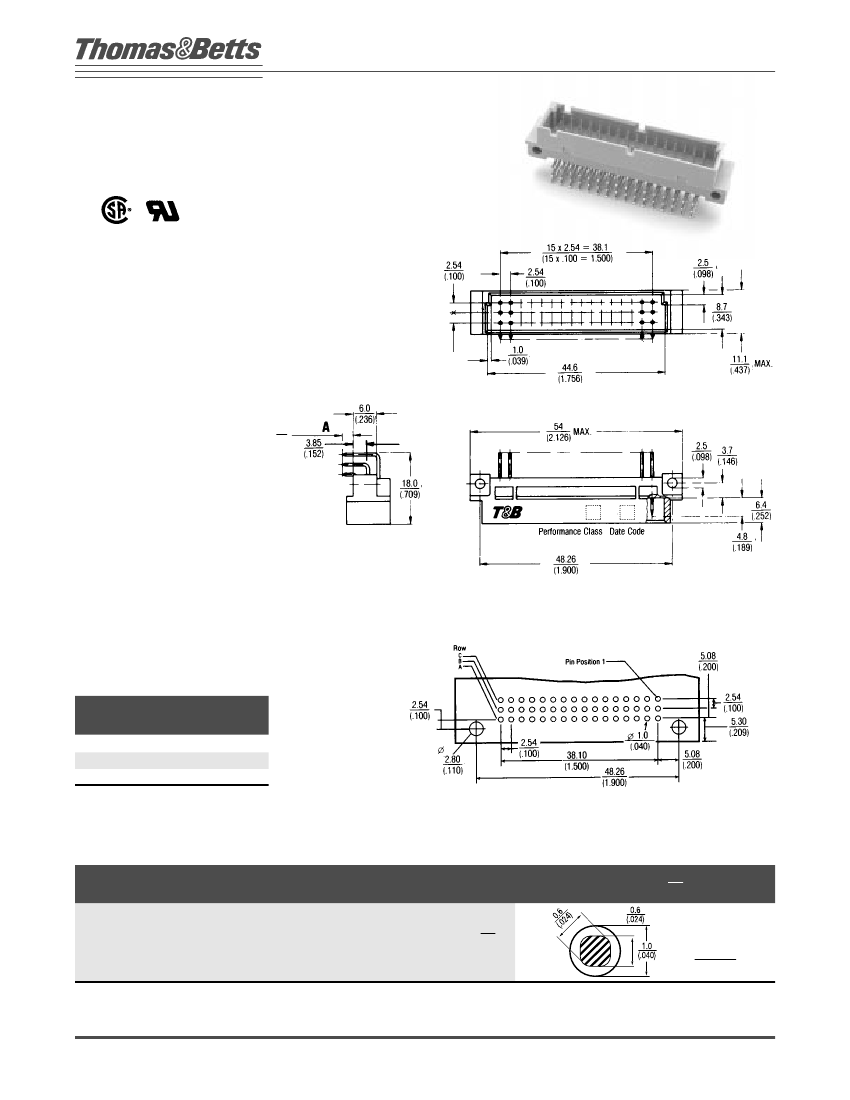

Two–Piece Connectors

Standard DIN

TYPE C/2

MALE CONNECTOR

SERIES 16

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Gray

ONTACTS

Copper alloy, nickel plate overall,

gold finish in contact zone. Tin/lead on solder

tails, tin/lead or gold on posts.

LECTRICAL

ROPERTIES

URRENT

ATING

2 Amps

NSULATION

ESISTANCE

>1 x 10

0hms

IELECTRIC

TRENGTH

> 500 VDC at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

Extended length contacts available.

Consult factory for details.

2.9

(.114)

Recommended Printed Circuit Board Layout

PERFORMANCE LEVEL

level 1 - 500 mating cycles

level 2 - 400 mating cycles

level 3 - 50 mating cycles

Ordering Information

NO. OF CONTACTS

CONTACT LOADING

CATALOG NO.

SPECIFY X

161-43250-300X

161-44830-300X

A = 2.9

(.114)

TERMINATION STYLE

(INCHES)

a, c

a, b, c

1, 2, 3–16

Solder Post

0.6 x 0.6

(.024 x .024)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

192

161-43250-3008C Related Products

	161-43250-3008C	161-44830-3008C	161-43250-3001C	161-43250-3004C	161-44830-3001C	161-44830-3004C
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	16	16	16	16	16	16
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	3	2	2	3	3
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	48	32	32	48	48
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
