CLE-181-01-G-DV-A-P datasheet, PDF

Datasheet> All Categories > The connector> The connector> CLE-181-01-G-DV-A-P

CLE-181-01-G-DV-A-P: Description.8MM MICRO SOCKET STRIPS; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CLE-181-01-G-DV-A-P Overview

.8MM MICRO SOCKET STRIPS

CLE-181-01-G-DV-A-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	METAL PICK & PLACE PAD
Board mount options	POSITIONING PIN
body width	0.125 inch
subject depth	0.123 inch
body length	2.551 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	375VAC V
Durability	100 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	CLE
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9624 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	162
Evacuation force-minimum value	.3336 N

Preview

Download Datasheet

View All

F-218 (Rev

10OCT17)

CLE–125–01–G–DV

CLE–108–01–G–DV

CLE–130–01–G–DV

(0.80 mm) .0315"

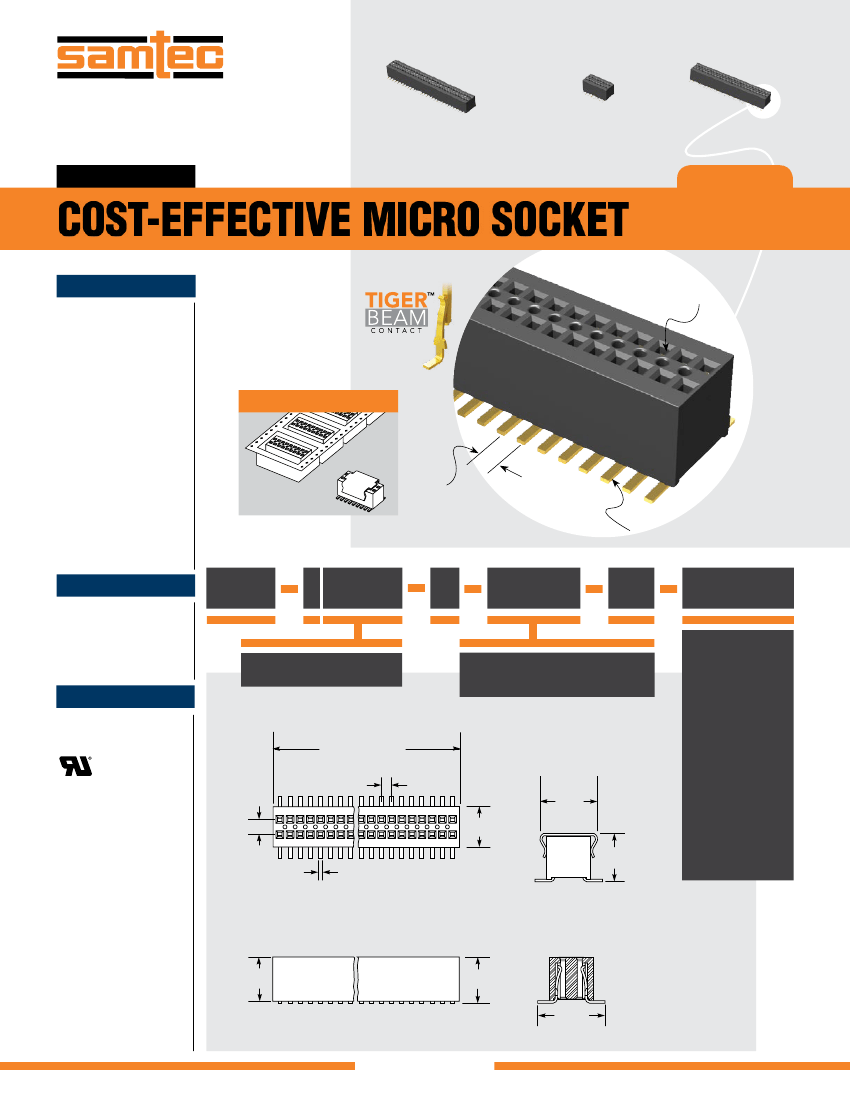

CLE SERIES

COST-EFFECTIVE MICRO SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?CLE

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

BeCu

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating (CLE/FTE):

2.7 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

Top Entry = (1.73 mm) .068"

to (3.18 mm) .125" with

(0.38 mm) .015" wipe, or

pass-through

Bottom Entry = (3.23 mm) .127"

minimum plus board thickness

Normal Force:

75 grams (0.73 N)

Max Cycles:

100 with 10 µ" (0.25 µm) Au

RoHS Compliant:

Yes

Mates with:

FTE, AW

Ideal for

pass-through

applications

OPTIONS

–TR OPTION

–P OPTION

(0.80 mm) .0315"

micro pitch

Surface

Mount

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (04-65)

(0.15 mm) .006" max (66-90)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

CLE

NO. PINS

PER ROW

PLATING

OPTION

OPTIONS

04 thru 90

= 10 µ" (0.25 µm) Gold

–G

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

= Alignment Pin

(4 positions minimum)

Metal or plastic at

Samtec discretion.

–A

No. of positions x

(0.80) .0315 + (0.38) .015

(0.80)

.0315

= (3.50 mm) .138" DIA

Polyimide film

Pick & Place Pad

(8 positions minimum)

–K

FILE NO. E111594

(3.18)

.125

(1.20)

.047

(0.30)

.012

(4.39)

.173

(6.35)

.250

(3.51)

.138

–P OPTION

= Metal Pick &

Place Pad

(8 positions minimum)

–P

= Tape & Reel

Packaging

–TR

(3.12)

.123

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(3.30)

.130

(4.83)

.190

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
