5452523 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5452523

5452523: DescriptionTERM BLOCK PLUG 14POS STR 3.5MM; CategoryThe connector; File Size101KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5452523 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5452523	-	-	View	Buy Now

5452523 Overview

TERM BLOCK PLUG 14POS STR 3.5MM

5452523 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	14
Number of pins per level	14
Number of levels	1
spacing	0.138"（3.50mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	8A
Voltage - IEC	320V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Wire gauge or range - mm²	0.2-1.5mm²
color	black
Operating temperature	-
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M2
Torque - Screws	0.2-0.25 Nm（1.7-2.2 Lb-In）
Wire stripping length	7mm
Contact material	-
Shell material	Polyamide (PA), nylon
Contact tail length	-
Insulation height	0.437"（11.10mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5452523

Printed-circuit board connector - BCP-350F-14 BK - 5452523

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

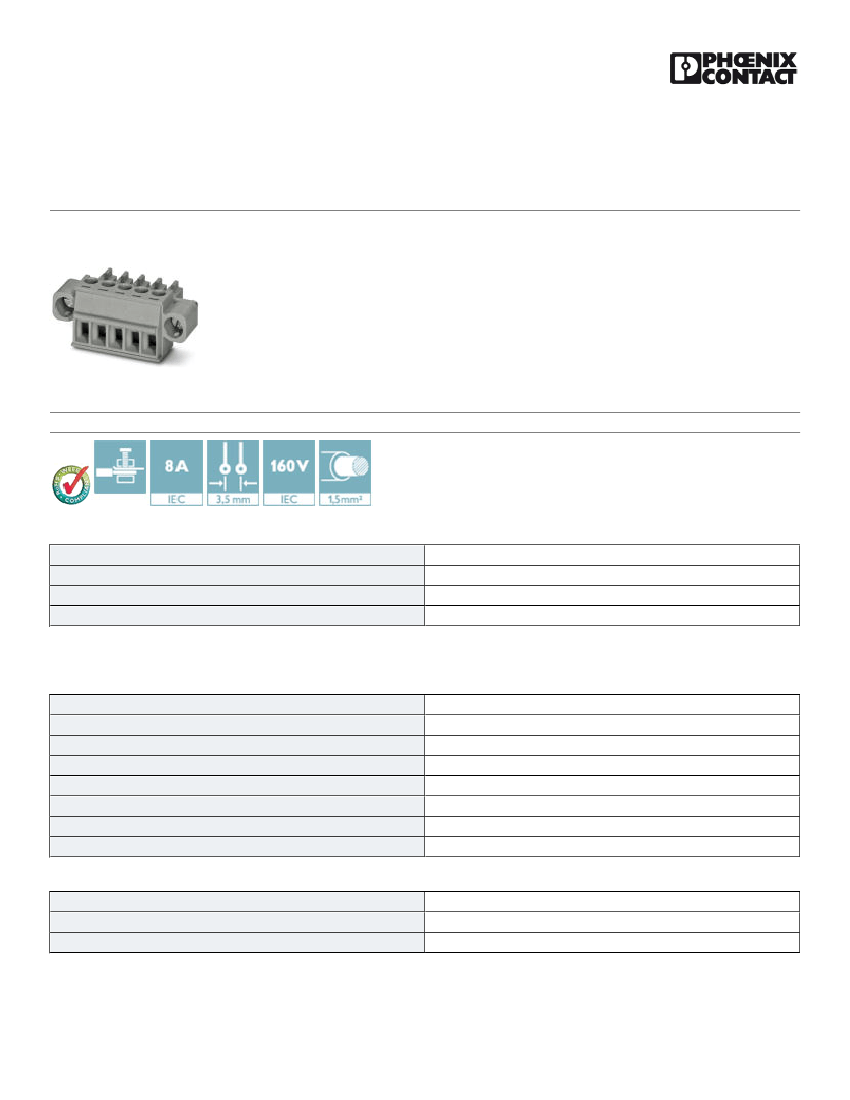

Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 14, Pitch: 3.5 mm,

Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

The figure shows a 5-pos. version of

the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

eCl@ss 9.0

272607xx

27260701

27261101

27440401

27440309

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002637

EC002638

05/06/2016 Page 1 / 3
