51K201-200N5

Description
BNC RIGHT ANGLE JACK
CategoryThe connector    The connector
File Size36KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

51K201-200N5 Overview

BNC RIGHT ANGLE JACK

51K201-200N5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresCAPTIVATED CENTRE CONTACT, INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodRIGHT ANGLE
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.22
Base Number Matches1

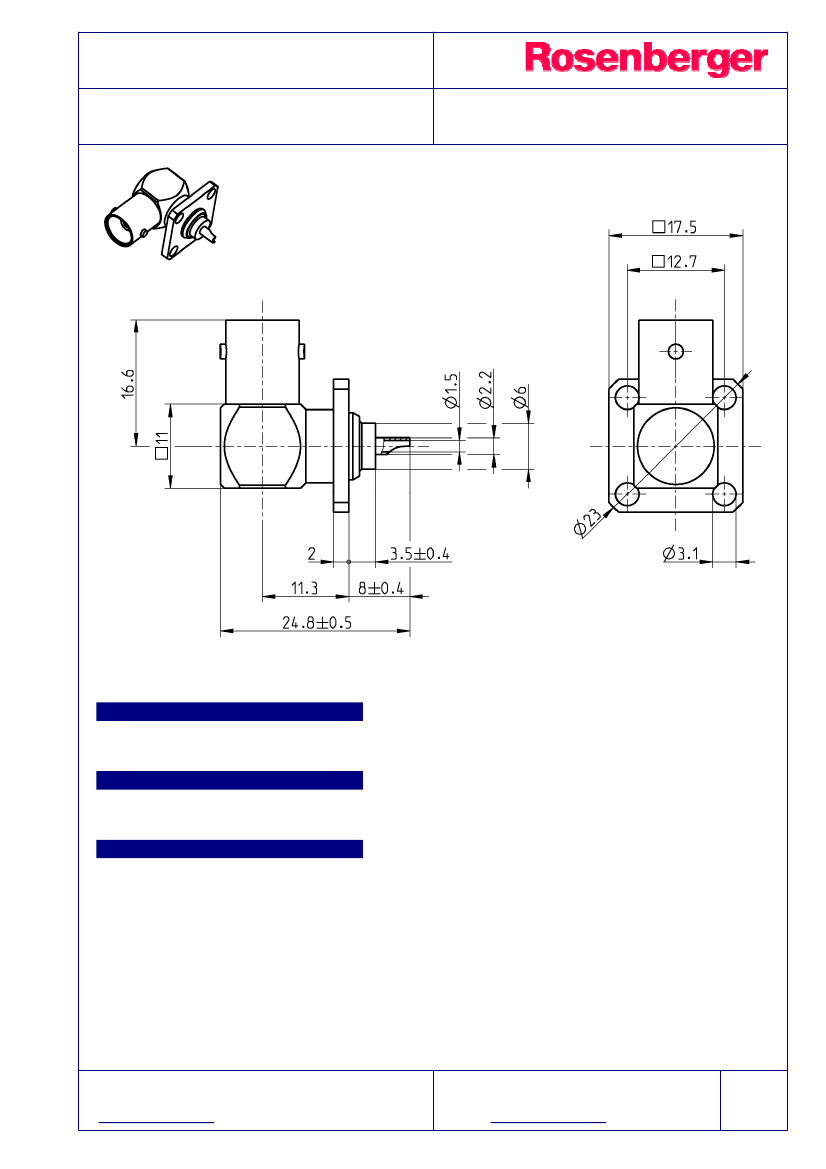

TECHNICAL DATA SHEET
BNC 50
RIGHT ANLGLE JACK
SOLDER END
51K201-200N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
Panel piercing
B6
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
CuBe
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
