129NQ135/R-1
129NQ150/R-1
Technical Data
Data Sheet N1169, Rev. A
129NQ135/R-1 129NQ150/R-1SCHOTTKY RECTIFIER
Features
175℃ T
J
operation
Unique high power, Half-Pak module
Replaces three parallel DO-5’S
Easier to mount and lower profile than DO-5’S
High purity, high temperature epoxy encapsulation
for enhanced
mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

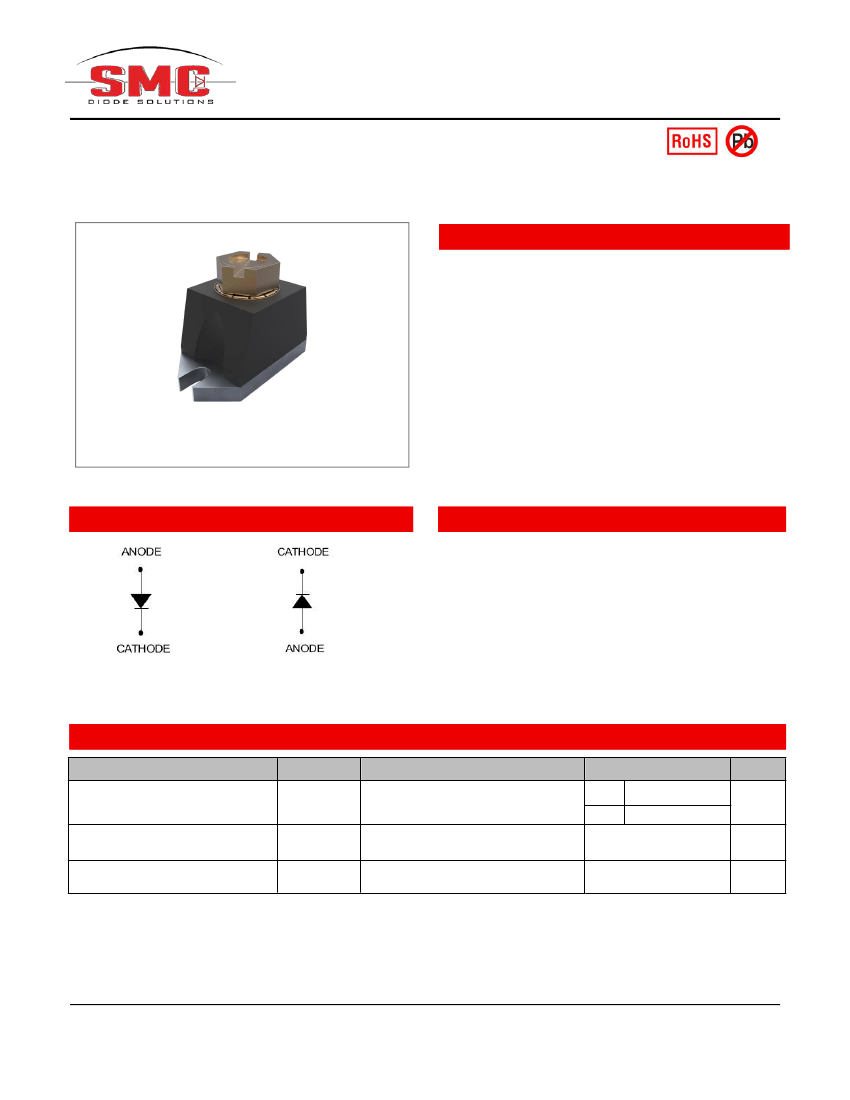

PRM1-1(HALF PAK Module)
Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
129NQ...-1
129NQ...R-1
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Forward Current
Peak One Cycle Non-Repetitive
Surge Current
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
Condition
-
50% duty cycle @T
C
=110°C,
rectangular wave form
8.3 ms, half Sine pulse
135
150
Max.
129NQ135(R)-1
129NQ150(R)-1
120
1140
Units
V
A
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
129NQ135/R-1
129NQ150/R-1
Technical Data
Data Sheet N1169, Rev. A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current*
Junction Capacitance
Max. Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
dv/dt
Condition
@ 120A, Pulse, T
J
= 25
C
@ 120A, Pulse, T
J
= 125
C
@V
R
= rated V
R
T
J
= 25
C
@V
R
= rated V
R
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
-
Typ.
0.81
0.64
0.004
0.6
2300
-
Max.
1.07
0.74
3
45
3000
10,000
Units
V
V
mA
mA
pF
V/s
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance
Junction to Case
Typical Thermal Resistance, case
to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
cs
DC operation
Mounting surface, smooth and
greased
Non-lubricated threads
-
Condition
-
-
Specification
-55 to +175
-55 to +175
0.40
0.15
Mounting
23(min)
Torque
29(max)
Terminal
35(min)
Torque
46(max)
25.6
Units
C
C
C/W
C/W
T
M
wt
Kg-cm
g
PRM1-1
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
129NQ135/R-1
129NQ150/R-1
Technical Data
Data Sheet N1169, Rev. A

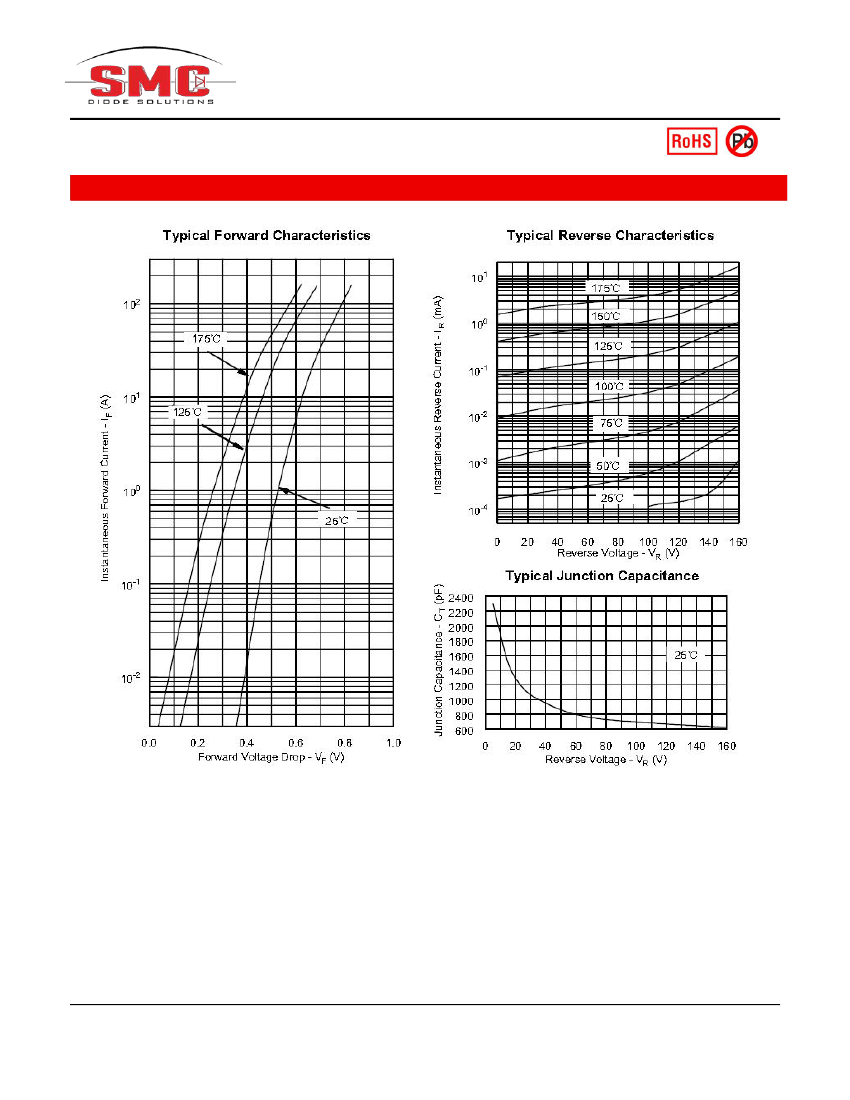

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
129NQ135/R-1
129NQ150/R-1
Technical Data
Data Sheet N1169, Rev. A
Ordering Information
Device
129NQ SERIES
PRM1-1(Pb-Free)
Marking Diagram
27pcs/ box
Package
Shipping
Where XXXX is YYWW
1st row SS YYWW
2nd row 129NQ135-1
SS
= SS
YY
= Year
WW
= Week
Cautions：Molding
resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.

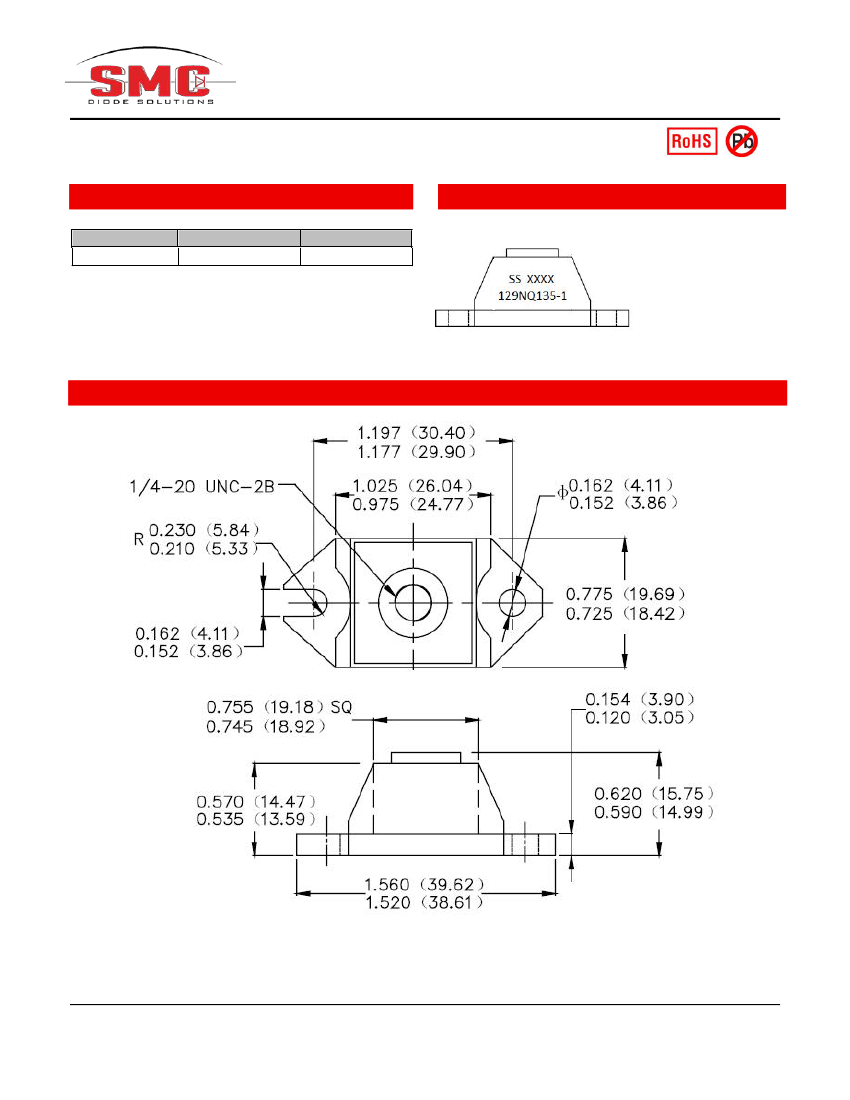

Mechanical Dimensions PRM1-1 (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
129NQ135/R-1
129NQ150/R-1
Technical Data
Data Sheet N1169, Rev. A
