PA-SOF-D250-14/6 datasheet, PDF

Datasheet> All Categories > Development board/suite/development tools> PA-SOF-D250-14/6

PA-SOF-D250-14/6: Description14P 0.25" PLUGS 309-1074-ND 6PC; CategoryDevelopment board/suite/development tools; File Size202KB，2 Pages; ManufacturerLogical Systems（LSI）; Websitehttps://www.logicalsysinc.com; Environmental Compliance

Download Datasheet Parametric View All

PA-SOF-D250-14/6 Overview

14P 0.25" PLUGS 309-1074-ND 6PC

PA-SOF-D250-14/6 Parametric

Parameter Name	Attribute value
Accessory type	14-pin 0.25" (6.35mm) inch header (6 pieces)
Supporting products/related products	309-1074-ND

Preview

Download Datasheet

View All

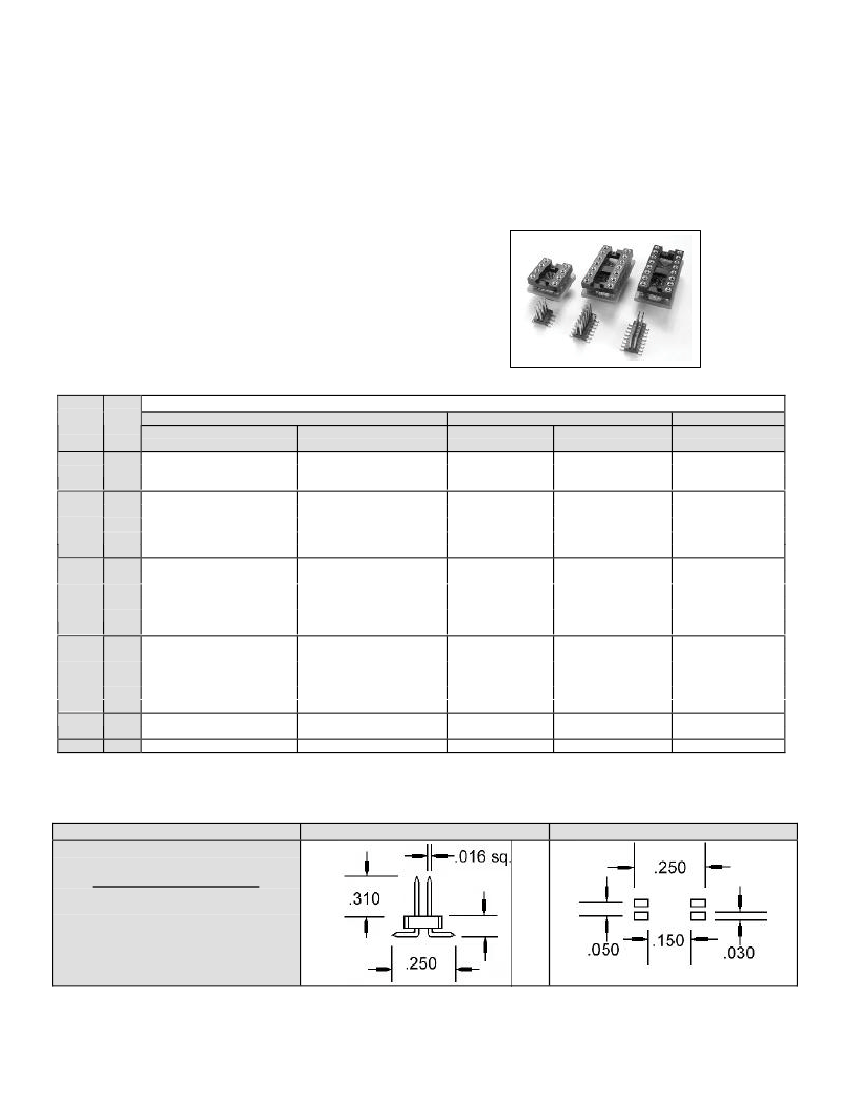

DIP to SO-Plug Prototyping Adapter Kits

These adapters will convert a small outline land pattern to a DIP package. The adapter provides a solder down SO-

plug on the bottom and a detachable 300 or 600 mil wide open-frame DIP socket on the top. They are also available

with optional, detachable Aries ZIF sockets. This allows an emulator or DIP device to be plugged in. We support

1.27mm pitch devices in pin counts from 8 - 44 and body sizes of 150 mil (3.8mm) - 520 mil (13.5mm).

Use the searches or the manufacturer pages on our website at www.logicalsys.com to identify the correct SO-Plug for

the device you are using or compare your prototype's land pattern to the recommended land patterns for each size

plug. Select the kit or individual components that fit your needs. Confirm the DIP pin count and row spacing with your

emulator or prototyping devices.

Part number format -

PA-DSO-bbbb(Z)-Dwww-pp

bbbb

(Z)

www

Board pin count (08 - 44) + width (03 or 06)

Optional ZIF socket

Plug width (250 – 630)

Plug pin count (08 – 44)

Number of plugs in kit

Device

Width

Part Numbers to Order

Pins

Kits with one DIP board and two plugs

300 mil wide DIP top

600 mil wide DIP top

(optional ZIF socket)

PA-DSO-0803-D250-08/2

N/A

PA-DSO-1403(Z)-D250-14/2 N/A

PA-DSO-1603(Z)-D250-16/2 N/A

PA-DSO-0803-D310-08/2

N/A

PA-DSO-1403(Z)-D310-14/2 N/A

PA-DSO-1603(Z)-D310-16/2 N/A

PA-DSO-1803(Z)-D310-18/2 N/A

PA-DSO-2003(Z)-D310-20/2 N/A

PA-DSO-1403(Z)-D420-14/2 N/A

PA-DSO-1603(Z)-D420-16/2 N/A

PA-DSO-1803(Z)-D420-18/2 N/A

PA-DSO-2003(Z)-D420-20/2 N/A

PA-DSO-2403(Z)-D420-24/2 PA-DSO-2406(Z)-D420-24/2

PA-DSO-2803(Z)-D420-28/2 PA-DSO-2806(Z)-D420-28/2

PA-DSO-1403(Z)-D470-14/2 N/A

PA-DSO-1603(Z)-D470-16/2 N/A

PA-DSO-1803(Z)-D470-18/2 N/A

PA-DSO-2003(Z)-D470-20/2 N/A

PA-DSO-2403(Z)-D470-24/2 PA-DSO-2406(Z)-D470-24/2

PA-DSO-2803(Z)-D470-28/2 PA-DSO-2806(Z)-D470-28/2

N/A

PA-DSO-3206(Z)-D560-32/2

N/A

PA-DSO-4006(Z)-D560-40/2

N/A

PA-DSO-4406(Z)-D630-40/2

Extra Boards

Open frame socket

(ZIF socket)

(ZIFsocket)

PA-DSO-0803

N/A

PA-DSO-1403(Z)

N/A

PA-DSO-1603(Z)

N/A

PA-DSO-0803

N/A

PA-DSO-1403(Z)

N/A

PA-DSO-1603(Z)

N/A

PA-DSO-1803(Z)

N/A

PA-DSO-2003(Z)

N/A

PA-DSO-1403(Z)

N/A

PA-DSO-1603(Z)

N/A

PA-DSO-1803(Z)

N/A

PA-DSO-2003(Z)

N/A

PA-DSO-2403(Z)

PA-DSO-2406(Z)

PA-DSO-2803(Z)

PA-DSO-2806(Z)

PA-DSO-1403(Z)

N/A

PA-DSO-1603(Z)

N/A

PA-DSO-1803(Z)

N/A

PA-DSO-2003(Z)

N/A

PA-DSO-2403(Z)

PA-DSO-2406(Z)

PA-DSO-2803(Z)

PA-DSO-2806(Z)

N/A

PA-DSO-3206(Z)

N/A

PA-DSO-4006(Z)

N/A

PA-DSO-4406(Z)

Extra Plugs

Packages of six

PA-SOF-D250-08/6

PA-SOF-D250-14/6

PA-SOF-D250-16/6

PA-SOF-D310-08/6

PA-SOF-D310-14/6

PA-SOF-D310-16/6

PA-SOF-D310-18/6

PA-SOF-D310-20/6

PA-SOF-D420-14/6

PA-SOF-D420-16/6

PA-SOF-D420-18/6

PA-SOF-D420-20/6

PA-SOF-D420-24/6

PA-SOF-D420-28/6

PA-SOF-D470-14/6

PA-SOF-D470-16/6

PA-SOF-D470-18/6

PA-SOF-D470-20/6

PA-SOF-D470-24/6

PA-SOF-D470-28/6

PA-SOF-D560-32/6

PA-SOF-D560-40/6

PA-SOF-D630-44/6

150 mil

200 mil

300 mil

330 mil

450 mil

520 mil

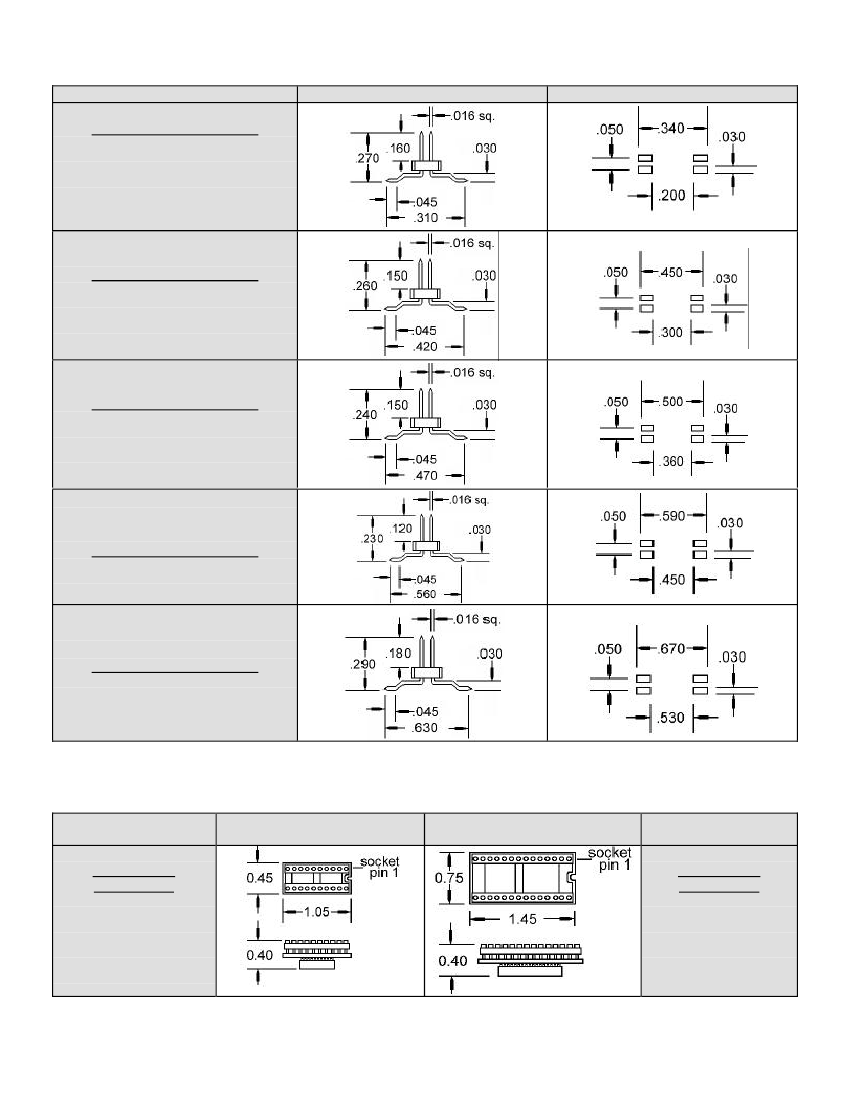

SO-Plug Dimension Drawings

Device Width & Part Numbers

150 mil

Plug six-pack part numbers

PA-SOF-D250-08/6

PA-SOF-D250-14/6

PA-SOF-D250-16/6

Lead Span

Footprint
