HMC685LP4
/
685LP4E
v04.0110
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 1.7 - 2.2 GHz
Features
High input iP3: +35 dBm
8 dB Conversion Loss @ 0 dBm LO
Optimized for Low side LO input
Upconversion & Downconversion Applications
Adjustable supply Current
24 Lead 4x4mm sMT Package: 16mm
2
Typical Applications
The HMC685LP4(e) is ideal for:
• Cellular/3G & LTe/WiMAx/4G
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
• Basestations & repeaters
• GsM, CDMA & OFDM
• Transmitters and receivers

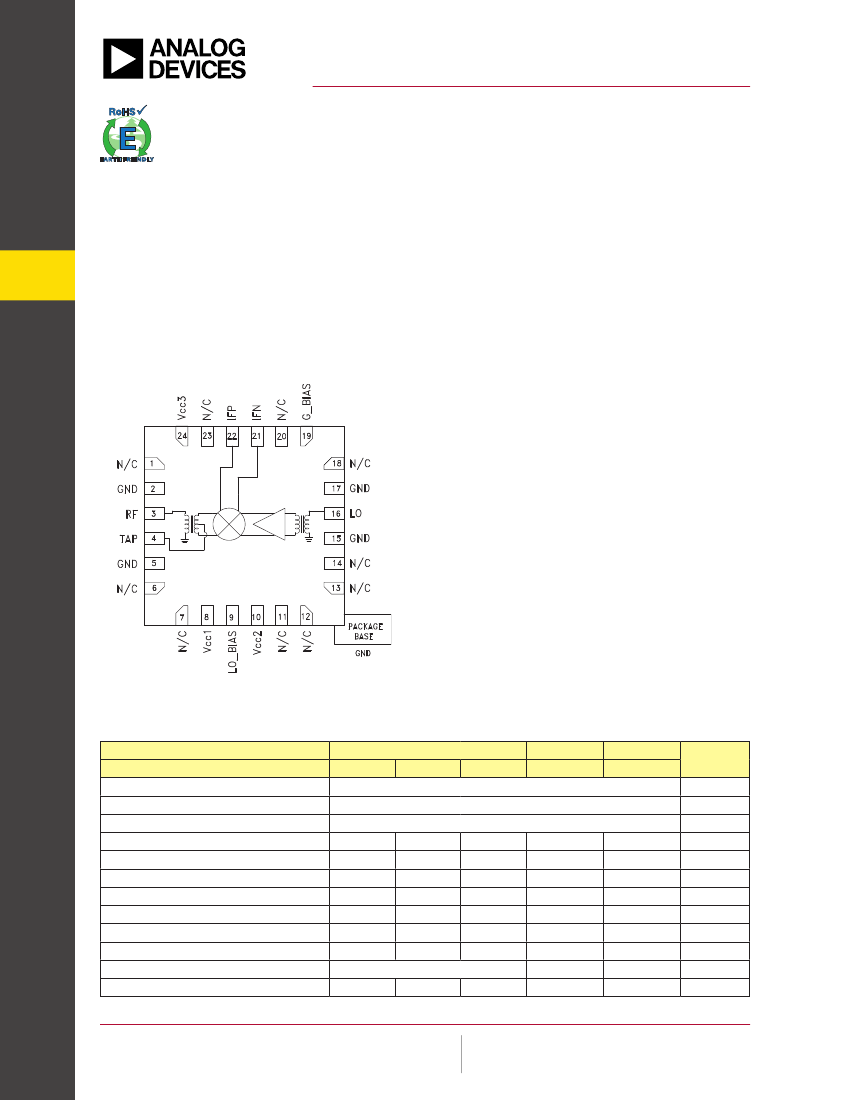

Functional Diagram
General Description
The HMC685LP4(e) is a high dynamic range passive
MMiC mixer with integrated LO amplifier in a 4x4 sMT
QFN package covering 1.7 to 2.2 GHz. excellent input
iP3 performance of +35 dBm for down conversion is
provided for 3G & 4G GsM/CDMA applications at an
LO drive of 0 dBm. With an input 1 dB compression
of +27 dBm, the rF port will accept a wide range of
input signal levels. Conversion loss is 8 dB typical.
The DC to 500 MHz iF frequency response will sat-
isfy GsM/CDMA transmit or receive frequency plans.
The HMC685LP4(e) is pin for pin compatible with the
HMC684LP4(e) which is a 700 - 1000 MHz mixer with
LO amplifier.
T
A
= +25° C, IF = 200 MHz, LO = 0 dBm, Vcc = Vcc1, 2, 3 = +5V, G_Bias = +2.5V*
Nominal supply
Parameter
Frequency range, rF
Frequency range, LO
Frequency range, iF
Conversion Loss
Noise Figure (ssB)
LO to rF isolation
LO to iF isolation
rF to iF isolation
iP3 (input)
1 dB Compression (input)
LO Drive input Level (Typical)
supply Current icc total
22
24
30
8
8
30
30
42
35
25
-6 to +3
120
140
Min.
icc = 120 mA
Typ.
Max.
1.7 - 2.2
1.5 - 2.2
DC - 500
10
8
8
33
31
42
34
24
-6 to +3
90
8
8
34
32
43
32
23
-6 to +3
70
icc = 90 mA
Typ.
icc = 70 mA
Typ.
Units
GHz
GHz
MHz
dB
dB
dB
dB
dB
dBm
dBm
dBm
mA
Electrical Specifications,
* Unless otherwise noted all measurements performed as downconverter with low side LO & IF = 200 MHz.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 1
HMC685LP4 / 685LP4E
v04.0110
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 1.7 - 2.2 GHz

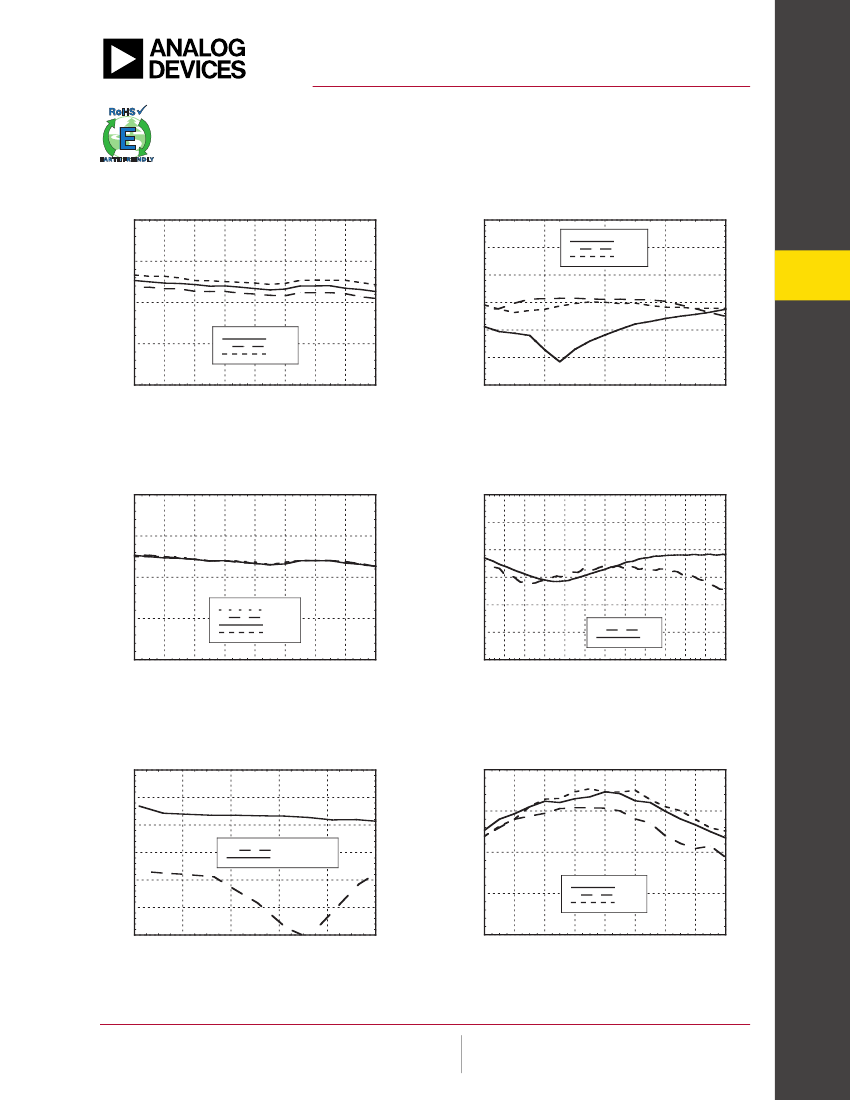

Isolation
0
-10
RF/IF
LO/RF
LO/IF

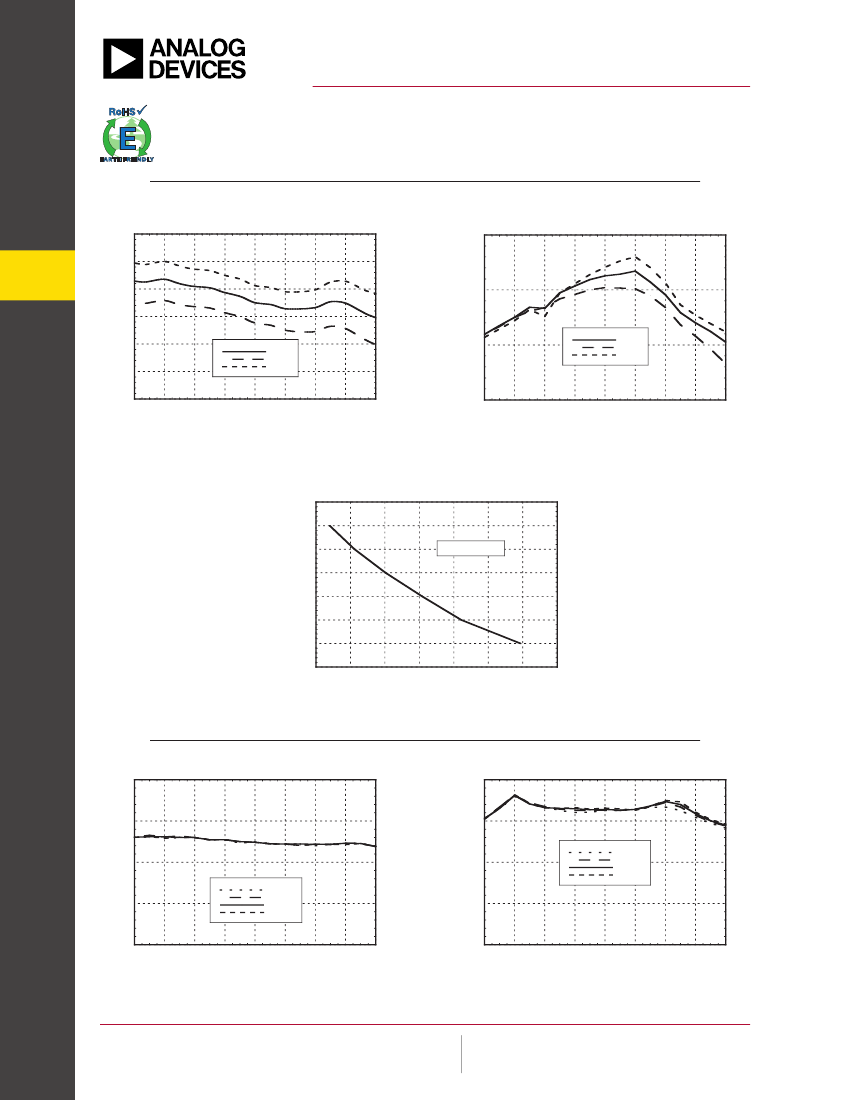

Conversion Gain vs. Temperature
0
CONVERSION GAIN (dB)
-5
ISOLATION (dB)
-20
-30
-40
-50
-60
1.6
-10
10
2.2
2.4
-15
+25 C
+85 C
-40 C
-20
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
1.8
2
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Conversion Gain vs. LO Drive
0
Return Loss
0
-5
RETURN LOSS (dB)
-5
-10
-15
-20
-25
-30
1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9
RF
LO
-10
-15
-6 dBm
-3 dBm
0 dBm
+3 dBm
-20
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
2
2.1 2.2 2.3 2.4
RF FREQUENCY (GHz)
FREQUENCY (GHz)
IF Bandwidth (LO= 1.7 GHz)
0
-5
Input P1dB vs. Temperature
30
25
RESPONSE (dB)
P1dB (dBm)
-10
-15
-20
15
-25
-30
0
0.1
0.2
0.3
0.4
0.5
IF FREQUENCY (GHz)
10
1.6
IF Return Loss
Conversion Gain
20
+25 C
+85 C
-40 C
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 2
Mixers - siNGLe & DOUBLe BALANCeD - sMT
CONVERSION GAIN (dB)
HMC685LP4 / 685LP4E
v04.0110
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 1.7 - 2.2 GHz

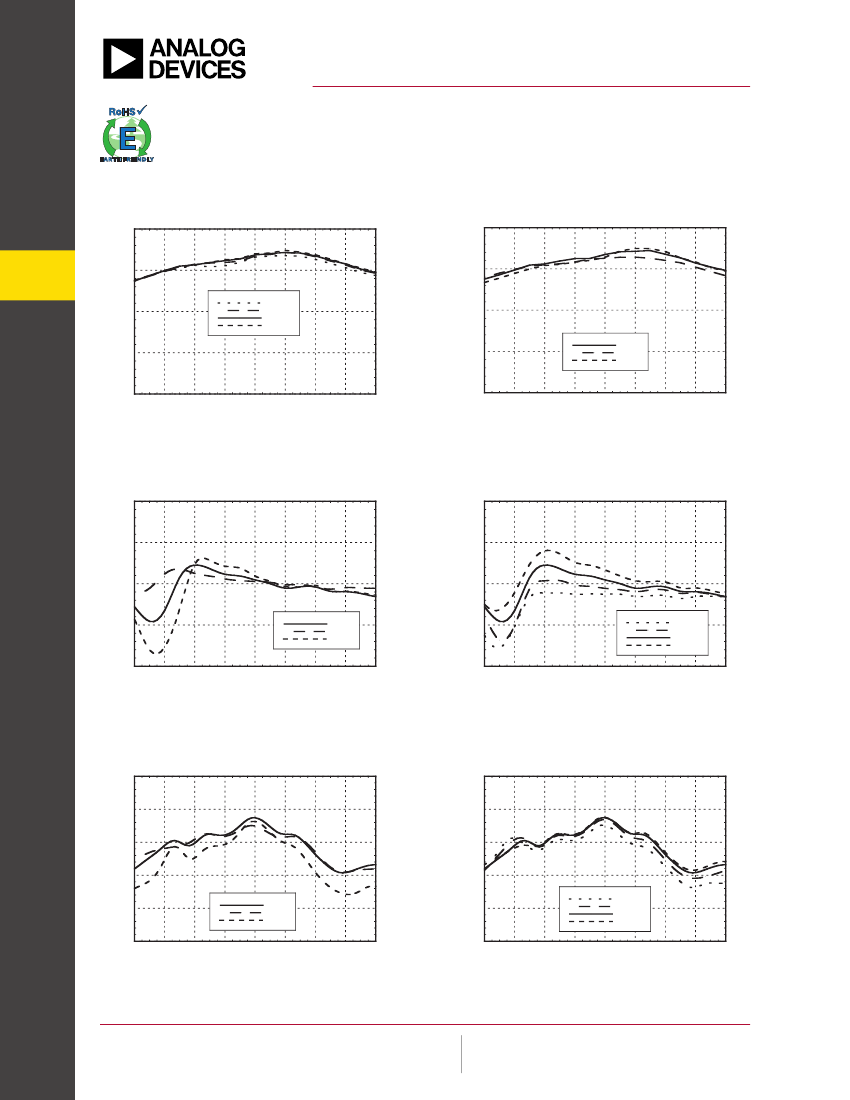

Input IP3 vs. LO Drive
[1]
40
Input IP3 vs. Temperature
[1]
40
IP3 (dBm)
20
Mixers - siNGLe & DOUBLe BALANCeD - sMT
-6 dBm
-3 dBm
0 dBm
+3 dBm
IP3 (dBm)
10
30
30
20
10
10
+25 C
+85 C
-40 C
0
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
0
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
+2RF -2LO Response vs. Temperature
[2]
80
+2RF-2LO RESPONSE (dBc)
+2RF -2LO Response vs. LO Drive
[2]
80
+2RF-2LO RESPONSE (dBc)
70
70
60
60
50
+25 C
+85 C
-40 C
50
-6 dBm
-3 dBm
0 dBm
+3 dBm
40
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
40
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
+3RF -3LO Response vs. Temperature
[2]
85
+3RF-3LO RESPONSE (dBc)
+3RF -3LO Response vs. LO Drive
[2]
85
+3RF-3LO RESPONSE (dBc)
80
80
75
75
70
+25 C
+85 C
-40 C
70
-6 dBm
-3 dBm
0 dBm
+3 dBm
65
65
60
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
60
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
[1] Two-tone input power = +9 dBm each tone, 1 MHz spacing
[2] referenced to rF input power at 0 dBm
10 - 3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC685LP4 / 685LP4E
v04.0110
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 1.7 - 2.2 GHz

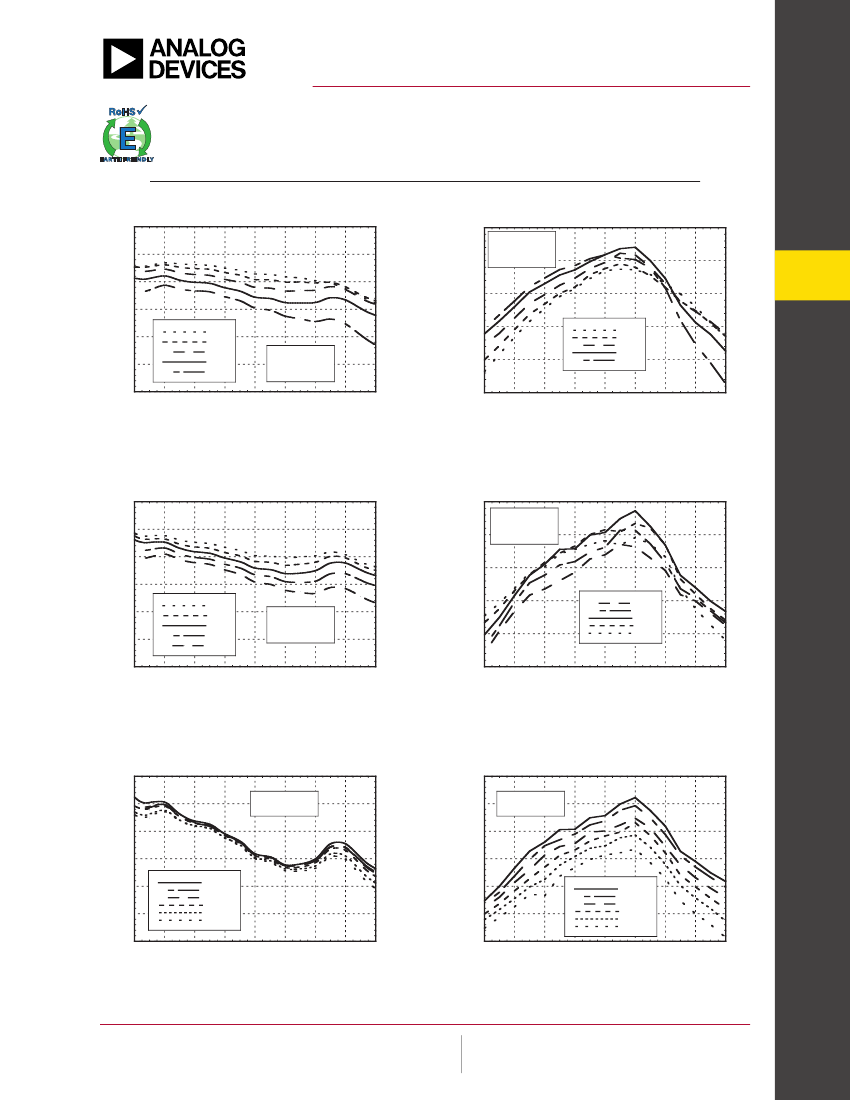

Low Power Consumption Performance
Conversion Gain vs. G_Bias Voltage
-6
-7
-8
-9
-10
-11
-12
1.6
1V
1.5 V
2V
2.5 V
3V
Input IP3 vs. G_Bias Voltage
[1]
32
Vcc1, 2, 3 = 3.3 V
R9 = 270 Ohms
CONVERSION GAIN (dB)
30
Icc = 75 mA
IP3 (dBm)
28
10
1V
1.5 V
2V
2.5 V
3V
Vcc1, 2, 3 = 3.3 V
R9 = 270 Ohms
Icc = 75 mA
24
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
22
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Conversion Gain vs. G_Bias Voltage
-6
-7
-8
-9
-10
-11
-12
1.6
1.5 V
2V
2.5 V
3V
3.5 V
Vcc1, 2, 3 = 5.0 V
R9 = 270 Ohms
Icc = 120 mA
Input IP3 vs. G_Bias Voltage
[1]
36
Vcc1, 2, 3 = 5.0 V
R9 = 270 Ohms
Icc = 120 mA
CONVERSION GAIN (dB)
34
IP3 (dBm)
32
30
28
1.5 V
2V
2.5 V
3V
3.5 V
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
26
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Conversion Gain vs. Icc
-7
-7.5
-8
-8.5
-9
-9.5
-10
1.6
120 mA
110 mA
100 mA
90 mA
80 mA
70 mA
Vcc1, 2, 3 = 5.0 V
G_Bias = 2.5 V
Input IP3 vs. Icc
[1]
37
35
33
IP3 (dBm)
31
29
27
25
1.6
120 mA
110 mA
100 mA
90 mA
80 mA
70 mA
Vcc1, 2, 3 = 5.0 V
G_Bias = 2.5 V
CONVERSION GAIN (dB)
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
[1] Two-tone input power = +9 dBm each tone, 1 MHz spacing
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 4
Mixers - siNGLe & DOUBLe BALANCeD - sMT
26
HMC685LP4 / 685LP4E
v04.0110
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 1.7 - 2.2 GHz
Low Power Consumption Performance
Conversion Gain vs.
Temperature, Icc = 70 mA
-6
Input IP3 vs. Temperature, Icc = 70 mA
[1]
35
CONVERSION GAIN (dB)
-9
-10
-11
-12
1.6
Mixers - siNGLe & DOUBLe BALANCeD - sMT
IP3 (dBm)
10
-7
-8
30
+25 C
+85 C
-40 C
25
+25 C
+85 C
-40 C
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
20
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Icc vs. R9
130
120
110
Icc (mA)
100
90
80
70
60
250
Vcc1, 2, 3 = 5.0 V
300
350
400
450
500
550
600
R9 (Ohms)
Typical Upconverter Performance
Conversion Gain vs. LO Drive
0
Input IP3 vs. LO Drive
[1]
40
CONVERSION GAIN (dB)
-5
IP3 (dBm)
30
-10
-6 dBm
-3 dBm
0 dBm
+3 dBm
20
-6 dBm
-3 dBm
0 dBm
+3 dBm
-15
10
-20
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
0
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
[1] Two-tone input power = +9 dBm each tone, 1 MHz spacing.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 5
京公网安备 11010802033920号
EEWORLD
