EcoFlex® PUR
Zero Halogen, Reduced Diameter,
Oil Resistant, Continuous Flex Cable
EcoFlex® PUR
Flex Cable
G
et the abrasion, UV, and oil resistance of a tough zero-halogen
polyurethane jacket in a flex cable that’s up to 40% smaller and
44% lighter than other 600 V continuous flex cables.
20 AWG, 12 conductor cable
The Smaller Continuous
Flex Cable
Compared to other 600 V
continuous flex cables, our new
EcoFlex PUR cables save you
significant space and weight.
The thin-wall mPPE insulation
provides cables that are up to
40% smaller and 44% lighter than
traditional flex cables.
Tough Polyurethane Jacket
The rugged, zero-halogen
PUR jacket is tough enough
for demanding applications in
industrial machinery, mining,
and outdoor applications. It
offers exceptional resistance to
abrasion, oils and solvents, and
UV radiation. It remains flexible
even at low temperatures.

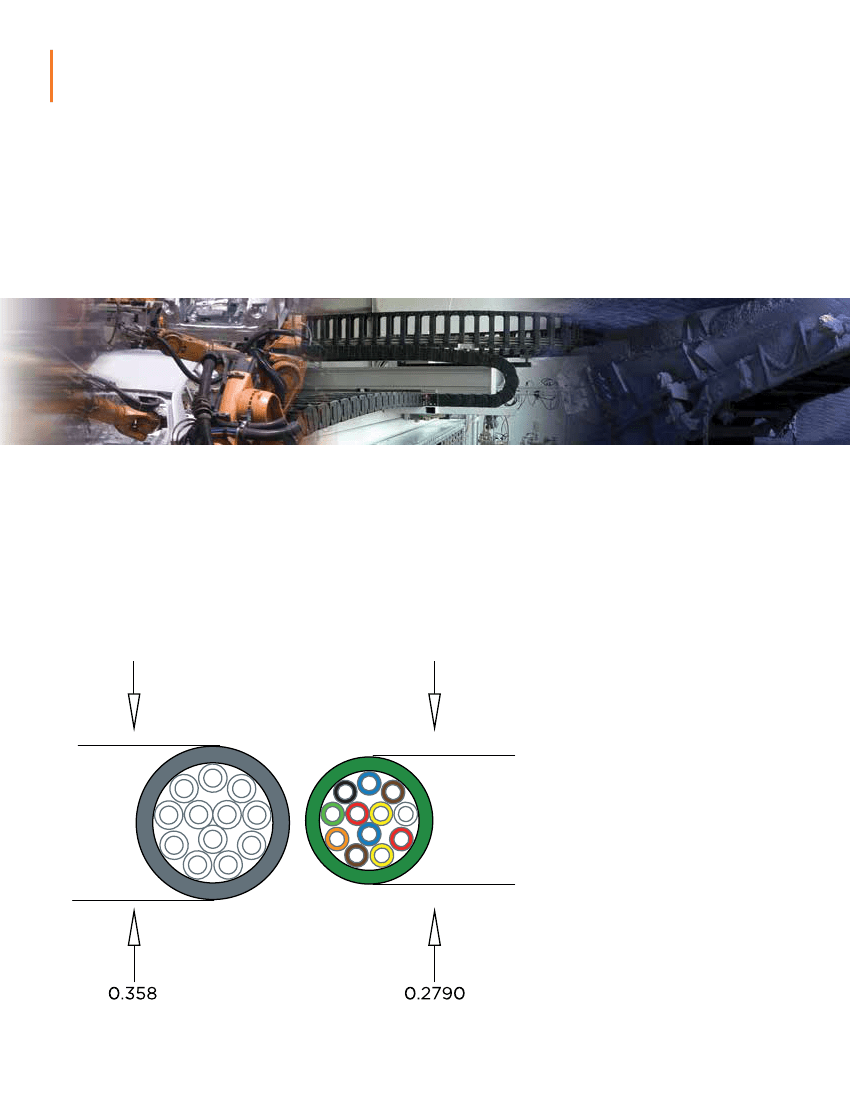

Traditional PUR Cable
EcoFlex® PUR
Specifications
•
28 to 10 AWG
•
2 to 36 conductors
•
Unshielded or braid shielding
Operating Temperature
•
-50°C to +90°C (static)
•
-40°C to +80°C (dynamic)
Materials
•
Conductors: Finely stranded
tinned copper
•
Insulation: mPPE
•
Shielding: Tinned copper braid,
85% coverage
•
Jacket: PUR, zero halogen, slate
Flex Life Cycles
•
8 million and counting
Bend Radius
•
Static: 4x
•
Dynamic: 6x
Conductor Color Coding
•
Black, numbered
•
One green/yellow conductor
Chemical Properties
•
Zero-halogen
•
Contains no heavy metals
or phthalates
Electrical Properties
•
600 V (UL)
Approvals
•
UL AWM 21959 (90°C/
600 V
RMS
)
•
UL Oil Res I
•
UL Sunlight Resistant
•
CSA AWM I/II A/B FT2
•
EN60332-1 Flame Behavior
•
EN60332-2 Flame Behavior
•
EN60754-2 Acid Gas
Generation
•
EN60228 Conductors, Class 6
•
EU Low Voltage Directive
2006/95/EC
Availability
•
100’ put-up in stock
•
Bulk (Min. 1000’)
Zero Halogen
EcoFlex PUR cables contain
no halogens, phthalates, or
heavy metals, making it ideal
for meeting RoHS and
WEEE requirements.
Alpha Wire’s next generation
of eco-friendly, high-performance
wire and cable, designed to
provide better performance in a
smaller package.
•
EcoCable®
•
EcoFlex® Cable
•
EcoCable® Mini
•
EcoWire®
•
EcoWire® Plus
•
EcoFlex® PUR
The Flexible Choice
in Flex Cables
With its rugged PUR jacket
and finely stranded conductors,
EcoFlex PUR cable provides
8+ million flex cycles in tough
application conditions—while
saving space and reducing
weight. And with a wide range
of conductor sizes, conductor
counts, and shielded and
unshielded versions, you can
find the cable you need.
Learn more about the new
EcoGen family of products at
www.alphawire.com/EcoGen
EcoFlex® PUR
Flex Cable
Unshielded
28 AWG (0.0925 mm
2
)
Stranding: 19/40 (19 x 0.079 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Part Number
80001
80002
Conductors
2
3
Nominal Diameter
Inch
mm
0.140
3.56
0.146
3.71
Part Number
80003
80004
80005
80006
80007
26 AWG (0.154 mm
2
)
Stranding: 19/38 (19 x 0.102 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Conductors
2
3
5
7
9
Nominal Diameter
Inch
mm
0.150
3.81
0.156
3.96
0.179
4.55
0.192
4.88
0.231
5.87
24 AWG (0.241 mm
2
)
Stranding: 19/36 (19 x 0.127 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Part Number
80008
80009
80010
80011
80012
80013
Conductors
2
3
5
7
9
10
Nominal Diameter
Inch
mm
0.158
4.01
0.165
4.19
0.190
4.83
0.204
5.18
0.247
6.27
0.248
6.30
Part Number
80014
80015
80016
80017
80018
80019
22 AWG (0.382 mm
2
)
Stranding: 19/34 (19 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Conductors
2
3
4
6
9
10
Nominal Diameter
Inch
mm
0.172
4.37
0.180
4.57
0.195
4.95
0.225
5.72
0.275
6.98
0.276
7.01
20 AWG (0.523 mm
2
)
Stranding: 26/34 (26 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Part Number
80020
80021
80022
80023
80024
80025
80026
80027
80028
80029
80030
80031
Conductors
2
3
5
6
7
9
12
18
20
25
30
36
Nominal Diameter
Inch
mm
0.178
4.52
0.187
4.75
0.217
5.51
0.234
5.94
0.234
5.94
0.287
7.29
0.297
7.54
0.344
8.74
0.361
9.17
0.398
10.11
0.421
10.69
0.454
11.53
Part Number
80032
80033
80034
80035
80036
80037
80038
80039
80040
18 AWG (0.825 mm
2
)
Stranding: 41/34 (41 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Jacket thickness: 0.032 (0.81 mm)
Conductors
2
3
4
5
7
9
12
18
25
Nominal Diameter
Inch
mm
0.194
4.93
0.204
5.18
0.221
5.61
0.239
6.07
0.258
6.55
0.318
8.08
0.330
8.38
0.384
9.75
0.446
11.33
EcoFlex® PUR
Flex Cable
Unshielded
16 AWG (1.31 mm
2
)
Stranding: 65/34 (65 x 0.16 mm)
Insulation thickness: 0.012 (0.30 mm)
Jacket thickness: 0.032 (0.81 mm)
Part Number
80041
80042
80043
80044
80045
80046
80047
80048
80049
80050*
Conductors
2
3
4
5
7
9
12
18
25
36
Nominal Diameter
Inch
mm
0.228
5.79
0.241
6.12
0.263
6.68
0.285
7.24
0.310
7.87
0.386
9.80
0.401
10.19
0.470
11.94
0.548
13.92
0.672
17.07
Part Number
80052
80053
80054
80055
80056
80057
80058
80059*
14 AWG (2.11 mm
2
)
Stranding: 105/34 (105 x 0.16 mm)
Insulation thickness: 0.013 (0.33 mm)
Jacket thickness: 0.032 (0.81 mm)
Conductors
3
4
5
7
9
12
18
25
Nominal Diameter
Inch
mm
0.275
6.98
0.301
7.65
0.329
8.36
0.358
9.09
0.449
11.40
0.467
11.86
0.550
13.97
0.686
17.42
*0.053 (1.35 mm) jacket thickness
*0.053 (1.35 mm) jacket thickness
12 AWG (3.38 mm
2
)
Stranding: 168/34 (168 x 0.16 mm)
Insulation thickness: 0.015 (0.38 mm)
Jacket thickness: 0.032 (0.81 mm)
Part Number
80060
80061
80062
80063
80064*
Conductors
3
4
5
7
9
Nominal Diameter
Inch
mm
0.357
9.07
0.393
9.98
0.432
10.97
0.473
12.01
0.642
16.31
Part Number
80065
80066
80067
80068
10 AWG (5.21 mm
2
)
Stranding: 259/34 (259 x 0.16 mm)
Insulation thickness: 0.016 (0.41 mm)
Jacket thickness: 0.053 (1.35 mm)
Conductors
3
4
5
7
Nominal Diameter
Inch
mm
0.464
11.79
0.508
12.90
0.556
14.12
0.606
15.39
*0.053 (1.35 mm) jacket thickness
More Choice!
EcoFlex PUR cables can be built in other
configurations. Consult Alpha Wire about your
specific requirements and other available options—
and for custom and composite configurations.
Sample the Performance
Samples of EcoFlex PUR cable are available today!
Request yours at www.alphawire.com/ecogen
or call 1-800-52 ALPHA
