1330-22-1-0500-006-1-TS datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 1330-22-1-0500-006-1-TS

Preview

1330-22-1-0500-006-1-TS: DescriptionHOOK-UP STRND 22AWG BROWN 500'; CategoryWire/cable; File Size171KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

1330-22-1-0500-006-1-TS Overview

HOOK-UP STRND 22AWG BROWN 500'

1330-22-1-0500-006-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	22 AWG
Number of wire strands	7/0.0100"
conductor material	Copper, tin plated
Sheath (insulation) material	Fluorinated ethylene-propylene (FEP)
Sheath (insulation) diameter	0.075"（1.90mm）
Sheath (insulation) thickness	0.020"（0.51mm）
length	500.0'（152.4m）
Voltage	600V
Operating temperature	-80°C ~ 200°C
Casing color	brown
grade	UL Type 1330
characteristic	-

Preview

Download Datasheet

View All

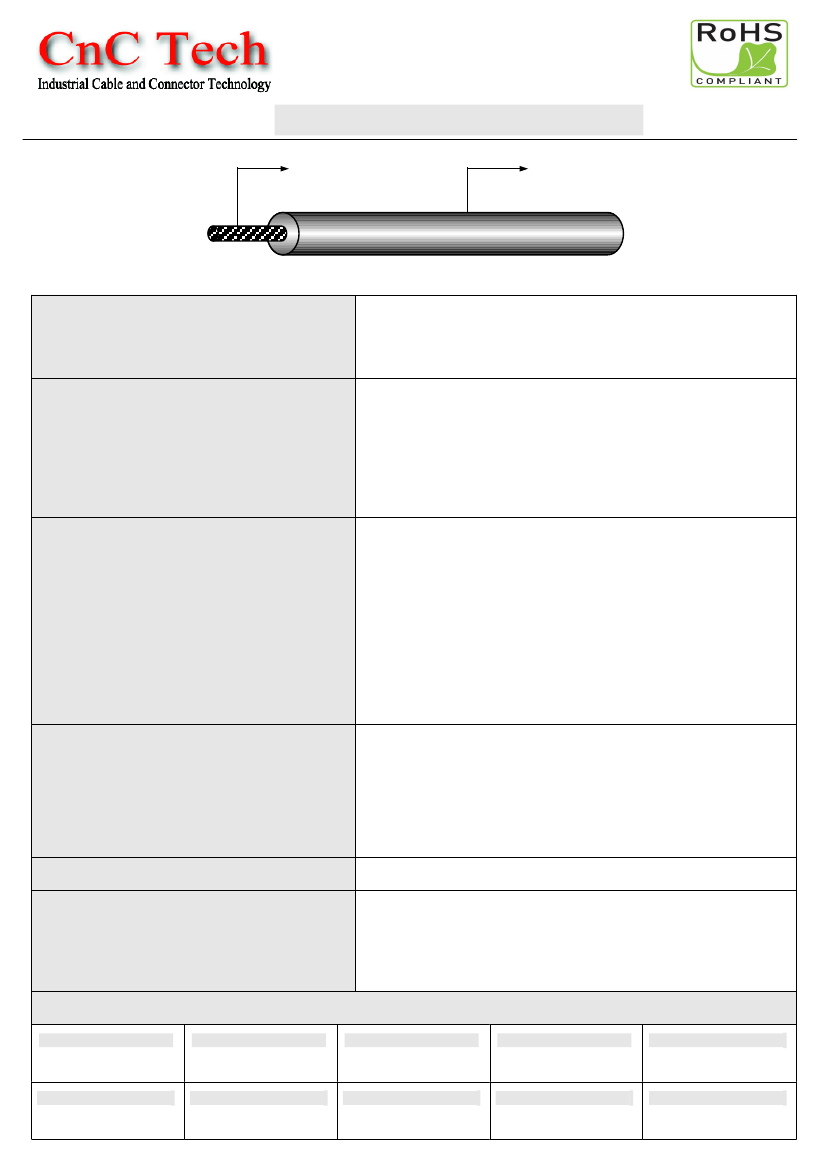

P/N 1330-22-1-0500-0XX-1-TS

(Conductor: Tinned strands)

(Insulation: FEP Material)

UL1330 - FEP Insulated Hook-Up Wire 200°C 600V

(22 AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 7/0.254 mm strands.

Overall Diameter = 1.90 mm ± 0.10 mm

Insulation Thickness: 0.51 mm

UL RATED AWM: Can be used in the USA.

UL Subject 758 UL FILE NO:E108485

Printed Markings:

“

AWM 1330 200℃ 600V E108485 22AWG REIHSING VW-1

”

CERTIFICATION & APPROVALS:

Passes UL VW-1 Vertical Flame Test.

PHYSICAL

&

ELECTRICAL PROPERTIES:

Rated Temperature: 200

℃

~ -80

℃

Rated Voltage: 600V

Insulation Potential Strength: 2000 VAC/min

Flexibility: hard FEP material, is slightly more rigid than

PVC insulation material.

Maximum Conductor Resistance: 62.5Ω/km

Resistant to: Chemical solvents, abrasion, cutting,

extremes of hot & cold, flexing, shock, compression.

FEP wire, has good resistance to extremes of temp.,

compression and repeat flexing. Suitable for use in whole

sealed cooking appliances, auto headlamps, internal

combustion engine and mercury switches, when shock or

sharp casing edges are a “wear and tear” factor.

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC. Current SGS reports for this wire

are available upon request.

P/N's & COLORS

1330-22-1-0500-001-1-TS

1330-22-1-0500-002-1-TS

1330-22-1-0500-003-1-TS

1330-22-1-0500-004-1-TS

1330-22-1-0500-005-1-TS

APPLICATIONS:

PACKAGING:

ENVIRONMENTAL APPROVALS:

BLACK

1330-22-1-0500-006-1-TS

WHITE

1330-22-1-0500-007-1-TS

YELLOW

1330-22-1-0500-008-1-TS

RED

1330-22-1-0500-010-1-TS

BLUE

1330-22-1-0500-012-1-TS

BROWN

GREEN

ORANGE

VIOLET

GRAY

1330-22-1-0500-006-1-TS Related Products

	1330-22-1-0500-006-1-TS	1330-22-1-0500-003-1-TS	1330-22-1-0500-008-1-TS	1330-22-1-0500-010-1-TS	1330-22-1-0500-004-1-TS	1330-22-1-0500-005-1-TS	1330-22-1-0500-001-1-TS	1330-22-1-0500-002-1-TS	1330-22-1-0500-007-1-TS
Description	HOOK-UP STRND 22AWG BROWN 500'	HOOK-UP STRND 22AWG YELLOW 500'	HOOK-UP STRND 22AWG ORANGE 500'	HOOK-UP STRND 22AWG VIOLET 500'	HOOK-UP STRND 22AWG 600V RED 25'	HOOK-UP STRND 22AWG BLUE 500'	HOOK-UP STRND 22AWG BLACK 500'	HOOK-UP STRND 22AWG WHITE 500'	HOOK-UP STRND 22AWG GREEN 100'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Number of wire strands	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"	7/0.0100"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)	Fluorinated ethylene-propylene (FEP)
Sheath (insulation) diameter	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）	0.075"（1.90mm）
Sheath (insulation) thickness	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）	0.020"（0.51mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	25.00'（7.62m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	100.0'（30.5m）
Voltage	600V	600V	600V	600V	600V	600V	600V	600V	600V
Operating temperature	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C	-80°C ~ 200°C
Casing color	brown	yellow	orange color	Purple	red	blue	black	White	green
grade	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330	UL Type 1330
