ADSP-H8x1/H8x3
0.8” Single Digit PCB Based LED Display
Datasheet
Description
This is 0.8” height single digit display. It utilizes
AllnGaP Red, Orange, Yellow, Green and Deep Red
chips. This device is halogenated.
All devices are categorized for luminous intensity. The
orange, yellow and green devices are categorized for
color. Use of similar device categories will yield a uniform
display.
Features
High reliability
Excellent characters appearance
Available in CA and CC
RoHS Compliant
Gray top surface with white diffused segments.
Ordering Information
Red
ADSP-H8E1
ADSP-H8E3
Green
ADSP-H8G1
ADSP-H8G3
Yellow
ADSP-H8Y1
ADSP-H8Y3
Orange
ADSP-H8L1
ADSP-H8L3
Deep Red
ADSP-H8A1
ADSP-H8A3
Description
Common Anode, Right Hand Decimal
Common Cathode, Right Hand Decimal

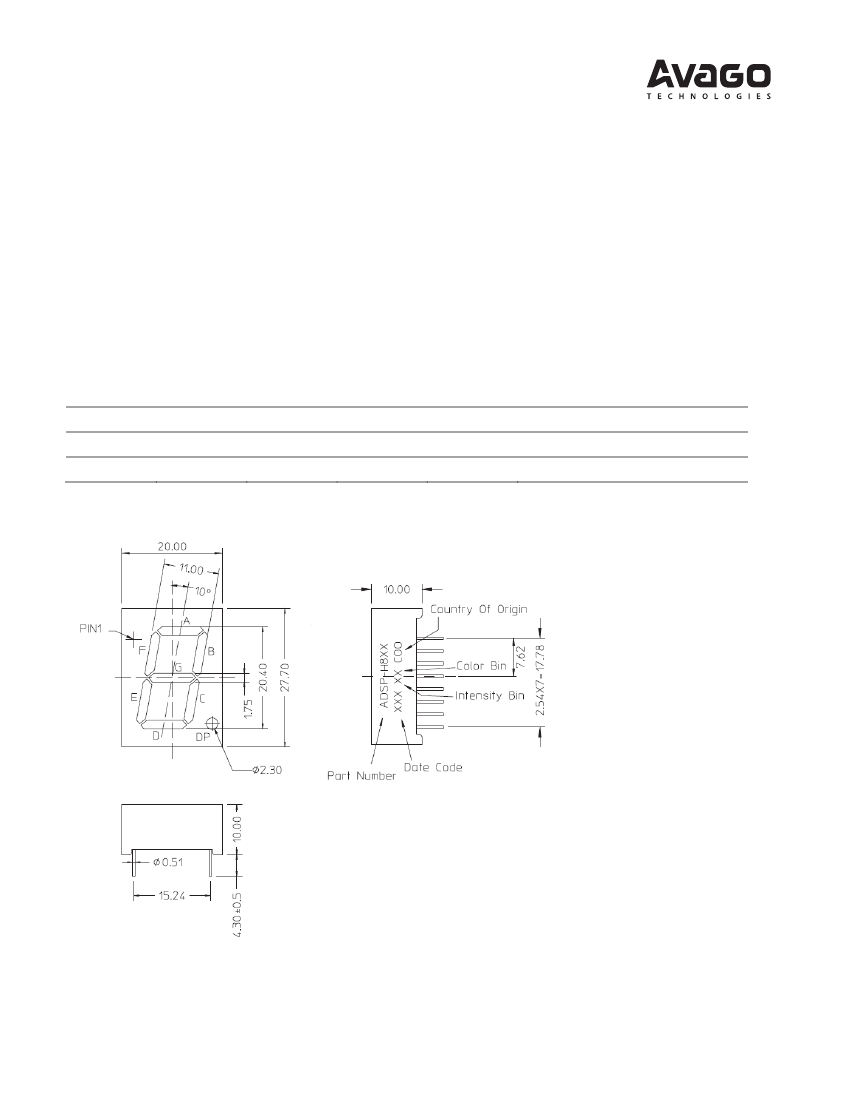

Package Dimensions
Notes:
1. All dimensions are in millimeter.
2. Unless otherwise stated, the tolerance is
0.25mm.
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Pte. in the United States and other countries.
Data subject to change. Copyright © 2005 Avago Technologies Pte. All rights reserved. Obsoletes Pub No.
Pub Number - Date (12/07/2012)

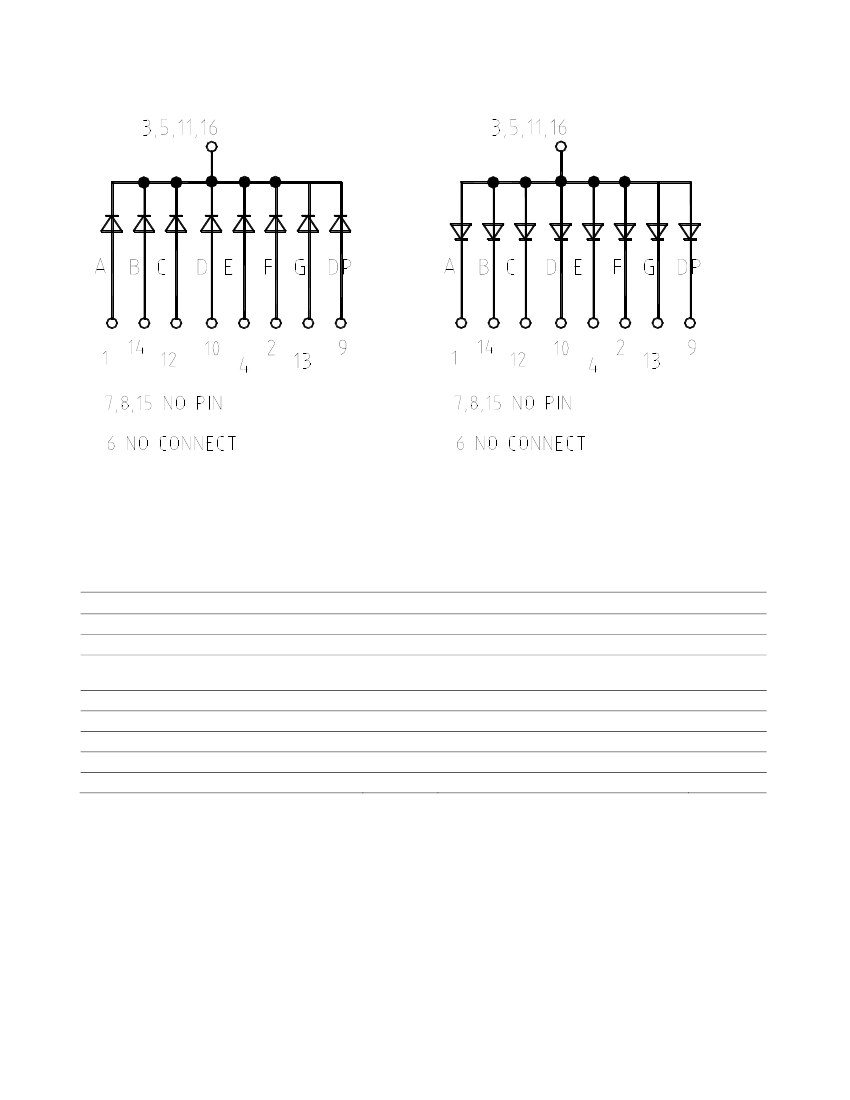

Circuit Diagram
f
Absolute Maximum Ratings at T
A
= 25C
Parameter
Power Dissipation per segment or Dot Point (DP)
Continuous Forward Current per segment
Peak Forward Current per segment
(1/10 Duty Cycle, 0.1m sec pulse width)
Derating Linearly from 25°C per segment
Reverse Voltage per segment or DP
Operating Temperature
Storage Temperature
Wave solder Condition 1.6mm below body
V
R
T
O
T
S
Symbol
P
D
I
F
Red/Yellow/ Orange/ Green/ Deep Red
52
20
100
0.21
5
-40 to 85
-40 to 85
260°C peak for 3 secs max
Units
mW
mA
mA
mA/°C
V
°C
°C
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Pte. in the United States and other countries.
Data subject to change. Copyright © 2005 Avago Technologies Pte. All rights reserved. Obsoletes Pub No.
Pub Number - Date (12/07/2012)
Electrical / Optical Characteristic at T
A
= 25°C
Red
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment / DP
Reverse Current per segment / DP
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
λ
p
λd
Min
–
–
–
–
–
Typ
30
634
625
2.0
–
2:1
Max
–
–
–
2.6
100
Units
mcd
nm
nm
V
µA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
V
F
I
R
I
v–M
Green
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment / DP
Reverse Current per segment / DP
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
λ
p
λ
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
12
570
571
2.0
–
2:1
Max
–
–
–
2.6
100
Units
mcd
nm
nm
V
µA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
Yellow
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment / DP
Reverse Current per segment / DP
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
λ
p
λ
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
25
592
587
2.0
–
2:1
Max
–
–
–
2.6
100
Units
mcd
nm
nm
V
µA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Pte. in the United States and other countries.
Data subject to change. Copyright © 2005 Avago Technologies Pte. All rights reserved. Obsoletes Pub No.
Pub Number - Date (12/07/2012)
Orange
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment / DP
Reverse Current per segment / DP
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
λ
p
λ
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
35
610
605
2.0
–
2:1
Max
–
–
–
2.6
100
Units
mcd
nm
nm
V
µA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
Deep Red
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment / DP
Reverse Current per segment / DP
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
λ
p
λ
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
29
644
635
2.0
–
2:1
Max
–
–
–
2.6
100
Units
mcd
nm
nm
V
µA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Pte. in the United States and other countries.
Data subject to change. Copyright © 2005 Avago Technologies Pte. All rights reserved. Obsoletes Pub No.
Pub Number - Date (12/07/2012)
Red

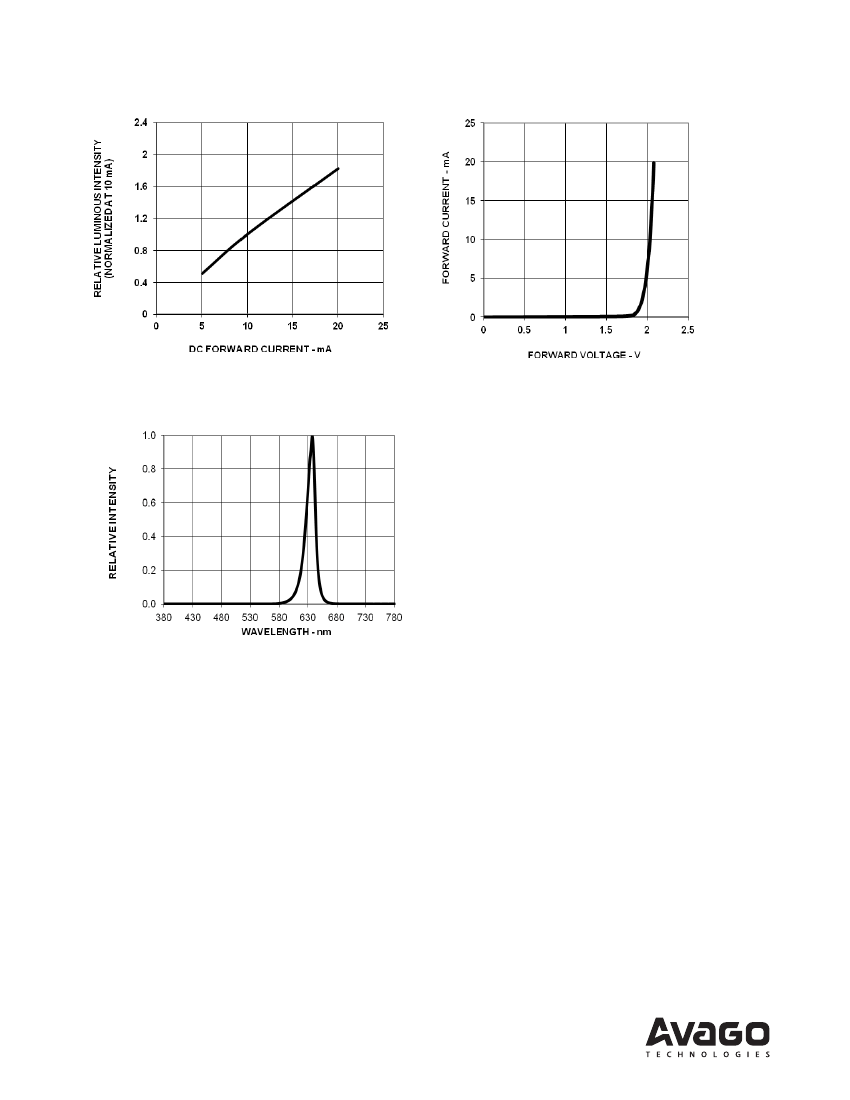

Fig 1: Relative Luminous Intensity Vs Forward Current
Fig 2: Forward Voltage Vs Current
Fig 3: Relative Luminous Intensity Vs Wavelength
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Pte. in the United States and other countries.
Data subject to change. Copyright © 2005 Avago Technologies Pte. All rights reserved. Obsoletes Pub No.
Pub Number - Date (12/07/2012)
