NOTES: VALID UNLESS OTHERWISE SPECIFIED
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-34791-020
b. PRODUCT SPECIFICATION SEE: PS-34791-020
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: SEE CHART
d. SOLDERABILITY PER SMES-152
e. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-300
f. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID# 13255)
g. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191
h. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)
2. DESIGN - MATERIALS:
a. SHROUD (PLASTIC HOUSING): SPS 30% GF, 20% REGRIND MAX BY WEIGHT
b. BLADES:
BASE METAL: C260 BRASS
PLATING REQUIREMENTS:
TIN OVER NICKEL:
UNDERPLATING:
OVERALL NICKEL
OVERPLATING:
OVERALL TIN
GOLD:
UNDERPLATING: OVERALL NICKEL
OVERPLATING:
CONTACT AREA: GOLD
GRIP AREA: TIN
3. DESIGN - GEOMETRY:
a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA
IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION
NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 2009
c. GENERAL TOLERANCES: SEE TITLE BLOCK
d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
e. CORNERS SHOWN AS SHARP TO BE R 0.1 MAX
f. LETTERING SHALL BE BELOW SURROUNDING SURFACE OF PART.
THIS INCLUDES RECYCLING CODE,PLANT AND CAVITY ID,
VENDOR ID, AND CIRCUIT ID.
g. TRACEABILITY TO BE MARKED IN AREA SHOWN. MARK IS CODED AS FOLLOWS:
ROW 1 (XXXXX): MOLEX SINGLE ROW SMT HEADER SERIES NUMBER (34912)
ROW 2 (HHDDDYY):
- 1ST & 2ND DIGITS: HOUR OF ASSEMBLY (24 HOUR CLOCK)
(EXAMPLE: 15:00 > '15'; 7:00 -> '07')
- 3RD THRU 5TH DIGITS: JULIAN DATE (EXAMPLE: FEBRUARY 3RD -> '034')
- 6TH & 7TH DIGITS: LAST 2 DIGITS OF CALENDAR YEAR (EXAMPLE: 2013 -> '13)
K
K

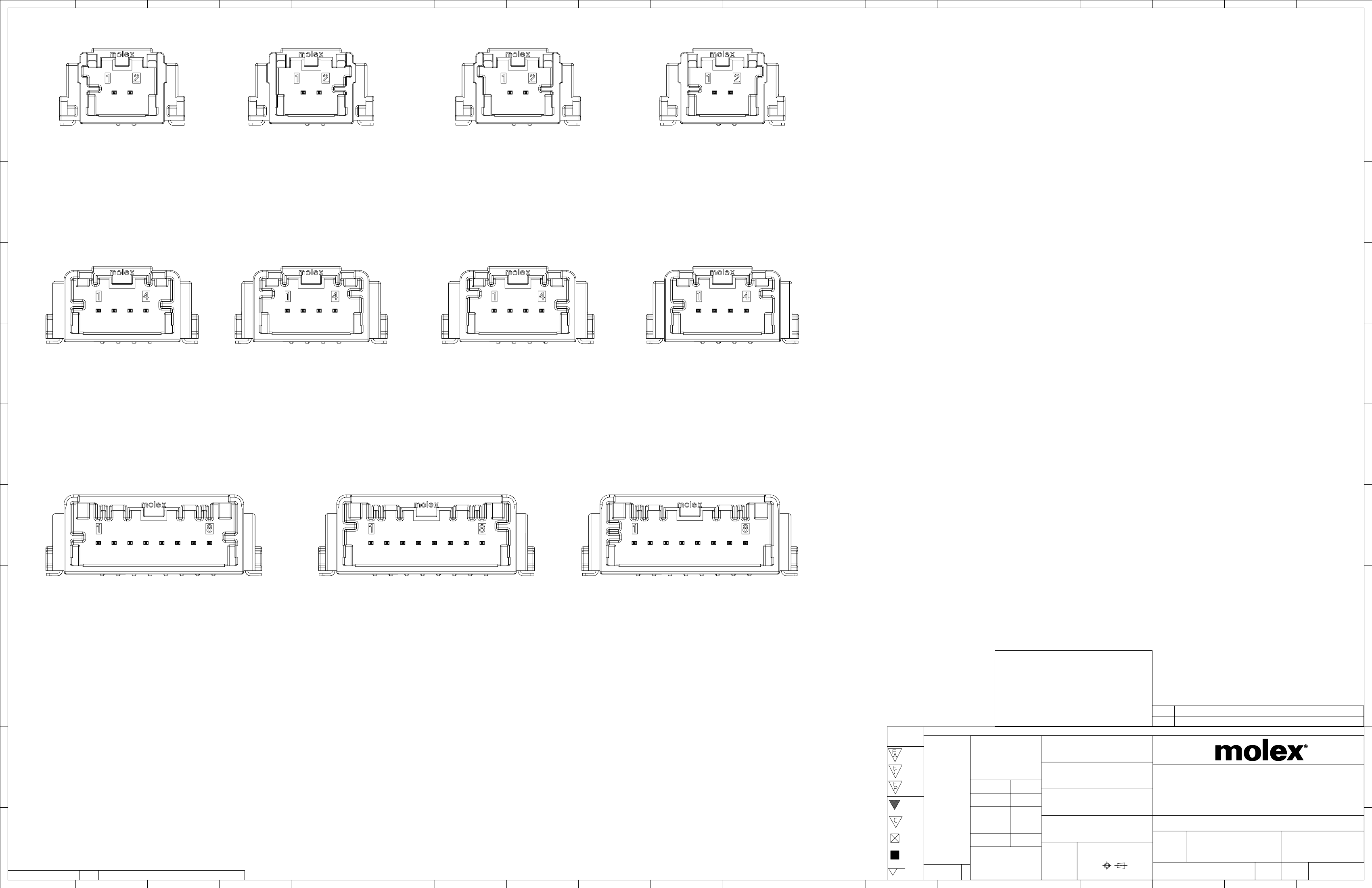

2 CKT SMT HEADER
POLARIZATION OPTION A
2 CKT SMT HEADER
POLARIZATION OPTION B
2 CKT SMT HEADER
POLARIZATION OPTION C
2 CKT SMT HEADER
POLARIZATION OPTION D
TIN P/N: 34912-8020
GOLD P/N: 34912-6020
J
TIN P/N: 34912-8021
GOLD P/N: 34912-6021
TIN P/N: 34912-8022
GOLD P/N: 34912-6022
TIN P/N: 34912-8023
GOLD P/N: 34912-6023
J
H
H
G
4 CKT SMT HEADER
POLARIZATION OPTION A
4 CKT SMT HEADER
POLARIZATION OPTION B
4 CKT SMT HEADER
POLARIZATION OPTION C
4 CKT SMT HEADER
POLARIZATION OPTION D
G
TIN P/N: 34912-8040
GOLD P/N: 34912-6040
TIN P/N: 34912-8041
GOLD P/N: 34912-6041
TIN P/N: 34912-8042
GOLD P/N: 34912-6042
TIN P/N: 34912-8043
GOLD P/N: 34912-6043
F
F
E
E
D
8 CKT SMT HEADER
POLARIZATION OPTION A
8 CKT SMT HEADER
POLARIZATION OPTION B
8 CKT SMT HEADER
POLARIZATION OPTION C
D
TIN P/N: 34912-8080
GOLD P/N: 34912-6080
TIN P/N: 34912-8081
GOLD P/N: 34912-6081
TIN P/N: 34912-8082
GOLD P/N: 34912-6082
INSPECTION BALLON NUMBER LOG
PER DRAWING REVISION: M1
LAST BALLOON USED: 16
C
C
ADDED BALLOON NUMBERS:
REMOVED BALLOON NUMBERS:
2017/07/27
2017/07/24
M2
REV
NX REMASTERING
DESCRIPTION
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
SYMBOLS
TOLERANCES
5:1
MM ONLY
=
0
(UNLESS SPECIFIED)
B
DRWN BY
DATE
=
=
=
=
=
0
EC NO:
119768
DRWN: SMAHESHBABU
CHK'D:
APPR:
TMACHUGA
B
ANGULAR TOL ±
1.0
°
0
0
0
0
0
0
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
±
±
±
±
±
MYOUNG01
CHK'D BY
DATE
2012/05/23
2, 4, 8 CKT MINI 50 SMT
ASSEMBLY SALES DRAWING
0.1
APPR BY
DATE
0.2
PRODUCT CUSTOMER DRAWING
2012/06/01
SERIES
MATERIAL NUMBER
CUSTOMER
SMARCEAU
DRAWING SIZE
A
=
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2015/12/14
RELEASE STATUS
19
RELEASE DATE
18
C
=
M2
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34912
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
SD-34912-001
3
PSD
2
000
1 OF 5
1
17
16
15
14
13
12
11
10
9
8
7
6
