MXLLCE15AE3TR

Description
Trans Voltage Suppressor Diode, 1500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, CASE 1, 2 PIN
Categorydiode
File Size269KB,4 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Environmental Compliance
Download Datasheet Parametric View All

MXLLCE15AE3TR Overview

Trans Voltage Suppressor Diode, 1500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, CASE 1, 2 PIN

MXLLCE15AE3TR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMicrosemi
package instructionO-PALF-W2
Contacts2
Manufacturer packaging codeCASE 1
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresHIGH RELIABILITY
Maximum breakdown voltage18.5 V
Minimum breakdown voltage16.7 V
Breakdown voltage nominal value17.6 V
Shell connectionISOLATED
Maximum clamping voltage24.4 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 codeO-PALF-W2
Maximum non-repetitive peak reverse power dissipation1500 W
Number of components1
Number of terminals2
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation5 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage15 V
surface mountNO
technologyAVALANCHE
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
1500 Watt Low Capacitance
Transient Voltage Suppressor
- High Reliability controlled devices
- Unidirectional (A) construction
- Plastic encapsulated TVS series for Thru Hole mounting
- Selections for 6.5 to 170 V standoff voltages (V
WM
)
LEVELS
M, MA, MX, MXL
DEVICES
MLCE6.5A thru MLCE170A, e3
FEATURES
High reliability controlled devices with wafer fabrication and assembly lot traceability
100 % surge tested devices
Unidirectional construction. For bidirectional option see Figure 4.
Suppresses transients up to 1500 watts @10/1000µs (see Figure 1)
Clamps transients in less than 100 pico seconds
Optional upscreening available by replacing the M prefix with MA, MX or MXL. These prefixes specify
various screening and conformance inspection options based on MIL-PRF-19500. Refer to
MicroNote
129
for more details on the screening options.
Surface mount equivalent packages also available as MSMC(G/J)LCE6.5A - MSMC(G/J)LCE170A in
separate data sheet (consult factory for other surface mount options)
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B
RoHS Compliant devices available by adding “e3” suffix
3σ lot norm screening performed on Standby Current I
D

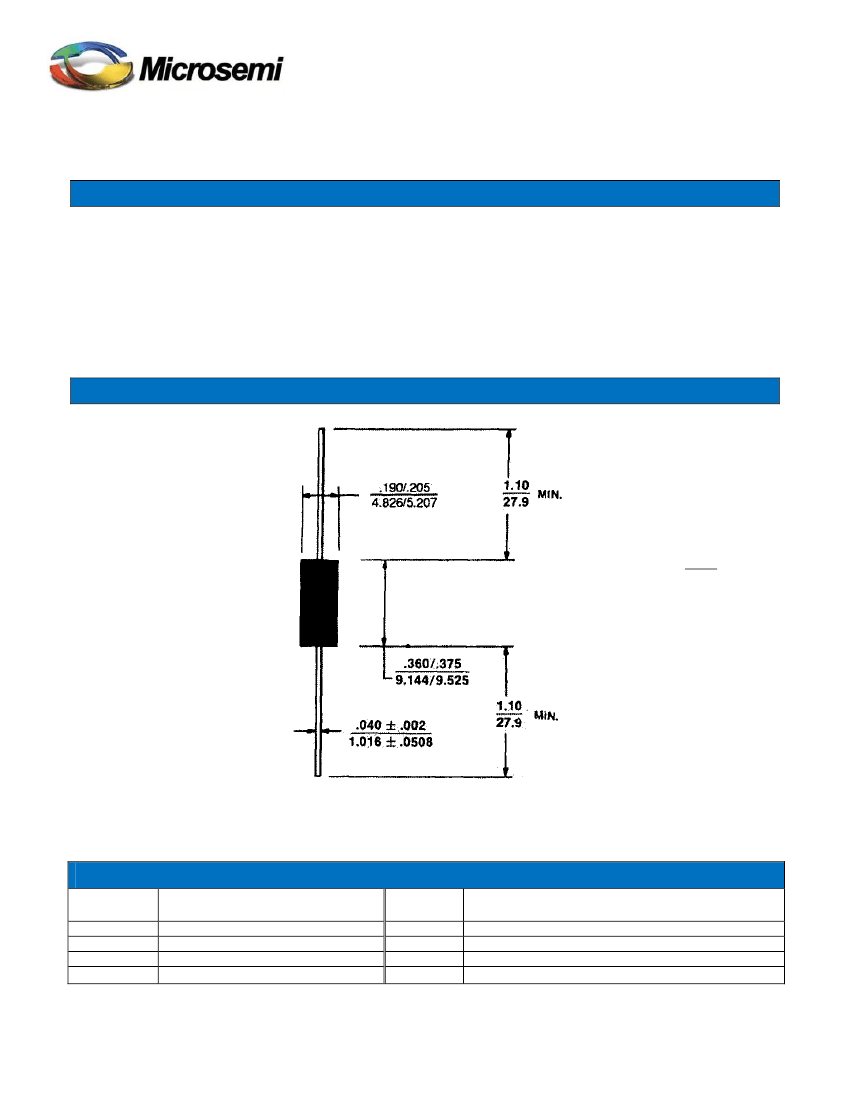

CASE 1
APPLICATIONS / BENEFITS
Protection from switching transients and induced RF
Low capacitance for data line protection to 1 MHz
Protection for aircraft fast data rate lines up to Level 5 Waveform 4 and Level 2 Waveform 5A in
RTCA/DO-160D (also see MicroNote 130) & ARINC 429 with bit rates of 100 kb/s (per ARINC 429, Part
1, par 2.4.1.1)
Protection from ESD and EFT per IEC 61000-4-2 and IEC 61000-4-4
Secondary lightning protection per IEC 61000-4-5 with 42 Ohms source impedance:
o
o
o
o
Class 1:
Class 2:
Class 3:
Class 4:
Class 1 :
Class 2:
Class 3:
Class 4:
MLCE6.5A to MLCE170A
MLCE6.5A to MLCE150A
MLCE6.5A to MLCE70A
MLCE6.5A to MLCE36A
MLCE6.5A to
MLCE6.5A to
MLCE6.5A to
MLCE6.5A to
MLCE90A
MLCE45 A
MLCE22A
MLCE11A
Secondary lightning protection per IEC 61000-4-5 with 12 Ohms source impedance:
o
o
o
o
Secondary lightning protection per IEC 61000-4-5 with 2 Ohms source impedance:
o
o
Class 2: MLCE6.5A to MLCE20A
Class 3: MLCE6.5A to MLCE10A
MAXIMUM RATINGS

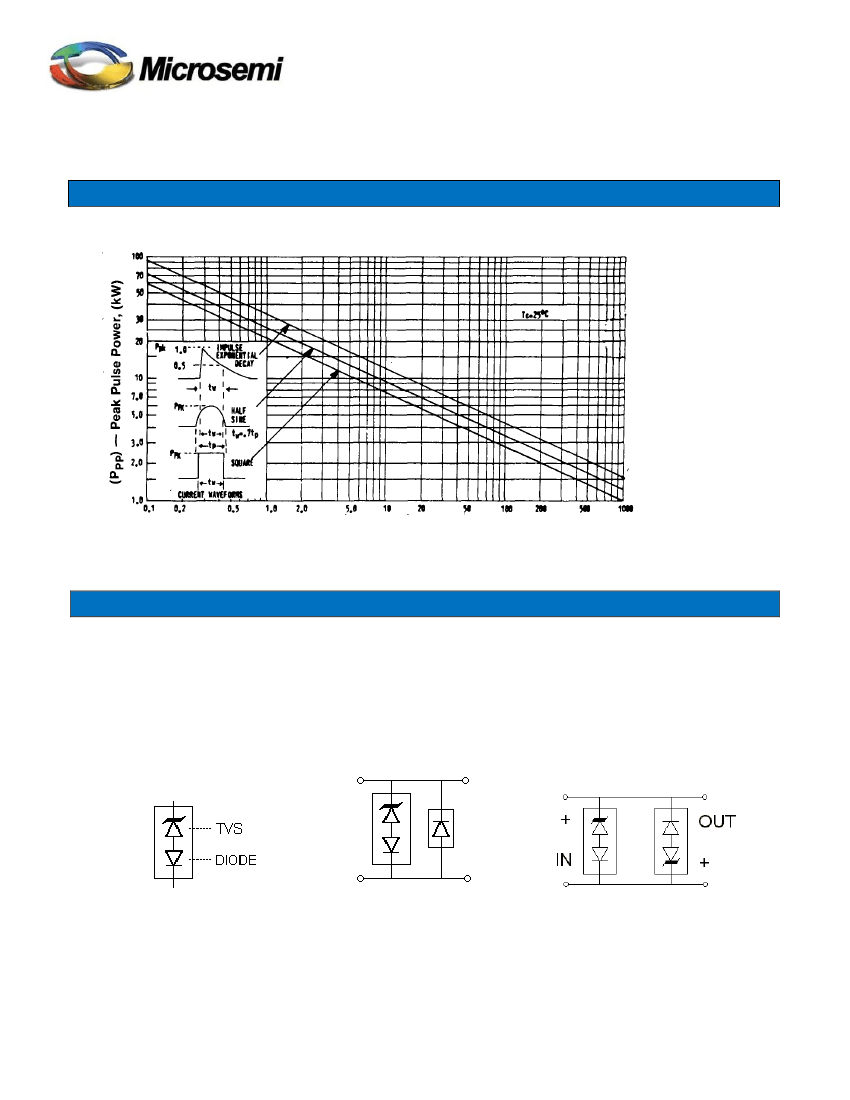

Peak Pulse Power dissipation at 25 ºC: 1500 watts at 10/1000 μs (see Figure 1) with impulse repetition
rate of 0.01% or less* at lead temperature T
L
of 25°C
Operating & Storage Temperatures: -65 ºC to +150 ºC
Thermal Resistance: 22 ºC/W junction to lead at 3/8 inch (10 mm) from body, or 82 ºC/W junction to
ambient when mounted on FR4 PC board with 4 mm
2
copper pads (1oz), track width 1 mm, length 25mm
Steady-State Power dissipation*: 5 watts at TL = 40 ºC, or 1.52 watts at TA = 25 ºC when mounted on
FR4 PC board described for thermal resistance
Solder Temperatures: 260
º
C for 10 s (maximum)
* TVS devices are not typically used for dc power dissipation and are instead operated at ≤ V
WM
except for transients that briefly
drive the device into avalanche breakdown (V
BR
to V
C
region) of the TVS element. Also see Figures 3 and 4 for further protection
details in rated peak power for unidirectional and bidirectional configurations respectively.
RF01009 Rev A, June 2010
High Reliability Product Group
Page 1 of 4
