W5500 Datasheet
Version 1.0.6
http://www.wiznet.co.kr
© Copyright 2013 WIZnet Co., Ltd. All rights reserved.
W5500
The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides
easier Internet connection to embedded systems. W5500 enables users to have the
Internet connectivity in their applications just by using the single chip in which
TCP/IP stack, 10/100 Ethernet MAC and PHY embedded.
WIZnet‘s Hardwired TCP/IP is the market-proven technology that supports TCP, UDP,
IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 embeds the 32Kbyte internal
memory buffer for the Ethernet packet processing. If you use W5500, you can
implement the Ethernet application just by adding the simple socket program. It’s
faster and easier way rather than using any other Embedded Ethernet solution. Users
can use 8 independent hardware sockets simultaneously.
SPI (Serial Peripheral Interface) is provided for easy integration with the external
MCU. The W5500’s SPI supports 80 MHz speed and new efficient SPI protocol for the
high speed network communication. In order to reduce power consumption of the
system, W5500 provides WOL (Wake on LAN) and power down mode.
Features
-
-
-
-
-
-
-
-
-
-
-
-
Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)
48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)
2 / 68
W5500 Datasheet Version1.0.6 (DEC 2014)
Target Applications
W5500 is suitable for the following embedded applications:
-
Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
-
Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
-
Parallel-to-Ethernet: POS / Mini Printers, Copiers
-
USB-to-Ethernet: Storage Devices, Network Printers
-
GPIO-to-Ethernet: Home Network Sensors
-
Security Systems: DVRs, Network Cameras, Kiosks
-
Factory and Building Automations
-
Medical Monitoring Equipment
-
Embedded Servers
W5500 Datasheet Version1.0.6 (DE 2014)
3 / 68

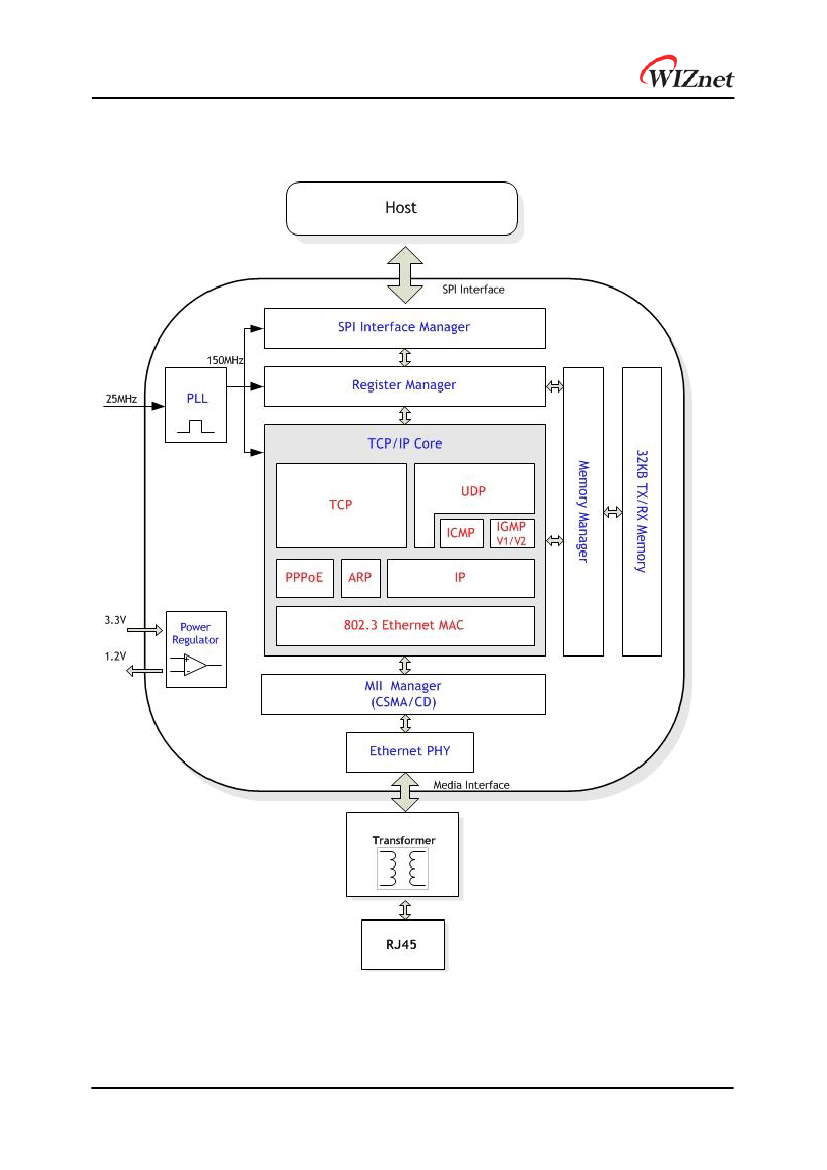

Block Diagram
4 / 68
W5500 Datasheet Version1.0.6 (DEC 2014)
Table of Contents
Pin Assignment .......................................................................................... 8
1.1
2.1
2.2
Pin Descriptions .............................................................................. 8
SPI Operation Mode ........................................................................ 14
SPI Frame .................................................................................... 15
2.2.1
2.2.2
2.2.3
2.3
2.3.1
2.3.2
2.4
2.4.1
2.4.2
3.1
3.2
3.3
4.1
4.2
5.1
5.2
5.3
5.4
5.5
Address Phase......................................................................... 15
Control Phase ......................................................................... 16
Data Phase ............................................................................ 18
Write Access in VDM ................................................................. 19
Read Access in VDM .................................................................. 22
Write Access in FDM ................................................................. 26
Read Access in FDM .................................................................. 27
HOST Interface ......................................................................................... 13
Variable Length Data Mode (VDM) ....................................................... 18
Fixed Length Data Mode (FDM) .......................................................... 25
Register and Memory Organization ................................................................ 28
Common Register Block ................................................................... 30
Socket Register Block ...................................................................... 31
Memory ...................................................................................... 32
Common Registers ......................................................................... 33
Socket Registers ............................................................................ 45
Absolute Maximum Ratings ............................................................... 60
Absolute Maximum Ratings (Electrical Sensitivity) ................................... 60
DC Characteristics ......................................................................... 61
Power Dissipation .......................................................................... 62
AC Characteristics ......................................................................... 62
5.5.1
5.5.2
5.5.3
5.5.4
5.5.5
5.5.6
Reset Timing .......................................................................... 62
Wake up Time ......................................................................... 62
Crystal Characteristics .............................................................. 62
SPI Timing ............................................................................. 63
Transformer Characteristics ........................................................ 64
MDIX .................................................................................... 64
Register Descriptions ................................................................................. 33
Electrical Specifications ............................................................................. 60
IR Reflow Temperature Profile (Lead-Free) ..................................................... 65
Package Descriptions ................................................................................. 66
Document History Information ....................................................................... 67
W5500 Datasheet Version1.0.6 (DE 2014)
5 / 68
