SF1521-60070-1S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> SF1521-60070-1S

Preview

SF1521-60070-1S: DescriptionCONN 2.92MM JACK STR 50 OHM SMD; CategoryThe connector; File Size80KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SF1521-60070-1S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF1521-60070-1S	-	-	View	Buy Now

SF1521-60070-1S Overview

CONN 2.92MM JACK STR 50 OHM SMD

SF1521-60070-1S Parametric

Parameter Name	Attribute value
Connector style	2.92mm
Connector type	jack, female socket
Contact termination	compression
Protective termination	screws
impedance	50 ohms
Installation type	surface mount
Installation features	flange
cable set	-
Fastening type	Threaded
Frequency - maximum	40GHz
Number of ports	1
characteristic	Install hardware
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 2 screws
Matrix material	Stainless steel
substrate surface	-
Center contact plating	gold
dielectric materials	Polyetherimide (PEI)
Operating temperature	-65°C ~ 165°C
center contact material	copper beryllium
Number of patches	500
Insertion loss	-

Preview

Download Datasheet

View All

ROHS COMPLIANT

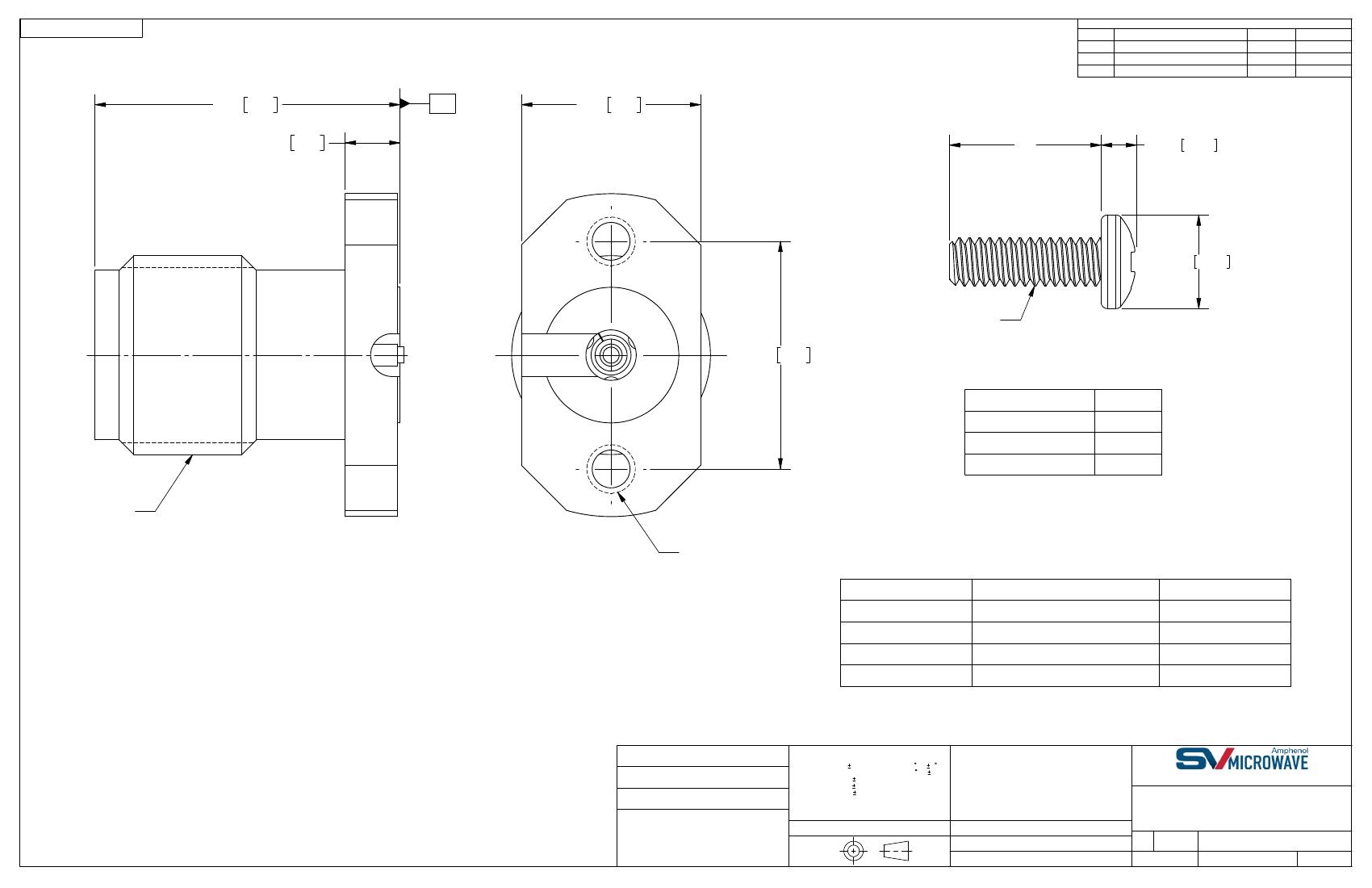

PRODUCT DATA DRAWING

.378 9.60

.068 1.73

RP

.222 5.64

L

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

01

PRELIMINARY

12/16

DAL

.044 1.12

.116 2.95

0-80 UNF-2A

.282 7.16

SCREW OPTIONS

FOR -1S

FOR -2S

FOR -3S

L

.188

.250

.438

1/4-36 UNS-2A

2X 0-80 UNF-2B

THRU HOLES

SV P/N

SF1521-60070-1S

SF1521-60070-2S

SF1521-60070-3S

SF1521-60070

BODIES & SCREWS:

CONTACT:

INSULATOR:

STAINLESS STEEL

BERYLLIUM COPPER

ULTEM

MATERIAL:

FINISH:

DESCRIPTION

INCL. TWO .188 SCREWS

INCL. TWO .250 SCREWS

INCL. TWO .438 SCREWS

NO SCREWS

PCB THICKNESS

.023 TO .123

.085 TO .185

.273 TO .373

.023 TO .373

MATERIAL:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

e

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN T.I.R.

7) REMOVE ALL BURRS

FINISH:

BODIES & SCREWS:

CONTACT:

PASSIVATED

GOLD OVER NICKEL

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

2.92mm JACK 2 HOLE FLANGE

WITH MOUNTING SCREWS

95077

SCALE: 10:1

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

BNK 12/08/16

DAL 12/08/16

SIZE CAGE CODE DWG. NO.

B

SF

1521-60070

-XS

SHEET 1 OF 1

SF1521-60070-1S Related Products

	SF1521-60070-1S	SF1521-60070-2S
Description	CONN 2.92MM JACK STR 50 OHM SMD	CONN 2.92MM JACK STR 50 OHM SMD
Connector style	2.92mm	2.92mm
Connector type	jack, female socket	jack, female socket
Contact termination	compression	compression
Protective termination	screws	screws
impedance	50 ohms	50 ohms
Installation type	surface mount	surface mount
Installation features	flange	flange
Fastening type	Threaded	Threaded
Frequency - maximum	40GHz	40GHz
Number of ports	1	1
characteristic	Install hardware	Install hardware
Shell color	silver	silver
include	3 pieces - 1 connector, 2 screws	3 pieces - 1 connector, 2 screws
Matrix material	Stainless steel	Stainless steel
Center contact plating	gold	gold
dielectric materials	Polyetherimide (PEI)	Polyetherimide (PEI)
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C
center contact material	copper beryllium	copper beryllium
Number of patches	500	500
