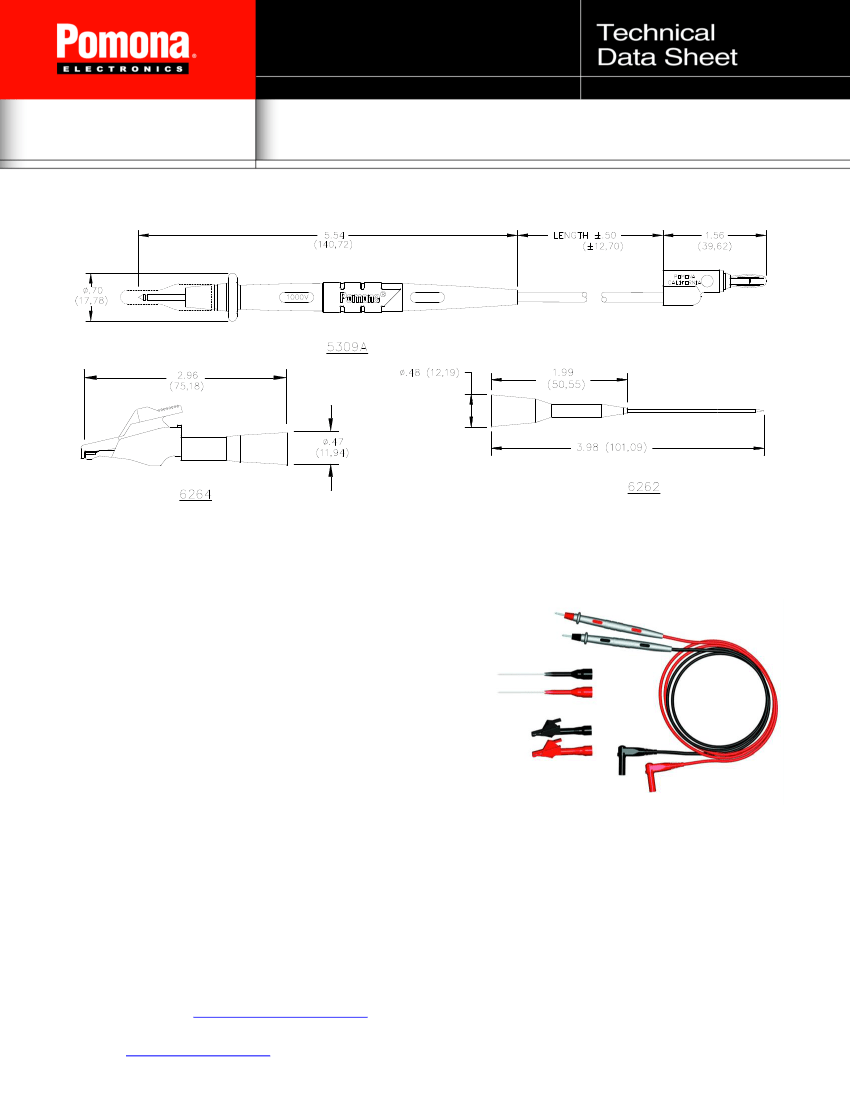

Model 5325A
DMM Test Probe to Multi-Stacking Banana Plug Kit
FEATURES
Fits Fluke, H-P, Tektronix Wavetek and Amprobe meters configured with non-sheathed standard and 4
mm banana jacks.
Test probe & banana plug bodies are molded directly
to a flexible 48" (122 cm) high strand count/high
temperature silicone leads for added pull strength,
overall probe length 4.85" (12,3 cm).
Wear indication with double insulated (dual extruded)
silicone leads shows white inner layer for increased
safety.
Nickel plated brass tip offers high conductivity for
precision measurements.
Medium alligators are insulated for added safety and
can quickly snap onto the .080” (2,03 mm) O.D.
probe tip.
Medium alligators have an overall length of 2.25” (5.7 cm) and grip up to 0.30” (7.62 mm) O.D.
terminals.
Slide-on extended tips have an overall length of 4” (10.16 cm) & attaches to the probe tip to allow
access to hard to reach test points. The Extended Tip is insulated to the point to prevent accidental
shorting.
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2012
D1094373 Rev. 100
Page 1 of 2
Model 5325A
DMM Test Probe To Multi-Stacking Banana Plug Kit
MATERIALS
Model
5309A:
Test Probe Set:
Probe body: Polypropylene, Fire Retardant – Santoprene® overmold., Tip: Brass
Wire: 18 AWG, 192 x 41 bare copper, Silicone Insulation, O.D. 0.144” (3,66mm). Length: 48" (122cm)
Banana Plug: Insulation: Polypropylene – Plug Body: Brass Nickel Plated, Spring: Beryllium Copper,
Nickel Plated
RATINGS:
Operating Voltage: For CE compliance and personal safety, do not hold in hand when voltages exceed 30
Vrms/42.4 Vpk/60 Vdc or current exceeds 8A maximum. Maximum voltage for hands free use: 1000 V. Do
not use on circuits where transient stresses can exceed the rated voltage.
Current: 10 Amperes
Model
6262:
Slide-on Extended Tip:
Insulation – Polypropylene UL94 V-2, Color: one black and one red
Probe Tip: Stainless Steel with Kynar Insulation Sleeve to Tip End
RATINGS:
CAT II 300 V, Current: 3 Amperes
Model
6264:
Alligator Adapter:
Insulation: Polypropylene, Color: One Black, One Red
Body: Steel, Nickel Plated, Spring: Music Wire
RATINGS:
CAT I 300 V, Current: 5 Amperes
Ordering Information:
Model 5325A
Kit shipped in a plastic blister package.
Replacement P/N's:
Model
5309A:
Test Probes, set of one black and one red
Model
6262:
Slide-on Extended Tip, set of one black and one red
Model
6264:
Alligator Adapter, set of one black and one red.
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2012
D1094373 Rev. 100
Page 2 of 2
