– MEMS nano pressure sensor: 260-1260 hPa absolute digital
output barometer
–
MP34DT05-A
– 64 dB SNR digital MEMS microphone
–
BlueNRG-MS
– Bluetooth low energy network processor
–
BALF-NRG-02D3
– 50 Ω balun with integrated harmonics filter
–
LD39115J18R
– 150 mA low quiescent current low noise LDO 1.8 V
2 V - 5.5 V power supply range
External interfaces: UART, SPI, SAI (serial audio interface), I²C, DFSDM, USB
OTG, ADC, GPIOs
Pluggable or solderable interface
SWD interface for debugging and programming capability
CE certified
RoHS and China RoHS compliant
WEEE compliant
FCC certified
IC certified
TYPE certified
–
–
–
•
•
•
•
•
•
•
•
•
•
Product summary
SensorTile
connectable
sensor node
Ultra-low-power
microcontroller
with FPU ARM
Cortex-M4
STEVAL-STLCS01V1
STM32L476JG
Description

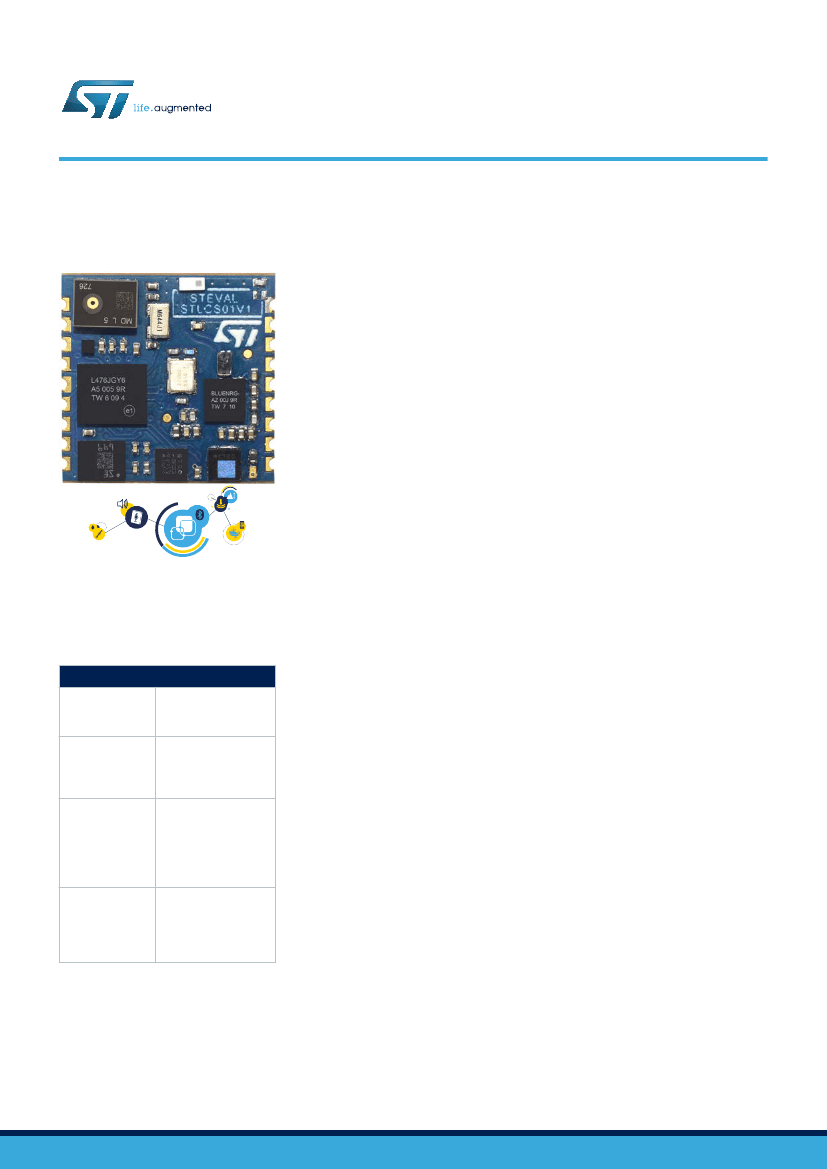

The
STEVAL-STLCS01V1
(SensorTile) is a highly integrated reference design that
can be plugged into form-factor prototypes, adding sensing and connectivity
capabilities to new designs through a smart hub solution. It can also easily support
development of monitoring and tracking applications like standalone sensor nodes
connected to iOS™ or Android™ smartphone applications.
The SensorTile occupies a very small 13.5 x 13.5 mm square outline, with all the
electronic components on the top side and a small connector on the bottom side to
plug it onto the cradle expansion board. The connector pinout is repeated on 18 PCB
pads to render the SensorTile a solderable system on module as well.
Refer to user manual UM2101
Getting started with the STEVAL-STLKT01V1
SensorTile integrated development platform
for more information.
Bluetooth low
energy network
processor
BlueNRG-MS
supporting
Bluetooth 4.1
core specification
MEMS audio
sensor
omnidirectional
digital
microphone
MP34DT05-A
DB2963
-
Rev 3
-
July 2018
For further information contact your local STMicroelectronics sales office.
www.st.com
STEVAL-STLCS01V1
Block diagram
1
Block diagram

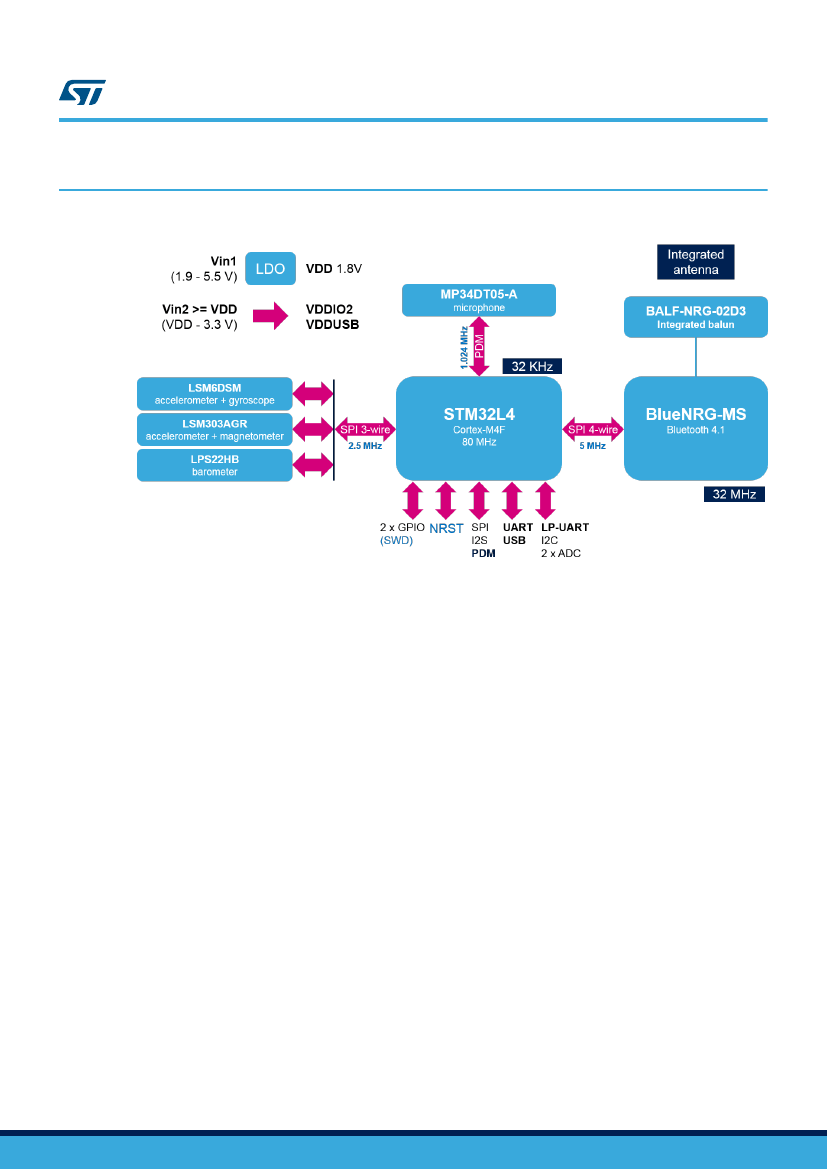

Figure 1.
Functional block diagram
DB2963
-
Rev 3
page 2/5
STEVAL-STLCS01V1
Regulatory approvals
2
Regulatory approvals
The SensorTile module STEVAL-STLCS01V1 is marketed under the same FCC identifier (ID: S9NSTILE01) as
the SensorTile kit (code STEVAL-STLKT01V1) as a class I permissive change. The FCC ID S9NSTILE01 is a
limited modular approval as the module does not have RF shielding. The module was tested in the specific host
with model number STEVAL-STLCX01V1, belonging to the SensorTile kit (code STEVAL-STLKT01V1). When
integrated in a custom designed host other than the STEVAL-STLCX01V1, the SensorTile module STEVAL-
STLCS01V1 must be tested and FCC certified in the custom designed host.
The SensorTile module STEVAL-STLCS01V1 is IC certified with certification number IC: 8976C-STILE01 and
model number HVIN: STEVAL-STLCS01V1. Refer to the data brief of the SensorTile kit (code STEVAL-
STLKT01V1) for complete information on PMN, FVIN and HMN. The SensorTile module is certified as a limited
module because the modular transmitter does not have RF shielding. The module was tested in a representative
host with model number STEVAL-STILECX01V1, belonging to the SensorTile kit (code STEVAL-STLKT01V1).
When the SensorTile module is integrated into a different custom designed host, the developer of the host shall
perform additional radiated emission tests and satisfy technical and labeling requirements as per RSP100 section
3.2 http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html for IC certification.
The Bluetooth radio power output is set by default at 0 dBm. The FCC and IC certifications refer to this operating
value. The power output can be changed up to 8 dBm by reprogramming the device firmware, but the change of
this operating value will require an update of the FCC and IC certifications, with additional radio emission tests to
be performed..
DB2963
-
Rev 3
page 3/5
STEVAL-STLCS01V1
Revision history
Table 1.
Document revision history
Date
28-Mar-2017
20-Oct-2017
17-Jul-2018
Version
1
2
3
Changes
Initial release.
Updated features in cover page
Updated cover page features and
Figure
1. Functional block diagram.
DB2963
-
Rev 3
page 4/5
STEVAL-STLCS01V1
