UltraTEC
Series UT6,19,F1,4040
Thermoelectric Module
TM

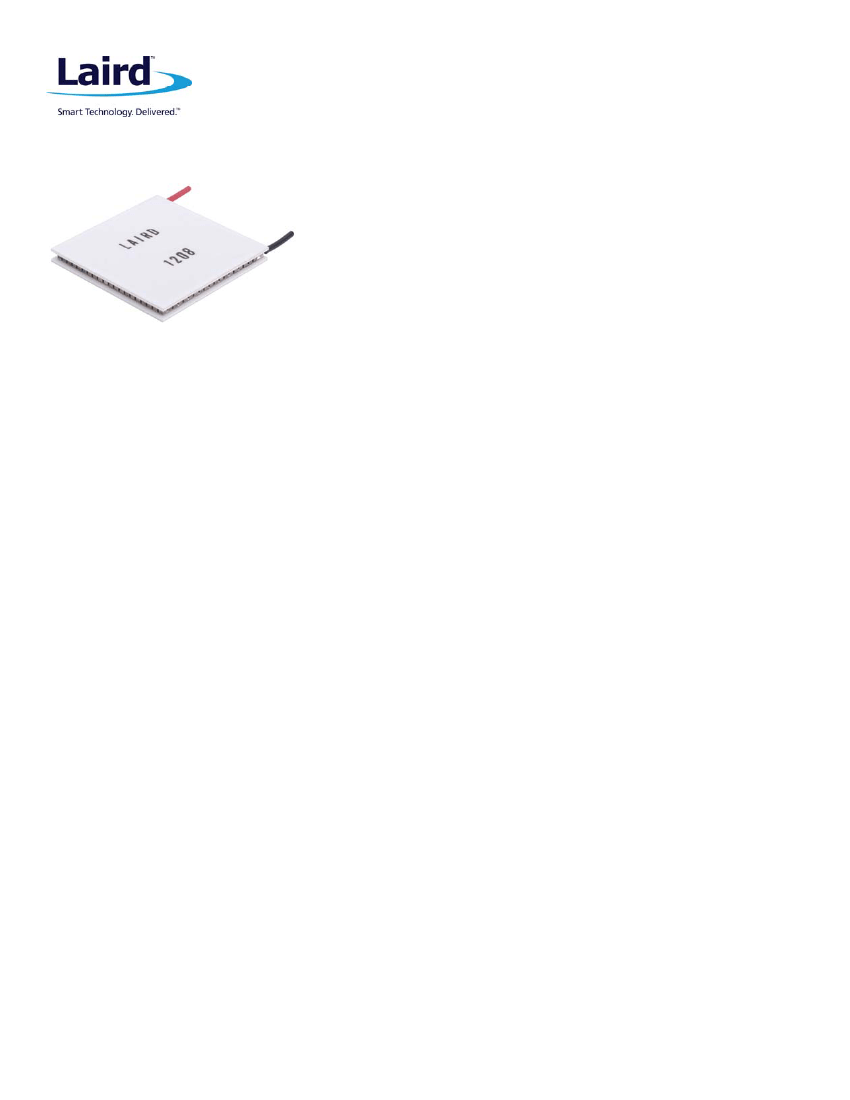

The UltraTEC
TM
Series is a high heat pumping density thermoelectric module
(TEM). The module is assembled with a large number of semiconductor
couples to achieve a higher heat pumping capacity than standard single
stage TEMs.
This product line is available in multiple configurations and is ideal for
applications that require higher cooling capacities with limited surface area.
Assembled with Bismuth Telluride semiconductor material and thermally
conductive Aluminum Oxide ceramics, the UltraTEC
TM
Series is designed for
higher current and larger heat‐pumping applications.
FEATURES AND BENEFITS
High heat pump density
Precise temperature control
Reliable solid state operation
No sound or vibration
DC operation
RoHS compliant
APPLICATIONS
Analytical instrumentation
Clinical diagnostics
Photonics laser systems
Electronic enclosure cooling
Food and beverage cooling
Chillers (liquid cooling)
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
UltraTEC Series UT6,19,F1,4040
Thermoelectric Module
TM

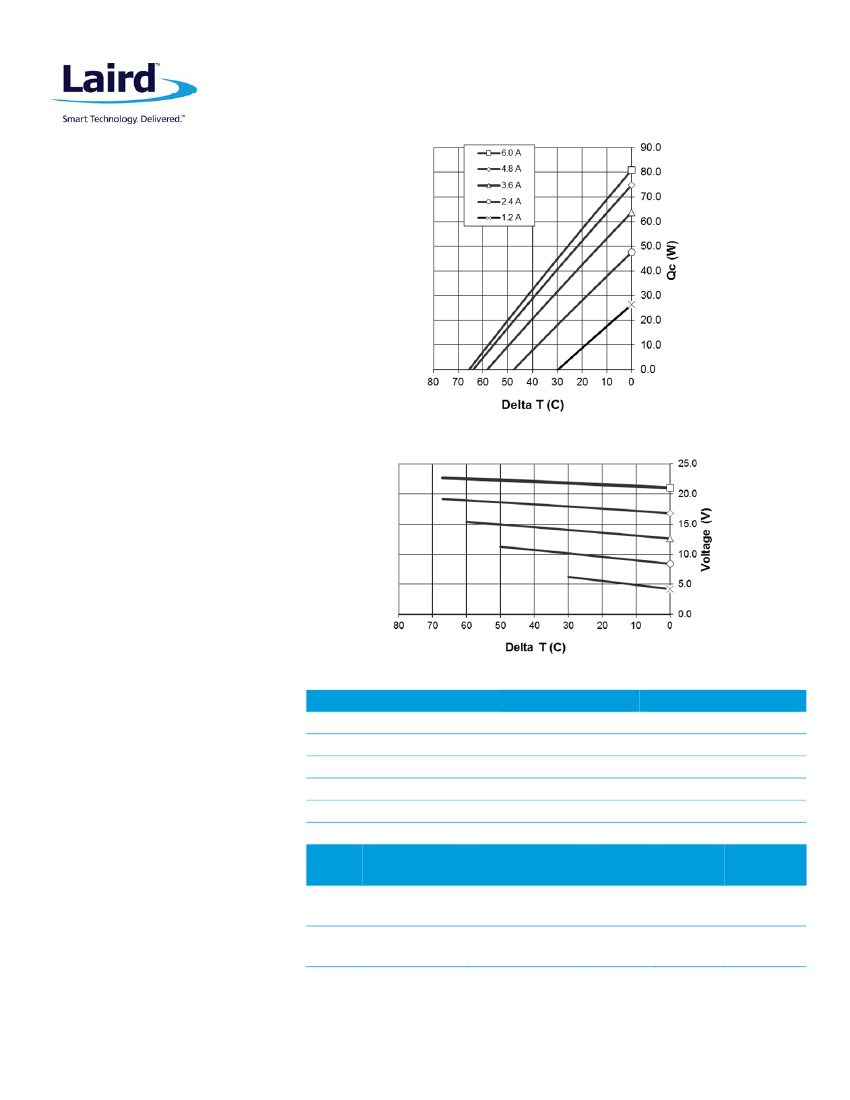

SPECIFICATIONS
TECHNICAL
Hot Side Temperature
25°C
Qmax
80.9 W
Delta Tmax
67°C
Imax (A)
6.0
Vmax (V)
22.6
Module Resistance (ohms) 3.49
Suffix Thickness
Flatness &
Parallelism
TA
0.150” ±
0.001” / 0.001”
0.001”
TB
0.150” ±
0.0005” /
0.0005”
0.0005”
50°C
88.8 W
75°C
6.0
25.6
3.94
Hot
Cold
Face
Face
Lapped Lapped
Lapped
Lapped
Lead
Length
6.0”
6.0”
UltraTEC Series UT6,19,F1,4040
Thermoelectric Module

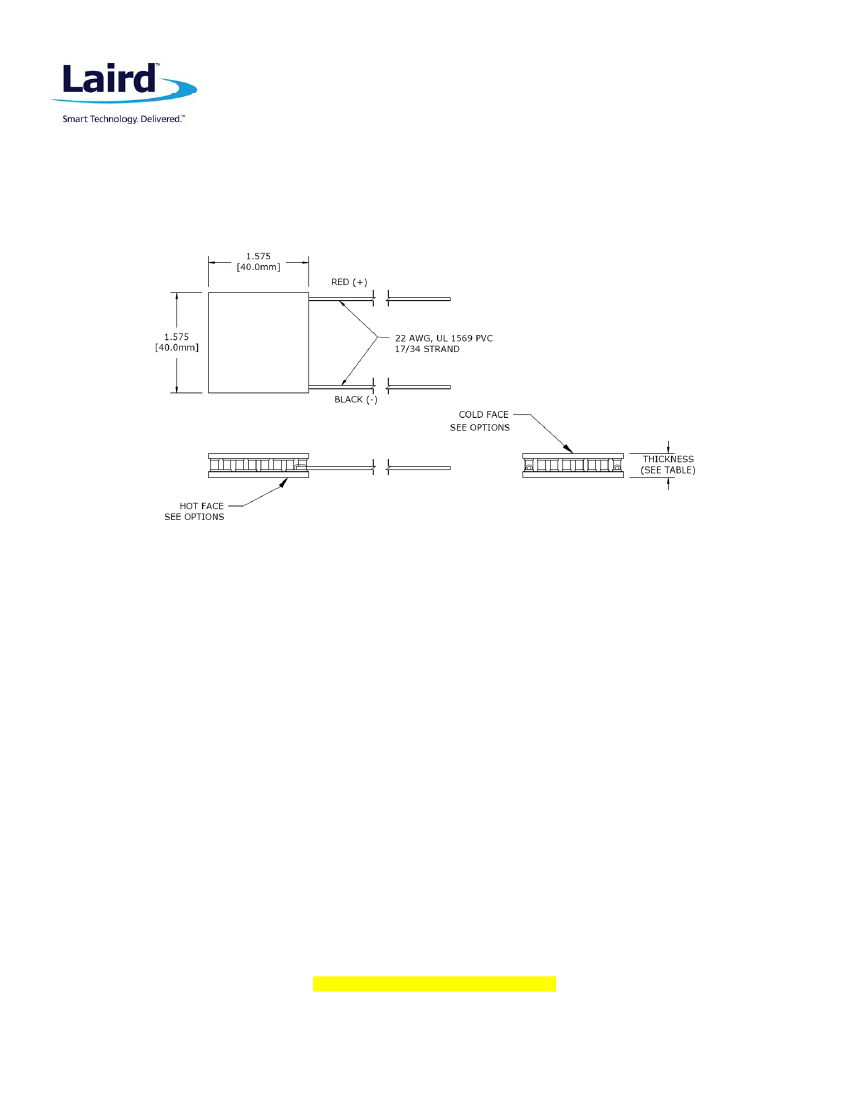

MECHANICAL DRAWING
TM
OPERATING TIPS
•
•
•
Max operating temperature: 80°C
Do not exceed Imax or Vmax when operating module
Reference assembly guidelines for installation
THR‐ UltraTEC
TM
Series UT6,19,F1,4040_121815
Any information furnished by Laird and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use
and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness,
merchantability or suitability of any Laird materials or products for any specific or general uses. Laird, Laird Technologies, Inc or any of its affiliates or agents shall not be
liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time
to time, a copy of which will be furnished upon request. © Copyright 2014 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other
marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third
parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.
