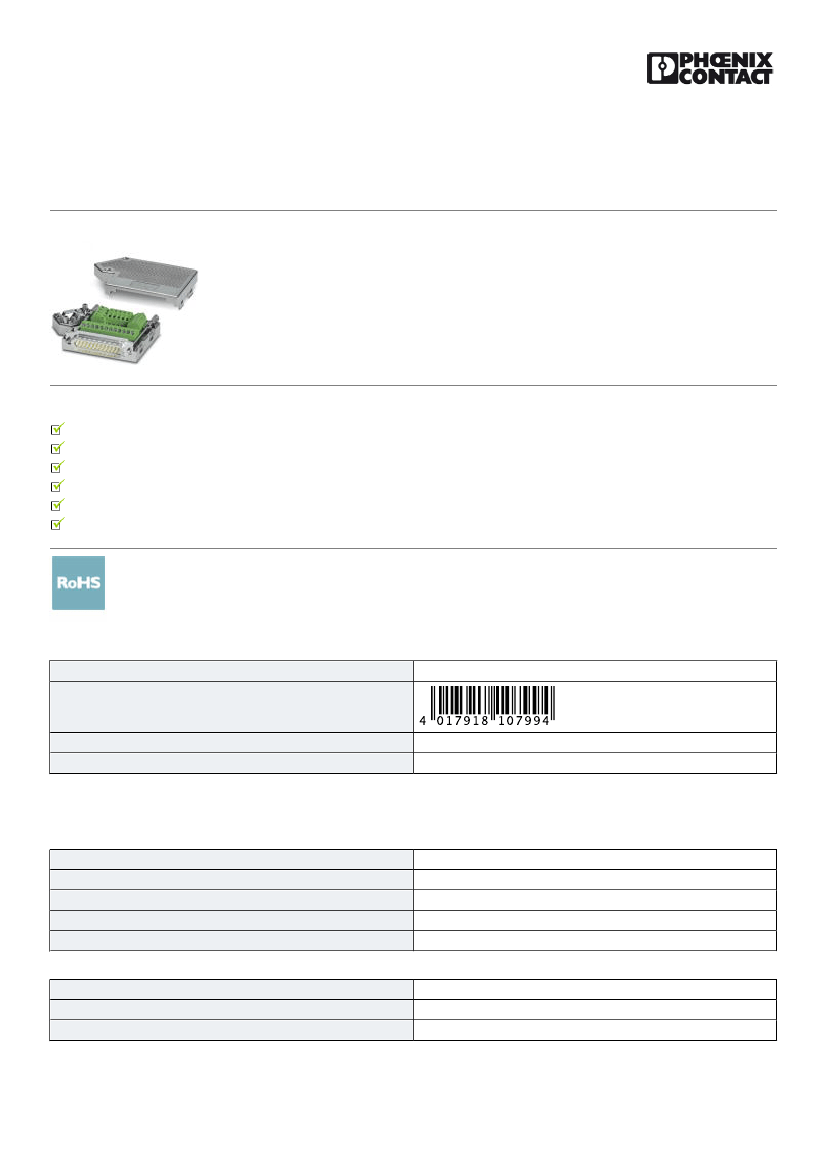

D-SUB bus connector - SUBCON 25/M-SH - 2761622
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
D-SUB connector, 25-pos., male connector, one cable entry < 35°, universal type for all systems, pin
assignment: 1, 2, 3, ..., 24, 25 to screw connection terminal block
Why buy this product
Easy assembly thanks to knurled screws
High level of EMC
Assembly under field conditions
For universal use
Flexibility in terms of cable entry selection
Change to the D-SUB orientation through a reversible connection block
Key Commercial Data
Packing unit
GTIN
GTIN
Sales Key
4017918107994
07
1 pc
Technical data
Dimensions
Max. cable diameter
Min. cable diameter
Width
Height
Length
10 mm
4 mm
16 mm
55 mm
79 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Altitude
-20 °C ... 75 °C
-25 °C ... 80 °C
5000 m (For restrictions see manufacturer's declaration)
10/04/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/2761622
D-SUB bus connector - SUBCON 25/M-SH - 2761622
Technical data
Ambient conditions
Degree of protection
IP20
IP20
General
Nominal voltage U
N
Nominal current I
N
Signal
50 V
100 mA
Modbus
RS-232
RS-422
RS-485
Insertion/withdrawal cycles
SUBCON fixing screws
Tightening torque
Housing material
Pin assignment
MTTF
> 200
4-40 UNC
0.4 Nm
ABS, metal-plated
All connections are 1:1 on the screw terminal block
6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21
% (5 days a week, 8 hours a day))
1817 Years (SN 29500 standard, temperature 40 °C, operating cycle
34.25 % (5 days a week, 12 hours a day))
155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100
% (7 days a week, 24 hours a day))
Connection data
Connection
Number of positions
Connection method
Connection
Connection method
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Tightening torque
D-SUB connection
25
D-SUB connector
PCB connection
Screw connection
0.14 mm²
1 mm²
0.14 mm²
1.5 mm²
26
18
26
16
5 mm
0.4 Nm
Standards and Regulations
Free from substances that could impair the application of coating
Connection in acc. with standard
ATEX
according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
CUL
II 3 G Ex nA IIC T4 Gc X
10/04/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/2761622
D-SUB bus connector - SUBCON 25/M-SH - 2761622
Technical data
Standards and Regulations
Noxious gas test
ISA-S71.04-1985 G3 Harsh Group A
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
Dimensional drawing
C
16
5
60
A
50
B
Stripping specifications
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / EAC / cULus Recognized
Ex Approvals
ATEX
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
10/04/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/2761622
D-SUB bus connector - SUBCON 25/M-SH - 2761622
Approvals
CSA
http://www.csagroup.org/services-industries/product-listing/
2437602
EAC
EAC-Zulassung
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
