SPECIFICATION
Part No.
Product Name
Features
:
:
:
LMA101.A.BI.001
Gemini 2*LTE 4G MIMO Magnetic Antenna
Best solution for 2*LTE MIMO Worldwide applications
Covers Fallback 3G/2G Frequencies
(HSPA/UMTS/WCDMA/GSM/GPRS)
698-960MHz, 1710-2170MHz, 2490-2690MHz
High Efficiency Indoor and Outdoor Antenna
IP67 Rating

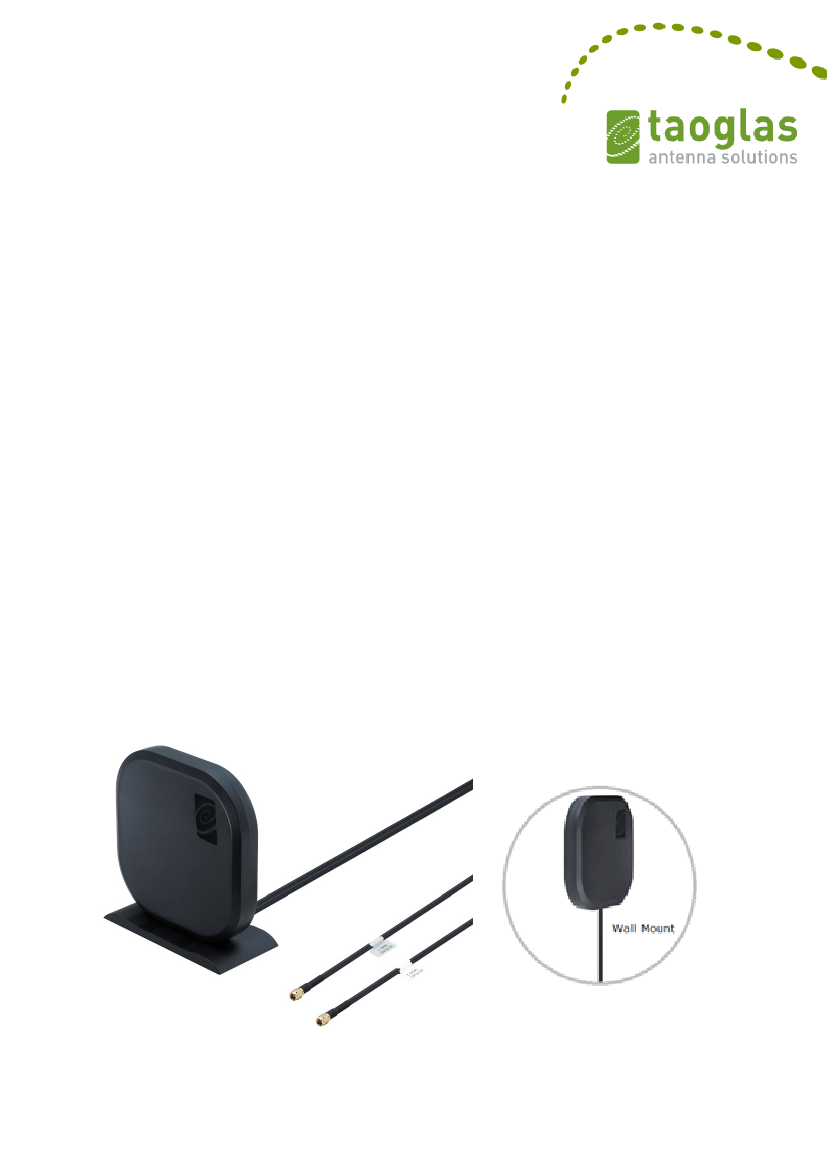

3 Way Base Mount for Implementation
- Magnetic Mount
- Wall Mount
- Desktop Mount
Dims: 164*164*36.5mm
2*Low Loss 1M CFD-200 Cables, SMA(M)
Cable and Connector Customizable
RoHS Compliant
SPE-17-8-017-B
Page 1 of 26
1. Introduction
The Gemini LMA101 features eight embedded super-magnets for easy and robust
installation on metal surfaces.
This 2*2 LTE 4G MIMO is a robust external antenna that is fully IP67 waterproof for use
with all 4G/3G/2G MIMO cellular routers and access points worldwide. It includes two

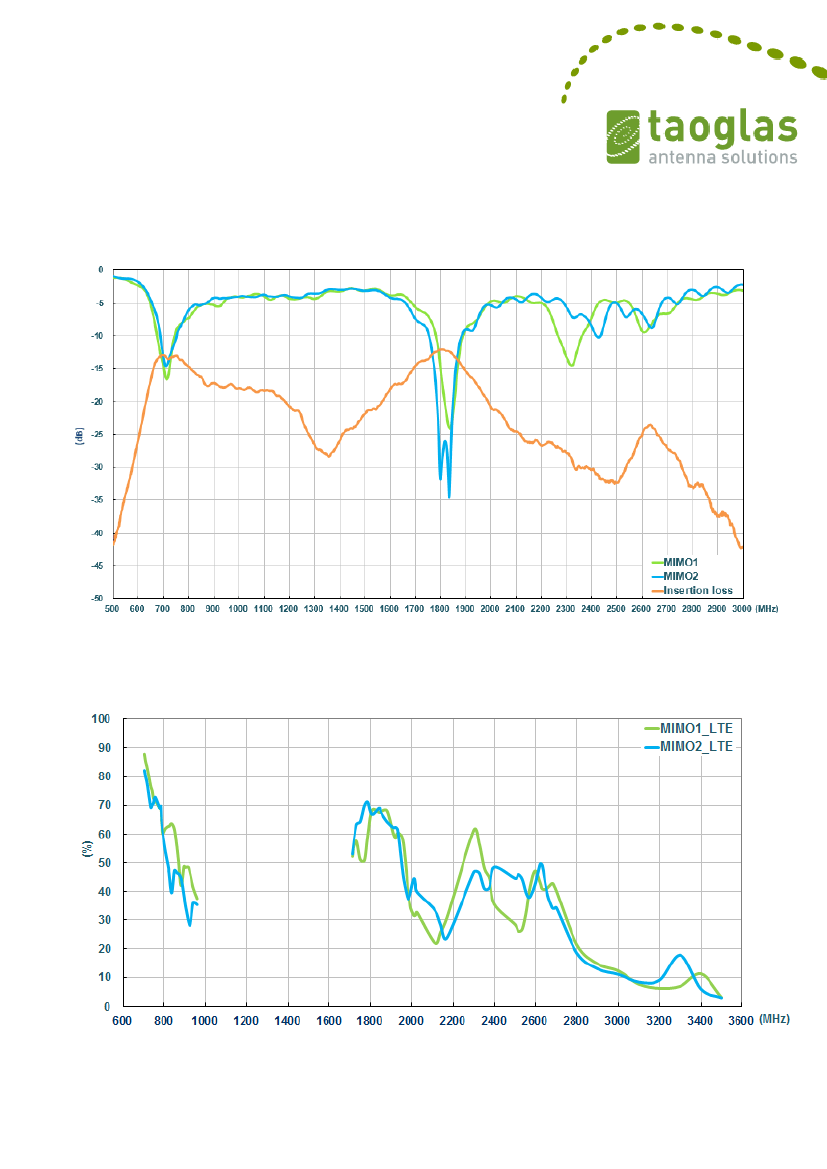

embedded high efficiency LTE MIMO antennas. The antenna elements operate at all
common and 4G LTE bands worldwide; 698-960MHz, 1710-2170MHz, 2490-2690MHz,
which also include the 3G and 2G bands, meaning the antenna can also be used as fallback
on 2G or 3G applications. High isolation and low ECC between the two embedded MIMO
antennas prevents self-interference. Low loss cables are used to keep efficiency high over
long cable lengths up to 5 meters.
This unique antenna offers three methods for easy installation. A bracket on the back of
the antenna enables easy wall installation, keeping your work station free from clutter.
The antenna can also be placed directly on a flat surface using the stand holder or mounted
magnetically using eight super magnets for secure and permanent base mounting.
Typical Applications
HD Real-time Streaming Video over LTE
Intelligent Transport Systems
Internet of Things (IoT market)
Digital Signage
HD Broadcast Systems
Wireless 4G LTE MIMO M2M devices with legacy 3G Functionality.
Cable length and connector types are customizable. Contact your regional Taoglas sales
office for support.
SPE-17-8-017-B
Page 2 of 26
MECHANICAL
Casing
Coaxial Cable
Cable Length
Connector
Weight
Dimension
Waterproof Rating
Magnetic Pull Force
Magnetic Dim/Pcs
Operation Temperature
Storage Temperature
Humidity
PCL1250Y
CFD-200
1 Meter Standard, fully customizable
SMA Male Standard, fully customizable
400g (Antenna with 1 meter Cable and Stand)
164*164*36.5mm
IP67
11.24 kgF-cm
Φ18*3t N48M/ 8 pcs
ENVIRONMENTAL
-40°C to 85°C
-40°C to 85°C
Non-condensing 65°C 95% RH
SPE-17-8-017-B
Page 4 of 26
