DT80PW280D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DT80PW280D

DT80PW280D: DescriptionAC/DC DESKTOP ADAPTER 28V 80W; CategoryPower/power management; File Size364KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

DT80PW280D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT80PW280D	-	-	View	Buy Now

DT80PW280D Overview

AC/DC DESKTOP ADAPTER 28V 80W

DT80PW280D Parametric

Parameter Name	Attribute value
Use area	internationality
form	Desktop (Class I)
input type	Cable (sold separately)
Voltage - input	90 ~ 264 VAC
Voltage - Output	28V
Current - Output (maximum)	2.86A
Power (W)	80W
No-load power consumption	150mW (maximum)
polarization	-
application	ITE (Business)
efficiency	Level VI, CoC Tier 2
Operating temperature	0°C ~ 70°C
Output connector	Power DIN, 4 pin
size/dimensions	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)
Approval	CE
input connector	IEC 320-C14
Wire length	41.34"（1.05m）
weight	0.972 lbs (440.89g)

Preview

Download Datasheet

View All

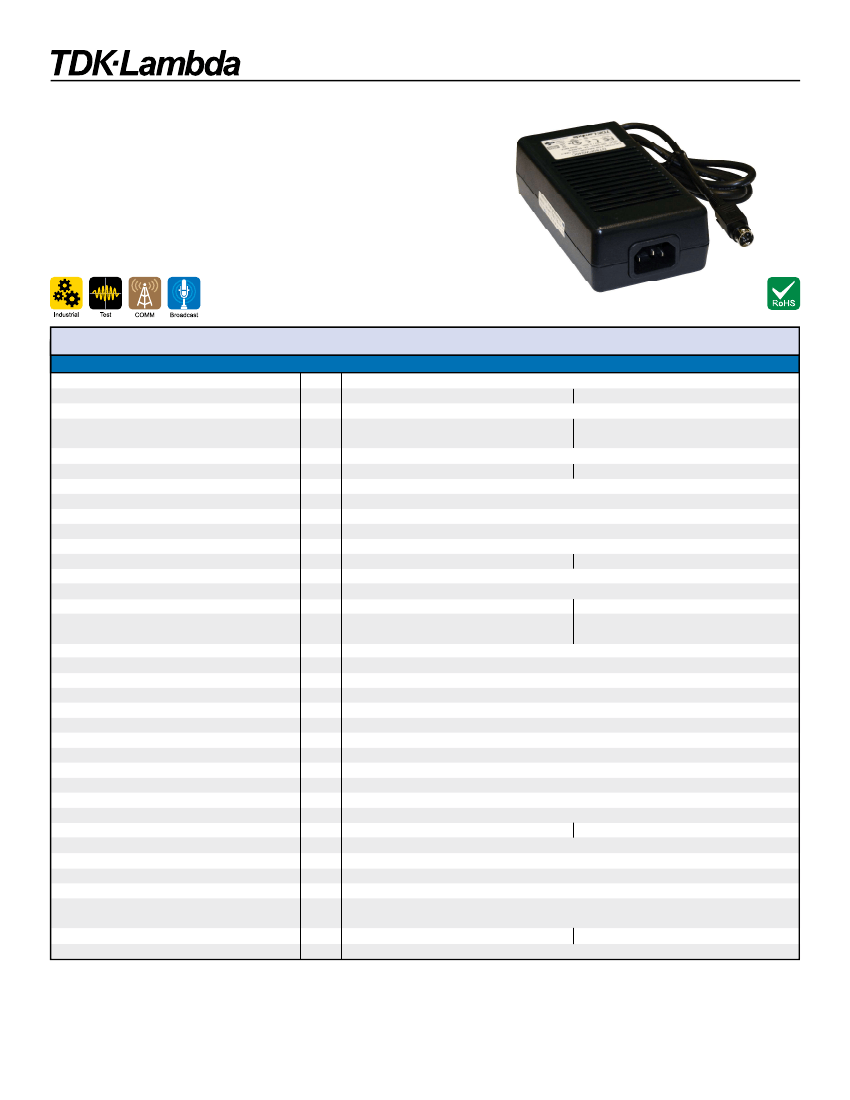

DT62 / 80D Series

40W to 80W AC-DC External Power Supplies

Features



Meet Eﬃciency Level VI requirements



No load Power consumption <150mW



Power Factor Correction (DT80)



LED ON indicator (Blue)

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

VAC

Inrush Current at 115VAC, cold start 25°C ambient

Input Current (Maximum)

Power Factor

Leakage Current (typ, 264VAC 63Hz)

Hold Up Time (Typ) at 115VAC input, full load

Temperature Coeﬃcient

Voltage Accuracy

Adjustment Range

Minimum Load

Total Regulation

Ripple & Noise

Short Circuit Protection

Overvoltage Protection

Eﬃciency at Average Load

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Department of Energy (DOE) regulation

EU CoC V.5

Oﬄoad Power Consumption

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxLxH)

Cable Length and Thickness

AC Input Connector

Output Connector

MTBF (MIL-HDBK), 100% load, 25C

Warranty

°C

Inches

(mm)

Hours

Years

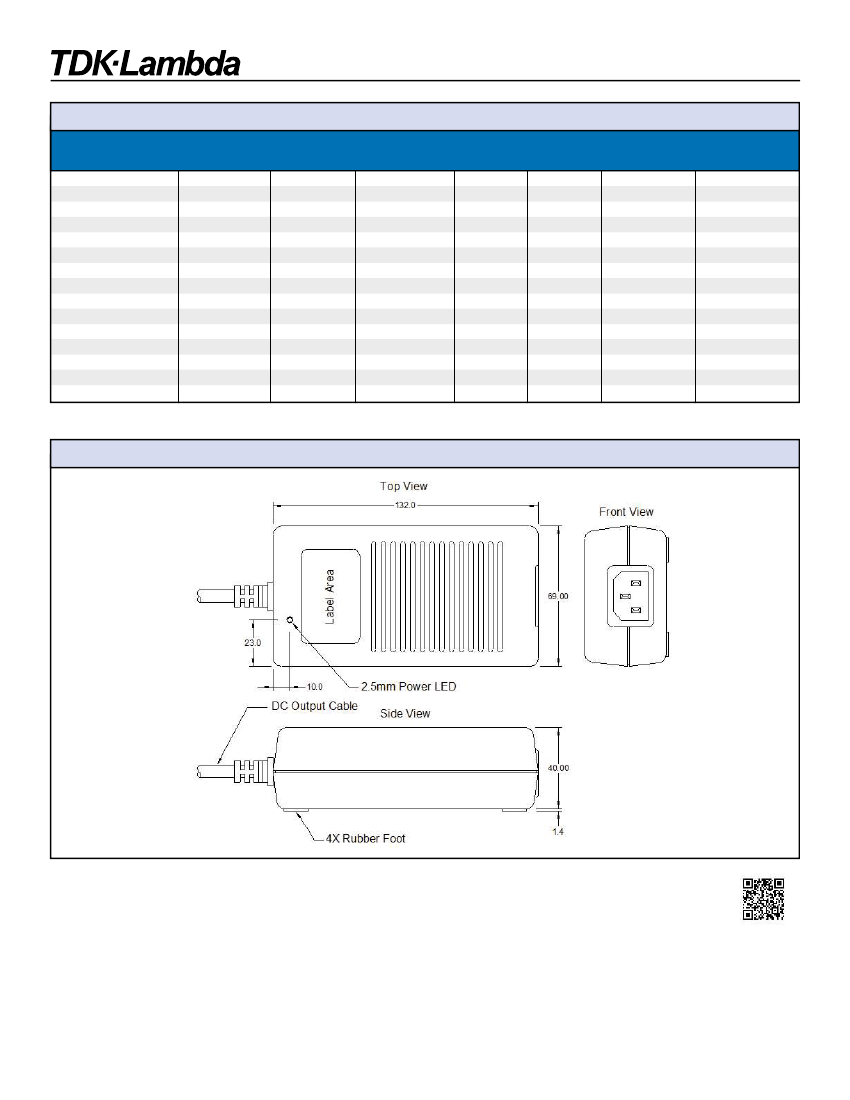

DT62PWxxxD

90 - 264VAC (47 - 63Hz)

<50A

<75A

2A (90VAC input)

Meets EN61000-3-2

Typically 0.9 at full load

(Meets EN61000-3-2)

0.7mA

>10ms

>20ms

±0.05%/°C

±2%

None

±5%

1% or 240mV ( whichever is lower)

240mV

Continuous - hiccup mode

110 - 140% of nominal (Cycle input power to reset)

>89% (>86.1% 5V, >87.6% 6-10V models)

>89% (>88% 9V model)

0 to +70°C, derating linearly

0 to +60°C, derating linearly

to 50% load above 50°C

to 50% load above 40°C

-10 to +85°C

10 - 90% RH

Convection

Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)

23.52m/s

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL60950-1, EN609501-1, IEC60950-1, CE Mark

See model selector

<150mW

EN55032-B, FCC Class B

EN55024

400g

440g

2.72 x 5.2 x 1.57”

(69 x 132 x 40mm)

1050mm

IEC 320-C14 (Accepts IEC 320-C13)

Kycon KPPX-4P or equivalent

Pins 1 & 2: -Vout, Pins 3 & 4: +Vout

140,000 hours

120,000 hours

Three Years

DT80PWxxxD

1-800-526-2324 • www.us.tdk-lambda.com/lp/

142

Disclaimer: us.tdk-lambda.com/lp/legal.htm

DT80PW280D Related Products

	DT80PW280D	DT62PW190D	DT80PW150D	DT80PW480D	DT62PW080D
Description	AC/DC DESKTOP ADAPTER 28V 80W	AC/DC DESKTOP ADAPTER 19V 62W	AC/DC DESKTOP ADAPTER 15V 80W	AC/DC DESKTOP ADAPTER 48V 80W	AC/DC DESKTOP ADAPTER 8V 62W
Use area	internationality	internationality	internationality	internationality	internationality
form	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)
input type	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)
Voltage - input	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC
Voltage - Output	28V	19V	15V	48V	8V
Current - Output (maximum)	2.86A	3.43A	5.34A	1.67A	5A
Power (W)	80W	65W	80W	80W	40W
No-load power consumption	150mW (maximum)	210mW (maximum)	150mW (maximum)	150mW (maximum)	210mW (maximum)
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
efficiency	Level VI, CoC Tier 2	Level VI, CoC Tier 2	Level VI, CoC Tier 2	Level VI, CoC Tier 2	Level VI, CoC Tier 1
Operating temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
Output connector	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin
size/dimensions	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)	5.20" long x 2.71" wide x 1.57" high (132.0mm x 69.0mm x 40.0mm)
Approval	CE	CE	CE	CE	CE
input connector	IEC 320-C14	IEC 320-C14	IEC 320-C14	IEC 320-C14	IEC 320-C14
Wire length	41.34"（1.05m）	41.34"（1.05m）	41.34"（1.05m）	41.34"（1.05m）	41.34"（1.05m）
weight	0.972 lbs (440.89g)	0.882 lbs (400.07g)	0.972 lbs (440.89g)	0.972 lbs (440.89g)	0.882 lbs (400.07g)
