Z63000Z2910Z 1Z 4 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> Z63000Z2910Z 1Z 4

Z63000Z2910Z 1Z 4: DescriptionVIBRATION PIEZO MOTOR 15G 120V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size250KB，8 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric View All

Z63000Z2910Z 1Z 4 Overview

VIBRATION PIEZO MOTOR 15G 120V

Z63000Z2910Z 1Z 4 Parametric

Parameter Name	Attribute value
type	-
Function	Vibration (piezoelectric)
Motor type	-
Voltage - Rated	0 ~ 120 V
RPM	-
Torque - Rating (oz-in / mNm)	-
Power - Rating	-
Encoder type	-
size/dimensions	Square - 1.024" x 1.024" (26.00mm x 26.00mm)
Diameter - Shaft	-
Length - Shaft and Bearings	-
Mounting hole spacing	-
Terminal type	soldering pad
characteristic	-
Gear reduction ratio	-
Torque - Instantaneous Maximum (oz-in / mNm)	-
Operating temperature	-40°C ~ 85°C
Approval	-

Preview

Download Datasheet

View All

Piezo Haptic Actuator - PowerHap™

Type 15G

Series/Type:

Ordering code:

Date:

Version:

PowerHap 15G - Prototypes

Z63000Z2910Z 1Z 4

2017-07-28

9 – Preliminary data

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

Piezo Haptic Actuator - PowerHap™

(header 1 + top left bar):

Identification/Classification 2

Type 15G

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

Z63000Z2910Z 1Z 4

Series/Type: (bottom right header bar)

PowerHap 15G - Prototypes

Preliminary data (optional):

Preliminary data

Department:

PPD PI AE/IE PD

Date:

2017-07-28

Version:

9 – Preliminary data



EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

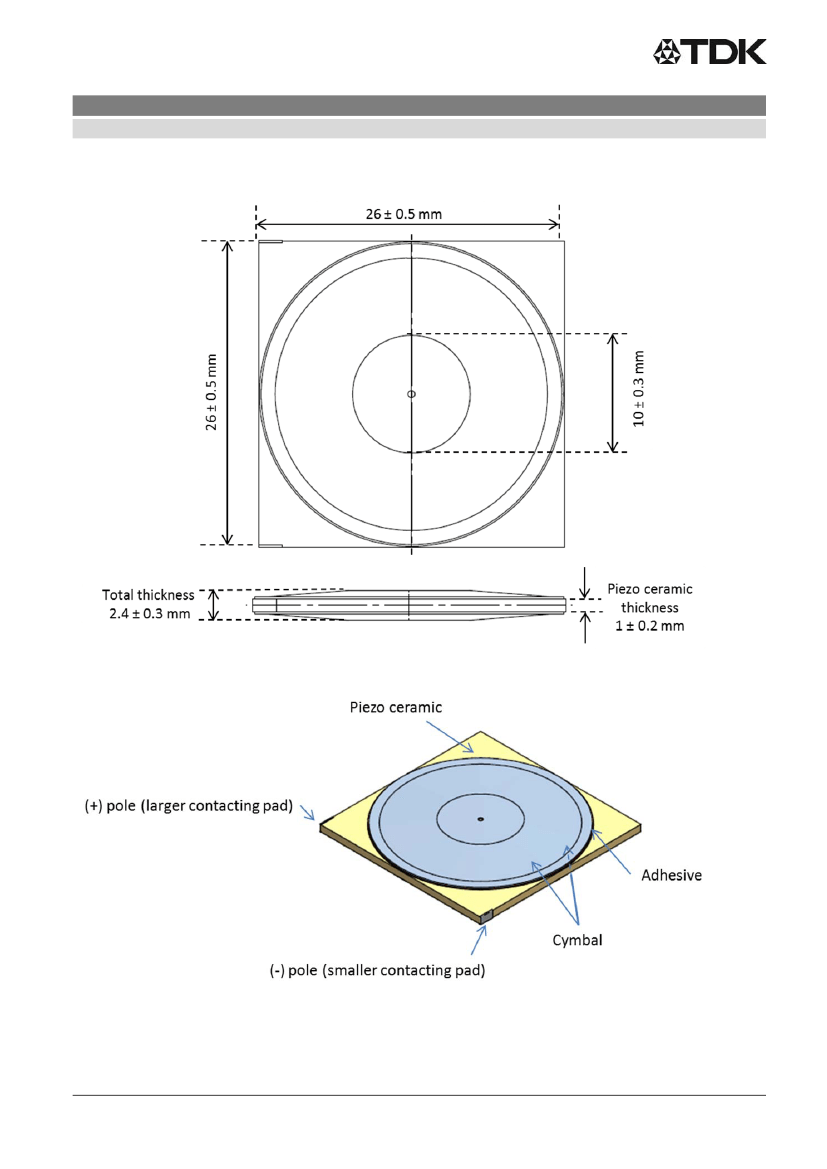

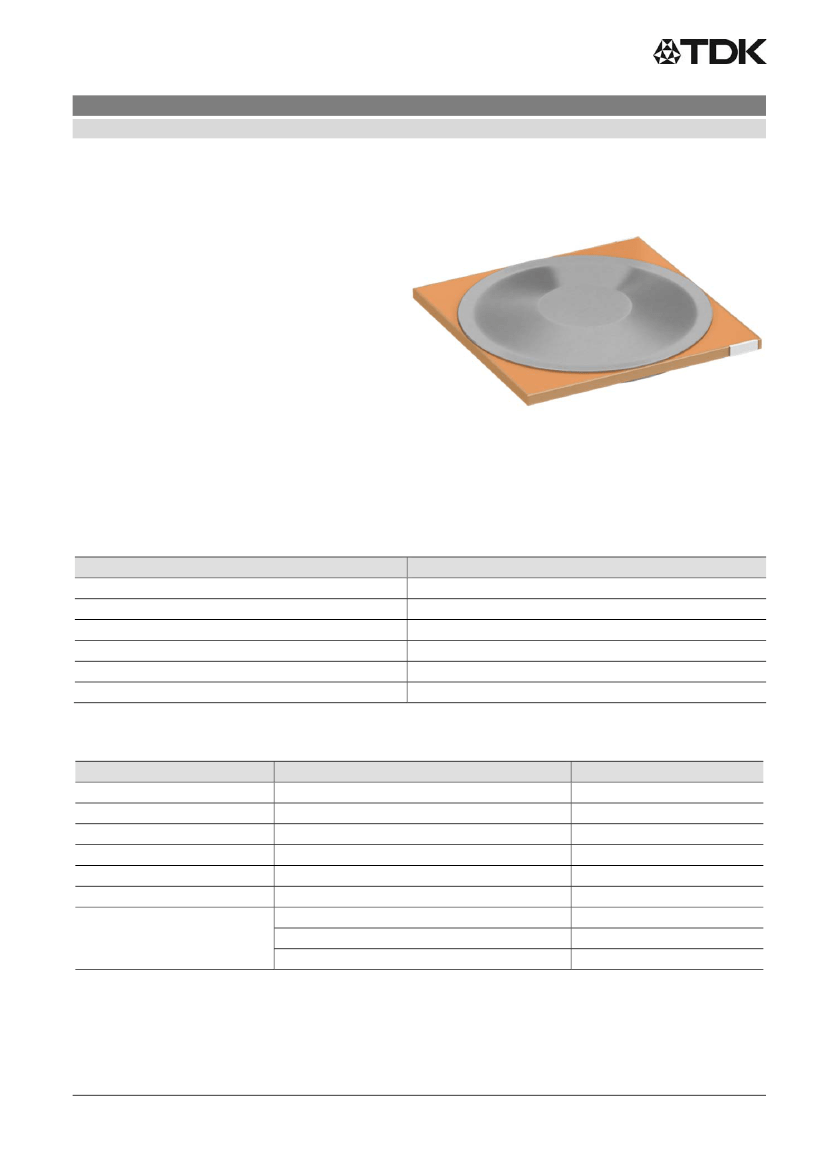

Piezo Haptic Actuator - PowerHap™

Type 15G

Preliminary data

Z63000Z2910Z 1Z 4

PowerHap 15G - Prototypes

Application note

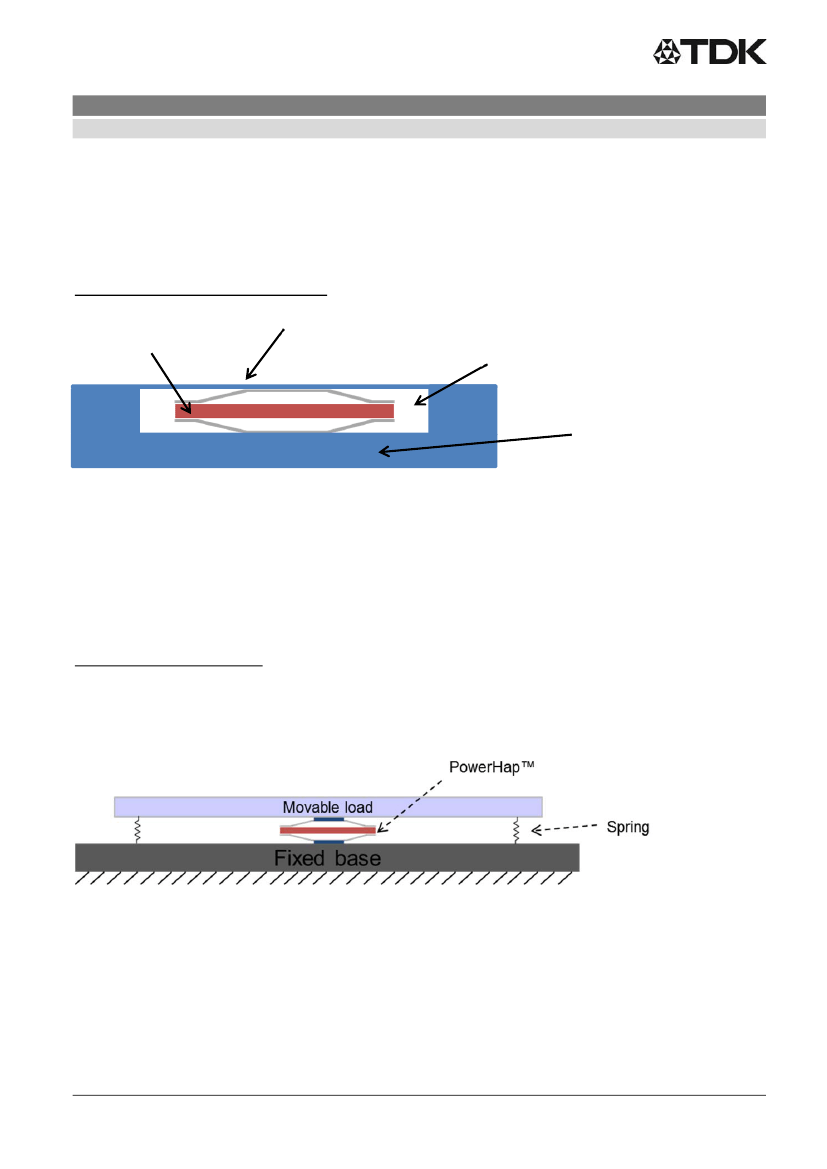

Depending on the exact application and geometry PowerHap actuators can be mounted and operated

in different ways. Some options shall be explained in more detail:

1) Mounting underneath a membrane

PowerHap™

Membrane

Cavity

Back panel

In this case the PowerHap actuator is clamped between a thin, flexible membrane and a rigid back

panel. By applying a voltage, the actuator elongates and consequently deforms the membrane.

In principle the membrane can be out of any material, but it may be necessary to tune the thickness.

While the membrane needs to be as flexible as possible to maximize the haptic feedback felt by the

user, it needs to be also stiff enough to properly clamp the actuator.

In contrast, the back panel has to be as stiff as possible, so that only the membrane is the deformed.

For optimal performance, it is further recommended that the actuator is compressed by a preload of

5 N up to maximum 20 N.

2) Direct mounting to a load

In some applications, for example if haptic feedback shall be applied to a touchscreen, the

deformation of a membrane may be undesirable. In such cases PowerHap actuators can be mounted

directly underneath the load (for example a touchscreen).

By applying a voltage to the actuator, it elongates and therefore moves the load. This movement can

be felt by the user. For a maximal haptic feedback, the rear panel needs to be as heavy as possible.

Otherwise the PowerHap actuator will not only move the load but also the rear panel and therefore a

part of the performance is lost.

In the simplest case it is possible to press the load on the PowerHap actuator (and consequently also

the PowerHap actuator to the rear panel) by using springs. As in case 1 a preload of 5 N up to

maximum 20 N is recommended. To ensure the position of the PowerHap actuator, it can be either

fixed to the rear panel or the load (e.g. adhesive tape, glue).

PPD PI AE/IE PD

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 8

2017-07-28

Piezo Haptic Actuator - PowerHap™

Type 15G

Preliminary data

Z63000Z2910Z 1Z 4

PowerHap 15G - Prototypes

3) Multiple actuators

PowerHap actuators are optimized to deliver a strong haptic feedback. For example, a test load with a

mass of 0.1 kg is accelerated with up to 15 g. However, for heavier loads the acceleration decreases.

As a consequence for very heavy loads (like huge displays) the user may only experience a very

weak or even unnoticeable haptic effect. In such cases it is possible to combine multiple actuators.

General application notes

Some parts of this publication contain statements about the suitability of our ceramic piezo

components for certain areas of application, including recommendations about incorporation/design-in

of these products into customer applications. The statements are based on our knowledge of typical

requirements made of our devices in the particular areas. We nevertheless expressly point out that

such statements cannot be regarded as binding statements about the suitability of our piezo

components for a particular customer application. As a rule, EPCOS is either unfamiliar with individual

customer applications or less familiar with them than the customers themselves. For these reasons, it

is always incumbent on the customer to check and decide whether the piezo component devices with

the properties described in the product specification are suitable for use in a particular customer

application.



Do not use piezo components for purposes not identified in our specifications, application notes

and data sheets.



Ensure the suitability of a piezo component in particular by testing it for reliability during design-in.

Always evaluate a piezo component under worst-case conditions.



Pay special attention to the reliability of piezo devices intended for use in safety-critical

applications (e.g. medical equipment, automotive, spacecraft, nuclear power plant).



Do not drive the piezo actuator under resonance conditions.

Design notes



Consider de-rating at higher operating temperatures and loads.



In some cases the malfunctioning of passive electronic components or failure before the end of

their service life cannot be completely ruled out in the current state of the art, even if they are

operated as specified. In applications requiring a very high level of operational safety and

especially when the malfunction or failure of a passive electronic component could endanger

human life or health (e.g. in accident prevention, life-saving systems, or automotive battery line

applications such as clamp 30), ensure by suitable design of the application or other measures

(e.g. installation of protective circuitry or redundancy) that no injury or damage is sustained by

third parties in the event of such a malfunction or failure. Do not use piezo components in safety-

relevant applications.



Specified values only apply to piezo components that have not been subject to prior electrical,

mechanical or thermal damage.

Operation



Use piezo actuator components only within the specified operating temperature range.



Use piezo actuator components only within specified voltage and current ranges.



Piezo actuator components have to be operated in a dry, non-reducing atmosphere which must

not contain any additional chemical vapours or substances. We recommend appropriate drying of

PPD PI AE/IE PD

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 8

2017-07-28
