M
ICROCONTROLLERS
STK500
Starter Kit
and
T
HE
E
ASIEST
W
AY
TO
G
ET
S
TARTED
WITH
AVR
Development
System
The Atmel
®

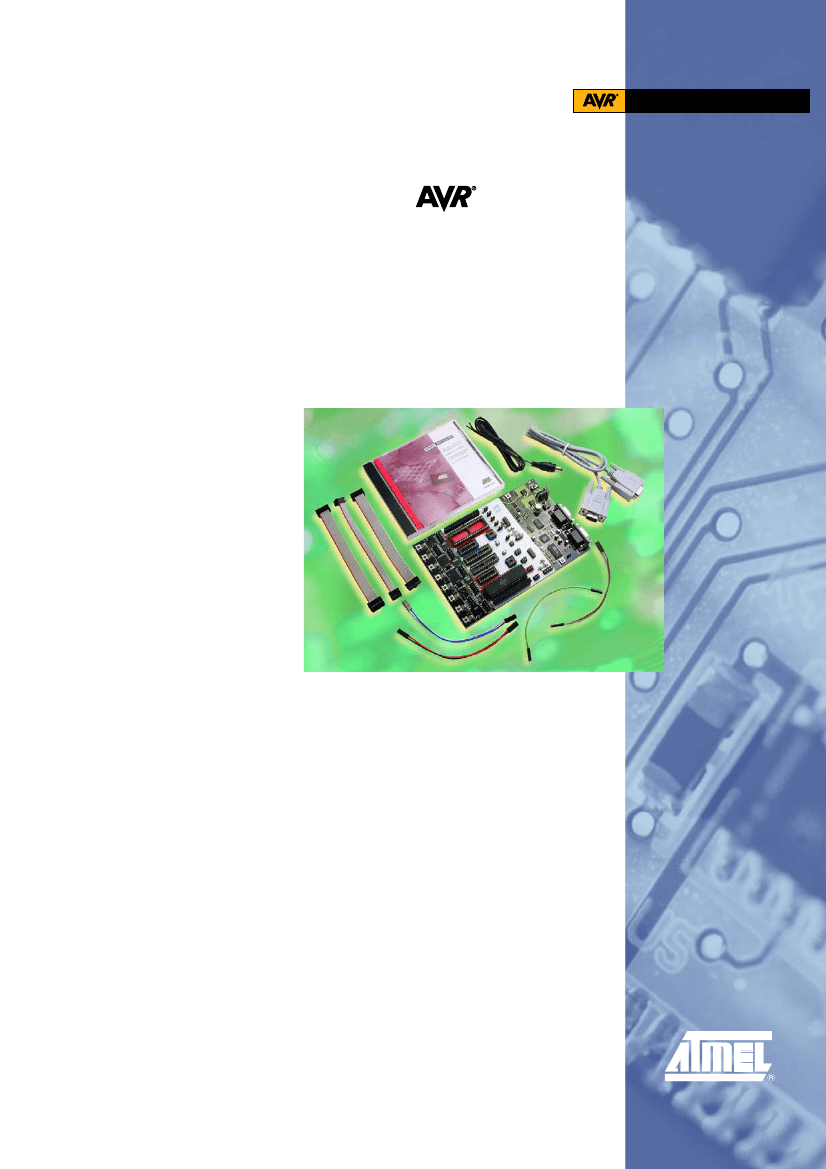

AVR STK500 is a starter kit and development system for Atmel’s AVR
®
Flash microcontrollers. The STK500 gives designers a quick start to develop
code on the AVR, combined
with features for developing
prototypes and testing new
designs. The STK500 interfaces
AVR Studio
®
, Atmel’s Integrated
Development
Environment
(IDE) for code writing and
debugging.
AVR Studio Operated
Serial In-System Programming
In-System Programming in External
Target Systems
Parallel and Serial High-voltage
Programming
RS-232 Interface to PC
Sockets for 8-, 20-, 28-, and 40-pin
AVR Devices
Flexible Clocking, Voltage and Reset
System
LEDs and Push Buttons for
Experimentation
All AVR I/O Ports Easily Accessible
through Pin Header Connectors
Spare RS-232 Driver and Connector
Upgrades are done from AVR Studio
Expansion Connectors for Plug-in
Modules and Prototype Areas
Target Voltage 1.8 – 6.0V
Supply Voltage 9 – 12V
STK500
S
TA RT E R
K
I T
AND
D
EVELOPMENT
S
YSTEM
Corporate Headquarters
2325 Orchard Parkway
San Jose, CA 95131
USA
TEL: (1)(408) 441-0311
FAX: (1)(408) 487-2600
Europe
Atmel Sarl
Route des Arsenaux 41
Case Postale 80
CH-1705 Fribourg
Switzerland
TEL: (41) 26-426-5555
FAX: (41) 26-426-5500
Asia
Room 1219
Chinachem Golden Plaza
77 Mody Road Tsimshatsui
East Kowloon
Hong Kong
TEL: (852) 2721-9778
FAX: (852) 2722-1369
Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
TEL: (81) 3-3523-3551
FAX: (81) 3-3523-7581
e-mail
literature@atmel.com
Web Site
http://www.atmel.com
The STK500 is a complete starter kit, programming tool and development system
for Atmel’s AVR microcontrollers. The STK500 gives AVR users the freedom to
develop and test complete AVR designs and prototypes.
The STK500 supports all Programming modes of all AVR microcontrollers in the sockets as well as
ISP Programming of external target systems. The AVR I/O ports are accessible on pin headers that
can be used for connecting the on-board LEDs and push buttons, or external signals. The extra
RS-232 port can be connected to any of the I/O pins.

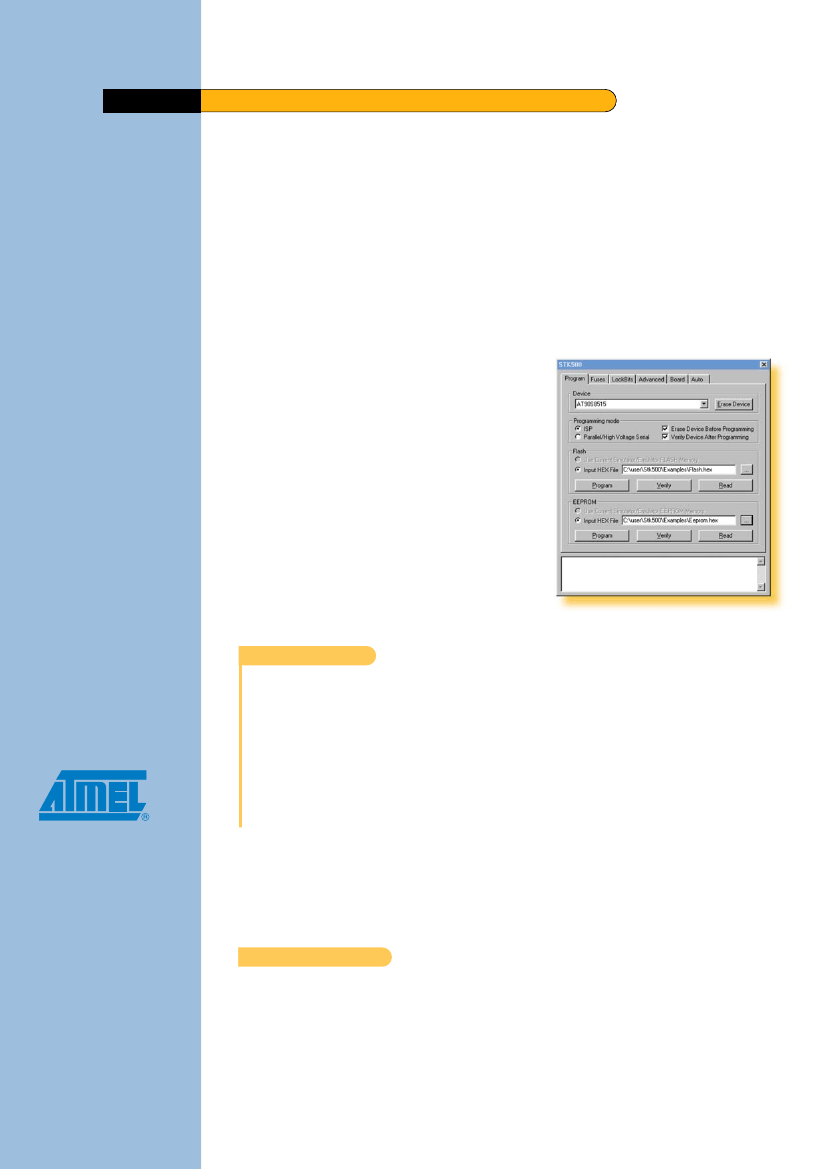

The STK500 Programming interface is integrated in
AVR Studio. The Flash, EEPROM, and all Fuse and
Lock Bit options can be programmed individually or
with the sequential automatic programming option.
The AVR clock frequency and supply voltage can also
be controlled from AVR Studio.
A DOS Programming software is included for efficient
batch programming in a production environment.
The active simulator or emulator code in AVR Studio
can easily be programmed into the STK500 with one
click of the mouse.
Supported Devices
(4)
ATtiny11
ATtiny12
ATtiny15
ATtiny22
ATtiny26
ATtiny28
AT90S1200
AT90S2313
©Atmel Corporation, 2002
Atmel Corporation makes no warranty for
the use of its products, other than those
expressly contained in the Company’s
standard warranty which is detailed in
Atmel’s Terms and Conditions located on
the Company’s web site. The Company
assumes no responsibility for any errors
which may appear in this document,
reserves the right to change devices or
specifications detailed herein at any time
without notice, and does not make any
commitment to update the information
contained herein. No licenses to patents or
other intellectual property of Atmel are
granted by the Company in connection
with the sale of Atmel products, expressly
or by implication. Atmel’s products are not
authorized for use as critical components
in life support devices or systems.
Atmel
®
, AVR
®
and AVR Studio
®
are regis-
tered trademarks of Atmel.
Other terms and product names may be
the trademarks of others.
1939C-AVR-09/02/15M
AT90S2323
AT90S2333
AT90S2343
AT90S4414
AT90S4433
AT90S4434
AT90S8515
AT90S8535
ATmega8
ATmega8515
ATmega8535
ATmega161
ATmega162
ATmega163
ATmega16
ATmega169
(2)
ATmega323
ATmega32
ATmega64
(1)
ATmega103
(1)
ATmega128
(1)
AT89951
(3)
AT89952
(3)
AT86RF401
(3)
Notes
1: The device is supported through ISP Programming of external target or through the STK501 expansion module.
2: The device is supported through ISP Programming of external target or through the STK502 expansion module.
3: The device is supported through ISP Programming of external target.
4: Low power versions are also supported.
Ordering Information
The STK500 is available from Atmel franchised distributors.
The ordering code is
ATSTK500
The latest version of AVR Studio is available free of charge from the Atmel web site: www.atmel.com
