HMC814LC3B
v02.0614
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 13 - 24.6 GHz OUTPUT
Typical Applications
The HMC814LC3B is ideal for:
Features
High Output Power: +17 dBm
Low Input Power Drive: 0 to +6 dBm
Fo Isolation: >20 dBc @ Fout = 19 GHz
100 kHz SSB Phase Noise: -136 dBc/Hz
Single Supply: +5V @ 88 mA
12 Lead 3x3 mm SMT Package: 9 mm²
FREQ. MULTIPLIERS - ACTIVE - SMT
• Clock Generation Applications:
SONET OC-192 & SDH STM-64
• Point-to-Point & VSAT Radios
• Test Instrumentation
• Military & Space
• Sensors

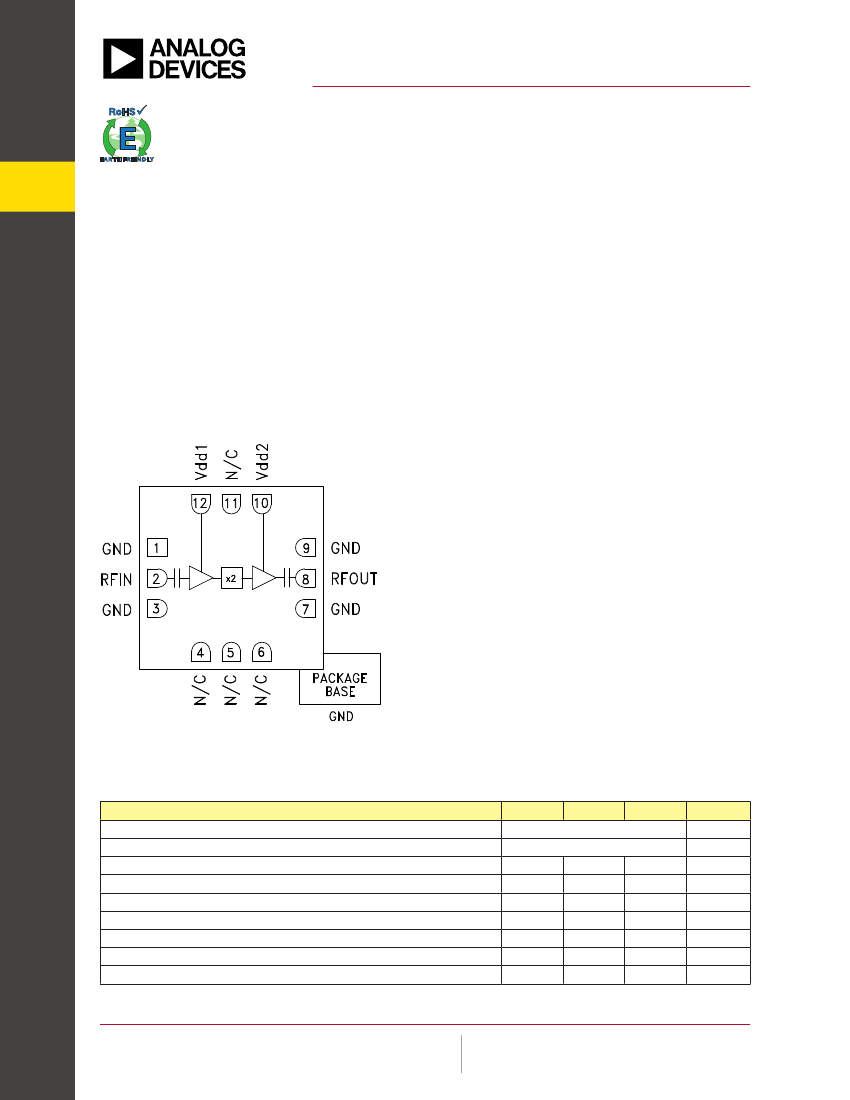

Functional Diagram
General Description
The HMC814LC3B is a x2 active broadband frequ-
ency multiplier utilizing GaAs pHEMT technology
in a leadless RoHS compliant SMT package. When
driven by a +4 dBm signal, the multiplier provides
+17 dBm typical output power from 13 to 24.6 GHz.
The Fo, 3Fo and 4Fo isolations are >20 dBc at 19 GHz.
The HMC814LC3B is ideal for use in LO multiplier
chains for Pt-to-Pt & VSAT Radios yielding reduced
parts count vs. traditional approaches. The low ad-
ditive SSB Phase Noise of -136 dBc/Hz at 100 kHz
offset helps maintain good system noise perfor-
mance. The RoHS packaged HMC814LC3B elim-
inates the need for wire bonding, and allows the use of
surface mount manufacturing techniques.
Electrical Specifications,
T
A
= +25° C, Vdd1, Vdd2 = +5V, +4 dBm Drive Level
Parameter
Frequency Range, Input
Frequency Range, Output
Output Power
Fo Isolation (with respect to output level)
3Fo Isolation (with respect to output level)
Input Return Loss
Output Return Loss
SSB Phase Noise (100 kHz Offset @ Input Frequency = 19 GHz)
Supply Current (Idd1 & Idd2)
70
4
6
14
Min.
Typ.
6.5 - 12.3
13 - 24.6
17
25
25
10
12
-136
88
100
Max.
Units
GHz
GHz
dBm
dBc
dBc
dB
dB
dBc/Hz
mA
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC814LC3B
v02.0614
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 13 - 24.6 GHz OUTPUT

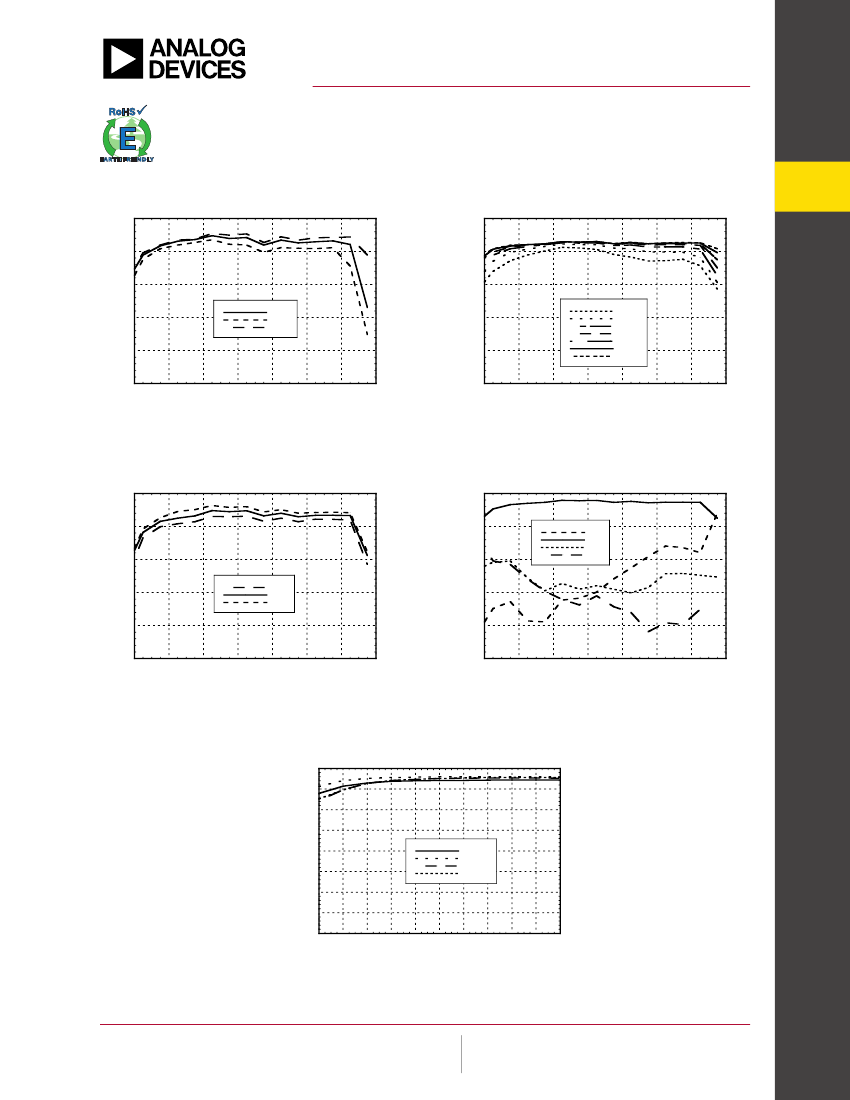

Output Power vs.
Temperature @ +4 dBm Drive Level
20
Output Power vs. Drive Level
25
OUTPUT POWER (dBm)
OUTPUT POWER (dBm)
16
15
12
5
0 dBm
1 dBm
2 dBm
3 dBm
4 dBm
5 dBm
6 dBm
8
+25C
+85C
-40C
-5
4
-15
0
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
-25
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
FREQUENCY (GHz)
FREQUENCY (GHz)
Output Power vs.
Supply Voltage @ +4 dBm Drive Level
20
Isolation @ +4 dBm Drive Level
20
OUTPUT POWER (dBm)
OUTPUT POWER (dBm)
16
10
12
0
Fo
2Fo
3Fo
4Fo
8
4.5V
5.0V
5.5V
-10
4
-20
0
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
-30
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
FREQUENCY (GHz)
FREQUENCY (GHz)
Output Power vs. Input Power
20
15
OUTPUT POWER (dBm)
10
5
0
-5
-10
-15
-20
0
1
2
3
4
5
6
7
8
9
10
15 GHz
19 GHz
23 GHz
24 GHz
INPUT POWER (dBm)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
FREQ. MULTIPLIERS - ACTIVE - SMT
2
HMC814LC3B
v02.0614
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 13 - 24.6 GHz OUTPUT

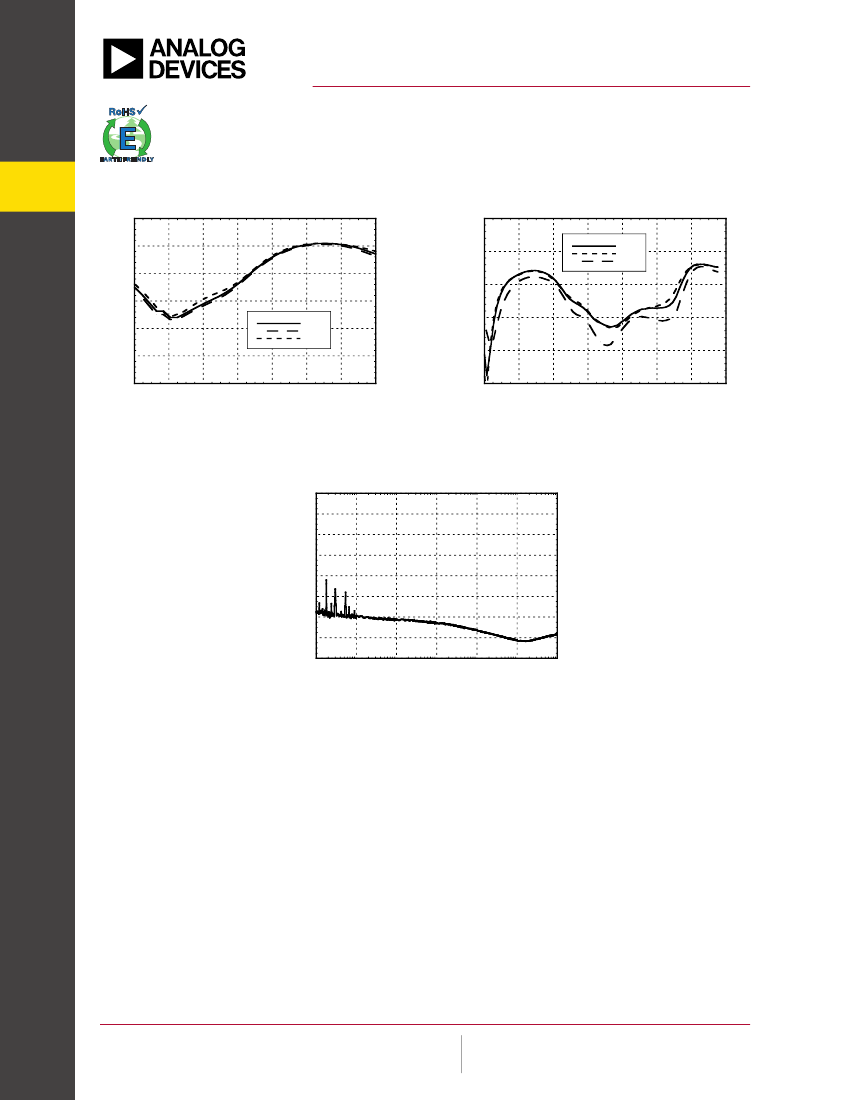

Input Return Loss vs. Temperature
0
Output Return Loss vs. Temperature
0
+25C
+85C
-40C
FREQ. MULTIPLIERS - ACTIVE - SMT
-5
-5
RETURN LOSS (dB)
-10
RETURN LOSS (dB)
12
13
-10
-15
+25C
+85C
-40C
-15
-20
-25
-20
-30
6
7
8
9
10
11
-25
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
FREQUENCY (GHz)
FREQUENCY (GHz)
Phase Noise @ 19 GHz
-10
-30
PHASE NOISE (dBc/Hz)
-50
-70
-90
-110
-130
-150
-170
2
10
10
3
10
4
10
5
10
6
10
7
10
8
FREQUENCY (Hz)
3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC814LC3B
v02.0614
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 13 - 24.6 GHz OUTPUT
Absolute Maximum Ratings
RF Input (Vdd = +5V)
Supply Voltage (Vdd1, Vdd2)
Channel Temperature
Continuous Pdiss (T= 85 °C)
(derate 8.3 mW/°C above 85 °C)
Thermal Resistance
(channel to ground paddle)
Storage Temperature
Operating Temperature
ESD Sensitivity (HBM)
+10 dBm
+5.5 Vdc
175 °C
743 mW
121 °C/W
-65 to +150 °C
-40 to +85 °C
Class 0 (Passed 150 V)
Typical Supply Current vs. Vdd
Vdd (Vdc)
4.5
5.0
5.5
Idd (mA)
88
89
Note:
Multiplier will operate over full voltage range shown above.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

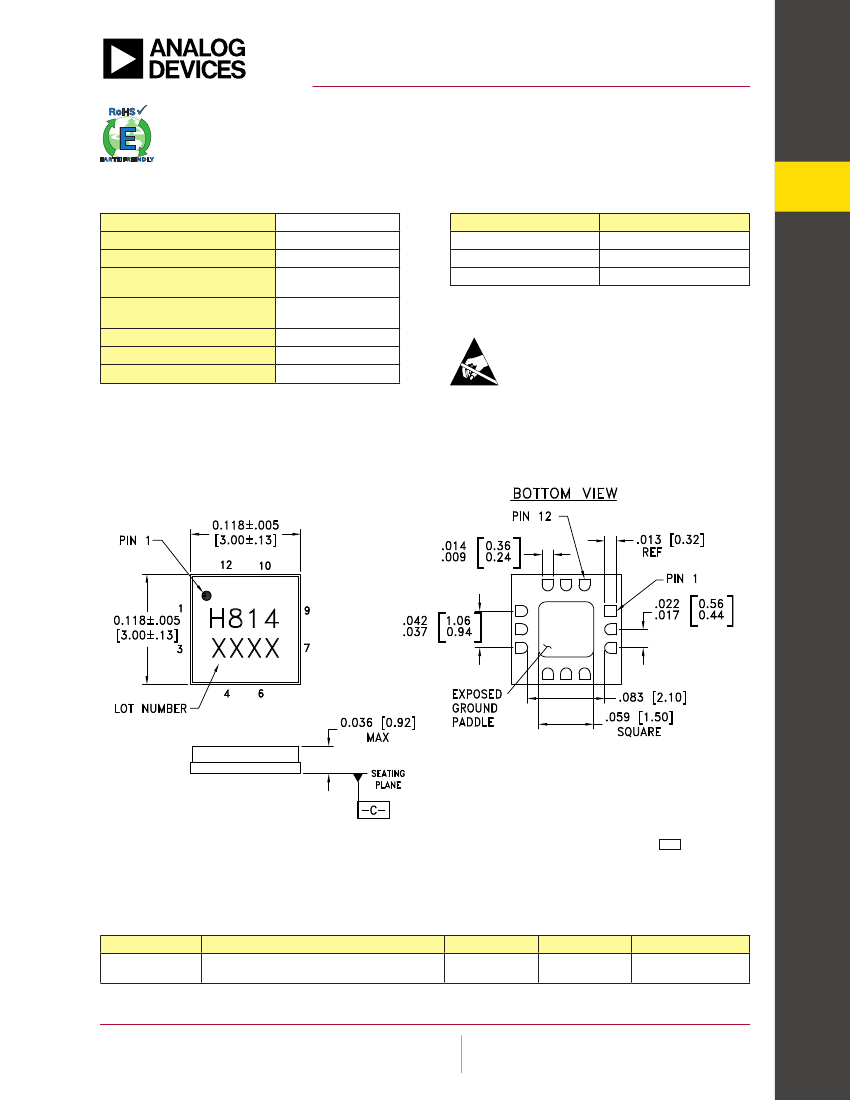

Outline Drawing
NOTES:
1. PACKAGE BODY MATERIAL: ALUMINA
2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER
50 MICROINCHES MINIMUM NICKEL.
3. DIMENSIONS ARE IN INCHES [MILLIMETERS].
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C-
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
Package Information
Part Number
HMC814LC3B
Package Body Material
Alumina, White
Lead Finish
Gold over Nickel
MSL Rating
MSL3
[1]
Package Marking
[2]
H814
XXXX
[1] Max peak reflow temperature of 260 °C
[2] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
FREQ. MULTIPLIERS - ACTIVE - SMT
4
87
HMC814LC3B
v02.0614
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 13 - 24.6 GHz OUTPUT
Pin Description
Pin Number
Function
GND
Description
Package bottom must also be connected
to RF/DC ground.
This pin is AC coupled
and matched to 50 Ohms.
These pins are not connected internally; however,
all data shown herein was measured with these pins
connected to RF/ DC ground.
This pin is AC coupled
and matched to 50 Ohms.
Interface Schematic
FREQ. MULTIPLIERS - ACTIVE - SMT
1, 3, 7, 9
2
RFIN
4 - 6, 11
N/C
8
RFOUT
10, 12
Vdd2, Vdd1
Supply voltage 5V ± 0.5V. External bypass capacitors
of 100 pF, 1,000 pF and 2.2 µF are recommended.

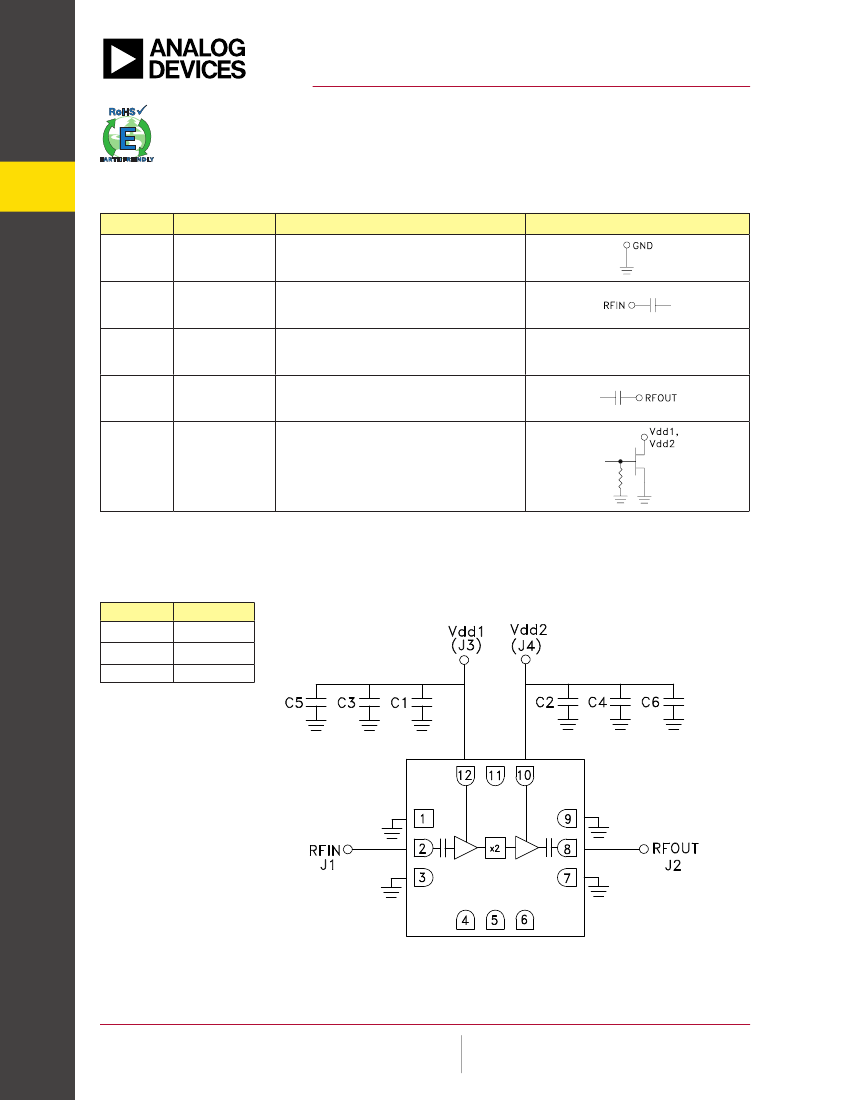

Application Circuit
Component
C1, C2
C3, C4
C5, C6
Value
100 pF
1,000 pF
2.2 µF
5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
