115556-HMC561LP3

Description
BOARD EVAL HMC561LP3E
CategoryDevelopment board/suite/development tools
File Size357KB,6 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Parametric Compare View All

115556-HMC561LP3 Online Shopping

Suppliers Part Number Price MOQ In stock
115556-HMC561LP3 - - View Buy Now

115556-HMC561LP3 Overview

BOARD EVAL HMC561LP3E

115556-HMC561LP3 Parametric

Parameter NameAttribute value
typeMultiplier
frequency4GHz ~ 10.5GHz
Supporting products/related productsHMC561LP3
What's includedplate
HMC561LP3
/
561LP3E
v01.0407
SMT GaAs MMIC x2 ACTIVE FREQUENCY
MULTIPLIER, 8 - 21 GHz OUTPUT
Features
High Output Power: +14 dBm
Low Input Power Drive: 0 to +6 dBm
Fo Isolation: 15 dBc @ Fout= 16 GHz
100 KHz SSB Phase Noise: -139 dBc/Hz
RoHS Compliant 3x3 mm SMT Package
Typical Applications
7
FREQ. MULTIPLIERS - ACTIVE - SMT
The HMC561LP3E are suitable for:
• Clock Generation Applications:
SONET OC-192 & SDH STM-64
• Point-to-Point & VSAT Radios
• Test Instrumentation
• Military & Space

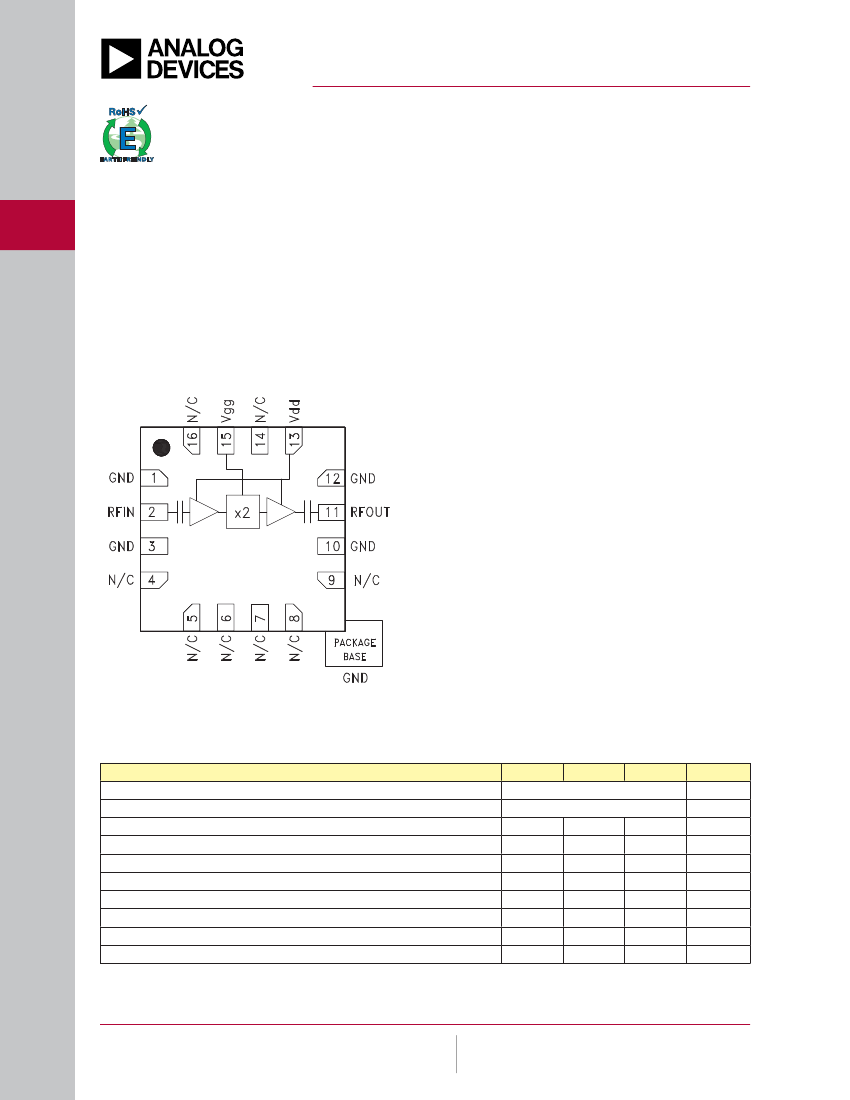

Functional Diagram
General Description
The HMC561LP3(E) is a x2 active broadband frequ-
ency multiplier utilizing GaAs PHEMT technology
in a leadless RoHS compliant SMT package. When
driven by a +5 dBm signal, the multiplier provides
+14 dBm typical output power from 8 to 21 GHz and
the Fo and 3Fo isolations are 15 dBc at 16 GHz. The
HMC561LP3(E) is ideal for use in LO multiplier chains
for Pt to Pt & VSAT Radios yielding reduced parts
count vs. traditional approaches. The low additive
SSB Phase Noise of -139 dBc/Hz at 100 kHz offset
helps maintain good system noise performance. The
RoHS packaged HMC561LP3(E) eliminates the need
for wire bonding, and allows the use of surface mount
manufacturing techniques. For availability on Non-
RoHS compliant HMC561LP3 product please contact
Hittite Microwave sales directly.
Electrical Specifi cations,
T
A
= +25°C, Vdd = +5V, 5 dBm Drive Level
Parameter
Frequency Range, Input
Frequency Range, Output
Output Power
Fo Isolation (with respect to output level)
3Fo Isolation (with respect to output level)
4Fo Isolation (with respect to output level)
Input Return Loss
Output Return Loss
SSB Phase Noise (100 kHz Offset)
Supply Current (Idd) (Vdd = 5V, Vgg = -1.7V Typ.)
*Adjust Vgg between -2.0 and -1.2V to achieve Idd = 98 mA
11
Min.
Typ.
4 - 10.5
8 - 21
14
15
15
20
16
8
-139
98
Max.
Units
GHz
GHz
dBm
dBc
dBc
dBc
dB
dB
dBc/Hz
mA
7 - 82
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com

115556-HMC561LP3 Related Products

115556-HMC561LP3 HMC561LP3TR HMC561LP3E HMC561LP3ETR
Description BOARD EVAL HMC561LP3E IC MULTIPLIER X2 PHEMT 16QFN IC MULTIPLIER X2 BB FREQ 16-QFN
frequency 4GHz ~ 10.5GHz 8GHz ~ 21GHz 8GHz ~ 21GHz -
