382260: Description80W SWITCHING MODE DC POWER SUPP; CategoryTopical application Test and measurement; File Size198KB，1 Pages; ManufacturerFLIR

Download Datasheet Parametric Compare View All

382260 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	382260	-	-	View	Buy Now

382260 Overview

80W SWITCHING MODE DC POWER SUPP

382260 Parametric

Parameter Name	Attribute value
type	Workbench (AC to DC)
Voltage - Power	90 ~ 264VAC
Voltage - Output	0.1 ~ 16.4VDC， 0.1 ~ 27.6VDC， 0.1 ~ 36.8VDC
Current - Output	0.1 ~ 5.1A， 0.1 ~ 3.1A， 0.1 ~ 2.3A
display type	LED
Number of characters	4（2）
Number of outputs	1
size/dimensions	13.000" long x 2.000" wide x 5.000" high (330.20mm x 50.80mm x 127.00mm)
characteristic	Constant current and constant voltage indicators, optional output
Power (W)	80W
Accuracy - Voltmeter; Ammeter	±1%; ±1%
Voltage Regulation - Line	4mV
Voltage Regulation - Load	20mV
Current Regulation - Line	-
Current Regulation - Load	-
ripple	30mV p-p

Preview

Download Datasheet

View All

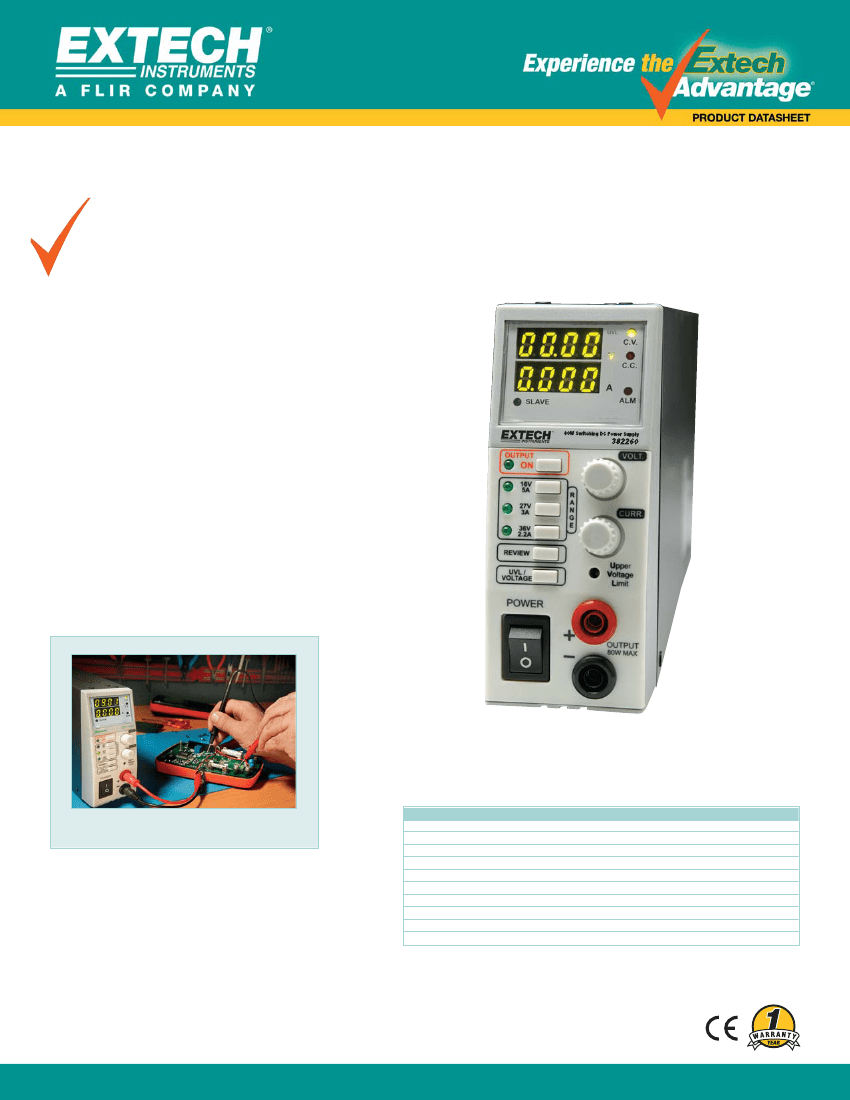

80W Switching Mode DC Power Supply

3-in-1 Power Supply

Three output ranges perform like 3 power supplies in one

Features:

•

Constant voltage or current

•

3 selectable ranges:

- 0.10 to 16.40V/0.100 to 5.100A

- 0.10 to 27.60V/0.100 to 3.100A

- 0.10 to 36.80V/0.100 to 2.300A

•

4-Digit LED displays

•

Front/Rear output terminals

•

Remote sensing for accurate applied voltage at load point

•

Compact slim tower housing is ideal for tight work bench

•

Lightweight for easy portability

•

Complete with AC Power cord

Current limited DC supply for electronic repair and calibration

Specifications

Voltage Output (3 ranges)

Current Output (3 ranges)

Basic accuracy

Ripple & Noise

Line Regulation

Load Regulation

Display

Power

Dimensions

Weight

0.10 to 16.40V

0.10 to 27.60V

0.100 to 5.100A

0.100 to 3.100A

±1%

<30mVpp

<4mV

<20mV

Dual 4-digit LED displays

90-264VAC; 47-63Hz

13 x 5 x 2" (330 x 127 x 53.5mm)

4.2lbs (1.9kg)

0.10 to 36.80V

0.100 to 2.300A

Ordering Information:

382260

..........80W Switching Mode DC Power Supply

www.extech.com

Specifications subject to change without notice.

4/1/09 - R1

382260 Related Products

	382260
Description	80W SWITCHING MODE DC POWER SUPP
type	Workbench (AC to DC)
Voltage - Power	90 ~ 264VAC
Voltage - Output	0.1 ~ 16.4VDC， 0.1 ~ 27.6VDC， 0.1 ~ 36.8VDC
Current - Output	0.1 ~ 5.1A， 0.1 ~ 3.1A， 0.1 ~ 2.3A
display type	LED
Number of characters	4（2）
Number of outputs	1
size/dimensions	13.000" long x 2.000" wide x 5.000" high (330.20mm x 50.80mm x 127.00mm)
characteristic	Constant current and constant voltage indicators, optional output
Power (W)	80W
Accuracy - Voltmeter; Ammeter	±1%; ±1%
Voltage Regulation - Line	4mV
Voltage Regulation - Load	20mV
ripple	30mV p-p
