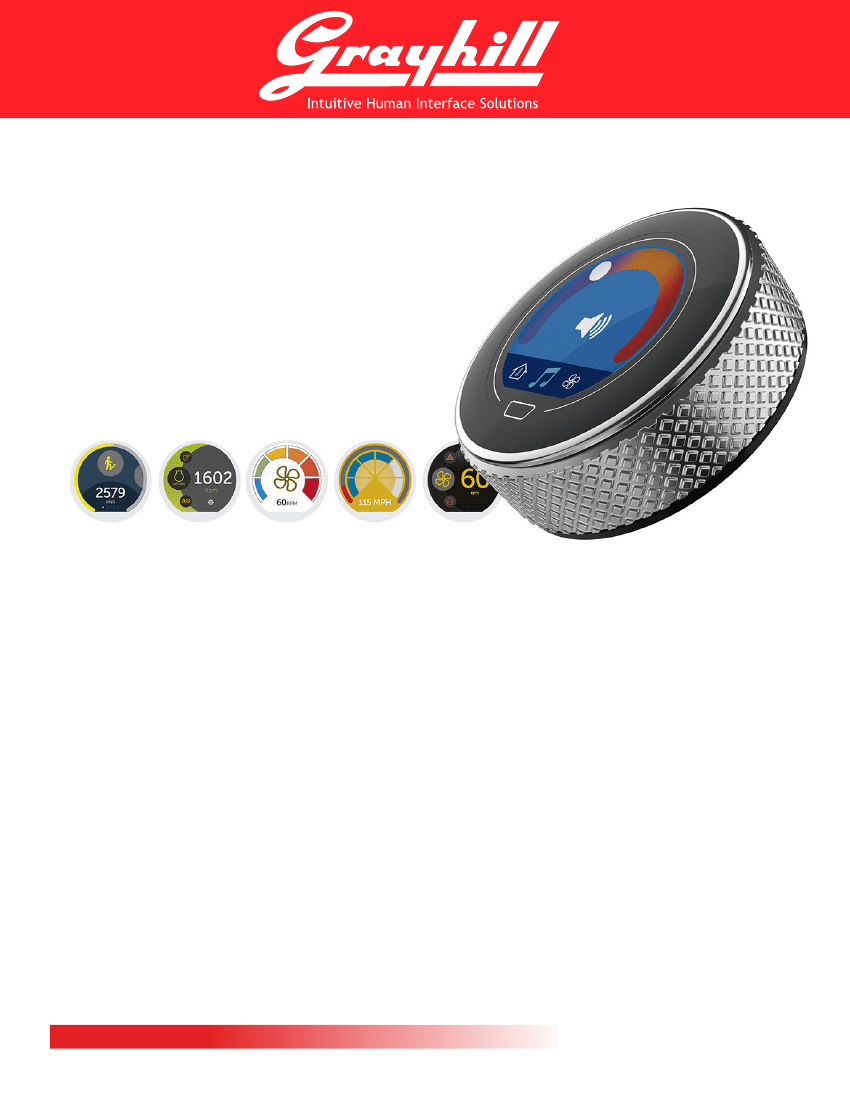

Reimagining the User Experience
Touch Encoder
KEY FEATURES
• Replaces many traditional user input devices
(such as switches, keypads, pushbuttons,
displays, etc.) with a simple, easy to use device
• Optimal Front Panel Footprint
• Supported Gestures: Tap + Swipe + Turn
• High Resolution Display: 330 PPI (320 X 300)
• Quick User Interface Development
◦ Intuitive Tablet Based Development Platform
◦ Library of Configurable Standard Widgets
•
•
•
•
Stores hundreds of screens (32MB memory)
Incorporates pictures: PNG, JPEG, etc.
Field Upgradable Application and Firmware
Robust: Sealed to IP67, High Impact
Strength, Chemical Resistant
• 1,000,000 Encoder Cycles
• USB 2.0 or CAN J1939 communications with
host device
MATERIALS
• Cover Lens: Polyester
• Knob: 304 Stainless Steel with Optional Black
Chrome Finish or Silicone Grip
• Rear Housing: Nylon
• Mounting Nut: Nylon
• RoHS 2018/863 Compliant
TOUCHSCREEN/DISPLAY
• Optically Bonded Display and Touchscreen
for Excellent Sunlight Readability
• Touchscreen Construction: High Resolution
PCAP ITO
www.grayhill.com
Patents Applied and Pending
Bulletin 1297
Rev0818
Preliminary
General
Device Diameter (O.D.):
2.200 in (55.88 mm) Nominal
Display Diameter (V.A.):
1.320in (33.50 mm) Nominal
Touchscreen:
Projected Capacitive
Display – Type:
Round Color TFT LCD, 320 X 300
Display – Brightness:
200 Cd/m2
Positions/Revolution:
32
Connector Style:
M12 5-Pin Connector or PC Board Connector
Mechanical
Pushout Force (Max):
45 lbs (200 N)
Pullout Force (Max):
45 lbs (200 N)
Side Load Force:
45 lbs (200 N)
Lens Hardness:
2H
Lens Impact:
IK5
Mounting Torque (Nominal):
4
–
10 in-lbs
Mounting Torque (Max):
14 in-lbs
M12 Connector Torque (Max):
14 in-lbs
M12 Connector Pull-Out:
15 lbs (66.7 N)
Mounting Alignment (Maximum):
< 1Deg
Weight (Production Unit):
4.25 oz (120.6 g)
Environmental
Operating Temp. Range: -20 to 65 °C
Storage Temperature: -30 to 70 °C
Humidity:
95% @ 65 °C
Mechanical Shock:
ANSI EP455 5.14.1
Seal (Electronics):
IP67
Radiated Immunity:
IEC 61000-4-3
80 - 2700 MHz 10 V/M
Electrical Function
Operating Voltage:
4.75 to 18 Vdc;
Max Operating Power:
1.5 W @ Max Brightness
Memory:
32MB
Standby Power Mode:
< 100 mW
Sleep Mode Wakeup Time:
500 mSec
Boot Time:
5 Seconds to O.S.
USB Interface:
2.0 Full Speed Composite Device
CANbus Interface:
J1939 Compliant
Conducted Immunity:
IEC 61000-4-6 LEVEL 2 - 130 dBµV, 150 KHz to 80 MHz
ESD:
IEC
61000-4-2: 8 kV Contact; 15 kV Air
Vibration (Random):
50 - 2000 Hz, 2hr Each Axis ANSI EP455 5.15.2
Chemical Resistance:
Designed to survive repeated exposure to most chemicals found in Medical,
Off-Highway, and Industrial applications.
Solar Radiation:
ISO 4892.2 Method B
Power Frequency Magnetic Field:
Meets IEC 61000-4-8, 100 A/m
Electrical Fast Transient/Burst:
IEC 61000-4-4 ±1kV Coupling Clamp
Conducted Emissions:
EN 55011, EN55032 Class B
Radiated Emissions:
EN 55011, EN55032 FCC Part 15 Class B
For more information, contact us at
TE@grayhill.com
Encoder Function
Initial Rotational Torque:
3.50 ± 2.00 in-oz (Medium Torque Option)
Rotational Life:
1,000,000 Cycles
Detent Type:
Ball Spring
Encoder Sensing Technology:
Hall Effect
Part Numbers
TE-M32MX -A1XX
OUTPUT:
SIZE:
M = MEDIUM, 2.22IN [56.4MM] DIA KNOB
U = USB 2.0
C = CAN J1939
CONNECTION STYLE:
POSITION:
1 = M12 5POS MALE CIRCULAR
2 = PC BOARD CONNECTOR, 5POS MALE
32 = 32 POSITION, 11.5 ANGLE OF THROW
DISPLAY:
MEMORY:
A = 32MB
TORQUE OPTION:
M = MEDIUM TORQUE
1 = 1.32 [33,6] ROUND DISPLAY
KNOB STYLE:
1 = DIAMOND KNURL, 304 SS
2 = BRUSHED FINISH, 304 SS
3 = DIAMOND KNURL, BLACK CHROME, 304SS
4 = BRUSHED FINISH, BLACK CHROME, 304SS
5 = SILICONE GRIP

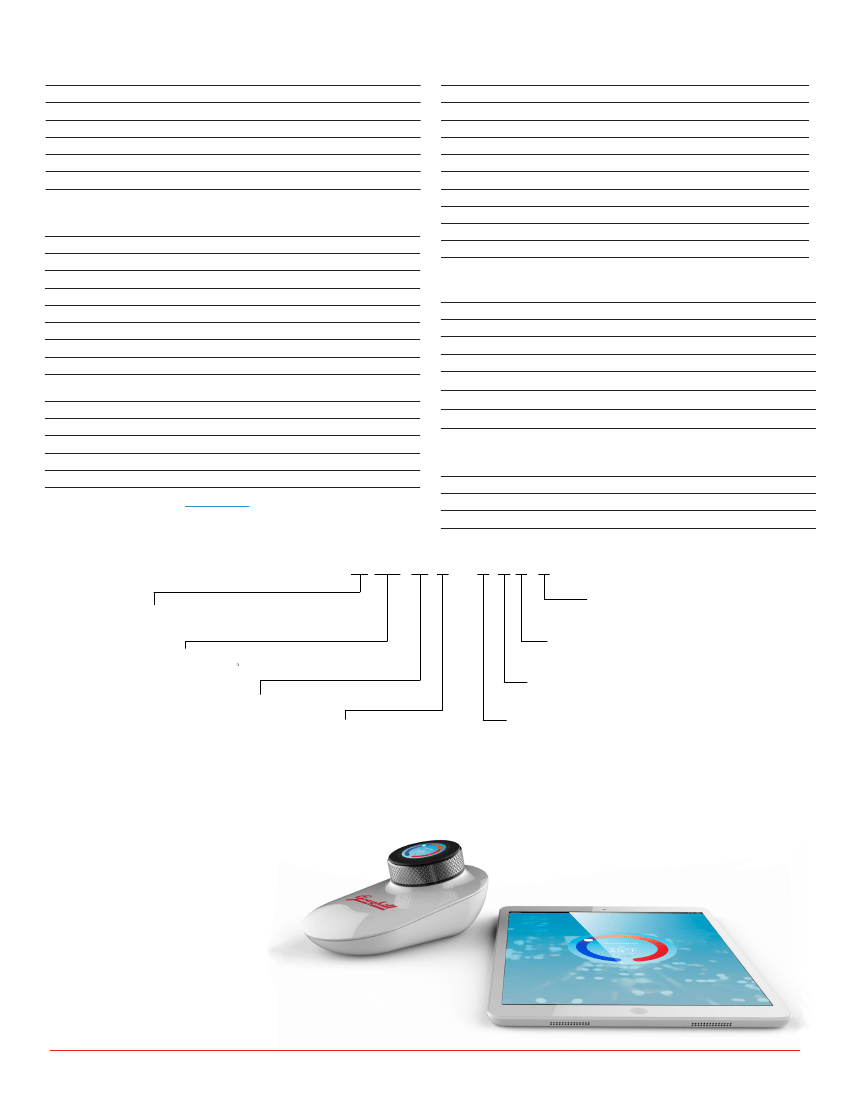

Software Development Kit P/N: TE-M321-SDK (without iPad) & TE-M321-SDKT (with iPad)
Inside the Kit:
Touch Encoder Development Module
CANbus Interface Cable
Red Programming Cable
Power to USB Cable
Power Supply Wall Mount
Thumb drive
White USB Micro B to USB Type A Adapter Cable
* iPad is a registered trade mark of Apple Corporation
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
Preliminary
6 0 5 2 5 - 5 9 9 7 • U S A • P h o n e : 7 0 8 - 3 5 4 - 1 0 4 0 • F a x : 7 0 8 - 3 5 4 - 2 8 2 0 • w w w. g r a y h i l l . c o m
Patents Applied and Pending

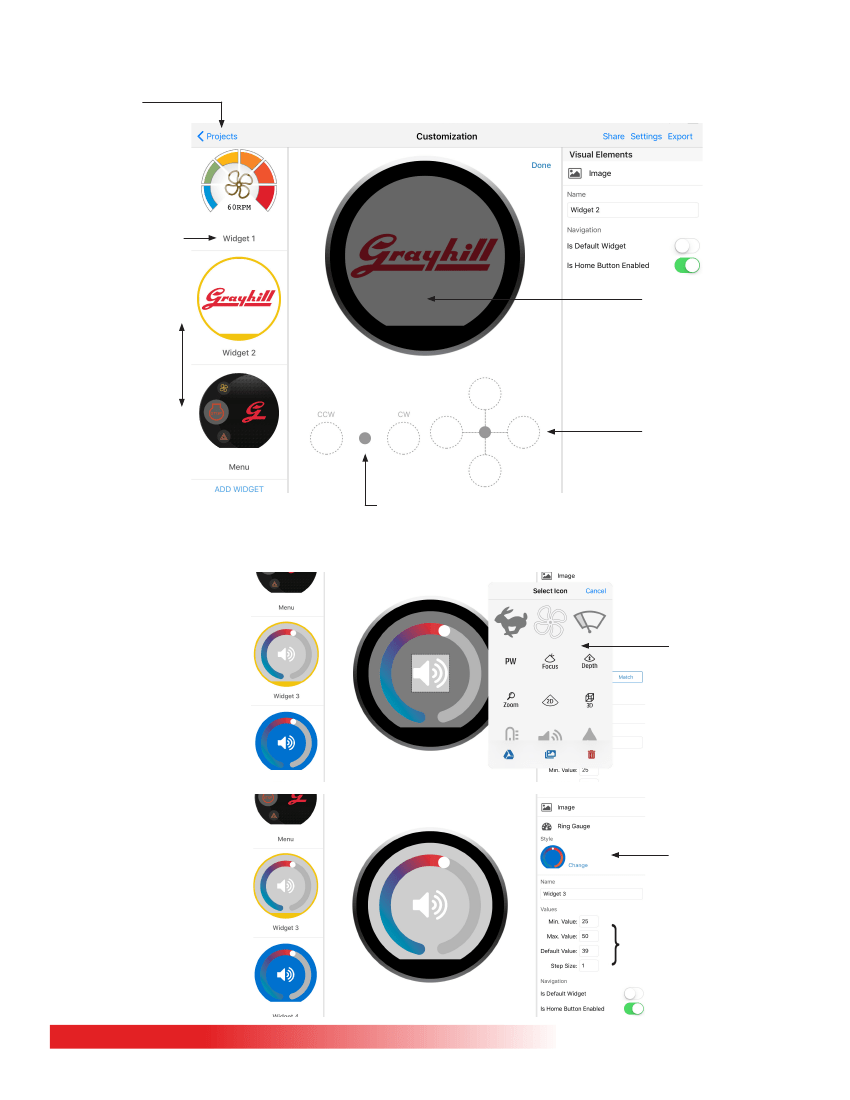

Simple, Intuitive Application Development using Grayhill GIIB App
Create & store
multiple projects
Simulate your program on the iPad before downloading it to the Touch Encoder
Create individual screens
using any combination of
widgets (from the widget
library), pictures and
graphics
Add in touch zones; Tap
anywhere on the screen to
define size and location
Scroll up and down to
see all of the screens
on your workspace
Drag and drop screens
from your workspace into
N,S,E,W swipe zones
Drag and drop screens from your workspace to
define what happens when the knob is rotated
Fully Customizable Standard Widgets
Select Icon
from Menu
Change Colors
Determine values/increments
for rotary movements
www.grayhill.com
Patents Applied and Pending
Preliminary
Bulletin 1297
Rev0818
Pin Numbering Detail
CONNECTOR OUTPUT
PIN #
1
2
3
4
5
USB
Mode
IN
GND
USB +
USB -
V
CAN
Mode
IN
GND
CAN +
CAN -
V
ALIGNMENT TAB
2
5
3
1
To put device in programming mode:
Connect Mode pin #1 to GND @ Power up.
Leave Mode pin #1 open for run mode
(Normal Operation)
Mode Pin Truth Table @ Power up
4
Program Mode
Run Mode
GND
Open
Mounting Information
Suggested Mounting Pattern
IN [MM]
0.134 [3,40]
0.725 [18,42]
0.840
[21,34]
0.590
[14,99]
Standard Plastic Mounting Nut
IN [MM]
3X 0.945
[24,00]
Packaging Retainer (remove before use)
IN [MM]
1.343
[34.11]
0.825
[20.96]
0.120
[3,05]
0.074 [1,88]
M17 X 1
.052 - .072
[1.32 - 1.83]
Max Radius = 0.020 [0.5]

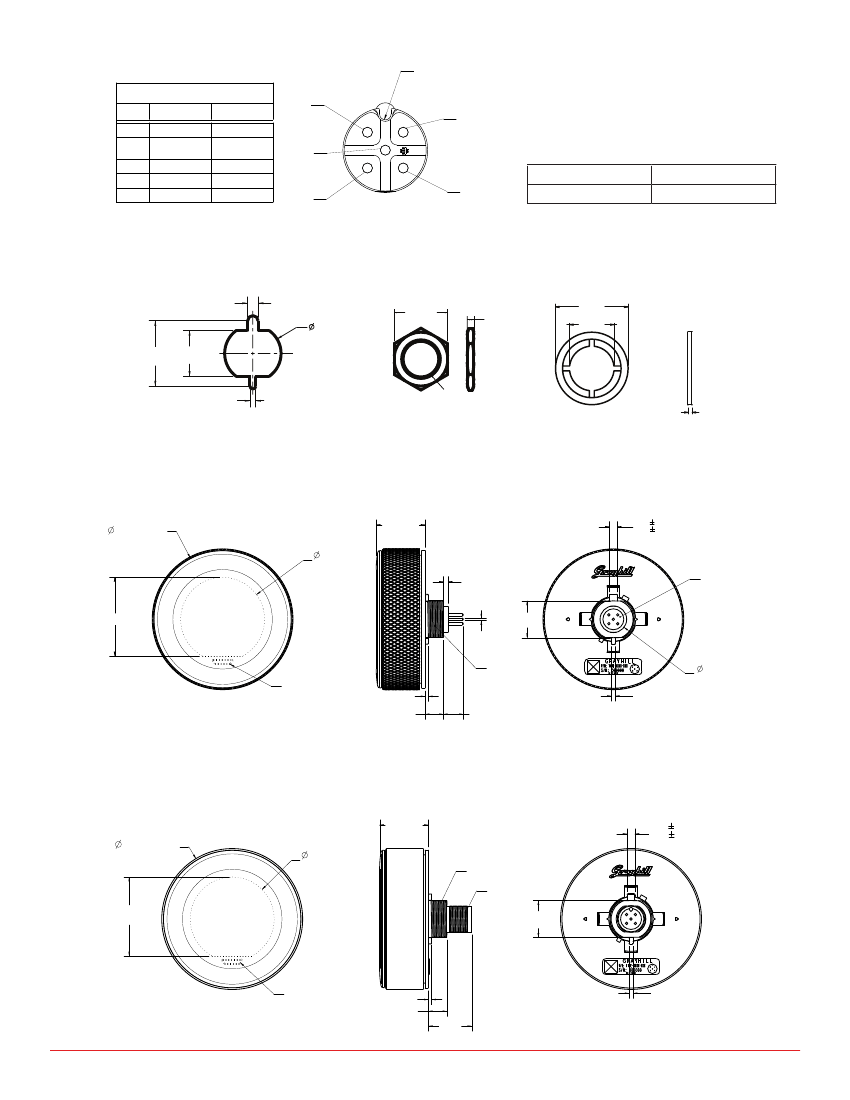

Dimensions
TE-M32MX-A12X
(PC Board 5-Position Male)
IN [MM]
0.770±0.030
[19,55±0,76]
2.190
[55,63]
1.323 [33,60]
DISPLAY A.A.
[
3,13 0,12 ]
0.123 0.005
FEATURE DENOTES UP
0.074
[1,88]
RTV SEAL
0.039±0.003
[1,00±0,07]
1.240 [31,50]
DISPLAY A.A.
0.580
[14,73]
M17 X 1
MOUNTING
HOME BUTTON
0.049
0.289
[1,24]
[7,34]
0.420
[10,67]
0.063±0.005
[1,61±0,12]
0.316
[8,04]
MATING CONNECTORS (OR EQUIVALENT):
PHOENIX CONTACT P/N 1411976
PHOENIX CONTACT P/N 1411977
TE-M32MX-A11X
(M12 5-Position Male)
IN [MM]
0.770±0.030
[19,55±0,76]
2.220
[56,39]
1.323 [33,60]
DISPLAY A.A.
M17 X 1
MOUNTING
M12 CONNECTOR
MALE PINS
0.123 0.005
[ 3,13 0,12 ]
FEATURE DENOTES UP
1.240 [31,50]
DISPLAY A.A.
0.580
[14,73]
HOME BUTTON
Preliminary
0.049
0.289
[1,24]
[7,34]
0.683
[17,35]
0.063±0.005
[1,61±0,12]
MATING CONNECTORS (OR EQUIVALENT):
AMPHENOL INDUSTRIAL P/N HDM12PF05A1STM
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
6 0 5 2 5 - 5 9 9 7 • U S A • P h o n e : 7 0 8 - 3 5 4 - 1 0 4 0 • F a x : 7 0 8 - 3 5 4 - 2 8 2 0 • w w w. g r a y h i l l . c o m
Patents Applied and Pending
