GPTS203212B datasheet, PDF - EEWORLD Datasheet

GPTS203212B: DescriptionSWITCH PUSHBUTTON SPST 1A 30V; CategoryMechanical and electronic products switch; File Size35KB，1 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com

Download Datasheet Parametric Compare View All

GPTS203212B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GPTS203212B	-	-	View	Buy Now

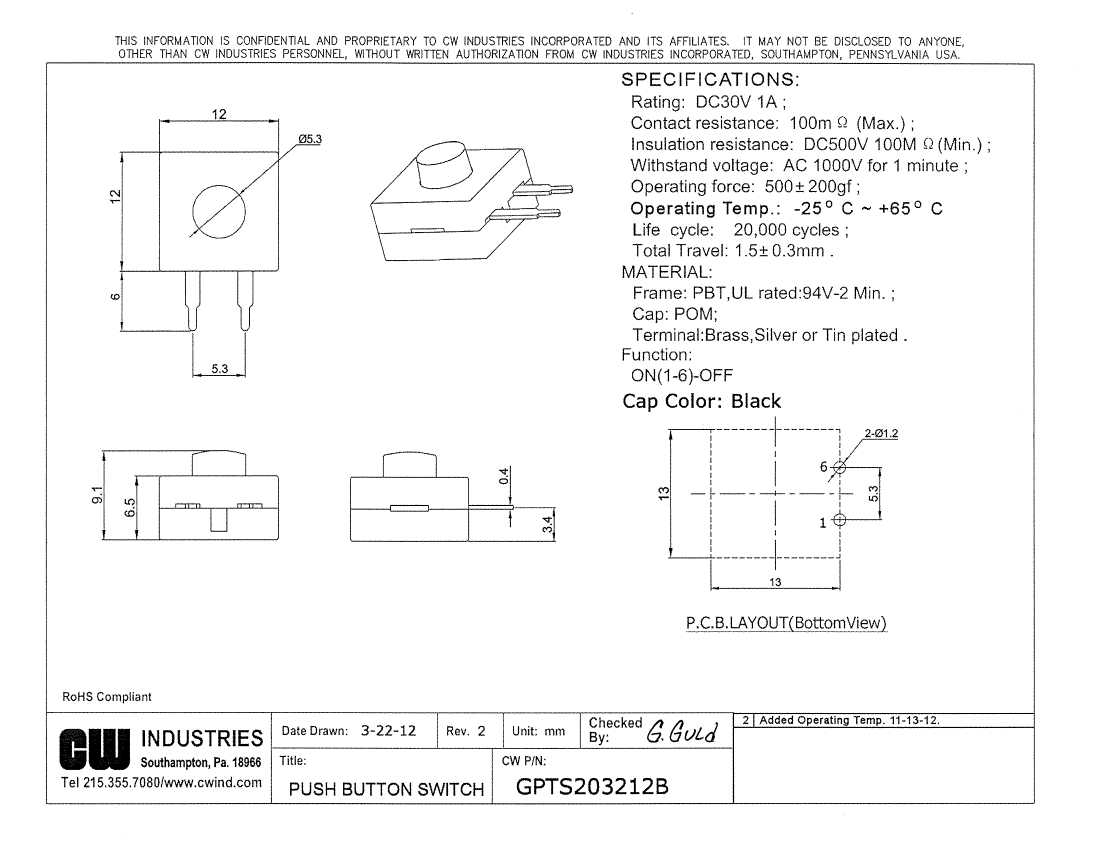

SWITCH PUSHBUTTON SPST 1A 30V

Parameter Name	Attribute value
Reach Compliance Code	compliant
Actuator length	0.102 inch
Actuator type	PUSHBUTTON
body width	11.9888 mm
body height	6.5024 mm
Body length or diameter	11.9888 mm
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VAC V
Electrical life	20000 Cycle(s)
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB hole count	2
surface mount	NO
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.236 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

	GPTS203212B
Description	SWITCH PUSHBUTTON SPST 1A 30V
Reach Compliance Code	compliant
Actuator length	0.102 inch
Actuator type	PUSHBUTTON
body width	11.9888 mm
body height	6.5024 mm
Body length or diameter	11.9888 mm
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VAC V
Electrical life	20000 Cycle(s)
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB hole count	2
surface mount	NO
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.236 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1
