Part Number

Search

SMP-PR(SB)-SMT-1

Description
CONN RCPT SMP 50 OMH 30GHZ SMD
CategoryThe connector
File Size332KB,12 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric View All

SMP-PR(SB)-SMT-1 Overview

CONN RCPT SMP 50 OMH 30GHZ SMD

SMP-PR(SB)-SMT-1 Parametric

Parameter NameAttribute value
Connector styleSMP
Connector typesocket, male pin
Contact terminationwelding
Protective terminationwelding
impedance50 ohms
Installation typesurface mount
Installation features-
cable set-
Fastening typepush-pull
Frequency - maximum30GHz
Number of ports1
characteristicsmooth hole
Shell colorgold
Intrusion protection-
include-
Matrix materialbrass
substrate surfacegold
Center contact platinggold
dielectric materialsLiquid Crystal Polymer (LCP)
Operating temperature-55°C ~ 125°C
center contact materialcopper beryllium
Number of patches1000
Insertion loss-

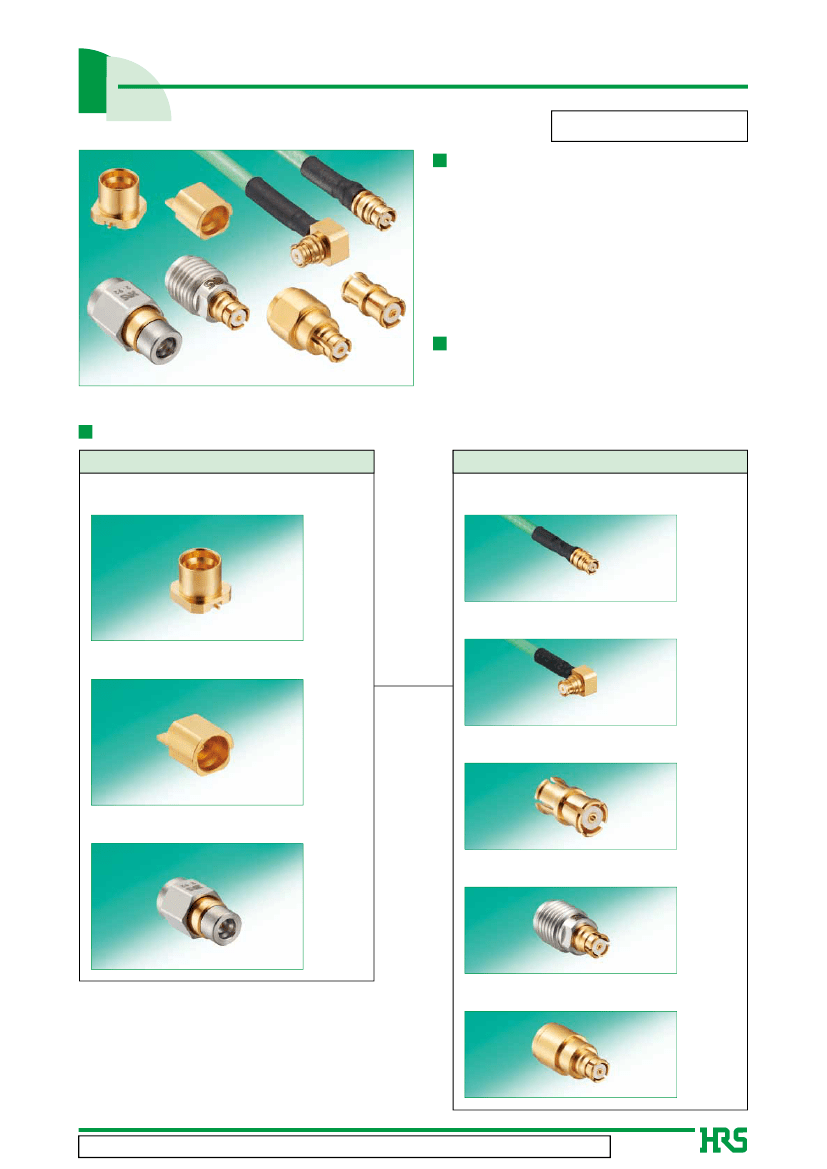

SMP Coaxial Connectors MIL Standard Compliant
SMP Series
Up to 40GHz
Features
1. Excellent High Frequency performance
2. Easy push-on lock
3. Wide variations
4. MIL Standard compliant (MIL-STD-348B)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. RoHS2 compliant
6. Halogen-free
Applications
Optical transmission devices,
Data transmission measurement,
Radio communication equipment,
Measuring instruments etc.
Functional diagram
Plug side
■Straight
plug receptacle
SMP-PR(**)-SMT-1
Jack side

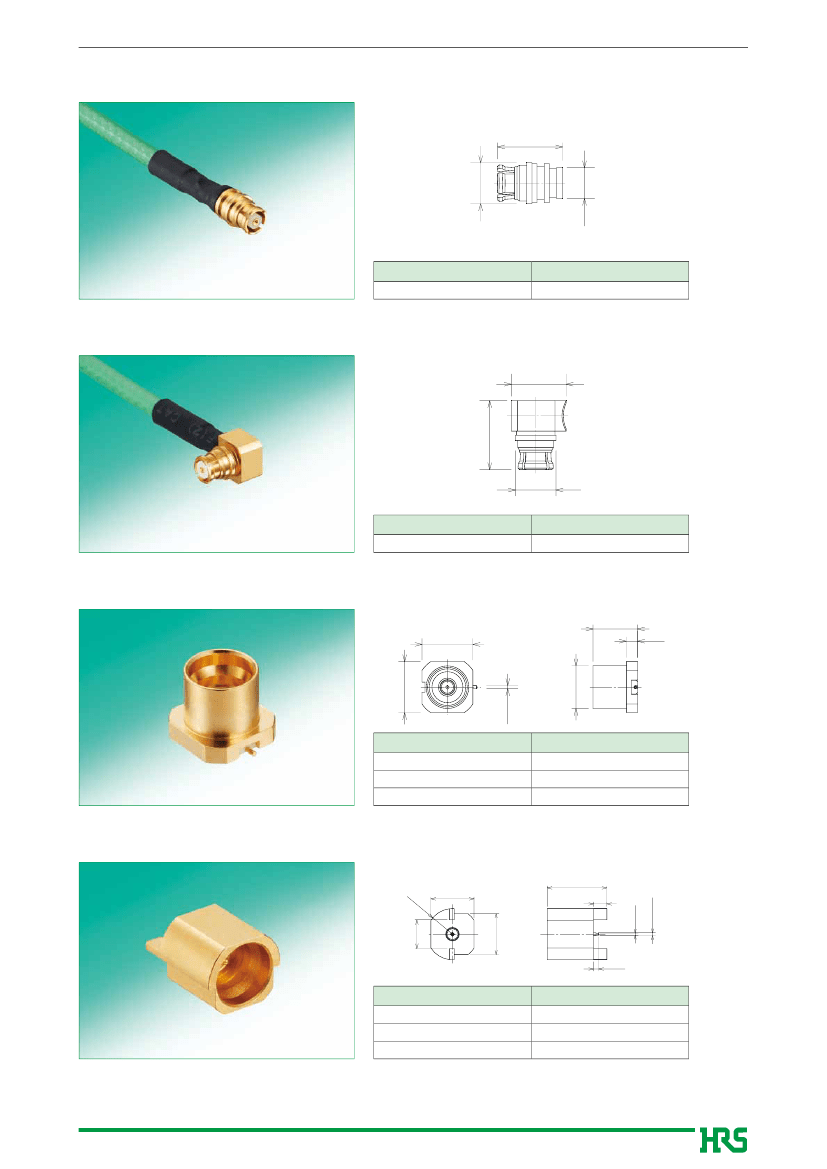

■Jack
SMP-J-SF085
■Right
angle jack
SMP-LJ-SF085
■Right
angle plug receptacle
SMP-LPR(**)-SMT-1

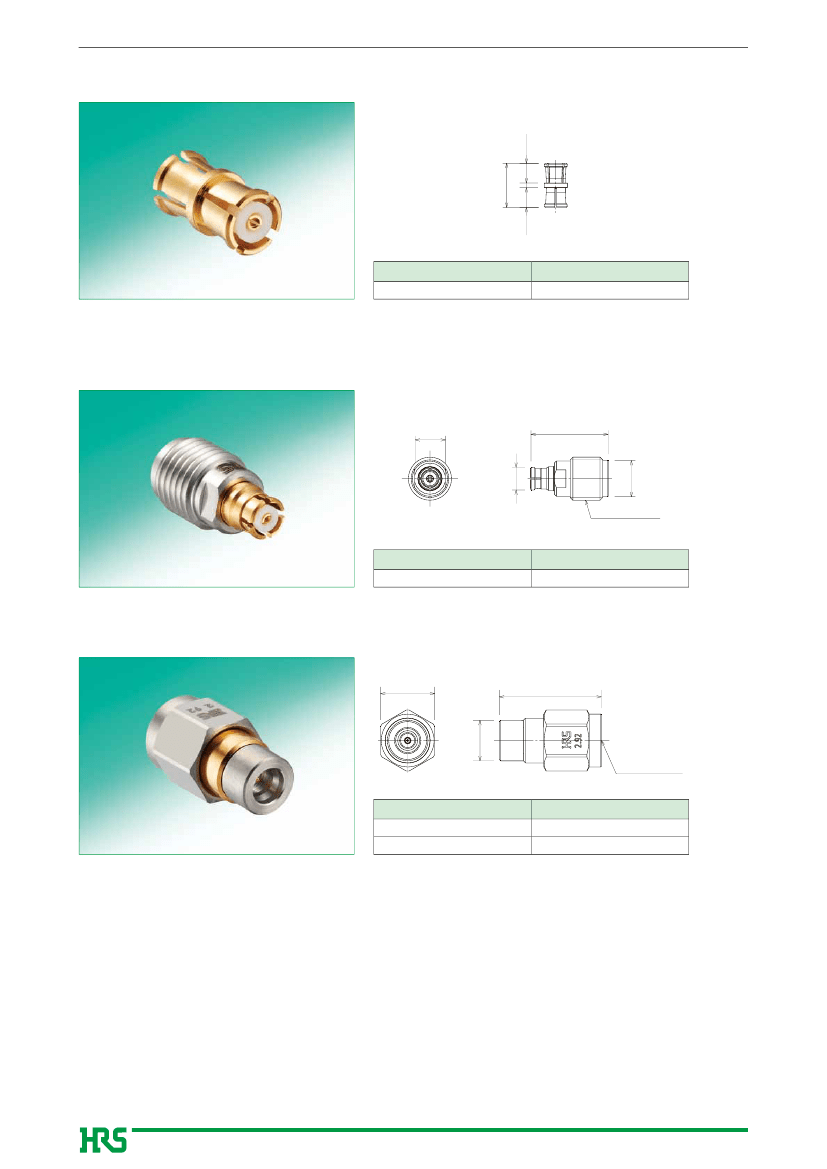

■Relay
adapter (Jack to Jack)
SMP-A-JJ-645
■Conversion
adapter (SMP plug to 2.92mm plug)
SMPP(**)-HKP

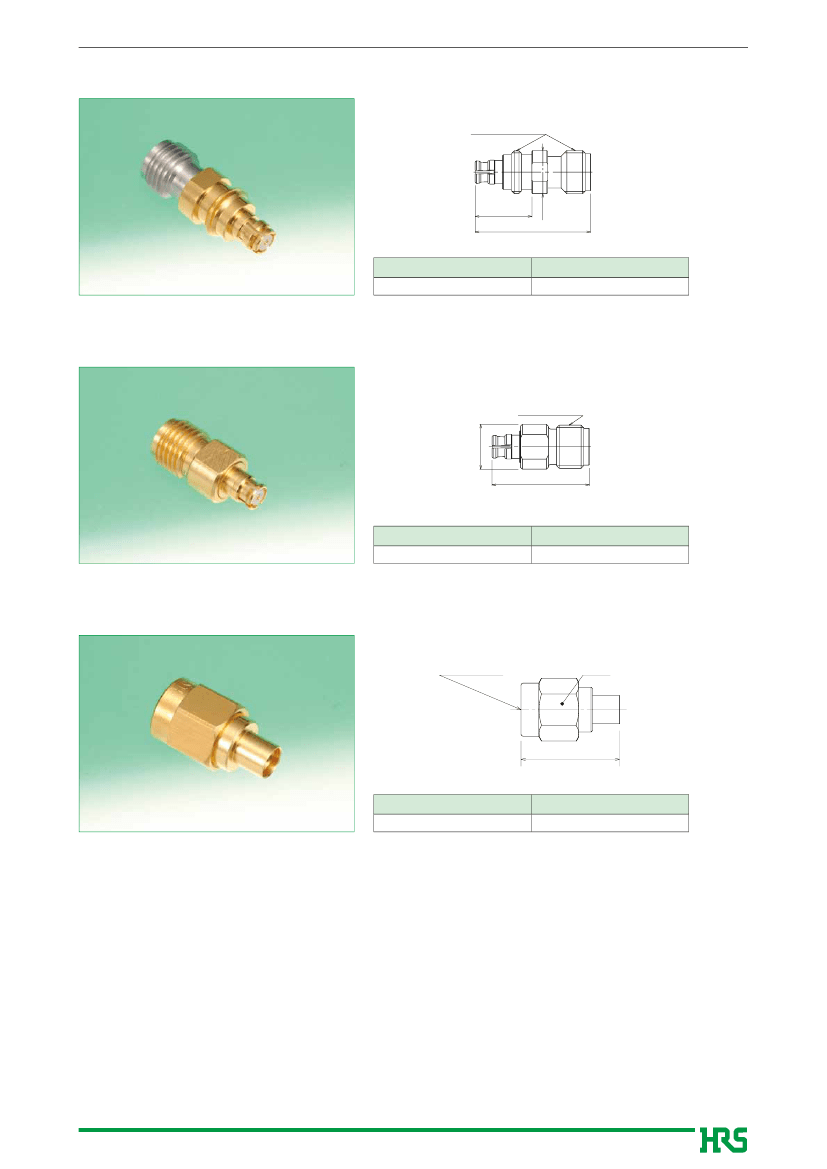

■Conversion
adapter (SMP jack to 2.92mm jack)
SMPJ-HKJ
■Terminator
SMP-TMJ
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.5②
1
