Component terminal block - PTTBS 1,5/S/U-OG/O-GN - 3214666
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Component terminal block, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Connection type: Push-in
connection, Width: 3.5 mm, Color: Green/orange, Mounting type: NS 35/7,5, NS 35/15
Product Features
The push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
50 PCE
8.0 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
2
4
Green/orange
PA
V0
6 kV
III
I
IEC 60947-7-1
16 A
21.11.2013 Page 1 / 12
https://www.phoenixcontact.com/us/products/3214666
Component terminal block - PTTBS 1,5/S/U-OG/O-GN - 3214666
Technical data
General
Nominal voltage U
N
Open side panel
500 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
3.5 mm
78.8 mm
48.2 mm
55.7 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in connection
8 mm
A1 / B1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141121
27141121
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
EC000897
EC000897
21.11.2013 Page 2 / 12
https://www.phoenixcontact.com/us/products/3214666
Component terminal block - PTTBS 1,5/S/U-OG/O-GN - 3214666
Classifications
ETIM
ETIM 5.0
EC000903
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories

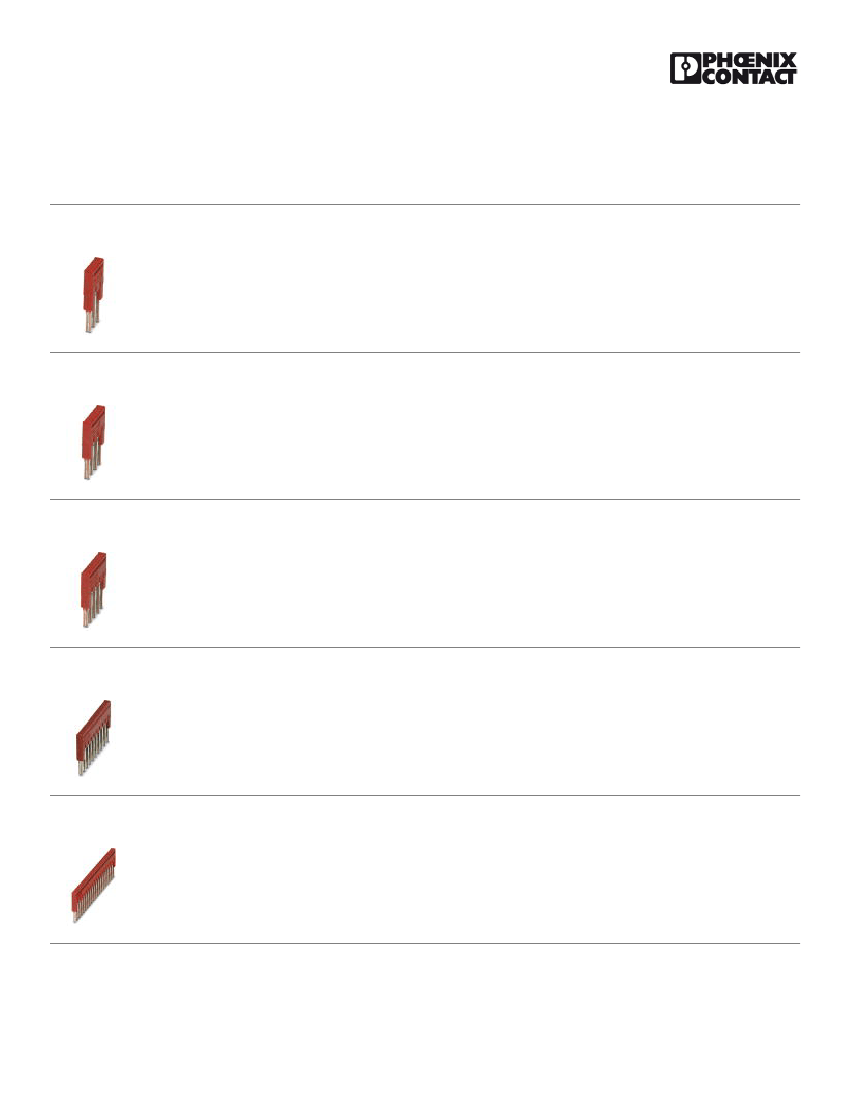

Bridge
Jumper - FBS 2-3,5 - 3213014
Jumper, Number of positions: 2, Color: red
21.11.2013 Page 3 / 12
https://www.phoenixcontact.com/us/products/3214666
Component terminal block - PTTBS 1,5/S/U-OG/O-GN - 3214666
Accessories
Jumper - FBS 3-3,5 - 3213027
Jumper, Number of positions: 3, Color: red
Jumper - FBS 4-3,5 - 3213030
Jumper, Number of positions: 4, Color: red
Jumper - FBS 5-3,5 - 3213043
Jumper, Number of positions: 5, Color: red
Jumper - FBS 10-3,5 - 3213056
Jumper, Number of positions: 10, Color: red
Jumper - FBS 20-3,5 - 3213069
Jumper, Number of positions: 20, Color: red
Documentation
21.11.2013 Page 4 / 12
https://www.phoenixcontact.com/us/products/3214666
Component terminal block - PTTBS 1,5/S/U-OG/O-GN - 3214666
Accessories

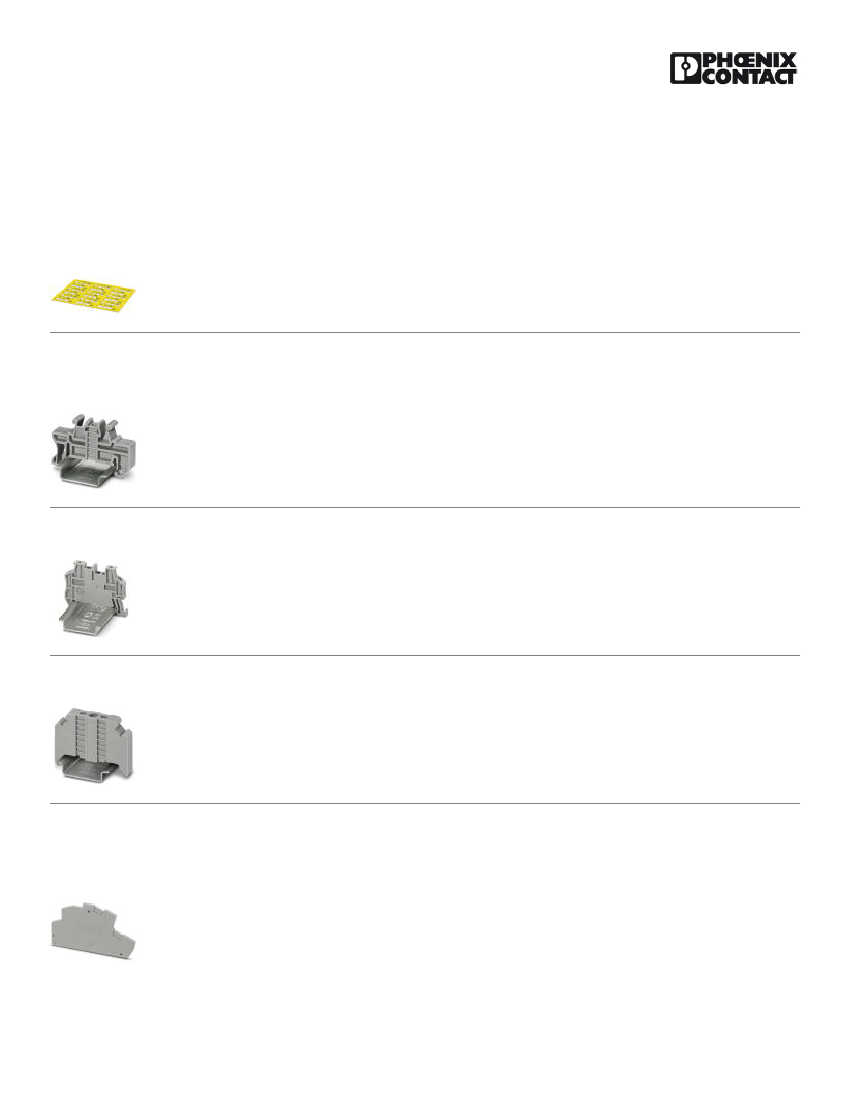

Mounting material - PT-IL - 3208090
Operating decal for the Push-in Technology
End block
End clamp - CLIPFIX 35 - 3022218
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
End clamp - CLIPFIX 35-5 - 3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for
FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
End clamp - E/NS 35 N - 0800886
End clamp, width: 9.5 mm, color: gray
End cover
End cover - D-PTTBS 1,5/S - 3214699
End cover, Length: 78 mm, Width: 2.2 mm, Color: gray
21.11.2013 Page 5 / 12
